Types of Wheel Speed Sensors
A wheel speed sensor is a critical electronic component in modern vehicles that detects the rotational speed of each wheel. By continuously monitoring wheel speed, this sensor provides real-time data to various vehicle systems such as Anti-lock Braking Systems (ABS), Electronic Stability Control (ESC), Traction Control Systems (TCS), and even automatic transmissions. This information enables the vehicle's control modules to make precise adjustments for improved safety, handling, and performance across diverse driving conditions including slippery roads, off-road terrain, and emergency braking situations.
Active Wheel Speed Sensors
Active sensors are commonly used in newer vehicles equipped with advanced safety features like ABS and traction control. These sensors generate their own electrical signal based on the wheel’s rotational speed and send continuous data to the vehicle's control module.
Advantages
- Highly accurate and responsive
- Provide consistent readings at all speeds
- Less affected by electromagnetic interference
- Better compatibility with advanced driver assistance systems (ADAS)
Limitations
- Require external power supply
- More complex design increases repair cost
- May require specialized tools for diagnosis
Best for: Modern vehicles with advanced safety systems, high-performance cars, and luxury models
Passive Wheel Speed Sensors
Passive sensors are typically found in older vehicles or as backup systems in newer models. They rely on electromagnetic induction generated by rotating components near the sensor to produce a signal without requiring an external power source.
Advantages
- No external power required
- Simpler construction improves reliability
- Lower manufacturing and replacement costs
- Easier diagnostics due to analog signal output
Limitations
- Signal strength decreases at low speeds
- More susceptible to dirt and magnetic interference
- Less precise than active sensors
Best for: Older model vehicles, basic transportation needs, and budget-conscious applications
Magnetic Induction Sensors
This category includes both active and passive types and operates by detecting changes in magnetic fields caused by rotating gear teeth or other ferrous components near the sensor. These sensors are widely used due to their durability and effectiveness in harsh environments.
Advantages
- Robust design suitable for extreme conditions
- Effective in dusty, wet, or vibration-prone areas
- Long service life under normal operating conditions
- Compatible with various automotive and industrial applications
Limitations
- Accuracy can be affected by metallic debris buildup
- Signal quality degrades over time with wear
- Less sensitive compared to Hall-effect sensors
Best for: Heavy-duty vehicles, commercial trucks, and industrial equipment
Hall-effect Sensors
Hall-effect sensors utilize semiconductor technology to detect variations in magnetic fields with exceptional precision. These sensors are increasingly popular in modern vehicles due to their digital output capabilities and integration into complex control networks.
Advantages
- High sensitivity and accuracy across all speeds
- Digital output enables seamless integration with vehicle ECUs
- Excellent resistance to environmental contaminants
- Supports advanced functions like torque vectoring and adaptive cruise control
Limitations
- More expensive than traditional magnetic sensors
- Require stable voltage supply for optimal operation
- May need recalibration after replacement
Best for: High-tech vehicles, EVs, hybrid models, and autonomous driving platforms
| Type | Signal Type | Power Required | Precision | Ideal Use Case |
|---|---|---|---|---|
| Active Sensor | Digital/Analog | Yes | High | Modern vehicles with advanced safety systems |
| Passive Sensor | Analog | No | Moderate | Older vehicles, basic applications |
| Magnetic Induction | Analog | Variably | Good | Commercial vehicles, heavy machinery |
| Hall-effect | Digital | Yes | Very High | Electric vehicles, ADAS-equipped models |
Expert Tip: When replacing wheel speed sensors, always ensure you're using OEM or high-quality aftermarket parts to maintain proper calibration with your vehicle's ABS and stability control systems. Faulty sensors can trigger warning lights and compromise vehicle safety features.
Specifications and Maintenance of Wheel Speed Sensors
Critical Specifications for Optimal Performance
Wheel speed sensors (WSS) are essential components of a vehicle's anti-lock braking system (ABS), traction control system (TCS), and electronic stability program (ESP). Understanding their specifications ensures proper functionality and compatibility with your vehicle’s systems:
Voltage Requirements
The voltage rating is one of the most critical electrical specifications for wheel speed sensors. It determines how much power the sensor needs to operate effectively within the vehicle's electrical system.
Low-voltage sensors may struggle to send accurate data to the vehicle’s control module, leading to poor ABS performance or false error codes. Most modern vehicles use sensors operating between 5V and 12V, depending on the design of the ABS and engine control unit (ECU).
Signal Type Compatibility
Wheel speed sensors transmit data using different types of signals—each designed for specific control modules and vehicle architectures:
- Analog Signals: Older magnetic sensors that produce variable voltage sine waves based on rotational speed.
- Digital Signals: Modern Hall-effect sensors that output square waveforms, offering more precise readings and better immunity to interference.
- Frequency Modulated Signals: Used in advanced sensors where frequency changes correspond directly to wheel speed, improving accuracy at low speeds.
Choosing the correct signal type ensures seamless integration with the vehicle’s onboard diagnostics and safety systems.
Magnetic Field Strength

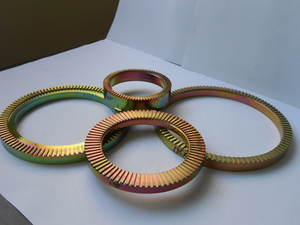

This specification applies specifically to magnetic wheel speed sensors. The strength of the magnetic field affects the sensor’s ability to detect toothed reluctor rings or tone wheels accurately.
Magnetic field strength is measured in microteslas (µT), and optimal values vary by manufacturer. A weak magnetic field can result in missed pulses or erratic readings, especially under high-speed conditions or when exposed to road contaminants.
Operating Temperature Range
Wheel speed sensors must function reliably across extreme environmental conditions. The temperature range defines the minimum and maximum temperatures at which the sensor remains operational without degradation.
Most OEM sensors are rated from -40°C to +150°C, ensuring durability in cold climates and resistance to heat buildup near brake rotors. Exceeding these limits can lead to internal component failure or inaccurate readings.
| Specification | Importance Level | Selection Tips |
|---|---|---|
| Voltage Rating | High | Ensure the sensor matches the vehicle’s ECU requirements; mismatched voltages can cause communication errors. |
| Signal Output Type | High | Match the signal type (analog/digital) to the vehicle’s ABS module to ensure compatibility and accuracy. |
| Temperature Tolerance | Medium-High | Select sensors with extended temperature ranges if driving in extreme weather conditions. |
| Magnetic Field Strength | Medium | For magnetic sensors, verify field strength aligns with factory specs to maintain detection precision. |
Effective Maintenance Practices
Proper maintenance of wheel speed sensors not only prolongs their lifespan but also ensures consistent performance of vital safety systems. Here are key practices to follow:
Important: Never ignore dashboard warning lights related to the ABS or traction control systems. These often indicate a fault with a wheel speed sensor or its circuitry. Prompt diagnosis and repair help prevent loss of vehicle stability and increased stopping distances.
How to Choose a Wheel Speed Sensor
Selecting the right wheel speed sensor for business applications requires careful consideration of multiple technical and operational factors. These sensors play a critical role in vehicle safety systems like ABS (Anti-lock Braking System), traction control, and stability control. Choosing the appropriate sensor ensures accurate data transmission, system reliability, and long-term cost efficiency.
Active vs Passive Sensors
The choice between active and passive wheel speed sensors depends on your specific application requirements and the vehicle's existing electronic architecture.
- Active sensors: Require external power from the ABS module, generate digital signals with high precision, ideal for high-speed applications and modern vehicles with advanced driver-assistance systems (ADAS).
- Passive sensors: Generate voltage through electromagnetic induction without requiring external power, more affordable but susceptible to signal noise, commonly used in older or basic ABS systems.
Key advantage: Active sensors offer superior signal quality at low speeds and are less affected by dirt and vibration.
Sensor Technologies
Different types of wheel speed sensors use varying technologies, each suited for specific vehicle systems and performance needs.
- Inductive sensors: Most common type, rely on magnetic fields to generate analog signals, economical and widely compatible with standard ABS systems.
- Hall effect sensors: Use semiconductor technology to detect changes in magnetic fields, provide digital output with higher accuracy, often found in premium and high-performance vehicles.
- Magnetoresistive sensors: Highly sensitive and precise, capable of detecting small variations in wheel speed, typically used in advanced ABS and electric vehicles.
Technical tip: Magnetoresistive sensors perform better in extreme conditions and are future-proof for evolving automotive electronics.
Environmental Considerations
Wheel speed sensors operate in harsh environments, exposed to road debris, moisture, extreme temperatures, and vibration. Selecting a sensor that can withstand these conditions is crucial for longevity and reliability.
- Look for sensors with robust housing materials like high-temperature resistant polymers or metal casings
- Ensure proper sealing with IP ratings of at least IP67 for dust and water resistance
- Choose sensors designed to resist corrosion from road salt and chemicals
- Consider operating temperature range (-40°C to +150°C is typical)
Durability factor: Sealed connectors and waterproof designs significantly improve sensor lifespan in demanding environments.
Installation and Maintenance
Installation complexity and maintenance requirements vary significantly between sensor types and should be considered based on available labor and technical resources.
- Active sensors require additional wiring to the ABS control module, increasing installation time and complexity
- Passive sensors are generally plug-and-play, making them easier to install and replace
- Some sensors come pre-calibrated, while others may require setup after installation
- Consider accessibility when choosing replacement sensors – hard-to-reach locations benefit from durable, longer-lasting units
Cost-saving advice: Investing in slightly more expensive sensors with easier access and longer life can reduce long-term maintenance costs.
Business Buying Tip: For commercial operations maintaining a mixed fleet, consider stocking universal-fit sensors where possible, but always verify compatibility with specific vehicle makes and models. Keeping detailed records of sensor performance across different vehicle types can help optimize future purchasing decisions.
| Application Type | Recommended Sensor | Signal Type | Typical Cost Range |
|---|---|---|---|
| Fleet maintenance (standard vehicles) | Inductive passive sensor | Analog | $15–$40 |
| High-performance vehicles | Hall effect active sensor | Digital | $50–$100 |
| Commercial trucks | Ruggedized inductive sensor | Analog | $30–$70 |
| Advanced EVs/ADAS-equipped cars | Magnetoresistive sensor | Digital | $80–$150 |
Budget Planning Advice: While initial purchase price matters, consider total cost of ownership including expected lifespan, failure rate, and potential downtime costs. In many cases, spending 20-30% more upfront for higher-quality sensors can lead to significant savings over time through reduced replacements and improved system performance.
DIY Replacement Guide for Wheel Speed Sensors (WSS)
Replacing a wheel speed sensor is a common maintenance task that can restore proper functionality to your vehicle's Anti-lock Braking System (ABS) and improve driving safety. While the job doesn't require advanced automotive expertise, it does demand careful attention to detail and basic mechanical and electrical knowledge. If you're unsure at any point during the process, it's strongly recommended to consult or hire a certified mechanic.
Safety Notice: Always work on a stable, level surface with the vehicle properly secured. Disconnecting and reconnecting electrical components requires caution. Never attempt this repair while the engine is running or the brake system is under pressure.
Understanding the Role of a Wheel Speed Sensor
The wheel speed sensor (WSS) monitors the rotational speed of each wheel and sends this data to the ABS control module. This information helps the ABS modulate brake pressure to prevent wheel lockup during hard braking. A faulty WSS can cause the ABS warning light to illuminate, reduce braking performance, and affect other systems like traction control and electronic stability control (ESC).
Pro Tip: Before replacing the sensor, use an OBD-II scanner to read diagnostic trouble codes (DTCs). These codes can help pinpoint which specific wheel speed sensor is malfunctioning, saving time and effort.
Step-by-Step Replacement Process
- Select the Correct Replacement Sensor
- Confirm the exact make, model, year, and trim of your vehicle before purchasing a new WSS
- Ensure compatibility with your vehicle’s ABS and electronic stability systems
- Choose OEM (Original Equipment Manufacturer) or high-quality aftermarket parts for reliability
- Gather Required Tools and Materials
- Socket set and wrenches (typically metric sizes)
- Screwdrivers (flathead and Phillips)
- Allen wrench set (if applicable)
- Pliers and wire cutters
- Torque wrench (for precise bolt tightening)
- Multimeter (to test sensor output if needed)
- Jack and jack stands or lift ramps
- New wheel speed sensor
- Clean rag and contact cleaner (optional)
- Prepare Your Vehicle for Work
- Park on a flat, level surface and engage the parking brake
- Loosen the lug nuts slightly before lifting the vehicle
- Use a floor jack to raise the vehicle and secure it on jack stands
- Remove the wheel to gain access to the sensor mounting location
- Locate and Identify the Faulty Sensor
- Consult your vehicle service manual for the exact location of the WSS
- Typically found on the steering knuckle, hub assembly, or axle housing
- Identify the correct sensor by tracing the wiring harness from the ABS control module or using DTCs
- Disconnect the sensor’s electrical connector carefully
- Remove the Old Sensor Safely
- Unbolt the sensor retaining bolt(s) using the appropriate socket or wrench
- Gently pull the sensor out of its mounting hole—be cautious not to damage surrounding components
- Clean any debris or rust from the sensor bore before installing the new unit
- Install the New Wheel Speed Sensor
- Apply a small amount of anti-seize lubricant to the sensor threads (if recommended by manufacturer)
- Insert the new sensor into the mounting hole and hand-tighten initially
- Secure the sensor with the retaining bolt to the specified torque value (refer to service manual)
- Reconnect the electrical connector securely
- Ensure the sensor tip is positioned correctly relative to the tone ring (usually within 1–2 mm clearance)
- Test the New Sensor Functionality
- Spin the wheel by hand and use a multimeter to measure the sensor’s AC voltage output
- Compare readings with specifications in the service manual
- If results are inconsistent, double-check installation and alignment
- Final Reassembly and Road Test
- Reinstall the wheel and tighten the lug nuts to factory torque specs
- Lower the vehicle safely and remove all tools and stands
- Clear any fault codes using an OBD-II scanner if necessary
- Take the vehicle for a short test drive at low speeds to ensure ABS functions properly
- Monitor the dashboard for any warning lights during and after the test drive
| Replacement Stage | Key Considerations | Common Issues | Recommended Tools |
|---|---|---|---|
| Preparation | Verify sensor compatibility and gather all tools | Incorrect part number or missing tools | OBD-II scanner, service manual, camera |
| Sensor Removal | Proper disconnection and cleaning of sensor area | Damaged connectors, lost bolts | Sockets, screwdrivers, pliers |
| Installation | Correct positioning and torque settings | Improper gap to tone ring, cross-threaded bolts | Torque wrench, feeler gauge |
| Testing | Verifying signal output and road testing | Missed connections, false readings | Multimeter, test drive checklist |
Expert Insight: If your vehicle uses magnetic sensors, be sure they’re clean and free of metal shavings. For Hall-effect sensors, verify the power supply and ground circuits. Some modern vehicles may require reinitialization or recalibration of the ABS module after replacement.
Wheel Speed Sensor FAQ
A1: It is strongly recommended to replace a faulty wheel speed sensor as soon as possible. While your vehicle may still operate normally on the surface, this issue can severely impact critical safety systems such as Anti-lock Braking System (ABS) and Electronic Stability Control (ESC). These systems rely on accurate wheel speed data to function properly, especially during emergency braking or in adverse driving conditions.
Driving with a malfunctioning sensor increases the risk of:
- Reduced braking efficiency
- Increased stopping distance
- Loss of vehicle stability control
- Potential failure of traction control systems
In addition to safety concerns, delaying repairs could lead to more extensive damage to related components and higher repair costs over time.
A2: Technically, yes — a vehicle can still be driven with a faulty wheel speed sensor. However, doing so compromises essential safety features that help prevent accidents and maintain control under challenging conditions.
The ABS system uses input from wheel speed sensors to modulate brake pressure during hard stops, preventing wheel lockup. Without accurate data, the ABS may not activate when needed, increasing the likelihood of skidding or hydroplaning in wet or icy conditions.
Similarly, stability control systems that help correct understeer or oversteer will be impaired, making the vehicle more difficult to handle in emergency maneuvers.
If you must drive temporarily with a faulty sensor, exercise extra caution by:
- Maintaining greater following distances
- Avoiding sudden braking or sharp turns
- Staying off highways and high-speed roads if possible
A3: Wheel speed sensor issues typically stem from one or more of the following causes:
- Physical Damage: Sensors located near the wheels are exposed to road debris, potholes, and impacts that can crack housings or bend mounting brackets.
- Extreme Temperatures: Prolonged exposure to high heat from brakes or freezing cold can degrade internal electronics over time.
- Electrical Failures: Corroded connectors, frayed wires, or poor grounding can disrupt signal transmission between the sensor and vehicle computer.
- Contamination: Build-up of dirt, metal shavings, brake dust, or moisture can interfere with sensor readings.
- Normal Wear: Like any mechanical component, wheel speed sensors can deteriorate due to age, mileage, and constant vibration.
Additionally, improper installation during previous repairs or using low-quality replacement parts can contribute to premature sensor failure.
A4: Not necessarily. In some cases, a faulty wheel speed sensor can be repaired rather than replaced, depending on the nature of the problem:
- Cleaning: If contamination is the cause, simply cleaning the sensor and surrounding area may restore proper functionality.
- Wiring Repair: Damaged wiring, corroded connectors, or broken ground circuits can sometimes be fixed without replacing the entire sensor unit.
- Calibration: Some modern vehicles allow for recalibration or relearning procedures after sensor servicing.
However, if the sensor itself is cracked, water-damaged, or otherwise irreparably damaged, replacement becomes necessary. Always ensure the sensor provides accurate and consistent readings after any repair to maintain vehicle safety systems' integrity.

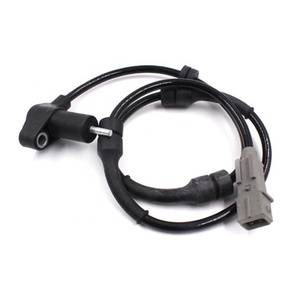

A5: Replacing a wheel speed sensor typically takes between 1 to 2 hours, depending on several factors:
- Vehicle Make and Model: Some brands (like BMW, Audi, or luxury vehicles) have more complex designs requiring additional disassembly.
- Sensor Location: Front sensors are often easier to access than rear ones, which may require removing brake components or suspension parts.
- Tool Availability: Specialized tools or lifts can reduce labor time significantly.
- Experience Level: Professional technicians usually complete the job faster than DIYers attempting it for the first time.
DIY enthusiasts should budget about 2-3 hours including preparation, removal, installation, and testing. Always remember to clear fault codes with an OBD-II scanner after completing the replacement.
