Vertical tube furnaces are engineered with an elongated heating chamber and a tubular design for vertical orientation. Their compact design and high-efficiency heating ability make them suitable for a variety of complex industrial operations. These furnaces are categorized into several types based on their applications.
High-Temperature Vertical Tube Furnace
The high-temperature vertical tube furnace is capable of reaching temperatures of over 1,500 degrees Celsius. These temperatures make them ideal for metallurgical processes like sintering, annealing, and fusion. These furnaces incorporate advanced temperature control systems and insulation to guarantee superior energy efficiency and homogeneity of heat. Therefore, they are suitable for research facilities and laboratories dealing with refractory substances, advanced ceramics, and high-performance materials.
Laboratory Vertical Tube Furnace
These furnaces are compact and designed for experimental use in research and development. They enable precise control of temperature, atmosphere, and time which are critical factors for small sample materials in chemical reactions or material testing. These furnaces are predominantly used in universities and research centers for testing materials with different heat treatments and chemical deposits in a controlled environment.

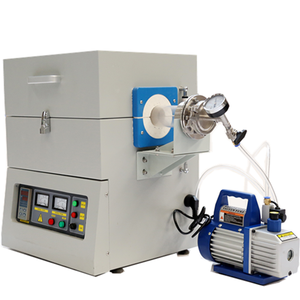

Vacuum Vertical Tube Furnace
This furnace is designed to operate under low-pressure conditions in a sealed tube. These furnaces are engineered predominantly for metal treatment in an oxygen-free environment, thus preventing oxidation during the heating process. They are commonly used in the semiconductor industry, aerospace components, and high-quality metal products for industries that require extreme precision and low contamination levels.
Vertical Resistive Tube Furnace
The vertical resistive tube furnace generates heat through electric resistance elements fitted inside or outside the furnace. It offers a consistent and accurate temperature control ideal for small-diameter tube processing such as metals, glass, and ceramics. Thus, it is widely used in industries for production and quality control for items that need homogenous heat treatment without variation.
Microwave Vertical Tube Furnace
This furnace is a new technology that uses microwave energy for heating. The microwaves directly heat materials inside the furnace. Therefore, it allows faster and often more uniform heating compared to conventional methods. This furnace is still in the research phase but potentially very effective for detailed experiments in ceramics and materials science where precise control over minute amounts of materials is required.
Vertical tube furnaces are mainly used in industrial and research settings due to their ability to provide controlled heat treatment. Some of the key industries where these furnaces find their application include the following:
Metallurgy
In the metallurgy sector, vertical tube furnaces play a critical role in the heat treatment of metals. They are mainly used for processes such as annealing, quenching, and carburizing, which help to improve the properties of metals by altering their microstructures. In addition, the high degree of temperature control, and low oxygen environments in certain tube furnaces, minimize contaminants; therefore, they enable the processing of high-performance metal alloys for critical sectors like aerospace, automotive, and defense.
Ceramics Manufacturing
Vertical tube furnaces are used for sintering, which is the process of heating ceramic materials to form a solid mass. During this process, it enhances durability, and structural integrity, and improves electrical properties. The furnaces allow precise control over temperature gradients in ceramic production of electronic components, insulators, and advanced ceramics for aerospace applications that require highly uniform and carefully controlled heat treatment.
Semiconductor Industry
In the semiconductor industry, vertical tube furnaces are critical to the diffusion and oxidation processes. For instance, during the diffusion process, dopants are driven into silicon wafers to create semiconductors. The controlled environment and temperature precision of these furnaces are ideal for such sensitive operations; therefore, they are used in the manufacturing of integrated circuits, solar cells, and other electronic devices requiring high purity and precise material properties.
Glass Production
In the glass production industry, vertical tube furnaces are used to temper and anneal glass products. The furnaces allow efficient and uniform heating of glass sheets or containers to improve strength and optical clarity. The smooth and continuous processing capability of these furnaces makes them suitable for automotive glass, architectural glass, and glass containers in the food and pharmaceutical industries to enhance the essential qualities of glass needed in these critical applications.
Pharmaceutical
In the pharmaceutical industry, vertical tube furnaces are used in the synthesis and treatment of materials such as active pharmaceutical ingredients (APIs) and catalysts. The furnaces enable precise temperature control for crystallization, calcination, and other chemical processes. This helps to ensure that the quality and efficacy of critical medications are maintained. The ability to operate under vacuum also supports the reduction of contaminants; hence, the furnaces are vital in producing high-quality pure pharmaceutical compounds.
Temperature Range
The temperature range of tube furnaces varies based on the specific models and materials of construction. Most furnaces are capable of heating up to 1,600 degrees Celsius for advanced processing, with high-temperature models reaching over 2,000 degrees Celsius for specialized applications in materials such as ceramics and metals.

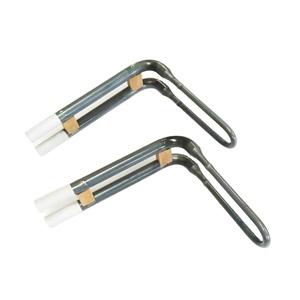

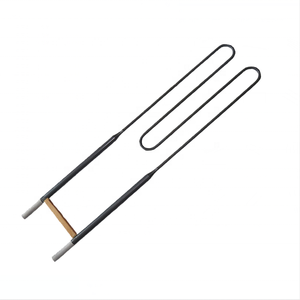

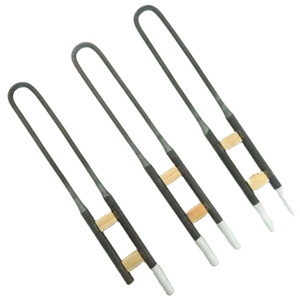

Heating Elements
Heating elements are usually made from high-quality alloy wires or Molybdenum. In low-temperature models, they are constructed from Kanthal or Nichrome wire to provide efficient and uniform heating even for long hours of use. The elements are designed to ensure minimal thermal loss, hence maximizing the energy efficiency of the furnace.
Insulation
Insulation is a key feature in achieving energy efficiency and operator safety. Vertical tube furnaces have high-performance ceramic or fiber insulation.
Tubing Material
The furnace tubes are mainly manufactured from quartz or special ceramics in transparent form or transparent for inspection of the items inside. Some furnaces are made with steel alloy or high-performance materials to withstand corrosive chemicals for reactive processes. Tubes are available in various diameters to accommodate different sizes of products.
Atmosphere capabilities
Horizontal furnaces are available with a range of atmosphere control options. For example, inert gases such as Argon or Nitrogen are used to protect items during heat treatment. In addition, vacuum and low-pressure options are available to minimize oxidation and contamination for sensitive material processing.
Power Supply
Vertical tube furnaces are typically powered by electric as they offer precise control over temperature and allow for consistent, clean energy. They are available in various voltages to suit different industrial requirements and ensure compatibility with other production systems.
Compact Design
Vertical tube furnaces are characterized by a compact and cylindrical design. This allows efficient heat treatment with a small footprint, especially where space is limited. Their compact size is ideal for processing small batches or samples, making them suitable for both industrial and laboratory uses.
Efficient Heating
They provide quick and even heating, thanks to their tubular structure and advanced heating elements. This ensures that the materials in the furnace receive uniform temperature distribution for high-quality results in sintering, annealing, or chemical vapor deposition. Efficient heating minimizes energy consumption while maximizing output.
Enhanced Temperature Control
The temperature control system ensures ±1°C precision. It uses state-of-the-art PID controllers and thermocouples to maintain desired temperatures for various processes. This feature is critical in industries that demand rigorous adherence to temperature parameters, such as semiconductor and material science.
Versatile Applications
These furnaces are highly versatile. For example, laboratory vertical tube furnaces are used in research for producing nanoparticles. Industrial furnaces are used to treat metals in manufacturing. Moreover, they can accommodate a wide range of materials such as ceramics, metals, and composites for different heat treatment processes to suit various fields, including aerospace, electronics, and materials development.
Inert Atmosphere Capability
Vertical tube furnaces are designed to operate with inert gases, allowing precision heat treatment without oxidation or contamination. This feature is essential for sensitive materials such as alloys, semiconductor substrates, or advanced ceramics. Therefore, the items being worked on maintain their purity and structural integrity throughout the process.
Material and Tube Size
Tube materials should be considered before installing a vertical tube furnace. The materials should be compatible with the operational temperatures and the items being processed of the business. For example, quartz or high-performance ceramics are suitable for general use in high-purity chemical and material processes. The diameter and length of the tube should also be considered to ensure they are suitable for the size of the products in use.
Heating Capability
Vertical tube furnaces are equipped with lants, such as resistive heating elements or microwave absorbers that produce heat. The heating elements should produce the required temperature range with optimal efficiency and uniformity. In addition, inquire about the furnace's maximum temperature and the heating rate to ensure it can accommodate all the necessary operating conditions. Fast heating and cooling rates will be preferable for businesses that require more extensive production with quick turnarounds.
Control System
Vertical tube furnaces are controlled with precision temperature control systems to maintain desirable temperatures. These systems include modern PID controllers and multiple thermocouples that provide temperature feedback. Such furnaces have close system controllers with real-time monitoring capabilities. Businesses should also look for controllers that support temperature profiling and have user-friendly interfaces to simplify operations and enhance control over various heat treatment processes.
Atmosphere Control
Businesses will need to choose between inert, oxygen, vacuum, or corrosive gas atmospheres to protect their materials during treatments. Different furnaces are fitted with different atmosphere control features, such as gas inlets, vacuum ports, or seal joints. Therefore, before purchasing, ensure that the atmosphere control features of the furnace are suitable for the gases that are regularly used in the business.
Power and Efficiency
Check the electrical requirements of the furnace, such as voltage and current, to ensure that they are compatible with the existing power supply in use. Vertical tube furnaces are usually designed to save energy in heat treatments. For example, some are insulated with advanced materials that are thermally efficient to reduce energy costs greatly.
A1: Vertical tube furnaces are commonly used in the semiconductor industry. They are also used in materials science for metal and alloy treatments. In addition, companies that make advanced ceramics rely on these furnaces for blending and processing. These industries benefit from the furnace's consistent heating in a controlled environment, resulting in high-quality end products and increased effectiveness in processing.
A2: Before purchasing, businesses should consider the temperature range of the furnace, the atmosphere it can handle, and other features like inert gas capability. They should also evaluate the power needs and energy efficiency of the equipment since some furnaces use a lot of energy. They should also think of the available space since the furnace varies in size.
A3: Vertical tube furnaces are more efficient than horizontal furnaces because heat rises from the source, which is more efficient than heat loss. Their design ensures effective heat transfer, reducing energy use and processing time, greatly benefiting industries concerned with costly operations and quick processing.
A4: Vertical tube furnaces are designed to process materials in a cylindrical chamber, enabling efficient heat treatment. Their vertical design improves heat and energy transfer and causes less contamination during the process. They are effective for both large-scale manufacturing and small-batch production in industries like semiconductors and materials science.
A5: Regularly checking and cleaning the furnace components, such as the heating elements and tube, will maintain the vertical tube furnace. It is paramount to examine the insulation for possible wear and tear and ensure that the power supply works as it should. In addition, regular maintenance should include lubricating the control systems and other moving parts and preventing material build-up that can cause overheating or hinder the performance of the furnace.
