Unidirectional geogrid

Types of unidirectional geogrid

There are two types of unidirectional geogrid namely: Plastic/Polymer and Tensile Strength.

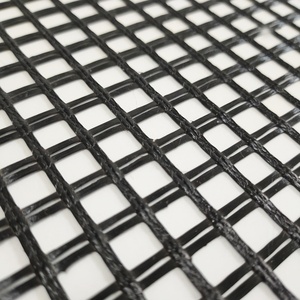

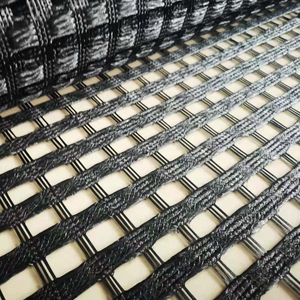

Unidirectional polymer/geogrid is a soil reinforcement product used in civil engineering and construction projects. It is designed to improve the stability and load-bearing capacity of soil in various applications. It is made from high-density polyethylene (HDPE) or polypropylene (PP). These materials are durable, lightweight, and resistant to degradation from UV rays and chemicals. It has a rectangular aperture pattern. The long and narrow openings allow the soil, and water to pass through while providing reinforcement. The orientation of the geogrid is designed to be in one direction, which is parallel to the direction of the load. This unidirectional configuration helps to distribute the loads more evenly across the reinforced soil area. The polymer geogrid is available in various sizes and strengths. This makes it suitable for different soil conditions and project requirements. It is installed by stretching and laying it flat on the soil surface before placing the fill material. The installation process is relatively simple and cost-effective.

Tensile strength geogrid is also a soil reinforcement product used in civil engineering and construction projects. Unlike the unidirectional geogrid, it is designed to provide reinforcement in all directions. It is made from high-strength polyester fibers coated with PVC or other protective materials. It features a triangular or grid-like aperture pattern. The open structure allows the soil and water to pass through while providing maximum tensile strength. The geogrid's design allows for reinforcement in multiple directions. This increases the stability and load-bearing capacity of the soil more than unidirectional ones. It is available in various tensile strengths and sizes. This makes it suitable for different project requirements.

Unidirectional and bidirectional tensile strength geogrid is commonly used in applications where high load distribution and stability are required. The installation process is more complex than that of unidirectional geogrid. It usually involves layering and tensioning techniques to achieve the desired reinforcement.

Functions and features of unidirectional geogrid

Unidirectional geogrid plastic reinforcement is a polymer-based product. It has a high-strength and high-modulus design, making it suitable for various applications in infrastructure development, especially in soil stabilization projects. Its functions include:

• Soil reinforcement: Unidirectional geogrids are primarily designed to reinforce soil. They improve the load distribution of overlying structures to the subgrade soil. This reinforcement is achieved by distributing loads over a larger area, leading to a reduction in soil stress. The result is an increased bearing capacity of the soil. This, in turn, leads to a reduction in settlement. Soil reinforcement also allows for the use of a weaker subgrade material.
• Separation: Unidirectional geogrids serve as a separator. It prevents the mixing of different soil layers, which maintains the integrity of the subgrade soil. This separation function is important in applications like embankment construction and access road installation on soft soil sites.
• Drainage: The apertures in unidirectional geogrids allow for the free movement of water. This prevents pore water pressure buildup. The drainage function reduces the risk of soil erosion and reduces the hydrostatic pressure. This enhances the longevity of the geogrid reinforcements.
• Vegetation support: Unidirectional geogrids support vegetation growth. They promote the establishment of plant roots within the grid structure. This feature is important in applications such as slope stabilization and green roof construction.
• Construction ease: The light weight and large roll sizes of unidirectional geogrids make them easy to handle and install. This reduces construction time and costs.
• Customizable solutions: Unidirectional geogrids are manufactured in different sizes, polymer materials, and tensile strengths. They can be tailored to meet the requirements of different projects. This includes road construction, railway projects, slope stabilization, and retaining wall construction.
• Durability and longevity: These geogrids are manufactured from high-density polyethylene (HDPE) or polypropylene polymers. They have a high ultraviolet (UV) stability. This makes them resistant to soil chemicals and biological degradation. The durability feature of unidirectional geogrids minimizes the need for maintenance and replacement.

Scenarios of unidirectional geogrid

The global market for geogrids is experiencing steady growth. This is because engineers and designers are discovering the advantages of using geogrids in different applications. Unidirectional geogrid has different usage scenarios including:

• Reinforcing soil structures

  Reinforcing soil structures involves integrating a unidirectional geogrid into the soil. This is done during construction of walls, embankments and slopes. The soil structure is reinforced to offer support to the loads. It is an economical alternative to traditional methods of soil stabilization. The technique is used to support highways, railways, foundations and foundations of large structures. It reduces soil settlement and improves load distribution.

• Improving pavement design

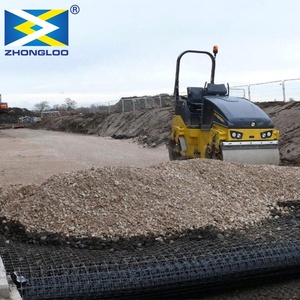

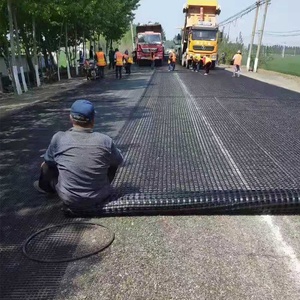

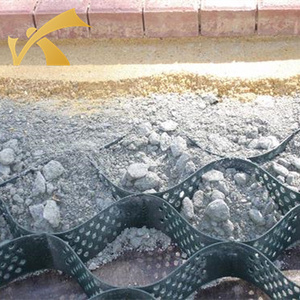

  Geogrids are used to enhance the performance of pavements. This is done by integrating them into the base layers of the pavement structure. The geogrids improve the performance of the pavement by reducing deformation, extending the lifespan and minimizing maintenance costs. Unidirectional geogrids can be used in low-cost roads such as access roads and secondary roads. This is because they offer a cost-effective alternative to traditional pavement reinforcement techniques.

• Slope stabilization

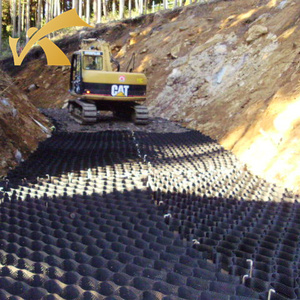

  Geogrids offer a cost-effective solution to stabilize slopes. They do this by reinforcing the soil. This allows the soil to support itself and carry loads without slipping. The geogrids increase the soil's frictional resistance and tensile strength. They also reduce the risk of landslides and soil erosion. This protects infrastructure and the environment. Unidirectional geogrids are a preferred solution to traditional slope stabilization techniques because they minimize excavation and reduce the need for drainage systems.

• Retaining walls

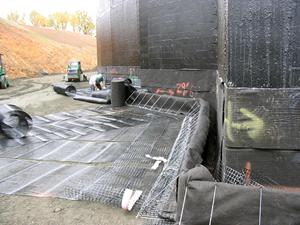

  Unidirectional geogrid is integrated into the backfill soil behind the wall. This is to create a connection between the wall and the soil. The connection transfers loads from the wall to the soil. This distributes the loads over a larger area. Retaining walls that use geogrids are cheaper to build than walls that use other methods. This is because they reduce the lateral pressure on the wall. The geogrids also reduce settlement and increase the wall's stability.

How to Choose Unidirectional Geogrid

An analysis of the project requirements must be done so the right geogrid is selected. Factors to consider include:

• Load capacity

  The anticipated loads should be examined carefully. These include vehicle loads, static and dynamic loads. The unidirectional geogrid has the capacity to distribute and transfer loads more evenly. This is because of its high tensile strength and load-oriented design. This makes it ideal for applications that require high load support. Such applications include: Reinforcement of subgrade in roads and highways, Railroads, foundations and other structures.

• Soil type and conditions

  The geotechnical characteristics of the site should be reviewed. This includes: soil type, soil drainage capacity, soil cohesion, soil compaction level, and soil plasticity. A unidirectional geogrid is recommended for cohesive and stable soils. Cohesive soils include: silty soils, clays and loams. Cohesive soils have a high level of plasticity, making it easier to shape them. Cohesive soils are also capable of holding more water than non-cohesive soils. Non-cohesive soils include: sands and gravels. Non-cohesive soils are loose and highly drained. They require more reinforcement to prevent settlement and erosion.

• Environmental conditions

  The environmental conditions of the construction site should be reviewed. This includes: temperature, moisture content, climate and pH levels. Moisture content affects the strength and stability of soil. High moisture content leads to reduced soil strength. This may result in soil erosion and settlement. Climate includes: rainfall and drought. Areas with high rainfall experience waterlogging. This leads to the weakening of soils. Regions that experience droughts have dry and weak soils. Temperature affects the plasticity and consistency of soils. Extreme temperatures lead to soil contraction and expansion. This causes soil cracks and ultimately results in soil erosion.

unidirectional geogrid Q & A

Q1: How to install a unidirectional geogrid?

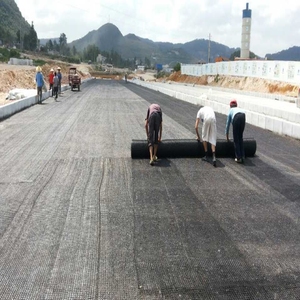

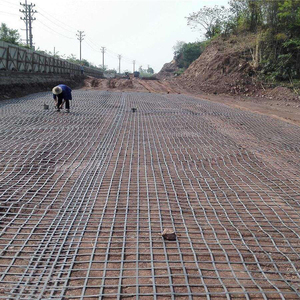

A1: Unidirectional geogrid is usually very simple to install. The installers need to ensure that the geogrid is laid out in the correct orientation. The geogrid should be aligned with the centerline of the future road or project. After that, the geogrid can be anchored using stakes or temporary anchors. The stakes or temporary anchors will help hold the geogrid in place, especially during the filling process. The filling process involves placing soil or aggregate material on top of the geogrid. During this process, it is important to ensure that the soil or aggregate material is placed gently to avoid damaging the geogrid. The fill material is then compacted to the desired percentage, and construction can continue.

Q2: What are the benefits of a unidirectional geogrid?

A2: There are several benefits of a unidirectional geogrid, including: Improved load distribution. A unidirectional geogrid is designed to spread or distribute loads over a wider area. This helps reduce pressure on the underlying soil or aggregate base. Separation and reinforcement. A unidirectional geogrid creates a separation layer between the subgrade soil and the aggregate base. This prevents mixing while providing additional reinforcement to the structure. Moisture drainage. Some geogrids have features that allow for moisture drainage. This prevents the buildup of water or moisture in the subgrade area. Cost-effective solution. Since a unidirectional geogrid reduces the amount of aggregate base material needed, it results in overall project cost savings.

Q3: What are the applications of a unidirectional geogrid?

A3: A unidirectional geogrid is used in various applications, including: Road and pavement construction. This includes temporary access roads and heavy traffic roadways. It provides a cost-effective solution for road projects. Railways. A unidirectional geogrid is used to construct rail tracks. It provides additional reinforcement, which prevents the settlement of tracks over time. Retaining walls and slopes. This includes earth and masonry walls. A unidirectional geogrid provides additional reinforcement to retaining walls and slopes, which prevents wall or slope failure.
