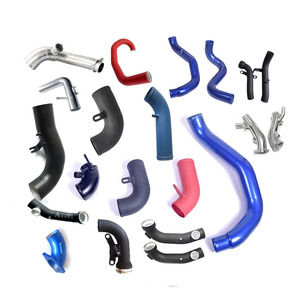

Types of Turbo Air Intake Pipes

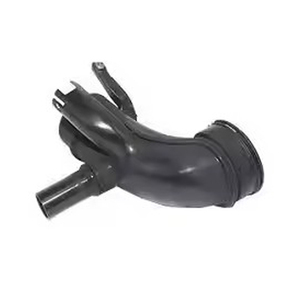

A turbo air intake pipe is a critical component in vehicles equipped with turbocharged engines, designed to optimize the airflow entering the engine for improved combustion efficiency and performance. By delivering a more consistent and unrestricted supply of air, these pipes can significantly enhance horsepower, throttle response, and fuel efficiency. Understanding the different types of turbo air intake pipes is essential for both business buyers and vehicle enthusiasts looking to meet diverse customer needs and driving applications.

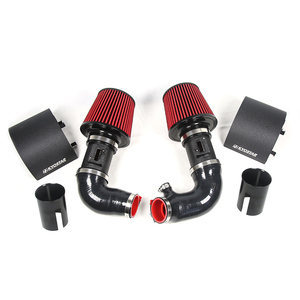

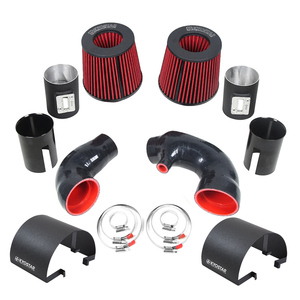

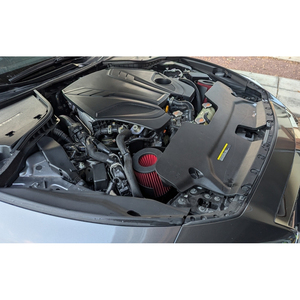

Cold Air Intake Pipe
The cold air intake pipe is engineered to draw cooler, denser air from outside the engine bay, typically from areas like the front bumper or fender well. Cold air contains more oxygen per volume than warm air, which enhances combustion and increases power output.
Advantages
- Delivers denser, cooler air for better combustion
- Improves horsepower and torque
- Enhances throttle response
- Can improve fuel economy slightly
Limitations
- More complex installation due to routing
- Potential water ingestion risk if not properly sealed
- Higher cost compared to basic intakes
Best for: Enthusiasts seeking maximum performance gains, street and track use
Ram Air Intake Pipe
Ram air intake systems utilize the forward motion of the vehicle to force additional air into the engine. This system often features a scoop or funnel that captures high-pressure air at speed, compressing it before it enters the intake manifold. The result is increased volumetric efficiency and greater engine output during high-speed driving.
Advantages
- Boosts horsepower at higher speeds
- Efficient air compression without forced induction
- Aggressive styling with visible scoops
Limitations
- Limited benefit at low speeds
- May increase aerodynamic drag
- Complex design and installation
Best for: High-speed driving, motorsports, and performance-oriented builds
Short Ram Intake Pipe
Designed as a simpler alternative to cold air intakes, short ram intake pipes replace the factory airbox with a compact setup located within the engine bay. These systems focus on reducing air travel distance and increasing flow velocity, resulting in quicker throttle response.
Advantages
- Easy and quick installation
- Improved throttle response
- Compact design fits tight engine bays
Limitations
- Draws warmer air from engine bay
- Less power gain compared to cold air intakes
- Potentially noisier operation
Best for: Budget-conscious upgrades, daily drivers, and mild performance improvements

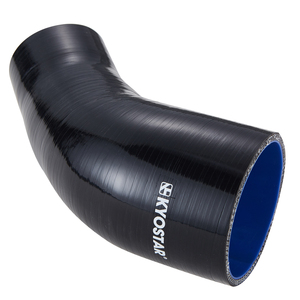

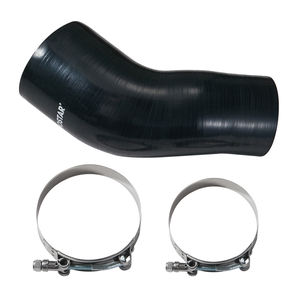

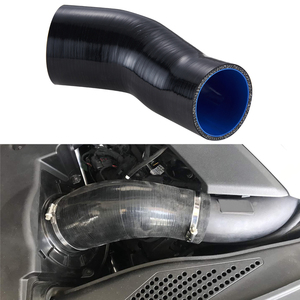

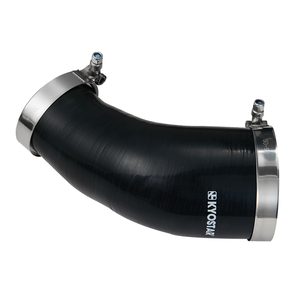

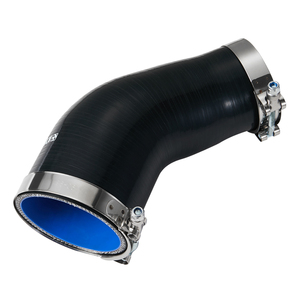

Intake Pipe Elbow
Elbows are crucial components in any turbo air intake system, allowing smooth directional changes in the piping layout. Typically available in 90° or 45° configurations, these elbows ensure proper alignment and minimize airflow turbulence, which could otherwise reduce engine efficiency and power output.
Advantages
- Allows flexible intake routing
- Reduces airflow restriction
- Maintains system integrity and sealing
Limitations
- Improper installation can cause leaks
- Quality varies between manufacturers
- May add complexity to the system
Best for: Custom installations, turbo kits, and ensuring seamless airflow transitions
| Type | Performance Gain | Installation Complexity | Air Temperature | Ideal Use Case |
|---|---|---|---|---|
| Cold Air Intake | High | Moderate | Cool | Track cars, performance tuning |
| Ram Air Intake | High (at speed) | High | Cool to Moderate | Highway driving, racing |
| Short Ram Intake | Moderate | Low | Warm | Daily commuting, light modifications |
| Intake Pipe Elbow | N/A (support component) | Varies | Depends on system | Custom setups, turbo conversions |
Expert Tip: When choosing between cold air and short ram intake systems, consider your driving conditions. If you frequently drive at highway speeds or on tracks, a cold air intake will provide better long-term performance. For city driving and convenience, a short ram intake might be more suitable.
Specifications and Maintenance of Turbo Air Intake Pipes
Key Specifications to Consider
Understanding the specifications of turbo air intake pipes is crucial for selecting the right component that matches your vehicle's performance needs. Below are detailed explanations of each critical specification:
Material Composition
Turbo air intake pipes are commonly manufactured from plastic, steel, or aluminum. Each material has unique properties that affect durability, thermal resistance, and overall engine performance.
Plastic pipes are lightweight and cost-effective but may be more prone to heat damage. Steel offers excellent strength and heat resistance but adds significant weight. Aluminum strikes a balance between weight, strength, and thermal conductivity, making it a popular choice for high-performance applications.

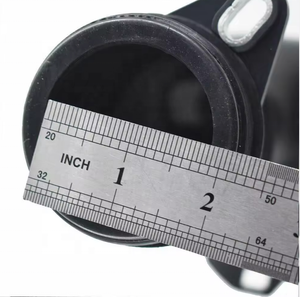

Pipe Diameter
The diameter of the turbo air intake pipe plays a vital role in airflow efficiency. Common sizes include 2-inch, 3-inch, and 4-inch diameters.
Larger diameters allow for greater airflow, which can enhance horsepower and torque output. However, excessively large pipes might reduce low-end torque and throttle response. Conversely, smaller diameters increase velocity and responsiveness at lower RPMs but may restrict airflow at higher engine speeds.
Vehicular Compatibility
Turbo air intake pipes are designed to fit specific makes and models of vehicles. Proper compatibility ensures optimal performance and seamless integration with the existing turbocharger system.
Always verify part numbers and dimensions before purchasing to avoid mismatched components that could lead to leaks, improper mounting, or reduced efficiency.
Connection Type
Connection types such as flanges, couplers, and clamps determine how the pipe connects to other parts of the intake system.
Flanged connections offer a secure, leak-proof seal ideal for high-pressure systems, while coupler-style connections provide flexibility and ease of installation. Choosing the correct connection type ensures a tight fit and reliable sealing under varying operating conditions.
Surface Coatings
Some turbo air intake pipes feature protective coatings like heat-resistant ceramic, powder coating, or corrosion-resistant plating.
These coatings not only improve the aesthetic appeal but also protect against extreme temperatures, oxidation, and environmental contaminants, extending the lifespan of the pipe.
Pipe Bends and Angles
The design of bends within the pipe—such as 45° or 90° angles—affects airflow dynamics and pressure drop across the system.
Smooth, mandrel-bent curves minimize turbulence and flow restriction compared to sharp, kinked bends. Optimizing bend geometry improves volumetric efficiency and overall engine breathing.
| Specification | Importance | Selection Tips |
|---|---|---|
| Material Type | High | Choose aluminum for balanced performance; opt for steel in high-stress environments or plastic for budget builds. |
| Diameter Size | High | Select based on engine displacement and turbo size; larger engines benefit from wider pipes. |
| Thermal Resistance | Medium | Look for heat-treated materials or coatings if used in high-temperature areas. |
| Mounting Fitment | High | Ensure all mounting points align with your vehicle’s OEM configuration or aftermarket modifications. |
Essential Maintenance Practices
Regular maintenance helps maintain the integrity of the turbo air intake system, ensuring consistent performance and preventing costly repairs down the line:
Important: Always inspect the entire intake system when replacing one component. Replacing only part of the system may create imbalances or leave underlying issues unresolved, leading to premature failure of newly installed parts.
How to Choose Turbo Air Intake Pipes
Selecting the right turbo air intake pipe is crucial for optimizing engine performance and ensuring long-term reliability. The correct intake system can significantly improve horsepower, throttle response, and overall driving experience by delivering cooler, denser air to the engine efficiently.
Pipe Diameter and Flow Dynamics
The diameter of the turbo air intake pipe plays a critical role in determining airflow efficiency and engine performance. Choosing the appropriate size ensures optimal pressure balance between the turbocharger and intake manifold.
- Smaller diameters increase velocity but may restrict total airflow at higher RPMs
- Larger diameters reduce restriction but may sacrifice low-end torque if oversized
- Typical street applications benefit from diameters matching factory specifications with slight increases (e.g., +10-15%) for performance gains
Expert Tip: Consider internal diameter rather than outer dimensions when comparing pipes
Material Selection and Performance Characteristics
The material used in constructing the intake pipe affects not only durability but also thermal properties and weight considerations. Each material type offers unique advantages depending on application requirements.
- Aluminum: Excellent heat dissipation, corrosion-resistant, lightweight but more expensive
- Steel: Exceptional strength and longevity but adds significant weight
- High-grade Plastic: Cost-effective solution with natural insulation properties

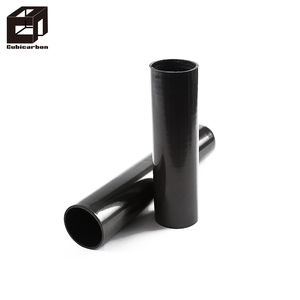

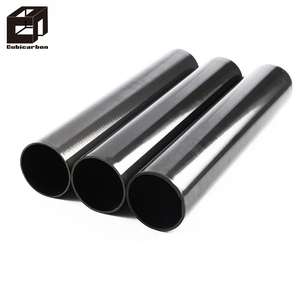

- Carbon Fiber: Premium option offering excellent thermal resistance and minimal weight
Thermal consideration: Insulated or powder-coated pipes help maintain cooler intake temperatures
Design Optimization for Maximum Efficiency
The physical design of the intake pipe greatly influences airflow dynamics. A well-engineered shape minimizes turbulence while maintaining consistent air velocity through the system.
- Smooth transitions between components prevent airflow separation
- Cleanly radiused bends outperform sharp angles or square corners
- Uniform diameter throughout the system maintains consistent flow characteristics
- Properly positioned mounting points prevent vibration-induced stress fractures
Design feature: Computational Fluid Dynamics (CFD) analysis improves real-world performance
Air Filter Integration and Protection
The complete intake system must be evaluated as an integrated unit, with particular attention to how the filter and housing interact with the intake pipe to ensure proper filtration and airflow delivery.
- High-flow filters maintain efficient particulate capture while minimizing restriction
- Sealed housings prevent hot underhood air from entering the system
- Weather-resistant materials protect against moisture and debris intrusion
- Dust-trapping designs extend maintenance intervals and protect engine internals
System synergy: Match filter capacity to expected airflow demands of modified engines
Installation Insight: When upgrading your intake system, consider replacing multiple components together (pipe, filter, couplers) for maximum performance benefits. Mixing mismatched parts can create bottlenecks that negate potential gains from individual high-performance pieces.
| Application Type | Recommended Material | Optimal Diameter Range | Key Performance Benefit |
|---|---|---|---|
| Daily commuter | Plastic composite | 2.5"-3.5" | Cost-effective reliability with noise reduction |
| Street performance | Anodized aluminum | 3.5"-4.5" | Improved airflow with thermal management |
| Race-prepared engine | Carbon fiber | 4.5"-6.0" | Maximum flow with minimal weight |
| All-weather driving | Insulated steel | 3.0"-4.0" | Durability with temperature control |
Heat Management Strategies
Effective heat shielding is essential for maintaining optimal intake air temperatures and preventing performance-robbing heat soak, particularly in high-horsepower applications or stop-and-go driving conditions.
- Multi-layer heat wraps provide excellent protection without adding excessive weight
- Polished surfaces reflect radiant heat better than matte finishes
- Vented shields allow heat dissipation while blocking direct contact
- Insulating foam linings reduce thermal transfer in enclosed engine bays
Performance impact: Even a 20°F reduction in intake air temperature can yield measurable power gains
Customization Options and Upgradability
Modern intake systems often offer modular designs that allow for future upgrades or modifications to accommodate evolving performance needs and tuning requirements.
- Modular clamping systems enable easy component replacement
- Universal adapters facilitate fitment across multiple vehicle platforms
- Expansion ports support additional sensors or forced induction upgrades
- Replaceable wear components reduce long-term ownership costs
Future-proofing tip: Choose systems with documented upgrade paths and available accessories
DIY Replacement Guide for Turbo Air Intake Pipes
Replacing a turbo air intake pipe is a common maintenance task that can significantly improve your vehicle's performance if done correctly. Whether you're dealing with wear and tear, cracks from heat stress, or aiming to upgrade your intake system, this guide will walk you through the process step-by-step. This procedure is suitable for intermediate DIYers and typically takes 1-2 hours depending on your vehicle model.
Safety Warning: Always ensure the engine is completely off and cooled down before starting any work. Disconnecting the battery may be necessary in some cases to prevent accidental electrical shorts.
Tools and Materials Required
- Screwdrivers (flathead and Phillips)
- Socket wrench set (metric and standard sizes)
- Torque wrench (for precise tightening to manufacturer specs)
- New hose clamps (if original ones are worn or corroded)
- Replacement turbo air intake pipe (OEM or high-quality aftermarket)
- Gloves and safety glasses
- Clean rag and contact cleaner (optional, for cleaning sensors)
Step-by-Step Replacement Procedure
- Engine Preparation
- Turn off the engine and allow it to cool for at least 30 minutes to avoid burns.
- Ensure the vehicle is parked on a level surface with the parking brake engaged.
- If working near sensitive electronics, consider disconnecting the negative terminal of the battery.
- Accessing the Turbo Air Intake Pipe

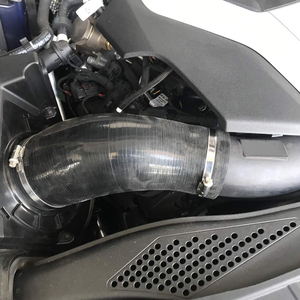

- Lift the hood and locate the turbo air intake pipe — usually a large rubber or silicone hose connecting the air filter housing to the turbocharger.
- Take note of any attached sensors, breather lines, or brackets that may need to be disconnected first.
- Removing the Old Intake Pipe
- Loosen the hose clamps at both ends of the pipe using a socket wrench or screwdriver.
- Gently twist and pull the pipe free from its connections. If stuck due to age or vacuum pressure, use a gentle prying motion but avoid damaging surrounding components.
- Inspect the removed pipe for signs of cracking, collapsing, or oil saturation — these are indicators that replacement was necessary.
- Installing the New Intake Pipe
- Compare the new pipe with the old one to confirm fitment and alignment of mounting points and sensor ports.
- Begin by attaching the new pipe to the turbocharger side first to maintain better control during installation.
- Slide the hose clamps onto the pipe before fully seating it onto the connection points to avoid difficulty later.
- Secure the other end of the pipe to the air filter housing or mass airflow sensor (MAF), ensuring a snug and straight fit to prevent future leaks.
- Securing Connections and Torquing Clamps
- Tighten all hose clamps to the manufacturer’s specified torque values using a torque wrench. Avoid over-tightening which can damage silicone hoses or deform rubber boots.
- Reconnect any sensors, breather lines, or brackets that were previously disconnected.
- Double-check that all connections are firm and there are no kinks or bends in the new intake pipe.
- Final Testing and Inspection
- Reconnect the battery if it was disconnected earlier.
- Start the engine and listen for any hissing sounds that could indicate an air leak.
- Visually inspect all connections while the engine is running to ensure there are no vibrations or movement in the intake system.
- Take the vehicle for a short test drive to monitor throttle response and check for any unusual behavior.
| Stage | Key Considerations | Common Pitfalls | Recommended Tools |
|---|---|---|---|
| Preparation | Verify part compatibility, gather tools, and ensure engine cooling | Using incorrect replacement parts, skipping pre-work inspection | Glove set, flashlight, socket set |
| Removal | Label connections and take photos for reference | Forcing removal without loosening clamps | Hose clamp pliers, penetrating oil (if needed) |
| Installation | Align properly, use correct torque specs | Mismatched orientation, overtightening | Torque wrench, alignment markers |
| Testing | Listen for leaks and verify performance | Rushing the test phase without thorough checks | Stethoscope for leak detection, OBD-II scanner (optional) |
Pro Tip: If your vehicle uses a Mass Airflow Sensor (MAF) in the intake system, consider cleaning it gently with MAF sensor cleaner before or after replacement to ensure accurate readings and optimal engine performance.
Additional Notes for Performance Enthusiasts
If you're upgrading to a high-flow or cold-air intake system, ensure that the new turbo air intake pipe matches the diameter and flow characteristics of the rest of the system. Upgraded pipes made from silicone with reinforced layers offer better durability and heat resistance compared to OEM rubber hoses.
Remember to reset any error codes related to the intake system using an OBD-II scanner if your vehicle’s ECU has stored fault codes due to a faulty intake pipe. With proper installation, you should notice improved throttle response and potentially increased horsepower and fuel efficiency.
Frequently Asked Questions About Turbo Air Intake Pipes
The turbo air intake pipe serves a critical function in the engine's operation by channeling fresh, ambient air from the air filter or cold air intake system into the turbocharger. This airflow is then compressed by the turbo and fed into the engine’s combustion chamber, where it mixes with fuel to create the combustion that powers the vehicle. A properly functioning intake pipe ensures:
- Optimal air delivery for efficient combustion
- Improved throttle response and power output
- Enhanced fuel efficiency when paired with proper tuning
- Reduced intake restriction, especially under high-load conditions
In performance vehicles, an upgraded or smoother intake pipe can significantly enhance horsepower and torque by minimizing turbulence and maximizing airflow velocity.
Yes, the material used for a turbo air intake pipe plays a significant role in both performance and longevity. Common materials include:
| Material | Performance Characteristics | Durability & Other Notes |
|---|---|---|
| Aluminum | Excellent heat dissipation, smooth interior surface for laminar airflow | Lightweight, corrosion-resistant, but more expensive |
| Plastic (Factory OEM) | Adequate for stock applications, may restrict airflow on modified engines | Budget-friendly but prone to warping or cracking over time |
| Stainless Steel | High durability and heat resistance; heavier than aluminum | Typically used in custom builds or high-performance applications |
For best results, enthusiasts often upgrade to mandrel-bent aluminum piping, which provides minimal airflow restriction and long-term reliability.
No, a turbo air intake pipe is not universally compatible across all vehicles. Each engine layout, turbo configuration, and vehicle model requires a specific design to ensure proper fitment and functionality. Key considerations include:
- Engine bay dimensions and clearance
- Turbo inlet size and orientation
- Compatibility with existing intercooler, air filter housing, and mass airflow sensor (MAF)
- Vehicles without factory turbochargers may require extensive modifications to install a forced-induction system
Custom fabrication or purchasing application-specific parts designed for your make and model is essential for reliable installation and performance gains.
The lifespan of a turbo air intake pipe depends on several factors including material quality, driving conditions, and maintenance habits. Here are general guidelines:
- Plastic pipes: May last 5–7 years before showing signs of wear such as brittleness or cracking
- Aluminum or stainless steel pipes: Typically last the life of the vehicle unless damaged by impact or improper installation
- Extreme climates: High heat or exposure to road debris can accelerate degradation
Signs that your intake pipe needs replacement include visible cracks, air leaks (often detectable by hissing noises), reduced engine performance, or check engine lights related to boost pressure or MAF sensor errors.
No, the color of the turbo air intake pipe does not influence engine performance. However, it can serve aesthetic purposes, especially in vehicles with exposed engine compartments or show-quality builds. Some common finishes and their characteristics include:
- Anodized aluminum: Available in black, blue, red, etc., offers corrosion resistance
- Powder-coated finishes: Durable and customizable, often used for visual appeal
- Polished aluminum: Shiny look, easy to clean but shows fingerprints easily
When choosing colored pipes, ensure they’re made from high-quality materials and not just painted cheap alloys that may degrade quickly under heat stress.
