The types of theodolite tripods are discussed in depth below. Although each one is special, all offer the solid support and accuracy required for precise surveying.

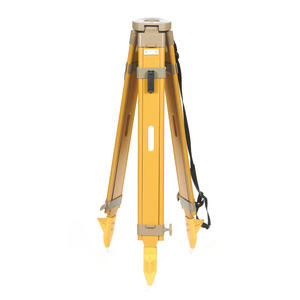

Due to its stability and longevity, the wooden type has been very popular for many years, especially in outdoor and rough settings. Wood absorbs vibration, and this property allows it to maintain a stable surface for precise readings. The light wooden frame may be more expensive than other frames and requires frequent maintenance.

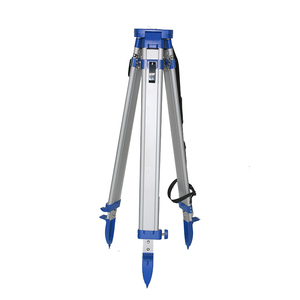

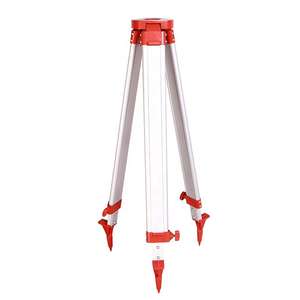

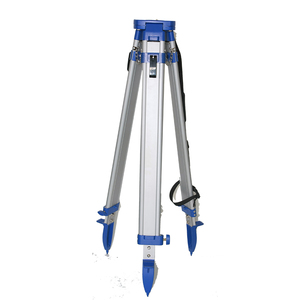

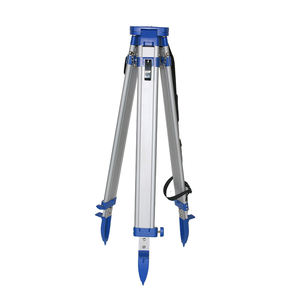

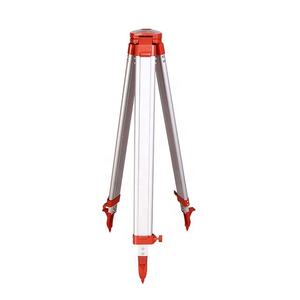

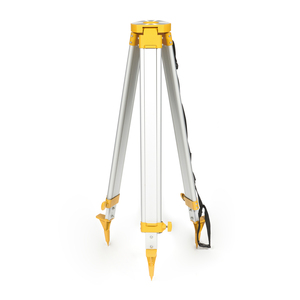

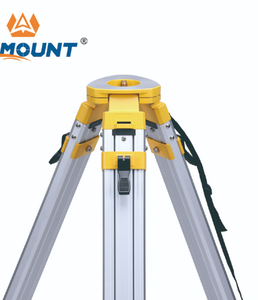

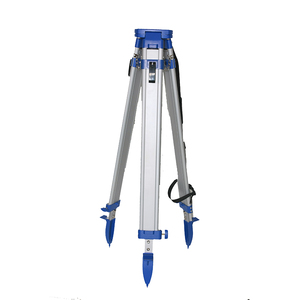

Because of its reduced weight and cost, the aluminium tripod type is commonly used. It is stable and very hard but does not align as well as wood. Due to its tough design, it is perfect for outdoor shoots. This type is common because of its reasonable price and affordability, thus making it popular with hobbyists.
Compared to earlier models made of wood or metal, fiberglass tripods have proven superior in lightness and durability. Fiberglass does not conduct heat, making it suitable for environments with extreme temperatures. While not as rigid as aluminium tripods, fiberglass models often come in portable designs for field use. This type of tripod is ideal for construction and land use.
Thanks to their remarkably high strength-to-weight ratio, carbon fiber tripods are becoming increasingly favoured. The design minimizes vibrations and provides excellent stability. Although this type is more expensive than aluminum or wooden types, this tripod is highly sought after by professionals due to its lightweight properties and ease of portability.
Surveying and mapping professionals depend on theodolite tripods because they produce exact angles and measurements. They are used by land survey teams to measure property lines and create land maps, both of which are very important in real estate and construction projects.
Theodolite tripods are applied in civil engineering construction. Engineers use them for structure alignment and foundation level checks. Maintaining this instrument's precision is very important to keep the building work on course and safe.
In mining industries, the theodolite tripods sense mineral deposits, and the topography of the land is understood. These figures are important for preparing mining operations.
Using the tripod with a theodolite, military reports observe and measure locations for possible artillery fire. Location accuracy makes it an important tool for tactical analysis.
Agricultural land is mapped with the help of the theodolite tripod. They also assist in designing drainage systems and irrigation channels that enhance agricultural productivity. Thus, they have a great impact on the agricultural sector.
For installing satellites or monitoring astronomical phenomena, the theodolite tripods locate telescopes and other equipment in a precise way. This tool is most important in research institutions that study the sky and geophysical changes.
Theodolite tripods are useful in the marine industry. It provides accurate readings needed for creating marine charts. Therefore, the tripod is very important in activities that need improved accuracy in readings and measurements.
Several important features set the theodolite tripod apart. Some are compatible with the theodolite, and some are not. In traveling and in the field, weight is crucial. In this case, the material used for the construction of the tripod determines the weight. For instance, carbon fibre tripods are very light, and aluminium tripods are heavier but sturdy. Tripods are rated to have load capacities ranging from 10 kg to 30 kg.
The height adjustment range guarantees the setup will fit operator comfort and sighting demands. Most tripods have this feature and can be mechanically or tension-wise incorporated with the legs. The legs are often classically designed with inductive closable sections in three parts with varying height levels.

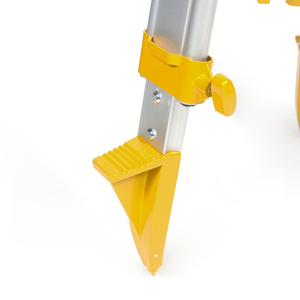

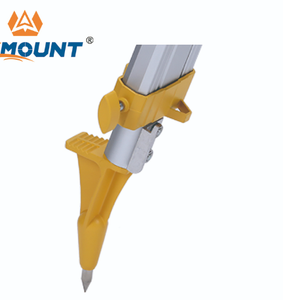

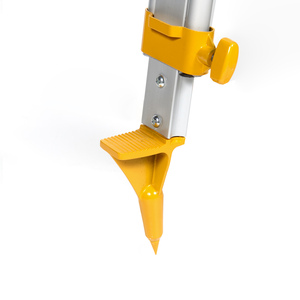

The leg bases of most rugged tripods have rubber feet or spikes to provide better grip and anchor on different terrain types. To give stability, many tripods include a centre joint wrapped in a stiff, rigid slidable column equipped with a height-adjustable central hub.

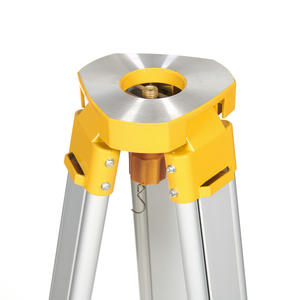

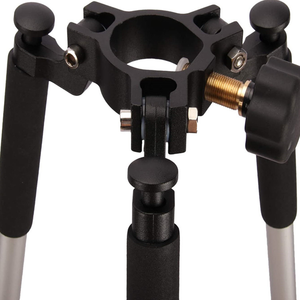

The output from the theodolite is attached to the tripod head, which is often a plate with screws or quick-release clamps to enhance the attachment. It also has a panning function allowing horizontal and vertical adjustments. For ease of setup, many models have a leg lock system, such as twist locks or lock levers. These help to improve both the level of convenience and the secured stability.
Some advanced theodolite tripods may also include the spirit level bubble and pelvicometer to promote precision. The spirit level enables the operator to level the tripod on the ground physically, reducing any horizontal tilt. It must maintain the measurements' accuracy due to the nature of the theodolite and the tripod.
In the first phase, set the theodolite tripod in a true horizontal position over the survey point. Adjust each leg as needed for proper height and use the leg locks to secure it. Second, use the tripod's adjustable centre column to elevate the theodolite to the desired height. Ensure it is securely tightened before proceeding. In the last phase, the theodolite is set up by using the mounting plate or clamp to attach the theodolite to the tripod head. Follow up by tightening the theodolite to ensure it is secured, and does not move during the time of use.
For tripods made of aluminium and steel, normal cleaning should be done regularly to remove dust and other elements that may have accumulated. Wash the legs with water and a soft cloth, and don't let them dry wash or use a chemical. Wooden tripods should be varnished from time to time. For a good, durable finish, use a good-quality varnish. Use a good-quality varnish for a good and durable finish. Do not let water stay on the tripod for an extended period because it will damage the wood. Use tight leg locks to promote safety and durability. Clean sand from the sand and dust from the sand. Lubricate regularly with thin oil. Always sweep sand and dust from the legs and joints of the tripod. Thin oil should be applied on the joints to prevent rust, and loose joints should be adjusted by a skilled person. Stop using the tripod and call for repairs if any leg is broken. Before using, replace or repair all worn-out or damaged parts. Proper storage should be done in a suitable environment away from direct contact with sunlight.
The accuracy and stability of the measurements depend a lot on the quality of the telescopic tripod. Poor-quality tripods shake during measurement, leading to inaccurate readings. Quality tripods have adjustable heights and can fit different terrains, ensuring the tripod stays balanced even when the surface is uneven. Tripods are constructed using weatherproof materials such as aluminium or carbon fibre to prevent bending or rusting. Because of this, they can withstand exposure to different environmental elements such as rain and wind.

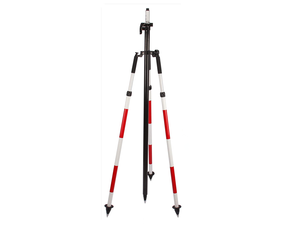

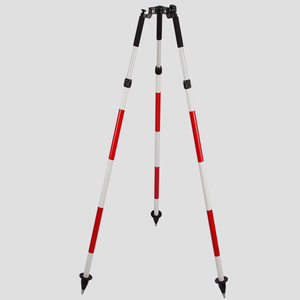

Given that surveying often happens in areas with heavy traffic or alongside machinery, many theodolite tripods have brightly coloured legs or reflective bands to increase visibility. This visibility ensures others see the tripod and avoid accidents with it.
Like any piece of equipment, it is very important to examine the theodolite tripod every other time before it is used. The legs should be checked for cracks or dents and any signs of looseness in joints or leg locks. Ensure that all fastenings are snug and secure to prevent any accidents. Ensure the legs have a solid footing and won't slide on slick or wet ground.
A designated working area should be selected away from vehicles or large equipment to reduce the risk of collisions with the tripod. Barricades or cones can be used to mark the area so that people nearby know not to wander into the danger zone. Still, in case of accidents, one has to be ready with a first-aid kit where medical treatment will be administered to those injured.
A1: A theodolite tripod gives the theodolite tool strength and stability. Different height and terrain factors determine which one to use.
A2: Tripods for theodolites are constructed of wood, aluminium, carbon fibre, and fiberglass to give them strength, stability, and weatherproof qualities.
A3: The load capacity for most tripods ranges from 10kg to 30kg. Refer to the manual for information on the model.
A4: A theodolite tripod enhances accuracy by providing proper strength and stability and reducing shaking that may lead to incorrect readings.
A5: The aluminium or carbon fibre tripod is weather-resistant because it does not corrode. However, wooden tripods should be used indoors.
