The trimming potentiometer 3006 comes in several types to suit different electrical applications and configurations.
Rotary trimming potentiometer 3006 is adjusted by rotating a small screw or knob on the potentiometer shaft. This type of potentiometer allows for fine adjustments of resistance which can be made easily with a small screwdriver. The adjusting screw is located on the top of the 3006, giving an easy turning motion. Due to this, the adjustments can be very precise and smooth; therefore, it is no wonder that rotary potentiometers are widely used in applications that require minor, exact changes in voltage or current.

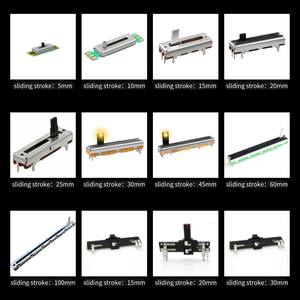

As the name suggests, a linear trimming potentiometer is adjusted by sliding a contact along the resistive element or track. A linear 3006 trimming potentiometer provides resistance that varies linearly with the position of the wiper. This type is good for applications needing a larger adjustment range since it enables a broader, more obvious adjustment range.
Panel-mount 3006 trimming potentiometers are designed to be mounted on equipment or control panels. These are meant to provide easy access for operators making manual adjustments. One example is rotary potentiometers. Panel mount potentiometers adds operational convenience because people can make adjustments directly from the front of a machine or device.

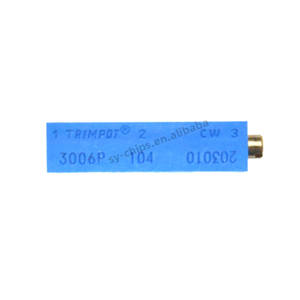

A screw adjustment 3006 trimming potentiometer is adjusted by turning a screw to make precise resistance value changes. It is suitable for applications requiring infrequent but critical adjustments because adjustments can only be done using a tool, which reduces the possibility of accidental changes. These potentiometers are found in devices where there are minimal adjustments but still require careful tuning.

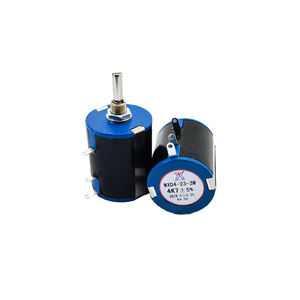

A multi-turn trimming potentiometer is one that allows the wiper to rotate several complete turns. This is different from single-turn varieties that allow only one complete rotation. Multi-turn potentiometers provide high-resolution adjustment since they can give a very small fractional change in resistance over a long adjustment range. They are so useful in applications that demand very fine electrical adjustments, such as in calibration circuits or precision measurement equipment.
Materials used in the construction of the trimming potentiometer 3006 significantly affect the durability and performance of the device.
Trimming potentiometers utilize resistance wire for superior durability because this wire is not easily damaged, giving the potentiometer longer life. The resistance wire used is typically very strong and hard to break, even under stress or heavy usage.
Carbon composition materials are not as durable as metal or cemented carbide because they can chip or crack when exposed to shocks. Apart from this, the carbon material also degrades slightly with time with use. Nonetheless, even with the low resilience, carbon composition materials are still found because of their configurable resistance properties that support a wide range of resistance values.
Conductive plastic trims potentiometers 3006 are so durable in comparison with many other types of potentiometers. The conductive plastic material is strong and gives a very smooth surface over which the wiper travels. The durable surface ensures that there is no wear with continuous use, and the lasting performance is guaranteed.
Cermet materials are extensively used for constructing trimming potentiometers because they combine the toughness of metal with the electrical properties of ceramic materials. The durability of cermet makes it very ideal for aerospace or military applications where environmental conditions may want to impact on performance.
Potentiometers made of metal tracks have high durability. This is because the metal tracks are not easily corroded or damaged through wear. Many metal track potentiometers are sealed against dust and moisture, adding to their longevity in harsh environments.
The encapsulation materials, such as epoxy or silicone, give the trimming potentiometer a protective shell against moisture, dust, and contaminants that may damage the internal components. These materials, including silicone and epoxy, also shield the potentiometer from shocks, vibrations, and drops. This increases the longevity and reliability of the device in many applications.
The 3006 trimming potentiometer has multiple commercial values due to its adaptability to different applications and the industry.
The trimming potentiometer is applied in the electronics for providing precise adjustments on circuits. As a result of this precision, the demand for trimming potentiometers is high since all the industries that deal with electronic devices need to adjust voltage, current, and gain.
These trimming pots are extensively used in the electronics business; hence the great value of the electronic parts business means there is a demand and an application for 3006 trimming potentiometers across multiple industries, including aerospace, telecommunications, and automotive.
The 3006 trimming potentiometer is used in calibration equipment so as to provide accurate reference values of voltage and current. This is particularly useful as it can be found in laboratories and industrial settings where maintaining electrical standards has a great commercial value in the operations.
In the industrial automation systems, the 3006 is used to fine-tune control systems to optimize processes. With this fine-tuning, the efficiency of these systems is improved, and then the value is increased for a business because it leads to better production and reduced operational costs.
The Internet of Things (IoT) devices need precise control of parameters like signal strength and sensitivity. The 3006 trimming potentiometer aids in tuning these parameters in IoT applications, thus improving performance and reliability.
The trimming potentiometer 3006 is also of great value due to its ability to provide custom resistance values in large-scale production. One instance where this is applicable is in the production of circuit boards where each board may need different resistance values depending on the certain unique conditions of use. This ability to provide a custom value leads to cost savings, increased efficiency, and better overall performance of the end products.
Making several considerations when purchasing the trimming potentiometer 3006 helps one get the right one because there are so many available ones out there.
It is important to consider the electrical specifications since these include resistance value, power rating, and temperature coefficient. Ensure that the potentiometer's specifications are compatible with the circuit in question. For instance, a potentiometer with a higher power rating will be required to handle more than just the average electrical conditions of the circuit.
The form factor is crucial in determining a trimming potentiometer that will fit into an existing system or design. One instance is the compact designs common in handheld devices, while industrial systems sometimes require more robust components. The housing style, such as refineries or rotary, should also be compatible with the current system.
Precision is an important factor since high-precision applications call for high-precision potentiometers. Precision is defined by how closely the resistance value is specified and the minimal tapering angle of the potentiometer. Going for a potentiometer that has a high precision can help improve the accuracy of the adjustments within the circuit and hence better performance.
Usability entails easy access for adjustments without significantly affecting the user experience. Consider the adjustment mechanism; for example, a rotary-potentiometer might give more control during fine adjustments than a linear one. Further, if the adjustments are frequent in one's application, it is important to up the easy-access potentiometer because this might boost the efficiency of operations.
Since any potentiometer will be required to operate within its recommended temperature range, it is better to look for one that can survive the real conditions of one's application. Besides, exposure to heat beyond the rated value will degrade the trimming potentiometer's performance over time. There are https://potentiometers.com/trimming-potentiometer-3006/ encapsulated types that protect the potentiometer internals and, thus, more suitable for harsh environments.
A1: These trimmer potentiometers are used to make fine, minor adjustments to an electrical circuit to ensure all the components are working at the best level. One instance is that voice coils on speakers use trimming potentiometers to adjust electrical resistance to produce clear sound without distortion.
A2: The trimming potentiometer 3006 is universal since it can be used for various applications in different industries, from electronics to industrial automation, offering precise control and adjustment.
A3: The trimming potentiometer 3006 is mainly used to provide precise control of electrical signals in applications such as calibration equipment, industrial automation systems, and electronic circuits.
A4: Yes, the trimming potentiometer 3006 can be encapsulated. This is done with epoxy or silicone that forms an enclosure around the potentiometer to protect it from harsh environmental factors like moisture and dust.
A5: Yes, a trimming potentiometer has a limit on temperature, which is called the operating range. The trimming potentiometer is made to operate in a particular temperature range. If it is exposed to temperatures beyond this range, the performance will be degraded, or, in some cases, it will burn out completely.
