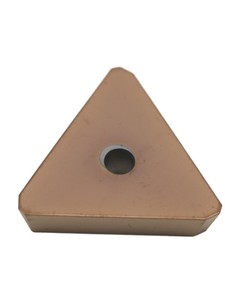

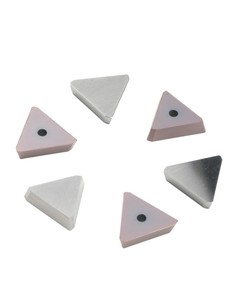

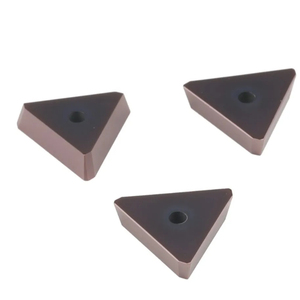

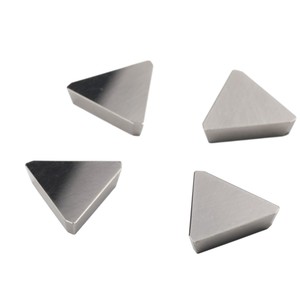

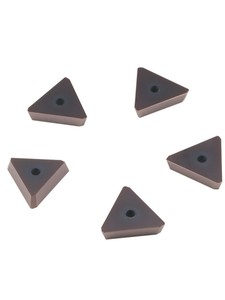

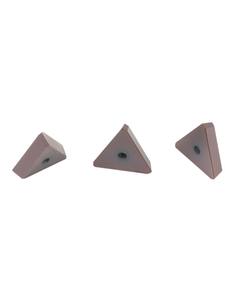

Triangle cemented carbide inserts

Types of Triangle Cemented Carbide Inserts

Triangle cemented carbide inserts are available in several types. Each of these types is designed for specific machining operations and offers unique cutting-edge orientations.

• TCMT Inserts

  These TCMT inserts are triangular with a 35-degree clearance angle on the cutting edges. Its shape allows it to be rotated to four usable edges, thereby making it versatile for several operations. Often made from mixed carbide grades, the TCMT insert is used in general turning operations on steel, aluminum, and stainless steel.

• TNMG Inserts

  The TNMG insert features a triangular shape with a small notch on each side. This small notch allows it to be used in both turning and grooving applications. Its compact design provides a stronger cutting edge, hence minimizing chipping during heavy machining. The TNMG is popular in precision machining of small components.

• TMGT Inserts

  These TMGT inserts are shaped like triangles and are compatible with turning and finishing operations. The 5-degree clearance angle provides a smooth cut and is ideal for low-feed rate finishes. Users commonly employ TMGT inserts in final machining passes to achieve tight tolerances.

• TNMM Inserts

  The TNMM insert is a triangular shape with a rounded edge and is typically used for parting and grooving applications. The small groove on the cutting edges allows for clean cuts in narrow cavities or slots. Users predominantly employ the TNMM in grooving operations because of its superior edge strength.

• TPGT Inserts

  The TPGT insert is designed for external threading. These inserts have a 55-degree thread profile, allowing users to create precise threads on round workpieces. TPGT inserts can also be used for finishing operations on threaded parts.

Why Triangle Cemented Carbide Inserts Are a Good Choice

Exponential Triangle inserts have a unique shape that makes them ideal for high-performance machining. Several factors contribute to their precision and durability.

• Versatility in Applications

  The triangular shape allows each insert to be rotated and used on all its edges. This feature increases the insert's versatility for different operations such as turning, facing, and grooving. Therefore, manufacturers can perform several tasks with just one insert type. This versatility reduces the need for multiple tools.

• Precision in Machining

  The triangular design allows for better stability and control during cutting. These inserts give a smooth cutting action that results in superior surface finishes. This precision is vital in industries where tight tolerances are essential, like aerospace and automotive.

• Durability and Wear Resistance

  Cemented carbide is a highly durable material that can withstand extreme heat and wear. Triangle inserts maintain their sharpness for a long time, reducing the frequency of tool changes. This durability leads to longer tool life, hence reducing machining costs.

• Efficient Heat Dissipation

  Due to their triangular shape, cemented carbide inserts effectively dissipate heat during cutting. This feature keeps the insert and workpiece at lower temperatures, reducing the risk of thermal damage. Efficient heat management helps maintain the integrity of both the insert and the workpiece, especially when machining tough materials.

• Compatibility with Different Materials

  Triangle inserts are suitable for machining a broad range of materials. These materials may include steel, aluminum, and titanium alloys. Their design offers exceptional performance across diverse industries. People can thus use them for general, aerospace, and automotive engineering purposes.

How to Choose Triangle Cemented Carbide Inserts

Manufacturers should consider several factors when buying Triangle cemented carbide inserts from wholesalers. They should focus on these factors to ensure that they purchase the right inserts for their customers.

• Insert Material

  Inserts come in various qualities, each suited to different machining conditions. They will find that some high-speed steel inserts are ideal for general-purpose machining. Others, like the edge-honing carbide inserts, are perfect for high-speed operations. Select the material based on the specific requirements of the target customers.

• Coatings

  Coatings enhance the performance of the inserts significantly. For instance, people will find titanium nitride coatings on some dumbbell carbide inserts. This coating will provide excellent wear resistance to the insert. Other coatings like titanium carbonitride will be useful when machining materials that generate high heat. So, the coating should match the customers' machining needs.

• Insert Geometry

  Each type of insert geometry offers unique advantages. For instance, some have sharp edges for smooth finishing, while others have a thicker profile for heavy cutting. The customers' machining applications will determine the suitable geometry.

• Compatibility

  The triangle carbide inserts have different chip breakers, making some inserts unsuitable for certain customers' lathes. Moreover, different lathes have different insert holders that match specific inserts. Therefore, buyers should ensure they buy inserts compatible with the customers' lathes and holders.

• Grade Selection

  Various manufacturers make triangle insert carbide tools from different carbide grades. Ideally, each grade is designed to cater to a specific customer's machining requirement. So, customers should select grade types based on the materials their customers plan to machine as well as the cutting conditions they will use.

What to Pay Attention to When Maintaining Triangle Cemented Carbide Inserts

To maximize the life of Triangle cemented carbide inserts, business owners should offer their customers insert maintenance guidelines. These maintenance procedures will help them maintain the performance of their Triangle inserts.

• Proper Storage

  They should store the inserts in a dry, dust-free environment. Extreme temperatures or high humidity will degrade the insert quality. Moreover, surrounding the inserts with foam or storing them in a dedicated toolbox prevent insert damage. In addition, avoid storing tipping tools with the inserts to prevent hacksaw tips for steel jobs from damaging the inserts.

• Regular Cleaning

  Machining debris can accumulate on the inserts over time. This debris will affect the performance of the insert if it builds up considerably. Business owners can advise their customers to regularly clean the inserts using a wire brush or compressed air to remove debris after every use. Further, they should use a suitable solvent to clean any stubborn residue on the inserts.

• Inspection for Wear

  Users should regularly inspect the triangle inserts for signs of wear. They can do this after every job or during big breaks. In the inspection, users need to look for chipping, cracking, or noticeable wear on the cutting edges. They can then use a magnifying glass to check for small fissures or micro-chipping. Users should then replace worn inserts promptly to avoid further damage to workpieces.

• Edge Maintenance

  Users can prolong the life of their inserts by carefully reconditioning the edges of new inserts using a diamond wheel or a specialized honing tool. However, only skilled staff should handle edge maintenance because improper honing can affect the quality of the cut.

• Monitoring Cutting Conditions

  Business owners should ensure their customers maintain optimal cutting speeds and feeds when using the triangle inserts. Excessive heat or force will cause unnecessary wear on the inserts. Therefore, avoiding such conditions will reduce the wear rate of the inserts. Also, they should use the recommended cutting fluids to reduce friction and dissipate heat.

Q&A

Q. Can users machine hardened steel using triangle cemented carbide inserts?

Yes, they can. However, only inserts made of top-quality cemented carbide and having the right coating will efficiently machine hardened steel. Apart from these two features, the customers' machining parameters will play a crucial role in the successful machining of hardened steel. Therefore, buyers have to ensure they select inserts with optimal inserts for hardness, edge strength, and wear resistance.

Q. Which factors contribute the most to the longevity of triangle cemented carbide inserts?

The main factors are the insert quality and the cutting conditions. When the cutting conditions are optimal and the insert mishandling is minimal, the inserts can easily last for several hours. In addition, other factors such as proper cleaning and storage will help maintain the quality of the insert.

Q. What are the common signs of carbide insert wear?

When users start experiencing poor surface finish and increased cutting forces, they are most likely using worn inserts. Other signs include visible chipping, micro-fractures, and rounded edges. Users should replace worn inserts immediately to avoid inserting wear and negatively affecting workpieces.

Q. How do carbide inserts perform in high-speed machining?

Triangle carbide inserts are suitable for high-speed machining. So, they perform excellently in this application. This is particularly true when the inserts are mounted onto stable tooling systems. In addition, certain carbide insert grades may contain cobalt for additional bond strength, further increasing their performance in high-speed applications.

Q. How to recycle worn triangle carbide inserts?

One of the most popular ways to recycle worn carbide inserts is to use them to make new carbide tools. Some manufacturing companies offer programs for taking back worn inserts and repurposing them. Further, several local scrap metal dealers recycle carbide inserts.
