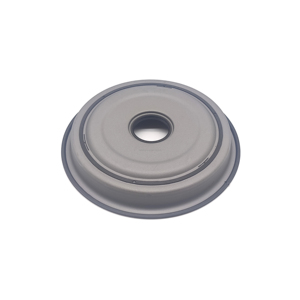

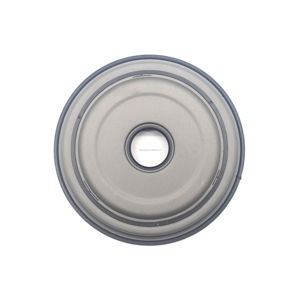

Types of Transmission Covers
The transmission cover is a critical component in a vehicle's drivetrain system, serving as the protective casing for the transmission mechanism. This essential part shields internal components from contaminants like dirt, dust, and moisture while allowing access for maintenance tasks such as fluid changes and inspections. Choosing the right type of transmission cover can significantly impact both the performance and longevity of your vehicle's transmission system.
Manual Transmission Cover
Specifically designed for vehicles with manual gearboxes, this type of cover provides access to the transmission fluid ports and protects the mechanical components inside. The cover typically features bolted ports with gaskets that must be properly sealed to prevent fluid leaks during operation.
Advantages
- Simple design allows for easy maintenance
- Inexpensive replacement parts
- Direct access for fluid checks and changes
- Commonly available for most standard models
Limitations
- Limited protection against extreme conditions
- More frequent maintenance required
- May wear faster due to regular access
Best for: Standard passenger cars, older models, DIY maintenance enthusiasts

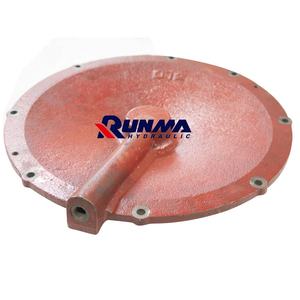

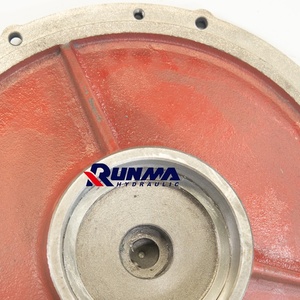

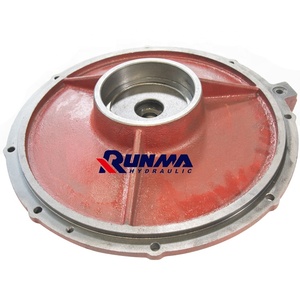

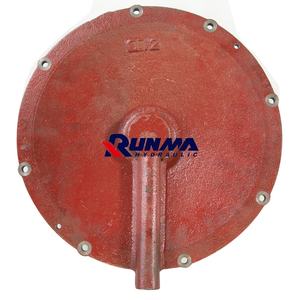

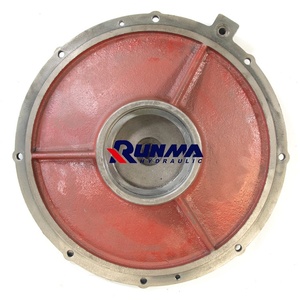

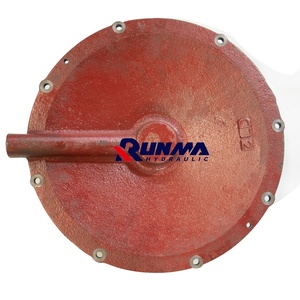

Cast Iron Transmission Cover
A traditional material choice known for its durability and heat resistance, cast iron covers were commonly used in older vehicle designs. While effective at protecting the transmission under heavy use, their significant weight has led to declining popularity in modern automotive manufacturing.
Advantages
- Exceptional heat resistance
- High durability under stress
- Long-lasting in stable operating environments
- Effective vibration dampening
Limitations
- Heavyweight affects fuel efficiency
- Pronounced susceptibility to rust over time
- Difficult to install or remove
Best for: Vintage vehicles, classic car restorations, heavy-duty applications where weight isn't a concern

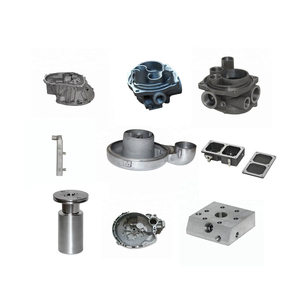

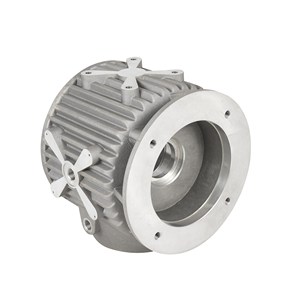

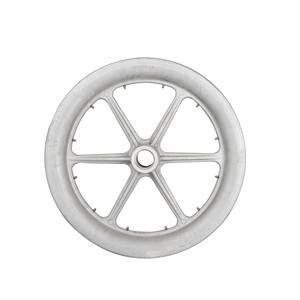

Aluminum Transmission Cover
Modern vehicles frequently utilize aluminum covers due to their lightweight properties and excellent corrosion resistance. These covers are particularly common in automatic transmissions, where they protect vital components such as the torque converter while helping maintain optimal operating temperatures.
Advantages
- Lightweight without sacrificing strength
- Excellent corrosion resistance
- Better heat dissipation than cast iron
- Easy to service and replace
Limitations
- Higher cost compared to basic steel
- May warp under extreme pressure
- Less rigid than heavier materials
Best for: Modern passenger vehicles, automatic transmissions, fuel-efficient builds

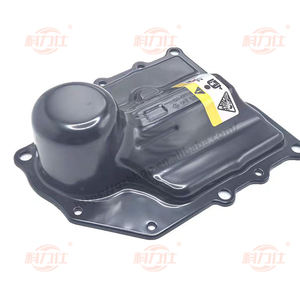

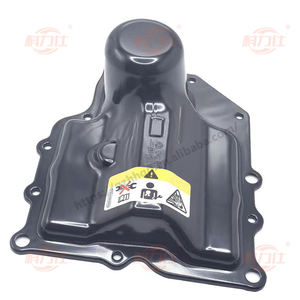

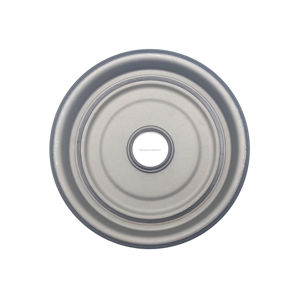

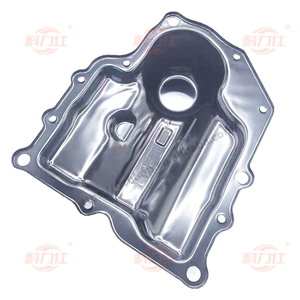

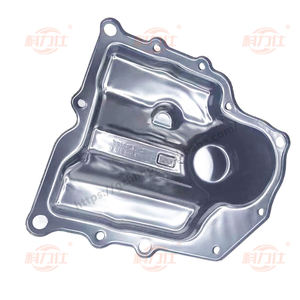

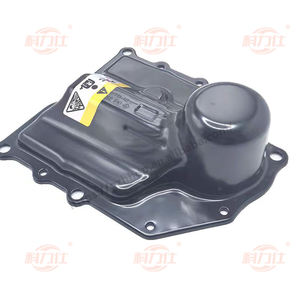

Steel Transmission Cover
Known for its exceptional strength and resilience, steel remains a popular choice for commercial vehicles and trucks. Steel covers offer robust protection against road hazards and environmental factors, making them ideal for demanding applications where reliability is paramount.
Advantages
- Outstanding structural integrity
- Excellent protection against impacts
- Good corrosion resistance when coated
- Durable under harsh conditions
Limitations
- Heavier than aluminum alternatives
- Prone to rust if coating fails
- Can be more expensive than basic covers
Best for: Commercial trucks, off-road vehicles, heavy-duty transport applications
Carbon Fiber Transmission Cover
Representing the cutting edge of automotive materials technology, carbon fiber covers combine extraordinary strength with minimal weight. While not yet widely adopted for everyday vehicles, these high-performance covers are increasingly found in luxury and racing applications where every ounce matters.
Advantages
- Extremely lightweight
- Superior strength-to-weight ratio
- Corrosion and temperature resistant
- Enhances aesthetic appeal
Limitations
- Significantly higher cost than other materials
- Specialized installation may be required
- Not suitable for all vehicle types
Best for: High-performance sports cars, racing vehicles, luxury automotive builds
Type | Weight | Corrosion Resistance | Durability | Ideal Application |
---|---|---|---|---|
Manual | Medium | Fair | Good | Standard passenger vehicles, DIY maintenance |
Cast Iron | Very Heavy | Poor | Excellent | Vintage cars, classic restorations |
Aluminum | Light | Excellent | Good | Modern cars, automatic transmissions |
Steel | Heavy | Good | Excellent | Trucks, commercial vehicles, off-road use |
Carbon Fiber | Very Light | Excellent | Very Good | Racing cars, luxury performance vehicles |
Expert Tip: When replacing any type of transmission cover, always ensure you're using the correct gasket material and applying proper torque specifications to bolts. Over-tightening can cause warping or damage to both the cover and transmission housing.
Specifications and Maintenance of Transmission Covers
The specifications of transmission covers vary depending on their function and the vehicle's make and model. A transmission cover is a critical component that protects the internal mechanisms of your vehicle’s transmission system. Understanding its construction and proper maintenance can help prevent costly repairs and extend the life of your transmission.
Key Specifications to Consider
Before purchasing or replacing a transmission cover, it’s important to evaluate several key specifications to ensure compatibility, durability, and optimal performance:
Material Composition
Transmission covers are typically manufactured from either metal (such as cast aluminum or steel) or composite plastic materials. Each material offers distinct advantages and disadvantages:
- Metal Covers: Known for their strength and heat resistance, metal covers are commonly used in high-performance and heavy-duty vehicles. They offer excellent protection against physical damage but tend to be heavier and more expensive.
- Composite Plastic Covers: These are lighter and often less expensive than metal counterparts. While they provide adequate protection for standard driving conditions, they may not withstand extreme impacts or high temperatures as effectively.
Additionally, metal covers can contribute to noise reduction when properly insulated, while plastic covers naturally dampen vibrations and operational sounds.
Shape and Size

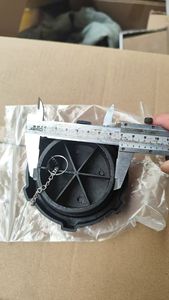

A transmission cover must precisely match the shape and dimensions of the specific transmission unit it is designed to protect. This ensures full coverage of the transmission housing and proper alignment with mounting points and oil pan gasket surfaces.
Manufacturers design these covers to fit within the tight spaces under the vehicle chassis, so dimensional accuracy is crucial for installation and clearance purposes. Improperly sized covers can lead to fluid leaks, restricted access for maintenance, or even interference with other components.
Mounting Mechanism
Transmission covers are secured using bolts, screws, or clamps that align with pre-drilled holes on both the cover and the transmission casing. The placement and number of fastening points are engineered to provide secure attachment without compromising ease of removal during maintenance.
Some modern designs incorporate quick-release systems or torque-to-yield bolts for improved serviceability. Always follow manufacturer guidelines for tightening sequences and torque specifications to avoid warping the cover or damaging the transmission housing.

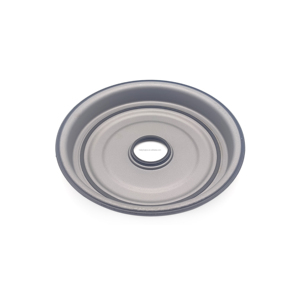

Sealing Features
Proper sealing is essential to prevent transmission fluid leakage and contamination from dirt, moisture, and debris. Transmission covers utilize gaskets, O-rings, or molded-in-place seals made from rubber, silicone, or synthetic compounds.
High-quality seals maintain flexibility over a wide temperature range and resist degradation from exposure to transmission fluids. Some premium covers include multi-layer sealing systems for added reliability in harsh environments.
Specification | Importance | Selection Tips |
---|---|---|
Material Type | High | Select based on driving conditions—metal for rugged use, plastic for everyday driving |
Dimensions | High | Ensure exact measurements match OEM specifications or consult a repair manual |
Fastener Pattern | Medium | Match bolt/screw locations to ensure proper installation |
Corrosion Resistance | Medium | Look for powder-coated or galvanized finishes, especially in wet climates |
Seal Compatibility | High | Use original equipment or high-performance seals for leak-free operation |
Essential Maintenance Practices
Regular maintenance of your transmission cover helps preserve the integrity of your vehicle’s transmission system. Here are key practices to follow:
Important: When replacing a transmission cover, always inspect and replace the associated gaskets and seals simultaneously. Reusing old seals can compromise the integrity of the new cover and lead to premature failure or fluid leaks.
How to Choose Transmission Covers
Selecting the right transmission cover for your vehicle involves evaluating several critical factors that impact performance, durability, and compatibility. A high-quality transmission cover not only protects one of the most vital components of your car but also contributes to smoother operation and longer service life.
Vehicle Compatibility
The transmission cover must fit precisely over the transmission housing without interfering with adjacent systems such as exhaust pipes, driveshafts, or suspension components. An improper fit can lead to vibration issues, oil leaks, or even mechanical failure.
- Check your vehicle's make, model, year, and engine type before purchasing
- Consult OEM part numbers or manufacturer cross-reference charts
- Verify dimensions against your current transmission case

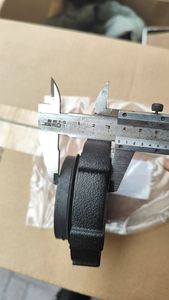

Pro tip: If uncertain, take measurements of your existing transmission housing and compare them with product specifications.
Material and Durability
Transmission covers are typically made from cast iron, steel, or aluminum — each offering distinct advantages based on application and environment.
- Cast Iron: Excellent heat retention, commonly used in heavy-duty applications but heavier than other materials
- Steel: Strong and durable, ideal for high-stress environments but prone to rust if not properly coated
- Aluminum: Lightweight, corrosion-resistant, and efficient at dissipating heat but may be less robust under extreme stress
Note: For off-road vehicles or commercial fleets, consider reinforced or powder-coated options for enhanced protection.
Functionality
Modern transmission covers serve more than just a protective function; they often incorporate design features aimed at improving fluid dynamics, reducing noise, and preventing leaks.
- Look for gasket-ready surfaces or integrated sealing grooves
- Some covers include magnetic drain plugs to capture metal debris
- Vented designs help manage internal pressure changes
- High-performance covers may feature cooling fins or oil baffles
Insight: Enhanced functionality often translates into better long-term reliability and reduced maintenance frequency.
Ease of Installation
A well-designed transmission cover should simplify both installation and future servicing. Covers requiring minimal tools and special procedures will save time and labor costs.
- Pre-drilled mounting holes matching standard bolt patterns
- Integrated handles or lifting points for easier removal
- Clear labeling or orientation indicators for correct positioning
- Compatibility with existing hardware when possible
Recommendation: Choose covers that allow access to inspection ports and dipsticks without full removal.
Budget Considerations
While budget is always an important factor, it’s crucial to balance cost with quality and expected service life. Investing in a slightly more expensive, higher-quality cover can reduce long-term expenses related to repairs and replacements.
- Entry-level covers (cast iron or basic steel): $50–$120
- Mid-range aluminum or coated covers: $120–$250
- Performance or specialty covers: $250–$500+
Value insight: Compare price per mile/year of service rather than upfront cost alone.
Warranty and Manufacturer Support
A reliable warranty reflects the manufacturer's confidence in their product and provides peace of mind to the buyer. Coverage varies significantly between brands and models.
- Standard warranties: 1–2 years limited coverage
- Premium brands: 5+ years or lifetime warranties
- Support services: Technical assistance, replacement parts, and troubleshooting resources
Critical check: Read warranty terms carefully — some exclude damage caused by misuse or improper installation.
Expert Recommendation: When replacing a transmission cover, consider upgrading to a model that offers improved sealing technology or enhanced material properties. Even a small investment here can prevent costly fluid leaks and contamination down the road.
Use Case | Ideal Material | Key Features | Estimated Cost Range |
---|---|---|---|
Daily commuter vehicle | Coated steel or aluminum | Leak-proof gaskets, standard bolt pattern | $70 – $150 |
Heavy-duty truck or towing | Reinforced cast iron | Magnetic drain plug, thick flanges | $120 – $220 |
Racing or high-performance | Forged aluminum alloy | Cooling fins, vented design, lightweight | $250 – $450 |
Classic or vintage restoration | Cast iron (original equipment style) | Historically accurate finish, OEM-style bolts | $90 – $300 |
DIY Guide to Replacing Transmission Covers
Replacing a transmission cover is a moderately complex task that requires mechanical knowledge and proper tools. While it's recommended for experienced DIYers or trained professionals, this guide provides detailed steps to help you complete the job safely and effectively at home or in a workshop setting.
Safety Warning: Working under a lifted vehicle poses serious risks. Always ensure your car is securely supported on jack stands before working underneath it. Wear protective gloves, eye protection, and appropriate clothing throughout the process.
Essential Preparation Steps
Before diving into the replacement process, take time to properly prepare your workspace and gather all necessary tools and materials:
- Transmission cover gasket set (OEM recommended)
- New transmission fluid (if required)
- Socket wrench set with metric and standard sizes
- Jack and sturdy jack stands
- Drip pan or fluid catch container
- Clean rags or shop towels
- Plastic scraper or gasket remover tool
- Torque wrench (for proper bolt tightening)
- Safety glasses and gloves
Step-by-Step Replacement Procedure
- Vehicle Positioning and Safety Setup
- Park the vehicle on a flat, level surface
- Engage the parking brake to prevent movement
- Turn off the engine and allow it to cool completely
- Wear safety glasses and gloves before beginning work
- Battery Disconnection and Fluid Management
- Locate the negative battery terminal and disconnect it first
- For automatic transmissions, remove the transmission dipstick
- Use a siphon pump to extract as much fluid as possible from the transmission
- Place a drip pan beneath the transmission cover area to catch any residual fluid
- Lifting the Vehicle Safely
- Identify the manufacturer-recommended jacking points
- Raise the vehicle using a floor jack until the wheels are off the ground
- Securely position jack stands under reinforced frame points
- Lower the vehicle onto the stands and double-check stability
- Removing the Old Transmission Cover
- Locate the transmission cover—typically found on the side of the transmission housing
- Begin loosening the bolts securing the cover in a crisscross pattern
- Remove bolts completely and carefully slide out the old cover
- Inspect the removed gasket for signs of wear or damage that might indicate other issues
- Surface Preparation and Gasket Installation
- Thoroughly clean the mating surface on the transmission housing
- Use a plastic scraper to remove old gasket material without damaging the metal
- Wipe down the surface with a clean rag and solvent or degreaser
- Allow the surface to dry completely before installing the new gasket
- Installing the New Transmission Cover
- Check that the new cover comes with a pre-cut gasket or install one separately
- Align the cover carefully with the transmission housing
- Gently slide the cover into place without disturbing the gasket
- Hand-tighten the bolts initially to avoid misalignment
- Proper Bolt Torquing Technique
- Using a torque wrench, tighten the bolts in a crisscross pattern
- Follow the manufacturer's recommended torque specifications (usually between 15-25 ft-lbs)
- Avoid over-tightening which can warp the cover or strip threads
- Double-check all bolts after initial torquing sequence
- Final Assembly and Testing
- Lower the vehicle slowly from the jack stands
- Reconnect the battery terminals starting with the positive cable
- Add fresh transmission fluid to the recommended level using a funnel
- Start the engine and check for leaks while shifting through gears
- Take a short test drive to ensure proper operation
Phase | Key Considerations | Common Mistakes to Avoid | Recommended Tools |
---|---|---|---|
Preparation | Verify gasket compatibility, check fluid type, review vehicle-specific procedures | Mismatched gaskets, incorrect fluid type, skipping service manual review | Service manual, fluid charts, part numbers verification |
Disassembly | Proper lifting technique, organized bolt storage, careful cover removal | Improper lifting, disorganized fasteners, damaged gasket remnants | Jack stands, magnetic tray, label maker |
Cleaning | Complete gasket removal, thorough surface cleaning, residue-free preparation | Incomplete cleaning, use of abrasive tools, solvent contamination | Gasket remover, degreaser, lint-free cloths |
Installation | Proper alignment, correct torque sequence, clean installation environment | Forced installation, improper torque patterns, contaminated surfaces | Torque wrench, alignment guides, clean workspace |
Testing | Fluid level verification, leak inspection, functional testing | Driving with low fluid, ignoring warning signs, incomplete checks | Fluid checker, pressure tester, diagnostic scanner |
Professional Tip: Before purchasing replacement parts, verify the exact make, model, and year of your vehicle to ensure compatibility. Some manufacturers offer updated cover designs that address common failure points in earlier models.
Additional Recommendations and Best Practices
To ensure long-term reliability and optimal performance after your transmission cover replacement:
- Consider replacing the transmission filter at the same time if accessible
- Use OEM (Original Equipment Manufacturer) quality parts for critical components
- Mark the date of replacement on your maintenance records for future reference
- Monitor fluid levels closely during the first few days after installation
- Inspect the cover periodically for signs of leakage or vibration damage
- If your vehicle has an electronic transmission control module, consider having it checked for error codes post-installation
Note: If you encounter significant resistance when removing or installing the cover, stop and reassess your approach. Forcing components can lead to expensive repairs. Transmission work requires patience and attention to detail.
Frequently Asked Questions About Transmission Covers
Whether a transmission cover can be repaired largely depends on the severity and type of damage it has sustained. Minor surface cracks or hairline fractures that do not compromise the structural integrity of the cover may be repairable using specialized epoxy resins or metal welding techniques, depending on the material (aluminum, cast iron, or plastic). However, if the damage is extensive—such as deep cracks, warping, or broken mounting points—the safest and most effective solution is to replace the cover entirely.
Attempting to repair severely damaged covers can lead to further complications, including oil leaks, contamination of the transmission system, and potential mechanical failure. Always consult with a qualified mechanic to determine whether repair is viable or replacement is necessary for long-term reliability.
No, there are no truly universal transmission covers available on the market. Each vehicle make and model is engineered with specific dimensions, mounting configurations, and design tolerances. As such, transmission covers are manufactured to fit precise specifications for compatibility and performance.
Using a non-specific or "universal" cover may result in improper sealing, misalignment with bolt holes, fluid leakage, or even damage to internal components. It’s essential to choose a transmission cover designed specifically for your vehicle's year, make, and model to ensure proper fitment and functionality. Always double-check part numbers and compatibility information before purchasing.
Selecting the correct transmission cover involves several key steps:
- Consult the vehicle owner’s manual: This resource often contains technical specifications, including the correct part numbers for critical components like the transmission cover.
- Use online parts catalogs: Reputable automotive websites allow users to input their vehicle details (make, model, year, engine size, etc.) to search for OEM or compatible aftermarket parts.
- Seek professional advice: A certified mechanic or auto parts specialist can help verify compatibility based on experience and access to manufacturer databases.
- Verify physical attributes: When possible, compare the existing cover to the new one by checking dimensions, bolt patterns, gasket surface condition, and any required cutouts or ports.
Paying attention to these details ensures optimal protection for the transmission system and helps prevent costly repairs due to incorrect installation.
A properly installed and intact transmission cover does not directly enhance or detract from a vehicle’s performance metrics such as speed, acceleration, or fuel efficiency. However, its role in protecting the internal transmission components is critical to maintaining overall drivetrain health.
If the transmission cover becomes damaged, loose, or improperly sealed, it can lead to oil leaks, contamination, overheating, or gear wear—all of which may indirectly degrade performance over time. In severe cases, loss of lubrication could result in catastrophic transmission failure, leading to expensive repairs and significant downtime.
Therefore, while not a performance part per se, the transmission cover plays a vital role in sustaining the smooth operation and longevity of the vehicle’s powertrain system.
When replacing a transmission cover, certain related components are typically replaced to ensure a complete and leak-free installation:
Component | Description | Reason for Replacement |
---|---|---|
Transmission Gasket | The sealing gasket between the cover and the transmission housing | Gaskets compress over time and lose their sealing ability. Replacing the gasket ensures a tight, leak-proof seal. |
Sealant or RTV Silicone | Used in conjunction with or instead of a gasket in some models | Old or dried-out sealant should be removed and replaced to prevent future leaks. |
Transmission Fluid | Lubricant inside the transmission system | During removal of the cover, some fluid may be lost. Topping off or replacing the fluid ensures proper lubrication and cooling. |
Metal Shavings or Debris Filter | Some covers include a magnetic drain plug or filter | Cleaning or replacing this component prevents contaminants from recirculating into the transmission. |
In rare cases where internal damage or excessive wear is discovered during inspection, additional repairs such as replacing worn gears or bearings may also be necessary. Always perform a thorough check of the transmission internals when accessing the cover.
