Complete Guide to Toyota Transmission Solenoid Valves

Types, Specifications, Selection Criteria, Maintenance, and DIY Installation

Types of Toyota Transmission Solenoid Valves

A Toyota transmission solenoid valve is a vital component of the automatic transmission system. These electronic devices control the flow of transmission fluid, engaging or disengaging gears based on commands from the transmission control unit. Toyota vehicles utilize several types of solenoid valves, each with specific functions and applications.

Expert Tip: Understanding the different types of solenoid valves can help diagnose transmission issues more accurately and ensure you select the correct replacement part when needed.

Pressure Control Solenoid (PCS)

Regulates the pressure of fluids inside the transmission, controlling clutch and band activation during gear shifts.

Primary function: Ensures smooth and precise gear changes

Benefits: Improves vehicle performance and fuel efficiency

Shift Solenoid Valve (SLU, SLL)

Works in pairs to control transmission fluid flow in the gearbox, engaging different gear sets based on ECU signals.

SLU controls: 3rd and Overdrive gears

SLL controls: 1st and 2nd gears

Torque Converter Lockup Solenoid (LU)

Controls the lock/unlock functions of the torque converter clutch, creating direct engine-transmission connection.

Primary benefit: Improved fuel efficiency during highway cruising

Protection: Prevents clutch engagement in low-speed/high-load conditions

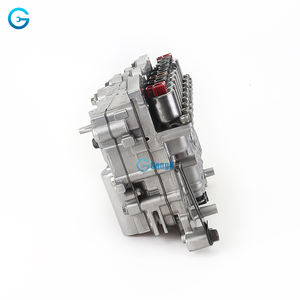

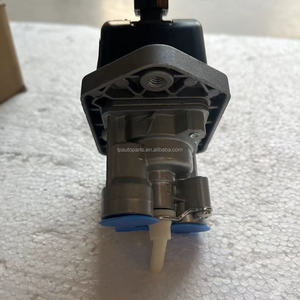

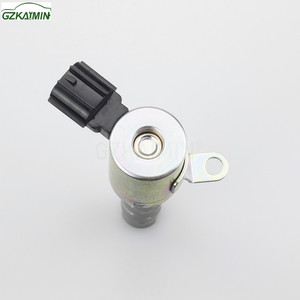

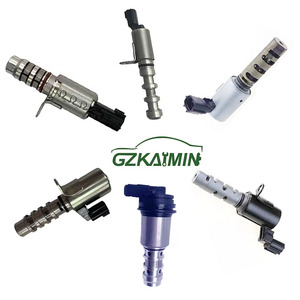

Oil Control Valve (OCV)

Regulates oil flow to the Variable Valve Timing (VVT) actuator, adjusting intake/exhaust valve timing.

Key improvements: Engine performance, fuel efficiency, emissions control

Operation: Adjusts based on real-time engine conditions

Solenoid Valve Function Diagram

Solenoid Type Primary Function When Activated When Deactivated
Pressure Control (PCS) Fluid pressure regulation Increases line pressure Decreases line pressure
Shift Solenoid (SLU) Higher gear control Engages 3rd/OD gears Disengages 3rd/OD gears
Shift Solenoid (SLL) Lower gear control Engages 1st/2nd gears Disengages 1st/2nd gears
Lockup Solenoid (LU) Torque converter control Locks converter clutch Unlocks converter clutch
Oil Control Valve (OCV) Valve timing adjustment Advances valve timing Retards valve timing

Specifications and Maintenance of Toyota Transmission Solenoid Valves

Every Toyota transmission solenoid valve has unique specifications depending on the vehicle model and production year. However, certain general characteristics and maintenance requirements apply across most Toyota solenoid valves.

General Specifications

Specification Description
Control Method Electrical signals from Transmission Control Module (TCM)
Pressure Ranges Low, high, or variable depending on solenoid state
Mechanical Operation Connects/disconnects valve body, piston, and gears for shifting
Materials Aluminum, copper, iron, or steel depending on model
Design Features Orifice opening for fluid flow regulation
Primary Functions Precise control of transmission fluid flow and pressure

Maintenance Recommendations

Proper maintenance is essential for extending the lifespan of Toyota transmission solenoid valves and ensuring optimal vehicle performance:

Regular Fluid Maintenance

Following Toyota's recommended transmission fluid change schedule removes contaminants and keeps solenoid valves properly lubricated.

Recommended interval: Every 30,000-60,000 miles (varies by model)

Temperature Management

Preventing transmission overheating helps preserve solenoid functionality and prevents premature failure.

Warning signs: Monitor temperature gauge, especially during towing or hot weather

Proper Loading Practices

Respecting Toyota's weight limits reduces strain on the transmission system and solenoid valves.

Best practice: Consult owner's manual for specific towing and cargo limits

Warning: Avoid "slip shifting" (changing gears before the lever reaches the notch position). This practice confuses the transmission control unit and can damage solenoid valves over time.

Professional Maintenance Tip: Even with diligent DIY maintenance, schedule professional transmission inspections every 2 years or 30,000 miles. Technicians can perform comprehensive diagnostic tests that identify potential solenoid issues before they cause major transmission failures.

How to Choose Toyota Transmission Solenoid Valves

Selecting the right transmission solenoid valve requires careful consideration of vehicle specifications, quality factors, and compatibility. Follow these guidelines to ensure you purchase the correct component for your Toyota vehicle.

Vehicle Compatibility

Different Toyota models use specific solenoid valve configurations in their transmission systems.

Key factors: Make, model, year, and transmission type

Verification method: VIN number lookup or transmission code check

Quality Considerations

Transmission repairs are costly, making quality solenoid valves a worthwhile investment.

Look for: Reputable brands, warranties, material quality

Avoid: Unusually cheap components with no performance guarantees

OEM vs. Aftermarket Comparison

Factor OEM (Original Equipment Manufacturer) Aftermarket
Quality Assurance Identical to original parts; meets Toyota specifications Varies by manufacturer; may exceed or fall short of OEM quality
Cost Higher initial investment Usually more affordable; wider price range
Warranty Typically 12 months/12,000 miles from Toyota Varies from 90 days to lifetime warranties depending on brand
Availability Limited to dealerships and authorized parts retailers Widely available through multiple sources
Best For Newer vehicles, lease vehicles, collectors Older vehicles, budget repairs, performance upgrades

Selection Tip: When in doubt about solenoid valve compatibility, consult with a professional mechanic or contact Toyota's customer service with your VIN number. Many online auto parts retailers also offer VIN-based lookup tools to ensure proper part matching.

DIY Replacement of Toyota Transmission Solenoid Valves

While transmission solenoid replacement requires mechanical knowledge, many Toyota owners with basic skills can perform this task with the right tools and careful attention to detail. Follow these steps for a successful DIY replacement:

Safety Warning: Transmission work carries risks if done incorrectly. If you're uncertain about any step, consult a professional mechanic. Always work on a cool engine and follow all safety precautions.

1

Gather Necessary Tools and Parts

Before beginning, ensure you have all required equipment:

  • Socket wrench set and torque wrench
  • Screwdrivers (flathead and Phillips)
  • Pliers and container for fluid
  • New solenoid valve (verify compatibility)
  • New transmission pan gasket
  • Toyota-approved transmission fluid
  • Vehicle-specific repair manual
2

Prepare Vehicle and Follow Safety Precautions

Proper preparation ensures safety and accessibility:

  • Park on a flat, level surface
  • Engage parking brake and block wheels
  • Allow engine to cool completely
  • Wear safety glasses and gloves
  • Use proper jack stands if lifting vehicle
3

Access the Transmission

Most Toyota models require accessing the valve body from underneath:

  • Position a drain pan under the transmission
  • Remove the transmission drain plug and drain fluid
  • Remove bolts securing the transmission pan
  • Carefully lower the pan, avoiding spills
  • Note: Some fluid will remain in the transmission
4

Remove the Old Solenoid Valve

Careful removal prevents damage to surrounding components:

  • Locate the specific solenoid valve(s) needing replacement
  • Disconnect electrical connectors (note their positions)
  • Remove mounting bolts or clips
  • Carefully extract the solenoid from its housing
  • Compare old and new solenoids for exact matching
5

Install the New Solenoid Valve

Precise installation ensures proper function:

  • Clean the mounting surface thoroughly
  • Install the new solenoid in the exact position
  • Secure mounting bolts to specified torque (check manual)
  • Reconnect electrical connectors firmly
  • Verify all connections are secure
6

Complete Assembly and Testing

Proper reassembly and testing confirm successful installation:

  • Clean the transmission pan and install with new gasket
  • Tighten pan bolts in a cross-pattern to specified torque
  • Reinstall drain plug
  • Add new transmission fluid through dipstick tube
  • Start engine and allow to warm up
  • Shift through all gears with brake applied
  • Check for leaks and unusual noises
  • Test drive to verify proper shifting

DIY Pro Tip: Take photos at each stage of disassembly to help with reassembly. Label any disconnected electrical connectors with tape to ensure correct reconnection. Consider replacing the transmission filter while the pan is removed, as this provides additional protection for your new solenoid valve.

Frequently Asked Questions

What are the signs of a failing Toyota transmission solenoid valve?

A failing transmission solenoid valve typically exhibits several recognizable symptoms:

  • Delayed or erratic shifting: Hesitation when changing gears or unexpected shifts
  • Inability to shift: Transmission stuck in one gear or limited gear selection
  • Transmission fluid leaks: Visible drips or puddles under the vehicle
  • Check Engine Light: Illuminated with transmission-related error codes
  • Unusual noises: Whining, buzzing or humming during shifts
  • Reduced fuel economy: Inefficient transmission operation increases fuel consumption
  • Limp mode activation: Vehicle enters reduced power mode to protect transmission

If you notice these symptoms, prompt diagnosis and repair can prevent more extensive transmission damage.

What causes Toyota transmission solenoid valves to fail?

Several factors contribute to solenoid valve failure in Toyota transmissions:

Cause Description Prevention
Contaminated Fluid Dirt, metal particles, and debris obstruct solenoid movement Regular transmission fluid and filter changes
Electrical Issues Wiring problems, short circuits, or voltage irregularities Proper electrical system maintenance, avoid jump starts
Overheating Excessive heat degrades solenoid components Avoid towing beyond capacity, maintain cooling system
Normal Wear Mechanical components deteriorate with age and mileage Follow maintenance schedule, gentle driving habits
Manufacturing Defects Rare quality control issues in production Choose OEM or high-quality aftermarket parts
How long does a Toyota transmission solenoid valve typically last?

The lifespan of Toyota transmission solenoid valves varies based on multiple factors:

  • Vehicle usage patterns: Typical solenoid valves in properly maintained Toyota vehicles can last 80,000 to 150,000 miles
  • Driving conditions: Stop-and-go traffic, mountain driving, and extreme temperatures accelerate wear
  • Maintenance quality: Regular fluid changes with manufacturer-specified fluid significantly extend solenoid life
  • Manufacturing quality: OEM solenoids typically outlast low-quality aftermarket alternatives
  • Transmission type: Different Toyota transmission designs (U660, U760, A761, etc.) have varying solenoid reliability profiles

With excellent maintenance and moderate driving conditions, some Toyota solenoid valves have been known to function properly throughout the vehicle's entire service life.

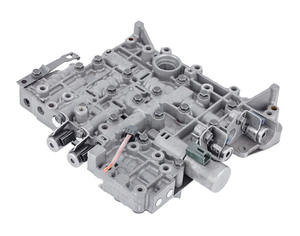

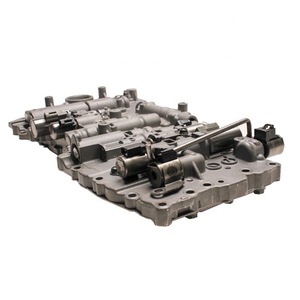

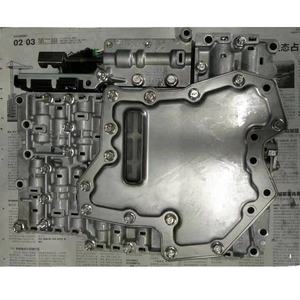

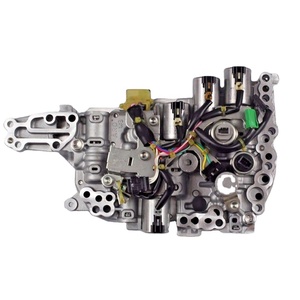

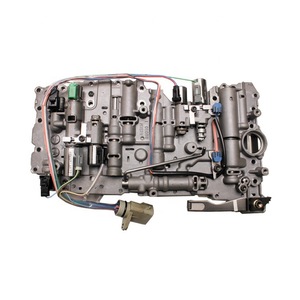

Is it better to replace individual solenoids or the entire valve body?

This decision depends on several factors:

Individual Solenoid Replacement

Pros: Lower cost, less labor if correctly diagnosed

Cons: May not address related issues, risk of misdiagnosis

Best when: Specific solenoid is confirmed faulty, budget is limited, transmission otherwise healthy

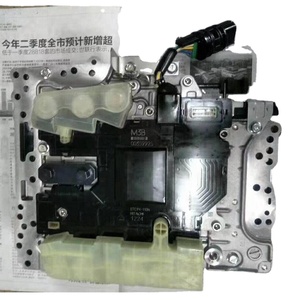

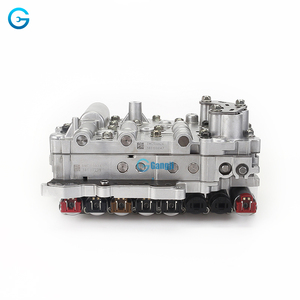

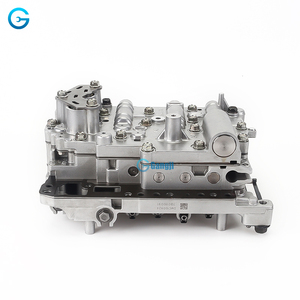

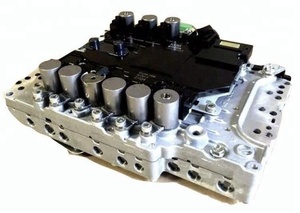

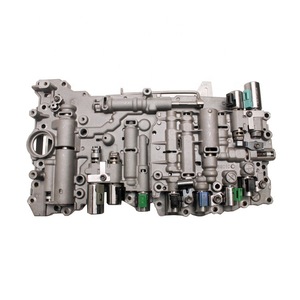

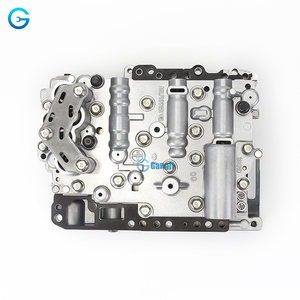

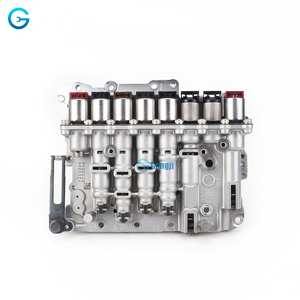

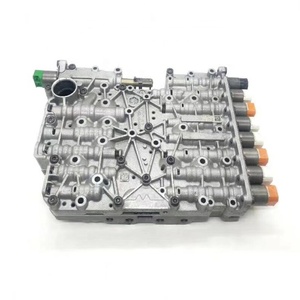

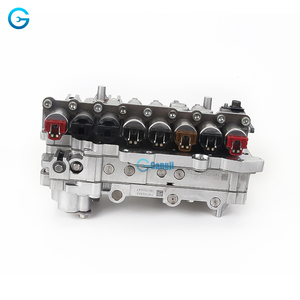

Valve Body Replacement

Pros: Addresses multiple potential issues, often includes new solenoids

Cons: Higher cost, may replace functioning components

Best when: Multiple shifting issues present, high mileage vehicle, preventative maintenance

Many professional mechanics recommend valve body replacement for vehicles over 100,000 miles when one solenoid fails, as others are likely to follow. For newer vehicles with a clearly diagnosed single solenoid issue, individual replacement is often sufficient.
