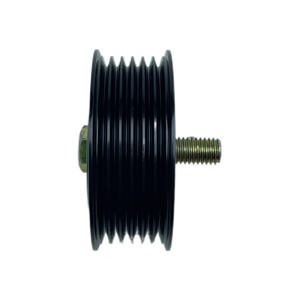

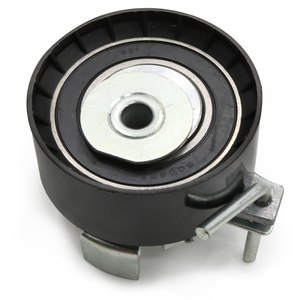

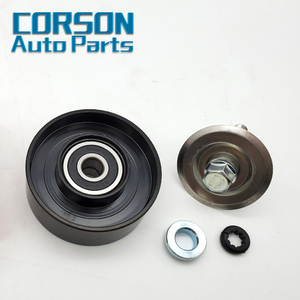

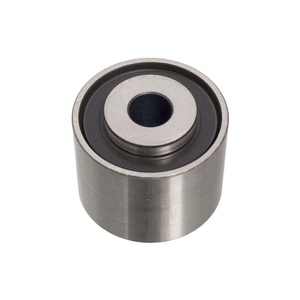

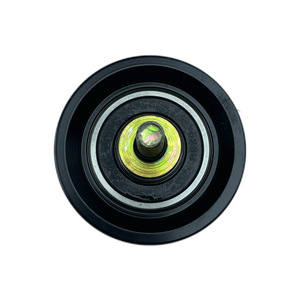

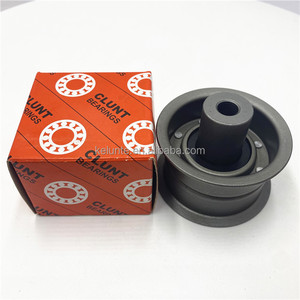

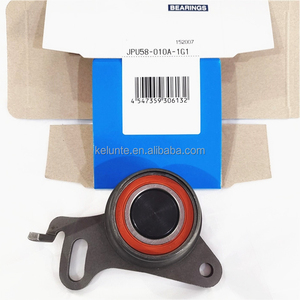

Types of Timing Belt Tensioner Pulleys and Bearings
A timing belt tensioner pulley bearing is a vital component in the engine's timing system that ensures the timing belt remains properly tensioned throughout its operation. These bearings support the pulley mechanism that maintains consistent pressure on the timing belt, preventing slippage, reducing wear, and ensuring accurate synchronization between the crankshaft and camshaft(s). Proper functioning of these components is essential for maintaining engine performance, fuel efficiency, and longevity.
The timing belt system relies heavily on the tensioner pulley and its internal bearing to operate smoothly under high stress and heat conditions. When the bearing becomes worn or the tensioner fails, it can lead to misalignment, noise, or even catastrophic engine failure in interference engines. Understanding the different types of tensioners and their respective advantages helps vehicle owners make informed maintenance decisions and mechanics perform more effective diagnostics and repairs.

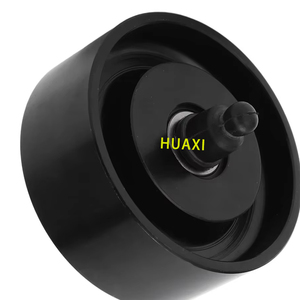

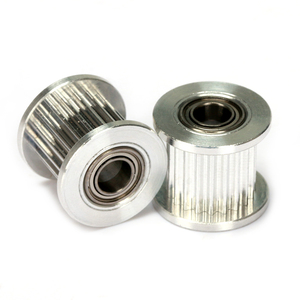

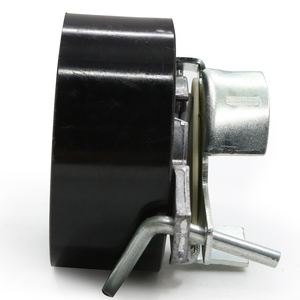

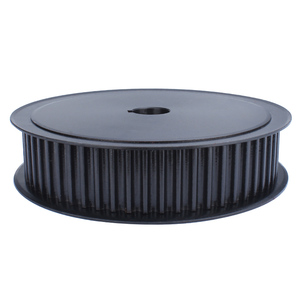

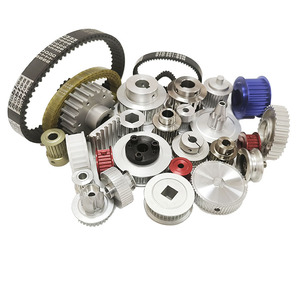

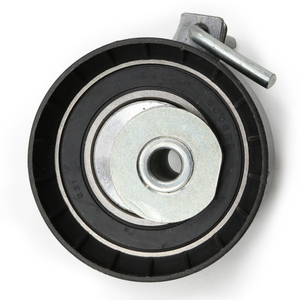

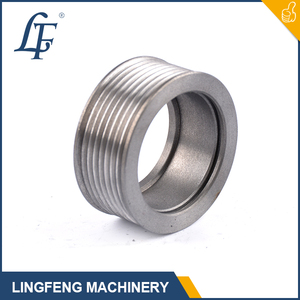

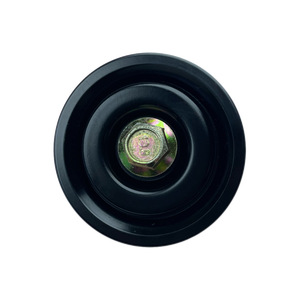

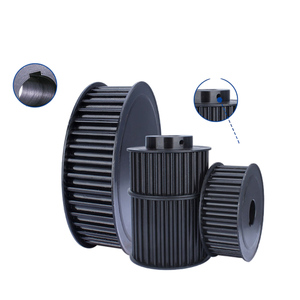

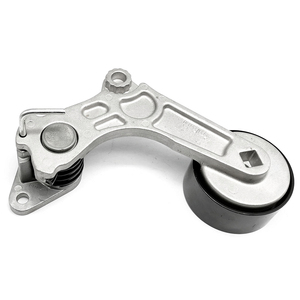

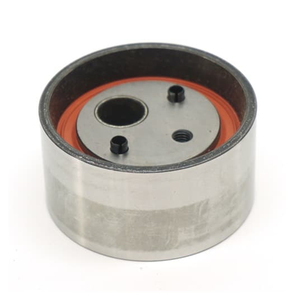

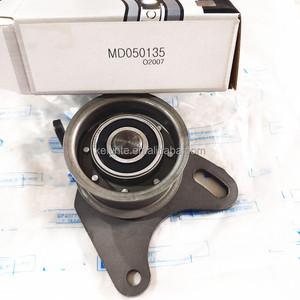

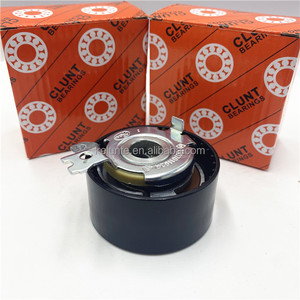

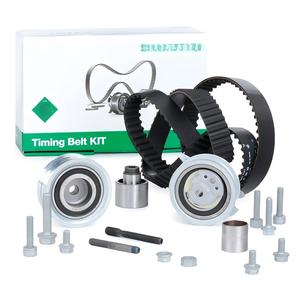

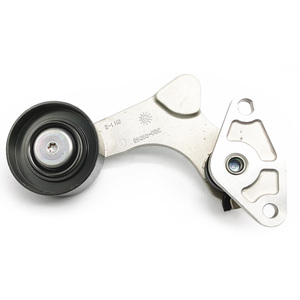

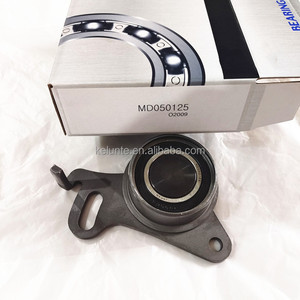

Mechanical Tensioner
Mechanical tensioners use spring-loaded or manually adjustable mechanisms to apply consistent force to the timing belt. They are often found in older vehicles or simpler engine designs where precise automatic adjustment isn't required.
Advantages
- Simple design with fewer moving parts
- Reliable in basic engine applications
- Easy to inspect and maintain
- Cost-effective replacement option
Limitations
- Limited adjustability once installed
- May require periodic manual readjustment
- Less responsive to dynamic load changes
Best for: Classic cars, vintage engines, budget-conscious repairs
Hydraulic Tensioner
Hydraulic tensioners utilize pressurized engine oil to automatically adjust and maintain optimal timing belt tension. These tensioners are commonly used in modern vehicles with complex engine systems and variable valve timing (VVT).
Advantages
- Self-adjusting for consistent tension
- Responsive to engine speed and load changes
- Reduces wear on timing components
- Improves engine reliability and performance
Limitations
- More complex and expensive than mechanical units
- Dependent on clean engine oil flow
- Potential for oil leak-related failures
Best for: Modern vehicles, VVT-equipped engines, high-performance applications

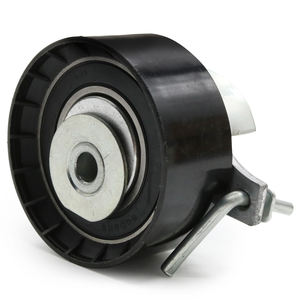

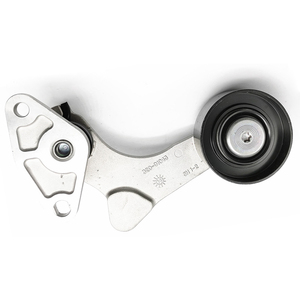

Spring Tensioner
Spring tensioners rely on coiled springs to maintain constant tension on the timing belt. These units are known for their durability and effectiveness in performance-oriented applications.
Advantages
- Consistent tension without fluid dependency
- Robust construction for high-stress environments
- Preferred in racing and motorsport applications
- Quick response to belt movement
Limitations
- May require periodic inspection for spring fatigue
- Less forgiving to misalignment compared to hydraulic units
- Can be noisier during operation
Best for: Racing engines, high-RPM applications, custom builds

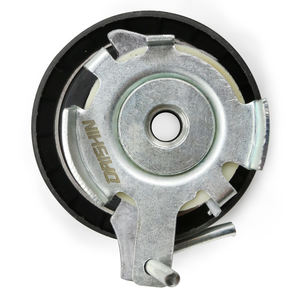

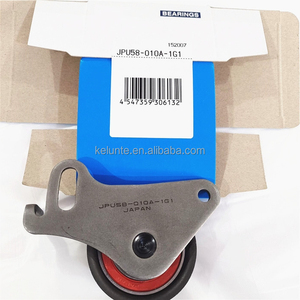

Adjustable Tensioner
Adjustable tensioners allow technicians to manually set and fine-tune the timing belt tension using bolts, screws, or other mechanical adjustments. This type is ideal when precise control over belt tension is necessary.
Advantages
- Full control over tension settings
- Customizable for specific performance needs
- Useful in modified or high-performance engines
- Easily re-adjustable after installation
Limitations
- Requires technical knowledge for proper setup
- Risk of improper tension if not adjusted correctly
- Not suitable for everyday drivers seeking convenience
Best for: Performance tuning, modified engines, specialty machinery

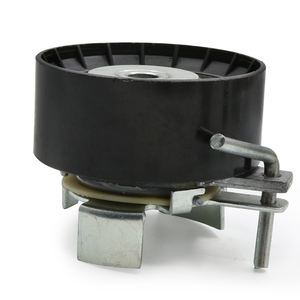

Self-Adjusting Tensioner
Self-adjusting tensioners feature internal mechanisms that automatically compensate for belt stretch and wear over time, maintaining optimal tension without manual intervention.
Advantages
- Automatic compensation for wear and stretch
- Reduces maintenance frequency
- Minimizes risk of incorrect tensioning
- Extends overall life of timing components
Limitations
- Higher initial cost
- More difficult to service or rebuild
- Failure may require full unit replacement
Best for: OEM replacements, daily drivers, vehicles with scheduled timing belt intervals
| Type | Tension Control | Complexity | Best For | Maintenance Frequency |
|---|---|---|---|---|
| Mechanical | Semi-Automatic | Low | Vintage vehicles, simple engines | Periodic checks |
| Hydraulic | Fully Automatic | High | Modern vehicles, VVT engines | As part of timing belt service |
| Spring | Manual/Constant Force | Medium | Racing, performance builds | Regular inspections |
| Adjustable | Manual Adjustment | High | Custom tuning, modified engines | After each major adjustment |
| Self-Adjusting | Automatic Compensation | Medium-High | OEM replacements, daily drivers | Low maintenance until replacement |

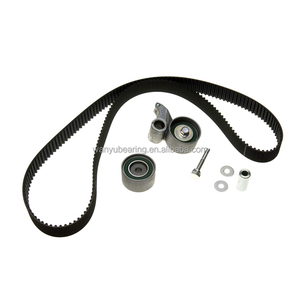

Expert Tip: Always replace the timing belt tensioner pulley and bearing when replacing the timing belt itself, especially in interference engines. A worn tensioner can compromise the integrity of a new belt and lead to premature failure or engine damage.

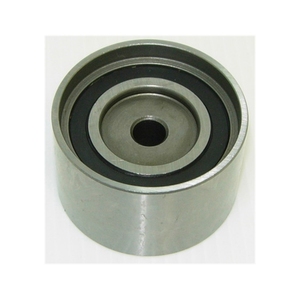

Specifications and Maintenance of Timing Belt Tensioner Pulley Bearings
Timing belt tensioner pulley bearings play a critical role in ensuring the proper operation of an engine's timing system. These components maintain consistent tension on the timing belt, preventing slippage and ensuring synchronization between the crankshaft and camshaft(s). Understanding their specifications and implementing proper maintenance practices can significantly enhance engine reliability and longevity.
Key Specifications to Consider

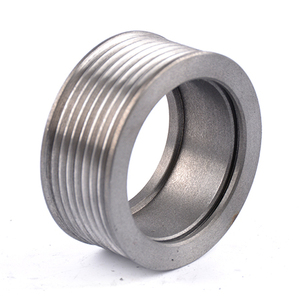

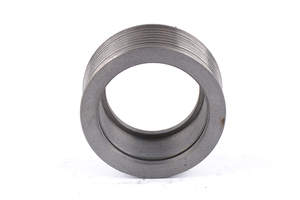

Construction Material

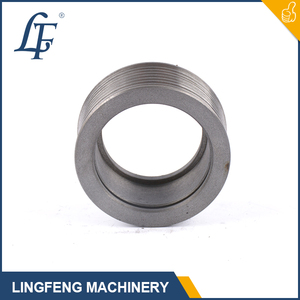

Timing belt tensioner pulley bearings are manufactured using a variety of materials, each selected based on performance requirements, environmental conditions, and cost considerations. Common materials include aluminum, steel, and cast iron.
Steel is widely used due to its high strength, wear resistance, and ability to withstand heavy loads over time. While more expensive than other options, steel ensures long-term durability, especially in high-performance or heavy-duty engines.
Aluminum is often chosen for lightweight applications where reducing rotational mass is important, such as in modern fuel-efficient vehicles. It provides good corrosion resistance but may not offer the same level of wear resistance as steel.
Cast iron, while less common today, is still used in some older or industrial engine designs due to its excellent load-bearing capacity and heat resistance, though it tends to be heavier and more brittle compared to steel or aluminum.

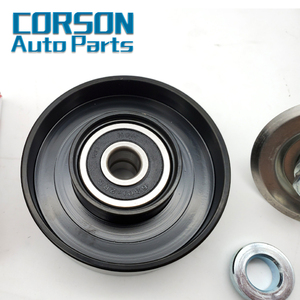

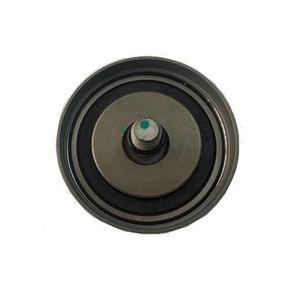

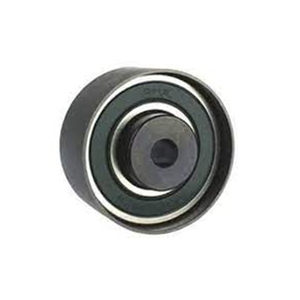

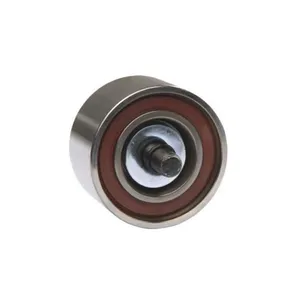

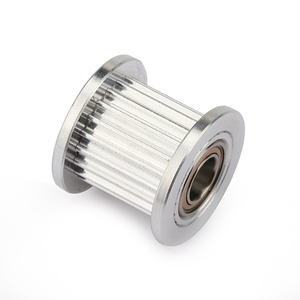

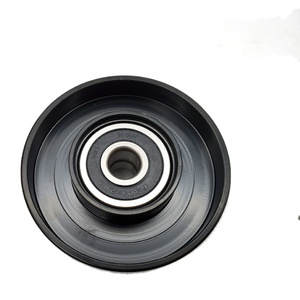

Type of Bearing
The type of bearing used in the tensioner pulley depends on the design and manufacturer’s engineering standards. The most commonly used types include:

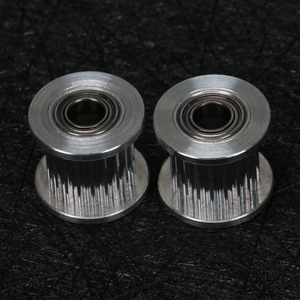

- Ball Bearings: Ideal for moderate load applications and provide smooth rotation with minimal friction. They are commonly used in passenger vehicles and smaller engines.
- Roller Bearings: Designed for higher load capacities, these bearings are typically found in larger engines or commercial vehicles where greater durability is required.
- Needle Bearings: Offer excellent radial load support within compact spaces, making them suitable for tight engine compartments where space is limited.
Selecting the correct bearing type ensures optimal performance and reduces premature wear, especially under varying engine operating conditions.
Dimensional Specifications
Timing belt tensioner pulley bearings come in various sizes tailored to fit specific engine models and configurations. Key dimensions include:
- Inner Diameter (ID): Determines compatibility with the shaft or bolt on which the pulley mounts.
- Outer Diameter (OD): Influences the overall size and how the pulley interacts with the timing belt.
- Width: Affects alignment and the amount of surface contact with the belt.
Typical bearing sizes range from 25 mm to 50 mm in outer diameter, although this varies depending on the vehicle make and model. Precise measurements are crucial to ensure proper fitment and avoid misalignment issues that could lead to belt failure.
Load and Operational Ratings
Each tensioner pulley bearing is engineered to handle specific operational stresses, including axial and radial loads. Factors influencing these ratings include:
- Engine RPM: Higher-revving engines demand bearings with better dynamic load capabilities.
- Temperature Resistance: Bearings must operate reliably across a wide temperature range, particularly in turbocharged or high-performance engines.
- Lubrication Requirements: Some bearings are sealed and pre-lubricated, while others require periodic maintenance.
Consulting OEM specifications or cross-referencing part numbers is essential to ensure the selected bearing meets the mechanical and thermal demands of the engine.
| Specification | Criticality | Selection Guidance |
|---|---|---|
| Material Type | High | Choose steel for durability, aluminum for weight reduction, and cast iron for vintage or industrial applications. |
| Bearing Type | High | Select ball bearings for light-duty use, roller for heavy loads, and needle bearings for compact spaces. |
| Size Compatibility | High | Match inner/outer diameters and width precisely to engine specifications; refer to OEM or parts catalogs. |
| Operating Temperature Range | Medium | Ensure bearings can withstand engine bay temperatures, especially in high-performance or turbocharged setups. |
| Lubrication Type | Medium | Opt for sealed bearings where maintenance access is limited; consider serviceable types for professional servicing environments. |
Essential Maintenance Practices
Important: When replacing one tensioner pulley bearing, inspect all related components—including the timing belt, idler pulleys, and tensioner assembly—for signs of wear or damage. Replacing only one component without evaluating the entire system can lead to imbalance, premature failure, or even catastrophic engine damage if the timing belt slips or breaks.
How to Choose Timing Belt Tensioner Pulleys Bearings
Selecting the right timing belt tensioner pulley bearings is crucial for ensuring optimal engine performance and longevity. This guide will help retailers make informed decisions when sourcing these critical automotive components.
Vehicle Specificity and OEM vs Aftermarket
Understanding your customer base's vehicle preferences is essential when selecting timing belt tensioner pulleys bearings. The choice between OEM (Original Equipment Manufacturer) and aftermarket parts depends on your clientele's specific needs.
- OEM parts are ideal for customers with specific luxury or high-performance vehicles where precision matters most
- Aftermarket brands offer cost-effective solutions for common vehicle models
- Some premium aftermarket brands provide OE-equivalent quality at more competitive pricing
Pro tip: Maintain a balanced inventory that includes both OEM options for specialty vehicles and reliable aftermarket brands for popular models
Supplier Evaluation and Logistics
The supplier relationship significantly impacts your business efficiency and customer satisfaction. Choosing the right supplier involves evaluating multiple factors beyond just product selection.
- Prioritize suppliers offering comprehensive product catalogs covering various vehicle makes and models
- Look for suppliers with consistent lead times and reliable delivery schedules
- Consider suppliers offering flexible MOQ (Minimum Order Quantity) arrangements
- Verify if the supplier has efficient order processing and tracking systems
Key consideration: Evaluate total cost of ownership including shipping, storage, and potential return logistics
Quality Assessment and Certification
Quality should be the cornerstone of your product selection strategy. Different customer segments have varying expectations regarding part quality and durability.
- Economy-tier products suitable for budget-conscious customers
- Standard replacement quality meeting OEM specifications
- Premium grade components with enhanced materials and construction
- Certifications like CE, ROHS, and BV verify compliance with international quality standards
Quality indicators: Look for features such as heat-treated surfaces, sealed bearings, and corrosion-resistant coatings
Warranty and Product Assurance
Manufacturer warranties provide crucial protection for both retailers and end-users. A robust warranty program demonstrates confidence in product quality.
- Extended warranties typically indicate higher product confidence from manufacturers
- Clear warranty terms facilitate easier returns and replacements
- Some suppliers offer no-questions-asked return policies for defective items
- Warranty coverage should include both material defects and workmanship issues
Business benefit: Strong warranties improve customer trust and can differentiate your service offering
Expert Recommendation: Develop relationships with suppliers who can provide technical support and product training. This enables better customer assistance and helps identify potential compatibility issues before they become problems. Consider starting with smaller test orders to evaluate product quality and supplier reliability before committing to large inventory purchases.
| Customer Segment | Recommended Approach | Quality Tier | Expected Warranty |
|---|---|---|---|
| Budget-focused DIYers | Aftermarket standard | Economy | 6-12 months |
| General repair shops | Aftermarket premium | High-grade replacement | 12-24 months |
| Luxury vehicle owners | OEM or premium aftermarket | OEM equivalent | 24+ months |
| Performance enthusiasts | Specialty performance brands | Enhanced durability | Varies by application |
Technical Insight: When evaluating tensioner pulley bearings, consider checking for important features such as: dual-sealed bearings for contamination protection, ball bearing vs needle bearing designs, and materials like chrome steel or stainless steel races. These technical aspects directly impact the component's lifespan and performance characteristics.
DIY Guide to Replacing Timing Belt Tensioner Pulley Bearings
Replacing the bearing on a timing belt tensioner pulley is an essential maintenance task that helps ensure your engine runs smoothly and prevents potential breakdowns. While it's not the simplest job, with the right tools and some mechanical know-how, this can be completed successfully at home. This guide will walk you through the process step-by-step while offering valuable insights to help avoid common mistakes.
Safety Warning: Always disconnect the battery before starting any work involving engine components. Ensure the vehicle is securely supported if lifted, and use proper lifting techniques when handling heavy parts.
Essential Tools and Materials
Before beginning, gather all necessary tools and materials to streamline the process and avoid interruptions. Having everything ready will also help maintain your focus throughout the repair.
- Socket set – For removing bolts of various sizes
- Wrench set – Useful for tight spaces where sockets won't fit
- Flathead and Phillips screwdrivers – For prying or loosening fasteners
- Hammer – Can assist in dislodging stubborn components
- Bearing puller (optional but recommended) – Helps remove old bearings without damaging surrounding parts
- New timing belt tensioner pulley bearing – Be sure to get the correct model for your vehicle
- High-quality grease – To lubricate the new bearing during installation
Step-by-Step Replacement Procedure
- Disconnect the Battery
Begin by turning off the engine and allowing it to cool down. Disconnect the negative terminal first, followed by the positive terminal, to prevent accidental electrical shorts.
- Remove the Engine Cover
Locate the bolts securing the engine cover using your vehicle’s service manual as a reference. Remove them carefully and lift the cover off. Store the bolts in a safe place to avoid losing them.

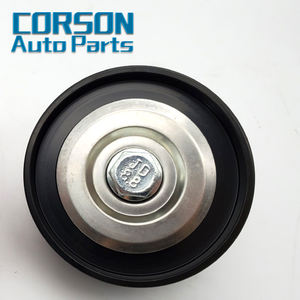

- Identify the Timing Belt Tensioner Pulley
The tensioner pulley is typically found on the side of the engine block. It applies pressure to the timing belt to maintain proper tension. Refer to your vehicle’s manual for exact location details specific to your make and model.
- Loosen and Remove the Drive Belt
Using a socket or wrench, turn the tensioner bolt to release pressure on the drive belt. Carefully slide the belt off the tensioner pulley once slack is created.
- Detach the Tensioner Pulley Mounting Bolts
Use the appropriate socket or wrench to loosen and remove the bolts holding the tensioner pulley in place. Keep track of these bolts, as they are often specialized and may be difficult to replace.

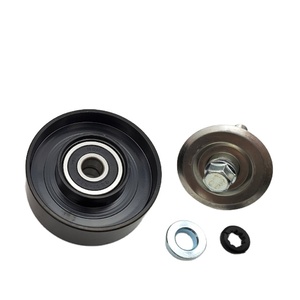

- Remove the Old Bearing
Gently tap the pulley to see if the bearing slides out easily. If it resists, use a bearing puller or carefully apply force with a hammer and punch to remove it. Avoid damaging the pulley housing or nearby components during removal.
- Install the New Bearing
Apply a thin layer of high-quality bearing grease around the outer edge of the new bearing. Press it firmly into place using a socket or bearing installer tool that matches its size. Ensure it seats evenly and fully within the pulley.
- Reinstall the Tensioner Pulley
Position the tensioner pulley back onto the engine mounting point. Secure it using the original bolts, tightening them gradually and evenly to avoid misalignment or damage to threads.
- Reinstall the Drive Belt
Route the drive belt back over all the pulleys according to the diagram under the hood or in your service manual. Use the tensioner bolt to adjust the tension properly before tightening it completely.
- Replace the Engine Cover
Once the tensioner pulley and belt are reinstalled, position the engine cover back in place. Secure it with the bolts you removed earlier, ensuring they’re tightened to the manufacturer’s specifications.
- Reconnect the Battery
Start by reconnecting the positive terminal, then the negative terminal. Double-check that both connections are secure and free from corrosion.
| Repair Stage | Critical Tasks | Common Mistakes to Avoid | Recommended Tools |
|---|---|---|---|
| Preparation | Check compatibility of new bearing, review service manual | Mismatched bearing, missing diagrams or instructions | Service manual, gloves, eye protection |
| Disassembly | Proper labeling of parts, careful removal of drive belt | Forgetting routing pattern, dropping tools | Socket set, flashlight, zip ties |
| Bearing Removal | Using correct technique to avoid damage | Improper tool use causing damage to pulley | Bearing puller, hammer, punch |
| Installation | Precise bearing alignment and secure mounting | Incorrect seating, cross-threaded bolts | Grease, torque wrench |
| Final Assembly | Correct belt routing and tensioning | Over-tightened or loose belt, forgotten components | Tension gauge, ratchet straps |
Expert Tip: Before reinstalling the tensioner pulley, inspect the condition of the timing belt and other related components. If the belt shows signs of wear or has reached its recommended replacement interval, consider replacing it at the same time to avoid future labor costs.
Post-Replacement Checks and Testing
After completing the installation, perform the following checks to ensure everything is functioning correctly:
- Visual Inspection: Confirm all bolts are tightened properly and the belt is seated correctly on all pulleys.
- Engine Startup: Start the engine and listen for unusual noises such as squealing or grinding, which could indicate a problem with the belt tension or pulley alignment.
- Check for Vibration: Feel for excessive vibration while the engine is running, which might suggest a faulty installation.
- Monitor Performance: Take the vehicle for a short test drive and observe for any irregularities in acceleration or engine response.
By following this detailed guide, you'll be able to confidently replace the timing belt tensioner pulley bearing while maintaining the integrity and performance of your engine. Remember, regular maintenance like this can significantly extend the life of your vehicle and prevent costly repairs in the future.
Frequently Asked Questions About Timing Belt Tensioners
There are several key indicators that your timing belt tensioner may need to be replaced. These include:
- Unusual noises: If you hear grinding, rattling, or squeaking sounds coming from the engine area, especially when starting the vehicle or during acceleration, this could signal a worn-out tensioner.
- Timing belt slack: A loose timing belt is often a sign of tensioner failure. This can cause the belt to slip or skip teeth, disrupting the engine's timing.
- Engine misfires: Improper tension on the timing belt can lead to poor synchronization between the camshaft and crankshaft, resulting in misfires and rough idling.
- Visible wear or damage: During routine maintenance, inspect the tensioner pulley for cracks, corrosion, or uneven wear. If the tensioner cannot maintain proper pressure on the belt, it should be replaced immediately.
If any of these symptoms occur, it's important to have your vehicle inspected by a qualified mechanic to prevent potential engine damage.
Replacing a timing belt tensioner is technically possible as a DIY project, but it requires:
- A thorough understanding of internal combustion engines and timing systems
- Access to specialized tools such as torque wrenches and harmonic balancer pullers
- A detailed repair manual specific to your vehicle model and year
- Experience working with timing components, which are critical to engine function
The complexity varies significantly depending on the vehicle make and model. In many modern vehicles, the tensioner is located deep within the engine compartment and may require removal of multiple components for access.
Caution: Incorrect installation of the timing belt or tensioner can result in severe engine damage, particularly in interference engines where valves and pistons occupy the same space at different times. If you're unsure about your mechanical skills, it's highly recommended to seek professional assistance.
The time required for replacing a timing belt tensioner depends on several factors:
- Vehicle type: Compact cars generally offer easier access than larger vehicles or those with transverse engine layouts.
- Tensioner location: Some tensioners are easily accessible, while others require removing components like the alternator, power steering pump, or even the radiator.
- Experience level: Professionals typically complete the job faster than DIYers encountering it for the first time.
- Additional replacements: If the timing belt, water pump, or idler pulleys also need replacement, the job will take longer since many components share the same access point.
On average, the process takes between 2 to 6 hours. First-time DIYers should allow extra time for careful disassembly, inspection, and reassembly. Always follow proper torque specifications and timing alignment procedures to avoid future issues.
Failing to replace a worn or faulty timing belt tensioner can lead to serious consequences:
- Poor engine performance: A weak tensioner can cause the timing belt to lose tension, leading to skipped teeth, misfires, reduced power, and difficulty starting the engine.
- Increased wear: Improper tension accelerates wear on both the timing belt and other associated components, potentially shortening their lifespan.
- Belt slippage: In extreme cases, the timing belt may completely slip off its sprockets, causing the engine to stop running unexpectedly.
- Catastrophic engine damage: In interference engines (which are common in many modern vehicles), loss of proper timing can cause the pistons to collide with open valves, bending or breaking them and requiring extensive engine repairs or replacement.
Ignoring a failing tensioner can quickly turn into a costly repair. The relatively low cost of a new tensioner makes it wise to replace it proactively, especially when working on the timing system for other reasons.
While it's not strictly mandatory to replace the timing belt tensioner every time you install a new timing belt, doing so is strongly recommended for several reasons:
- Labor efficiency: Since accessing the timing components involves significant disassembly, replacing both parts at once saves labor costs and prevents having to repeat the job soon after.
- Wear correlation: Tensioners often wear out around the same time as timing belts, especially since they operate under similar conditions and mileage exposure.
- Preventive maintenance: Replacing both ensures synchronized component life cycles and reduces the risk of premature timing belt wear due to a faulty tensioner.
- Manufacturer recommendations: Many vehicle manufacturers suggest replacing the tensioner along with the timing belt as part of scheduled maintenance.
If the tensioner shows signs of wear—such as unusual play, resistance, or noise—it should definitely be replaced. Even if it appears fine, consider replacing it if it's approaching its expected service life (typically 60,000–100,000 miles depending on the vehicle).
