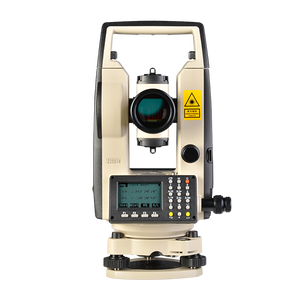

Ready to ShipElectronic theodolite, also known as electronic total station (ETS), shows a precise measurement of angles and distances using electronic sensors. This type of theodolite gives accuracy and quickness by eliminating the need for conventional sighting and manual readings. Places like construction sites, mining operations, and land surveys show how useful electronic theodolites are for mapping and measuring large areas. The instrument helps create digital maps and models that assist in project planning and monitoring during construction.
For precise construction projects or infrastructure developments, an electronic theodolite is essential to ensure correct measurements. It also stands out in remote areas where traditional tools might be hard to use. As a result, it saves time and improves accuracy by digitizing the process of angle and distance measurement.
When measuring in the laboratory, a high level of accuracy is requested. This type of calibration typically occurs in controlled spaces using master instruments to compare readings. Precision apparatus calibration maintains accuracy and reliability for experiments.
It applies to high-precision-focussed fields like aerodynamics and optics. It also impacts the results by assuring the readings between instruments and limiting measurement error. This is crucial for industries where small deviations can result in significant miscalculations, like rocket launching plans or ultra-precision machining.
Digital theodolites have an automatic reading of angles, which reduces human errors. They also often measure horizontal and vertical angles without turning the lens, leading to smooth data collection. This equipment is helpful in many fields, including construction, highways, marine, and large infrastructure projects. Since data is captured and stored electronically, it improves precision and efficiency.
This also says that it is useful in real-time data processing on big projects. Building information modeling (BIM) projects need the instant accuracy that digital theodolites supply to track construction against design, making them indispensable. Thus, regular calibration keeps the instruments in their best conditions for accurate and reliable measurements for all types of projects.
Angle measurement accuracy
For angle measurement, the error range is often very small, typically within 2 to 5 arc seconds. This precise angle measurement ensures correct surveying and precise construction.
Horizontal and vertical circle resolution
The horizontal and vertical circles may have resolutions around 1" to 10". This means that the smallest angle picked up is in this range, which supports fine and accurate angle sighting.
Telescope magnification
The telescope often magnifies around 20x to 30x for taking precise angle readings over long distances. The more magnification, the better the focus on the survey point, leading to higher accuracy.
Working temperature range
Most theodolites will work under temperatures from -20°C to 50°C. This guarantees that theodolites will work effectively in various climates and environmental settings.
IP rating
Common IP ratings include IP54 to IP66. This protects the instrument from dust and water, allowing work in tough building sites and conditions.
Regular cleaning
Hinges, leveling screws, and all moving parts ask for regular cleaning using a soft and dry brush. A small brush removes dust without harming the surfaces. The outside uses a damp, clean rag to eliminate dirt. The lenses require special care with lens paper or a lens cloth for dirt and fingerprints.
Protect from harsh conditions
While theodolites have protective cases, avoid using them in extreme weather. Keep them in a dry, controlled climate space to avoid damage from humidity or extreme temperatures.
Routine checks
Regularly inspect the instrument for signs of wear or damage, such as scratches, on the displays or signs of corrosion. Check the batteries for leakage and low charge, and look at the housing for damages. Go for a professional service as needed or if serious problems arise.
Proper storage
Keep the theodolite in a case when not in use to avoid dust and impact. This prevents misalignment and damages caused by external forces. Avoid storing them in warm, damp areas like cars.
Ensure proper handling
Avoid touching the lenses with fingers. Only handle theodolites with clean hands or after putting on gloves. Avoid bumps or shocks during use. They misalign parts and affect accuracy.
The theodolite calibration is vital on-site for topographic and boundary surveys. Surveyors use the instruments to measure angles and distances for mapping land accurately.
They must ensure correct measurements of properties and infrastructure by regularly calibrating the equipment. Any error will affect the survey results and potentially lead to costly mistakes during construction. Hence, they mostly calibrate the instrument before starting new projects or after long use to ensure the instrument provides accurate data for crucial tasks.
The calibrations ensure that structures are built according to plan by measuring angles. Hence, the instrument gets calibrated to guarantee that the foundation laying and structural designing use the best alignment.
Usually, the calibration happens before any important phase of construction, such as when starting to erect frameworks or installing supports. It assures safety and quality work according to the set guidelines. It also helps in exact placements of entities, reducing the risk of needing future modifications or adding presents.
Bridge building involves large structure designs that need more careful planning. The instrument calibrates to verify that all measurements agree with the engineering designs, limiting errors during installation.
The calibration of the tool also helps improve safety and stability during construction. It allows accurate placement of beams, cables, and other components essential to bridge integrity. The cost reduction further goes after fewer reworks or corrections.
Highway designs involve huge land measurements and complex alignments. Because miscalibrated equipment causes design errors, it is important to calibrate the instrument for better accuracy in road alignment and slope.
For this reason, calibration is done before starting an important work phase, like paving or alignment. It reduces accidents since the data collected influences vehicle movement. Further cost savings impact fewer maintenance and infrastructure damage requirements.
Large drilling operations use theodolites to ensure well placement and pipeline alignment accuracy. They then regularly calibrate them to avoid any mistakes that might affect exploration or production.
They also use the tools in remote locations that need more measurement precision, so the tool gets calibrated on and off in isolated areas. This saves time and money after cutting down on the need for rework and stopping. It also reduces downtime since there is less need for corrections in the field, where production efficiency is of utmost importance.
Precision
The precision of the theodolite is key, so calibration tools must support it. Choose a set that gives out low errors for angle and distance measurements. Such precise calibration decreases mistake chances and effects, improving overall survey accuracy.
Tool Quality
Using high-quality materials will influence the results. Good-quality devices have long lives and give out better results. Therefore, check the materials used in making the kit. They also need to build strong and durable calibration tools.
Calibration standards
A good calibration kit should meet national and international standards. Always ensure that the set follows these rules for angle or distance errors. This means the kit reaches accepted accuracy levels; thus, using such a kit will help ensure that surveying work follows regulations.
Portability
Since calibrating theodolites usually happens in the field, choose a compact and lightweight kit that is easy to carry. The kit should include lightweight, easy-to-store, and transport tools. The work efficiency of the crew will heighten by the ability to quickly move around or set it up.
Temperature stability
A survey might take time under harsh weather, so getting a kit with stable instruments is important. Make internal components resilient to factors like heat or cold. Opt for materials that do not warp or expand due to temperature changes.
Easy to handle
Since not everyone is an expert in handling tools, pick a kit with easy-to-handle devices. Use kits that do not need specialized knowledge to get calibrated. Simple interfaces and clear markings help speed up the calibration process while minimizing mistakes.
The crew should calibrate the instrument if there are obvious accuracy issues or after using it for long hours. Environmental factors, like extreme heat or humidity, can interfere with the machine's parts. Moving the setup repeatedly also affects its alignment. Calibration kits help keep the tool in prime condition, improving its accuracy.
A calibration theodolite sorts out the user's theodolite setup problems. The calibrator then shows any errors in the instrument, so adjustments can take place to fix them and improve their working. The calibrator ensures that surveyors use the right methods and tools to take accurate measurements in any job, big or small.
Yes, temperature significantly affects theodolite calibration. Extreme heat or cold can expand or contract the instrument, affecting its parts and reducing accuracy. Operationally, it affects lens alignment and shows incorrect angles to measure distances. Surveyors are thus advised to calibrate the tool after experiencing a change in weather to keep it in good condition and working well.
Many calibrate their instruments at home or in temporary spaces. As long as it's calm and free of disturbances, one can complete the calibration indoors or in their vehicle. They can do it outside as long as the space is level and the weather normal, with no more than minor wind. The important thing is that it be stable and free of distractions.
The usualtimeframe for normal calibration is under 30 minutes, depending on the instrument and how many adjustments it requires. More advanced theodolites may take more time, as the process will involve more precise adjustments. Moreover, experience in the field influences time taken for calibration to complete. Quick calibrations take place with proper tools and knowledge.
