Tbi injection

Types of TBI Injection

Tbi injection has two main types which are as follows:

• Port Fuel Injection (PFI)

  In Port Fuel Injection (PFI), fuel is injected into the intake port just before entering the combustion chamber. This allows for better mixing of fuel with air and more precise control of the air-fuel ratio. PFI systems improve throttle response, reduce emissions, and enhance fuel efficiency. They are commonly used in gasoline engines and are suitable for various operating conditions. Additionally, PFI systems offer benefits such as improved engine performance, reduced knock tendency, and the ability to utilize fuels with different octane ratings.

• Dual Fuel Injection (PFI + DI)

  Some modern engines utilize a combination of Port Fuel Injection (PFI) and Direct Injection (DI) for optimal performance and efficiency. In Dual Fuel Injection systems, fuel is injected both into the intake port (PFI) and directly into the combustion chamber (DI). This synergistic approach leverages the advantages of both injection methods. Dual Fuel Injection enhances power delivery, improves thermal efficiency, and reduces particulate emissions. It allows for better control of combustion characteristics, making it suitable for high-performance applications while meeting stringent emission regulations. Dual Fuel Injection is commonly found in turbocharged gasoline engines and is particularly beneficial in scenarios requiring high power output and efficiency.

Specifications and Maintenance of Tbi Injection

Below are specifications and maintenance aspects of TBI injection.

• Airflow:

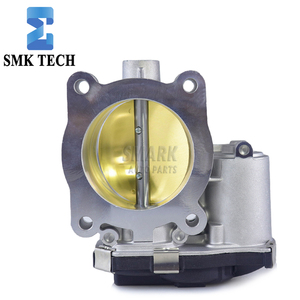

  The throttle body is responsible for controlling the amount of air that enters the engine. It should have an appropriate size to match the engine's airflow requirements. A larger throttle body can increase airflow, but it may negatively affect low-end torque. Conversely, a smaller throttle body may restrict airflow and limit high-end power. It should balance the size of the throttle body to achieve optimal airflow across the entire RPM range.

• Fuel Delivery:

  The fuel pump should provide sufficient pressure and flow rate to meet the demands of the TBI system. It should also have a fuel pressure regulator that maintains stable pressure and compensates for changes in engine load and speed. TBI systems typically require a fuel pressure of 10 to 15 psi (pounds per square inch) and a fuel flow rate of 30 to 50 gph (gallons per hour).

• Injector Sizing:

  Fuel injectors should be appropriately sized for the engine's power output and fuel requirements. Injector size is usually measured in cc/min (cubic centimeters per minute) and should match the fuel flow requirements of the TBI system. For example, an engine with 200 horsepower may require fuel injectors with a rating of 400 to 500 cc/min.

• Fuel Mixture:

  The engine control unit (ECU) of the TBI system should maintain the correct air-fuel mixture for optimal combustion efficiency. The ideal air-fuel ratio for gasoline engines is around 14.7:1 (14.7 parts air to 1 part fuel). The ECU uses various sensors, including oxygen sensors, mass airflow sensors, and throttle position sensors, to monitor and adjust the fuel mixture based on real-time engine conditions.

• Fuel Quality:

  Using high-quality gasoline with the recommended octane rating for the engine is essential. Lower-quality fuels or those with a lower octane rating can lead to engine knocking, reduced performance, and potential damage to engine components. Additionally, adding fuel additives, such as fuel cleaners or injectors, can help maintain clean and optimal TBI system operation.

• Regular Maintenance:

  Regular maintenance is essential for the proper functioning of the TBI system and the engine. It includes periodic checks and replacements of air filters, fuel filters, spark plugs, and other essential components. Regular oil changes and engine tuning can also improve engine performance and fuel efficiency. Following the manufacturer's recommended maintenance schedule and using quality replacement parts and fluids is essential.

How to Choose Tbi Injection

• Vehicle Compatibility

  When choosing the appropriate TBI system, the first step is to consider the car's make, model, and year. Ensure the TBI system is compatible with the vehicle so that seamless integration and optimal performance can be achieved.

• Determine Power Requirements

  The intended use of the vehicle should be considered when determining the power requirements. If the vehicle needs more power for towing or carrying heavy loads, a TBI system that can deliver extra power and torque should be selected.

• Quality and Reliability

  Only well-known and reliable manufacturers of TBI systems should be chosen. Researching reviews and feedback from other customers can help ensure that the chosen system is of high quality, reliable, and durable.

• Ease of Installation

  Consider the ease of installing the chosen TBI system. Some systems may require more complex installation than others. If the installation is planned to be done personally, a system with detailed instructions and straightforward installation procedures should be chosen.

• Budget

  When choosing a TBI system, the budget must be considered. TBI systems are available at various prices, so it is essential to find the one that offers the best value for money while meeting the vehicle's needs and requirements.

• Support and Warranty

  Select a TBI system that offers excellent customer support and a solid warranty. This way, any problems or questions that may arise can be resolved quickly with the manufacturer's support and protection against defects or failures can be obtained.

How to DIY and Replace Tbi Injection

Many TBI systems are designed to make routine maintenance easy. This is often the case when it's just maintenance like cleaning the TBI unit and TBI throttle body injector that needs to be done. In such scenarios, users can easily attend to the TBI unit with basic tools like screwdrivers.

When it comes to TBI replacement, it is advisable to consult a trained mechanic. This is because, during replacement, there is a need to disassemble certain engine parts to get to the TBI unit. Doing this without prior knowledge can cause damage to the engine and other components.

However, to give an idea of what TBI replacement entails, here's a step-by-step guide. But, remember to always consult a professional.

• 1. First and foremost, ensure the engine is turned off and wait for a while for it to cool down.
• 2. Disconnect the negative cable of the battery.
• 3. Depending on the vehicle, one may need to remove the air cleaner assembly, which provides clean air to the TBI.
• 4. Start loosening the bolts that hold the throttle body to the intake manifold. It is advisable to note the bolt placements or take a picture for reference during reassembly.

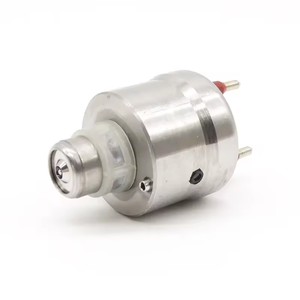

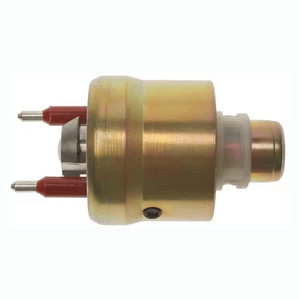

• 5. Carefully lift out the old TBI injector and place the new one on the intake manifold. Be careful not to drop any debris into the intake manifold, as this can cause engine problems.
• 6. Reconnect all the electrical connections and sensors that were disconnected or removed during the process.
• 7. If the air cleaner assembly was removed, reinstall it and ensure all clamps and connectors are secure.
• 8. Reconnect the negative cable to the battery.
• 9. Start the engine and inspect for any leaks or abnormal sounds.

Once the new TBI injector is installed, the vehicle's computer may need to be calibrated to ensure optimal performance and fuel efficiency.

Q and A

Q1: What are the common issues with TBI injection?

A1: TBI injection can have several common problems, including:Mechanical wear and tear: Over time, the components of the TBI system may wear out, leading to uneven fuel distribution or poor atomization of fuel. This can affect engine performance and fuel efficiency.Electrical issues: The sensors and actuators in the TBI system rely on electrical signals. Electrical problems, such as faulty sensors or wiring issues, can disrupt the proper operation of the system and result in incorrect fuel metering or engine performance issues.Gasket and seal deterioration: The gaskets and seals in the TBI system can deteriorate over time, leading to fuel leaks or air leaks. Fuel leaks can result in rich fuel mixture and reduced engine performance, while air leaks can disrupt the proper air-fuel ratio, affecting engine performance and emissions.Contaminated or clogged components: Over time, contaminants such as dirt, dust, or fuel deposits can accumulate in the TBI system, clogging or obstructing the fuel metering and atomization components. This can disrupt the proper fuel atomization and distribution, leading to engine performance problems and reduced fuel efficiency.Misadjustment or calibration issues: The fuel metering and atomization settings in the TBI system may become misadjusted or require recalibration over time. This can result in incorrect fuel metering, leading to rich or lean fuel mixtures and affecting engine performance and fuel efficiency.

Q2: Can TBI injection be retrofitted to older vehicles?

A2: Yes, TBI injection can be retrofitted to many older vehicles. Many older vehicles originally used carburetors to mix fuel and air. Retrofitting TBI can improve fuel efficiency, reduce emissions, and enhance engine performance and drivability.

Q3: What maintenance is required for TBI injection systems?

A3: Regular maintenance is essential for TBI injection systems to ensure optimal performance. This includes routine cleaning of the throttle body and fuel injectors, periodic inspection of electrical components and wiring, gasket and seal replacement as needed, and using quality fuel and additives to minimize deposits and contaminants.

Q4: Can TBI injection systems be customized for specific performance needs?

A4: Yes, TBI injection systems can be customized to meet specific performance requirements. This may involve adjusting fuel metering, optimizing atomization characteristics, and selecting appropriate throttle body sizes to match engine specifications and performance goals.

Q5: Are there any advantages of TBI injection over traditional carburetors?

A5: TBI injection has several advantages over traditional carburetors. These include better fuel atomization, more precise air-fuel ratio control, improved engine performance and responsiveness, better cold starting performance, and generally lower emissions.
