Types of Suzuki Alto Drive Shaft
A drive shaft is a mechanical component that transmits power from the engine to the wheels, enabling vehicle movement. In the Suzuki Alto, this component (also called a prop shaft) plays a vital role in the drivetrain system, ensuring smooth and reliable power transmission through its durable and efficient design.
Drive Shaft Type Popularity in Suzuki Alto Models

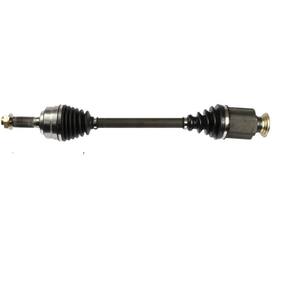

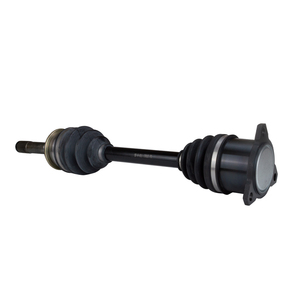

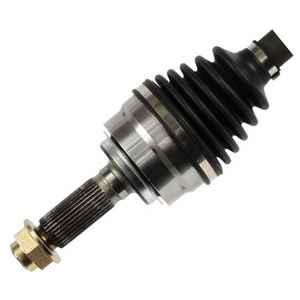

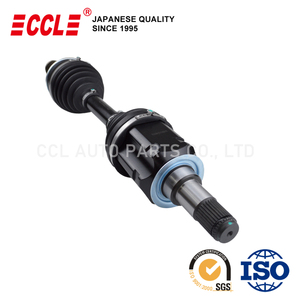

Front Drive Shaft
Common in many Suzuki Alto models, the front drive shaft transfers power from the front-mounted engine to the front wheels. This configuration is essential for front-wheel drive systems, providing excellent traction and stability, particularly in everyday driving conditions.
Best for: Fuel efficiency, compact design, and better handling in normal road conditions
Rear Drive Shaft
In some Suzuki Alto variants, the rear drive shaft transfers power from the engine to the rear wheels. This configuration enhances handling characteristics and performance, making it suitable for sporty driving or specific road conditions where rear-wheel traction is advantageous.
Best for: Improved performance, better weight distribution, and enhanced handling in high-speed conditions
Two-Piece Drive Shaft
Many Suzuki Alto models utilize a two-piece drive shaft design consisting of front and rear sections connected by a center support bearing. This configuration reduces vibration during high-speed operation and allows for easier maintenance and installation in compact vehicles.
Best for: Balanced performance, reduced vibration, and easier maintenance access
Solid Drive Shaft
Less common in standard Alto models, solid drive shafts feature a single, joint-free design. These shafts offer exceptional strength and durability, making them suitable for performance-oriented or load-bearing applications, though they may not align with the Alto's typical lightweight design philosophy.
Best for: High strength requirements, durability under stress, and resistance to torsional forces
Composite Drive Shaft
Found primarily in specialized or premium Suzuki Alto variants, composite drive shafts blend materials like carbon fiber, aluminum, and steel. These lightweight yet strong components improve fuel efficiency and acceleration while providing excellent torque transmission and vibration dampening.
Best for: Weight reduction, improved performance, and enhanced driving comfort
| Drive Shaft Type | Primary Advantage | Common Application | Weight Impact | Maintenance Level |
|---|---|---|---|---|
| Front Drive Shaft | Fuel efficiency | Standard Alto models | Medium | Moderate |
| Rear Drive Shaft | Enhanced handling | Performance variants | Medium-High | Moderate |
| Two-Piece Drive Shaft | Vibration reduction | Most Alto models | Medium | Moderate-High |
| Solid Drive Shaft | Strength & durability | Heavy-duty applications | High | Low |
| Composite Drive Shaft | Lightweight | Premium/specialty models | Low | Low-Moderate |
Expert Tip: When replacing your Suzuki Alto drive shaft, always consider your driving habits and conditions. Front drive shafts are ideal for city driving and fuel efficiency, while rear or composite options might better serve performance-oriented drivers.
Specifications and Maintenance of Suzuki Alto Drive Shaft
The Suzuki Alto drive shaft is engineered to efficiently transfer torque from the transmission to the wheels. Like all vital components, proper maintenance is essential to ensure longevity and optimal performance. Below are key specifications and maintenance guidelines for keeping your Alto's drive axle in top condition.
Regular Inspections
Routine examination of your Suzuki Alto's propeller shaft helps identify early signs of wear or damage. Focus on inspecting:
- Rubber boots for tears or holes (these protect joints from contamination)
- CV joints and U-joints for smooth movement and unusual noises
- The shaft itself for dents, cracks, or rust
- Mounting brackets and hangers for security and integrity
Inspection Frequency: Every 10,000 miles or during regular service intervals
Proper Lubrication
Adequate lubrication is critical for drive shaft longevity in your Suzuki Alto:
- Use only manufacturer-recommended grease for CV and U-joints
- Apply sufficient grease to ensure complete coverage of bearings and joints
- Follow the 30,000-mile lubrication schedule (or as specified in your owner's manual)
- Never substitute alternative lubricants that may compromise joint performance
Warning: Improper lubrication is a leading cause of premature drive shaft failure
Installation Procedures
When installing a new Suzuki Alto drive shaft, precision is paramount:
- Follow manufacturer instructions meticulously
- Use appropriate tools for the installation process
- Torque all bolts to exact specifications (neither over nor under-tightened)
- Ensure proper alignment and balance during installation
Professional Tip: Consider professional installation for optimal results
Balance and Alignment
Proper balance and alignment are crucial for the Suzuki Alto drive shaft's performance:
- Unbalanced or misaligned shafts cause vibration, noise, and accelerated wear
- Use specialized tools or professional services to check balance
- Ensure alignment with transmission and differential
- Address any balance issues immediately to prevent cascading damage
Performance Impact: Proper alignment ensures smooth power delivery and vehicle stability
| Maintenance Task | Frequency | Tools Required | Importance Level |
|---|---|---|---|
| Visual Inspection | Every 10,000 miles | Flashlight, inspection mirror | High |
| Boot Inspection | Every 10,000 miles | Flashlight, gloves | Critical |
| Lubrication | Every 30,000 miles | Grease gun, recommended lubricant | Critical |
| Balance Check | When vibration occurs | Specialized equipment (professional) | High |
| Complete Inspection | Every 60,000 miles | Full toolkit or professional service | Critical |
Important Safety Notice: Never operate your Suzuki Alto if you suspect drive shaft damage. A failing drive shaft can cause sudden power loss or, in extreme cases, detach from the vehicle, potentially leading to serious accidents. Always address unusual noises, vibrations, or handling issues immediately.
How to Choose Suzuki Alto Drive Shaft
Selecting the appropriate drive shaft for your Suzuki Alto requires careful consideration of several critical factors. This comprehensive guide will help you make an informed decision that ensures optimal performance, safety, and longevity for your vehicle.
Understand Vehicle Specifications
Before selecting a drive shaft, gather essential information about your Suzuki Alto:
- Specific model year and edition
- Engine size and type
- Transmission configuration (manual or automatic)
- Current drivetrain configuration (FWD, RWD)
- Vehicle identification number (VIN) for precise parts matching
Critical Factor: Even slight variations between Alto models can require different drive shaft specifications
Determine Power Requirements
Assess your vehicle's power output and usage patterns:
- Engine horsepower and torque specifications
- Any aftermarket performance modifications
- Typical driving conditions (city, highway, off-road)
- Load carrying expectations
- Desired performance characteristics
Performance Note: Underpowered drive shafts can fail prematurely under high torque conditions
Consider Performance Upgrades
For modified or performance-oriented Suzuki Alto models:
- Lightweight drive shafts for improved acceleration
- High-strength components for increased torque handling
- Balanced designs to minimize vibration at high RPMs
- Performance-oriented CV joints for improved power transfer
- Compatibility with other aftermarket components
Upgrade Path: Consider future modifications when selecting your drive shaft
Professional Consultation
Seeking expert advice can be invaluable in the selection process:
- Consult with Suzuki specialists or certified mechanics
- Request professional inspection of current drive shaft
- Discuss driving habits and performance expectations
- Consider installation requirements and services
- Evaluate warranty options and service plans
Expert Value: Professionals can identify specific needs based on your vehicle's condition
OEM vs. Aftermarket Comparison
Compare original equipment manufacturer parts with aftermarket alternatives:
- Cross-reference specifications with OEM requirements
- Verify exact length, diameter, and spline configurations
- Compare material quality and construction methods
- Evaluate cost differences and value propositions
- Research manufacturer reputation and warranty terms
Quality Assurance: OEM parts ensure exact fitment but may cost more than quality aftermarket alternatives
| Selection Factor | Standard Alto | Performance Alto | Importance Level |
|---|---|---|---|
| Material Quality | Standard steel | High-grade alloy/composite | Critical |
| Weight Consideration | Standard weight acceptable | Lightweight preferred | High for performance |
| Joint Type | Standard CV joints | Performance-grade CV joints | High |
| Torque Capacity | Match factory specifications | 25-30% above factory specs | Critical |
| Balance Quality | Factory standard | Precision balanced | High |
Selection Tip: When upgrading your Suzuki Alto's performance, always select a drive shaft rated at least 20% above your expected maximum torque output to ensure reliability and longevity. This buffer accommodates sudden torque spikes that occur during aggressive acceleration or when navigating challenging terrain.
How to DIY and Replace Suzuki Alto Drive Shaft
Replacing a Suzuki Alto drive shaft is a moderately complex procedure that requires mechanical knowledge and proper tools. This comprehensive step-by-step guide will help you complete the replacement safely and effectively. Always work in a well-lit, clean environment and follow all safety precautions.
Tools and Materials Required
- Jack and jack stands (rated for your vehicle's weight)
- Wheel chocks for safety
- Complete socket set (metric)
- Breaker bar for high-torque bolts
- Torque wrench for precise tightening
- New drive shaft (exact match for your model)
- Hammer or rubber mallet
- Pry bar for disconnecting components
- Penetrating oil for stuck bolts
- Safety glasses and gloves
- Shop rags and cleaning solvent
-
Preparation and Safety
Park your Suzuki Alto on a level, solid surface. Apply the parking brake and place wheel chocks on the wheels opposite to those you'll be working on. Loosen (but don't remove) the wheel nuts before lifting the vehicle. Ensure you have all necessary tools and the correct replacement drive shaft ready.
-
Lift and Secure the Vehicle
Using the jack at the designated lifting points, raise the vehicle to a comfortable working height. Place jack stands under approved support points and lower the vehicle onto them. Never rely solely on a hydraulic jack for support while working under a vehicle. Remove the wheels to access the drive shaft connections.
-
Identify Drive Shaft Configuration
For front-wheel drive Altos, locate the drive shafts connecting the transmission to each front wheel hub. For rear-wheel drive models, find the longer drive shaft running from the transmission to the rear differential. Note the position and orientation of all components before removal.
-
Disconnect Wheel End
For front drive shafts, remove the axle nut at the wheel hub (this usually requires a large socket and breaker bar). For rear drive shafts, locate the flange connecting the drive shaft to the differential and remove the bolts securing it. Keep all hardware organized for reassembly.
-
Disconnect Transmission End
At the transmission end, identify the connection point. For front drive shafts, you may need to use a pry bar to carefully separate the shaft from the transmission. For rear drive shafts, remove the bolts connecting the shaft to the transmission output flange. Use penetrating oil on stuck bolts if necessary.
-
Remove Drive Shaft
Once both ends are disconnected, carefully remove the drive shaft from the vehicle. For front drive shafts, pull the outer end away from the hub, then angle the inner end downward to extract it from the transmission. For rear drive shafts, slide it backward to clear the transmission output.
-
Inspect Related Components
With the drive shaft removed, inspect the transmission seal, differential seal, and any bearings or supports for signs of wear or damage. This is an ideal time to replace these components if needed, as they're now easily accessible. Clean all mating surfaces of old grease and debris.
-
Install New Drive Shaft
Align the new drive shaft with the transmission/differential and wheel hub/flange. For front drive shafts, insert the inner CV joint into the transmission first, then connect the outer end to the wheel hub. For rear drive shafts, position it between the transmission and differential, then secure both flanges with bolts.
-
Secure All Connections
Tighten all bolts and nuts to the manufacturer's specified torque settings using a torque wrench. This step is critical for proper operation and safety. Undertightened connections can work loose, while overtightened ones can damage threads or components. Replace any lock nuts or cotter pins with new ones.
-
Reinstall Wheels and Test
Reinstall the wheels, tightening the lug nuts in a star pattern to the specified torque. Lower the vehicle from the jack stands and perform a short test drive at low speed, listening for unusual noises or vibrations. Re-check all connections after the test drive to ensure nothing has loosened.
Safety Warning: Never work under a vehicle supported only by a jack. Always use properly rated jack stands placed on solid ground. Ensure the vehicle is stable before beginning work, and never start the engine while the vehicle is raised unless specifically required for testing.
DIY Pro Tip: Take photos of the original drive shaft installation before removal. These visual references can be invaluable during reassembly, especially for complex components or if the job takes longer than anticipated. Marking connection points with paint markers can also help ensure correct orientation during reinstallation.
Frequently Asked Questions
Several warning signs indicate your Suzuki Alto may need a new driveshaft:
- Unusual Noises: Loud clunking or clicking sounds, especially during acceleration or turning
- Vibrations: Noticeable shaking or vibration that increases with speed
- Boot Damage: Torn or cracked rubber boots exposing CV joints to contamination
- Handling Issues: Difficulty controlling the vehicle or unexpected behavior when accelerating
- Warning Lights: Dashboard indicators for transmission or drivetrain problems
- Visible Damage: Physical damage, rust, or wear visible upon inspection
For accurate diagnosis, always have a professional mechanic inspect your vehicle if you notice any of these symptoms.
Maintain your Suzuki Alto drive shaft with these essential practices:
- Regular Inspection: Check for signs of wear, damage, or imbalance; inspect rubber boots for tears
- Proper Lubrication: Use manufacturer-recommended lubricants and avoid over or under-lubricating
- Keep Tires Balanced: Properly balanced tires reduce vibration and stress on the driveshaft
- Drive Smoothly: Avoid aggressive acceleration, hard braking, and sharp cornering
- Respect Weight Limits: Never exceed your vehicle's recommended cargo capacity
- Professional Installation: When replacement is necessary, rely on qualified technicians
- Address Issues Promptly: Don't ignore unusual sounds or vibrations
Following these practices will significantly extend your drive shaft's lifespan and maintain optimal vehicle performance.
Whether a damaged Suzuki Alto drive shaft can be repaired depends on several factors:
- Damage Severity: Minor issues like worn U-joints or CV joints can often be replaced without replacing the entire shaft
- Damage Location: Problems with the central shaft section typically require complete replacement
- Age and Condition: Older shafts with multiple worn components are better replaced entirely
- Cost Effectiveness: Sometimes replacement is more economical than repair, especially for older vehicles
- Part Availability: Repair parts for older models may be difficult to source
For safety and reliability, consult with a qualified mechanic to determine the best approach for your specific situation. Never compromise on drive shaft integrity, as failure can lead to serious safety issues.
Warranty periods for Suzuki Alto drive shafts vary based on several factors:
- OEM Parts: Typically carry 1-3 year warranties when installed by authorized dealers
- Aftermarket Options: Warranty periods range from 90 days to lifetime, depending on manufacturer and quality
- Installation Source: Professional installation may extend warranty coverage
- Regional Variations: Warranty terms can vary by country due to different consumer protection laws
- Vehicle Usage: Commercial use may have different warranty terms than personal use
Always retain your purchase receipt and warranty documentation. Be aware that improper installation, vehicle modifications, or using the vehicle in ways not intended by the manufacturer may void warranty coverage. Ask detailed warranty questions before purchase to ensure you understand the coverage limitations.
Drive shaft quality can significantly impact your Suzuki Alto's fuel efficiency in several ways:
- Weight Factor: Lighter, high-quality drive shafts reduce rotating mass, improving fuel economy
- Friction Reduction: Premium drive shafts with quality bearings and joints minimize power loss
- Balanced Operation: Properly balanced drive shafts reduce vibration and energy waste
- Power Transfer Efficiency: Higher-quality components ensure more engine power reaches the wheels
- Material Technology: Advanced materials like composites optimize strength-to-weight ratio
Investing in a quality drive shaft can provide long-term fuel savings while also improving overall vehicle performance and reducing wear on related drivetrain components.
