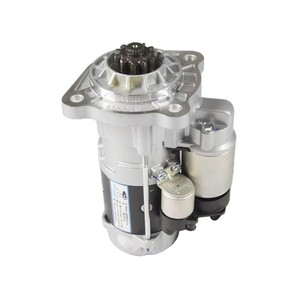

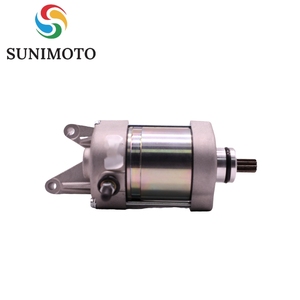

Types of Starter Motor Parts and Their Functions

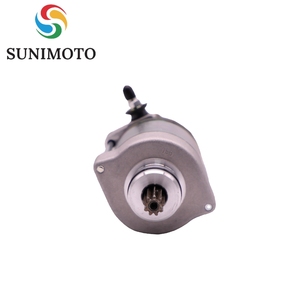

A starter motor is a crucial component in any internal combustion engine vehicle, responsible for initiating the engine's operation by turning it over during ignition. It consists of several specialized parts that work together to convert electrical energy from the battery into mechanical motion. Understanding each component’s function helps diagnose issues and choose quality replacements when needed.
The Armature
The armature is the rotating core of the starter motor, responsible for generating rotational force through electromagnetic induction. It features tightly wound copper coils connected to the commutator. When electricity flows through these windings, a magnetic field is created that interacts with the stationary magnets or field windings, causing the armature to spin rapidly. This rotation is transferred through the gears to crank the engine.
Advantages
- Essential for converting electrical energy to motion
- Enables smooth and consistent rotation
- Durable when maintained properly
Limitations
- Susceptible to overheating under heavy use
- Coils can wear out over time
- Requires regular inspection for performance
Best for: Everyday vehicles, standard engine startups
The Commutator
The commutator acts as an electrical switch that reverses the direction of current flow in the armature windings. Made up of insulated copper segments, it works in tandem with the brushes to ensure continuous rotation by switching the polarity of the magnetic field at precise intervals. This ensures the motor spins in one direction rather than oscillating back and forth.
Advantages
- Facilitates unidirectional rotation
- Integral to maintaining motor efficiency
- Reliable design used for decades
Limitations
- Can wear down due to brush friction
- Build-up of carbon dust reduces conductivity
- May require cleaning or replacement over time
Best for: Maintaining consistent motor operation in traditional starter motors
The Field Windings
Field windings are stationary electromagnets located around the armature. They generate the magnetic field necessary for the armature to rotate when current passes through them. These windings are commonly found in older or industrial-grade starter motors where high torque is required. The strength of the magnetic field directly influences the power output of the starter motor.
Advantages
- Provides strong magnetic fields for high torque
- Customizable for specific applications
- Effective in heavy-duty engines
Limitations
- More complex and heavier than permanent magnet designs
- Prone to overheating if current is excessive
- Less efficient in compact modern vehicles
Best for: Large engines, trucks, vintage cars
The Permanent Magnets
Modern starter motors often utilize permanent magnets instead of field windings. These magnets create a constant magnetic field without requiring electrical input, making the motor more compact, lighter, and more energy-efficient. This design is ideal for today's fuel-efficient and space-conscious automotive engineering.
Advantages
- Lightweight and compact
- No need for external current supply
- Energy-efficient operation
Limitations
- Magnetism may degrade over time
- Not suitable for extreme heat environments
- Less adjustable for torque variations
Best for: Modern passenger vehicles, compact engines
The End Housing
The end housing serves as the structural backbone of the starter motor, enclosing and protecting its delicate internal components. Typically constructed from cast iron or aluminum, this part also aids in dissipating heat generated during operation. Its durability ensures long-term reliability even under demanding conditions.
Advantages
- Protects internal components from damage
- Helps manage heat buildup
- Provides mounting points for installation
Limitations
- Subject to corrosion in harsh environments
- Can crack under physical impact
- Replacement may be costly if damaged
Best for: Structural integrity and thermal management in all types of vehicles

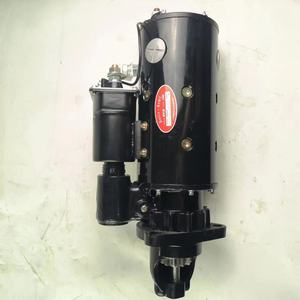

The Starter Solenoid
The starter solenoid acts as both an electrical switch and a gear engagement mechanism. When you turn the ignition key, the solenoid connects the battery to the starter motor while simultaneously pushing the pinion gear forward to engage the flywheel. This dual functionality makes it essential for reliable engine starts.
Advantages
- Ensures safe and controlled power delivery
- Engages pinion gear smoothly
- Prevents accidental short circuits
Limitations
- Common point of failure in starting systems
- Clicking sound indicates wear or malfunction
- Exposed to moisture and vibration damage
Best for: Reliable ignition in most gasoline and diesel engines
The Starter Relay
The starter relay functions as a secondary switch that controls the high-current circuit powering the starter motor. Activated by the ignition switch or neutral safety switch, the relay protects the ignition system from the high amperage load, extending the life of control components and ensuring safer operation.
Advantages
- Protects ignition switch from high current
- Improves system longevity
- Easy to replace if faulty
Limitations
- Failure causes no-start condition
- May produce clicking noise when failing
- Location can make replacement inconvenient
Best for: Electrical isolation and protection in all vehicle types
The Flywheel
The flywheel is a large, toothed wheel attached to the engine's crankshaft. It plays a critical role beyond just engaging with the starter motor—it stores kinetic energy to maintain engine momentum between combustion cycles. During startup, the flywheel's ring gear meshes with the starter's pinion gear to rotate the engine, allowing it to fire up successfully.
Advantages
- Smooths engine vibrations
- Assists in clutch operation (manual transmissions)
- Crucial for consistent engine firing
Limitations
- Heavy and requires significant torque to turn
- Teeth can wear or break over time
- Expensive to replace if severely damaged
Best for: Manual transmission vehicles, high-compression engines
| Component | Primary Function | Key Benefit | Typical Use Case | Common Issues |
|---|---|---|---|---|
| Armature | Converts electrical energy to rotational motion | Core of motor operation | All starter motors | Winding damage, overheating |
| Commutator | Reverses current direction in windings | Maintains unidirectional rotation | Traditional DC motors | Wear from brushes, poor contact |
| Field Windings | Generates magnetic field | High torque production | Older/heavy vehicles | Overheating, insulation breakdown |
| Permanent Magnets | Provides fixed magnetic field | Lightweight and efficient | Modern compact vehicles | Magnetic degradation over time |
| End Housing | Protects internal components | Structural support and cooling | All vehicles | Corrosion, physical damage |
| Starter Solenoid | Connects battery and engages gear | Safe and controlled startup | Most gasoline/diesel engines | Faulty engagement, electrical issues |
| Starter Relay | Controls high-current circuit | Protects ignition system | All vehicle types | Clicking, no-start condition |
| Flywheel | Transfers motion to engine | Smoothes engine operation | Manual transmissions | Worn teeth, imbalance |
Expert Tip: If your vehicle clicks but doesn't start, the issue could lie with either the starter solenoid or the relay. Test both components using a multimeter to check continuity before replacing the entire starter motor assembly.
Specifications and Maintenance of Starter Motor Parts
Understanding Key Specifications
Selecting the right starter motor for resale or installation requires a thorough understanding of its technical specifications. Each vehicle model and engine type demands precise compatibility to ensure reliable starting performance and long-term durability. Below are the most critical specifications to consider:
Voltage Compatibility
Starter motors operate on specific voltage ratings that must align with the vehicle's electrical system. The most common ratings are 12V (standard for passenger vehicles) and 24V (used in heavy-duty trucks and commercial vehicles).
Mismatched voltage can lead to insufficient cranking power, overheating, or complete failure of the motor. Always verify the battery and alternator output before selecting a replacement starter motor.
Current Draw
The current draw refers to the amount of amperage the starter motor pulls from the battery during operation. This specification directly affects the battery's capacity and overall health.
Typical current draws range between 100-200 amps. High-compression engines or cold-start conditions may demand higher current, so it’s important to match the starter motor's draw with a sufficiently robust battery and cabling system.
Torque Output
Torque is the rotational force generated by the starter motor to crank the engine. It is typically measured in pound-feet (ft-lb) or Newton-meters (Nm), ranging from 30-200 ft-lb or 40-270 Nm depending on the motor size and design.
Higher torque values are essential for larger displacement engines or diesel applications where more force is required to initiate combustion. Choosing a motor with insufficient torque can result in slow cranking or failure to start.
Power Rating
Power rating indicates the motor's ability to convert electrical energy into mechanical work. It is commonly expressed in watts (W) or horsepower (hp), with most automotive starters rated between 500-1500W or 0.5-2 hp.
A higher power rating generally means faster engine cranking speeds and improved reliability under demanding conditions such as extreme cold or high-altitude environments.
| Specification | Importance | Selection Tips |
|---|---|---|
| Voltage | High | Match the motor's voltage to your vehicle’s electrical system (usually 12V or 24V) |
| Current Draw | High | Ensure the vehicle battery and wiring can handle the motor's peak amperage |
| Torque | High | Choose based on engine type – higher torque needed for diesel or large V8 engines |
| Power Rating | Medium | Higher wattage improves cold weather performance and startup reliability |
Essential Maintenance Practices
Regular maintenance of starter motor components not only prolongs their lifespan but also ensures consistent performance and prevents unexpected failures. Here are key practices to follow:
Important: When replacing a faulty starter motor, always inspect related components such as the solenoid, flywheel teeth, and battery condition. Faulty ancillary parts can cause premature failure of the new motor if not addressed simultaneously.
How to Choose Starter Motor Parts
Selecting the correct starter motor parts is crucial for ensuring reliable engine ignition and long-term performance. The right components will not only improve starting efficiency but also contribute to the longevity of your vehicle's electrical and mechanical systems. Here’s a detailed guide to help you make informed decisions when selecting starter motor parts.
Voltage Compatibility
The voltage rating of the starter motor must match your vehicle's electrical system. Using an incorrect voltage can lead to poor performance or damage to both the starter and battery.
- 12-volt systems: Standard in most passenger vehicles including cars, small trucks, and SUVs
- 24-volt systems: Commonly used in large commercial trucks, heavy machinery, and diesel engines
- Check compatibility: Refer to the vehicle manual or existing system specifications before purchasing
Pro Tip: Dual-battery systems often operate at 24 volts, even if individual batteries are 12V each
Engine Size and Torque Requirements
The size and type of engine determine the torque output needed from the starter motor to crank the engine effectively.
- Smaller engines (e.g., inline-4s): Typically require 1.0–1.5 kW starters
- Larger engines (e.g., V6/V8 gas or diesel engines): Need higher power units ranging from 1.5–2.5 kW
- Diesel engines demand more torque due to higher compression ratios
Key Insight: Underpowered starters may overheat or fail prematurely under load stress
Gear Reduction Technology
Modern starters often use gear reduction systems that allow smaller motors to deliver high torque while reducing current draw from the battery.
- Coaxial gear reduction: Compact design with gears aligned on the same axis
- Planetary gear reduction: More efficient power transfer with multiple pinion gears
- Racing and high-performance applications benefit from lightweight, high-torque designs
Performance Note: Gear-reduced starters can reduce current draw by up to 30% compared to standard models
Mounting Configuration and Fitment
Starter motors come in various mounting styles depending on the engine design and available space in the engine bay.
- Front-mounted starters: Common in front-engine configurations
- Rear-mounted starters: Often found in transverse engine layouts
- Side-mounted starters: Used in compact engine compartments where space is limited
- Check bolt pattern alignment and clearance for installation/removal
Installation Tip: Always verify fitment using vehicle-specific part numbers or consult with a mechanic
Material Quality and Construction
High-quality materials and manufacturing processes significantly impact the reliability and lifespan of starter motors.
- Bronze bushings provide better wear resistance than sintered metal alternatives
- Copper windings offer superior conductivity compared to aluminum counterparts
- Heat-treated steel gears withstand greater torque loads without stripping
- Moisture-resistant seals protect internal components in harsh environments
Longevity Advice: Look for OEM-grade components or premium aftermarket brands with proven track records
Application-Specific Features
Depending on how and where the vehicle is used, certain specialized features may be necessary for optimal performance.
- Racing starters: Lightweight construction with quick engagement mechanisms
- Marine-rated starters: Corrosion-resistant coatings for saltwater environments
- Off-road starters: Reinforced housings to withstand vibration and debris exposure
- Cold weather kits: Heated solenoids to prevent freezing in extreme climates
Usage Reminder: Always match the starter motor to the specific operating conditions it will face
Buying Strategy: When replacing a starter motor, consider investing slightly above the minimum requirement—especially if you frequently drive in demanding conditions. A higher-quality unit may cost more upfront but will save money over time through increased durability and fewer replacements.
| Vehicle Type | Recommended Voltage | Typical Power Range | Preferred Gear Type |
|---|---|---|---|
| Compact Cars | 12V | 1.0–1.2 kW | Coaxial |
| SUVs & Midsize Trucks | 12V | 1.2–1.5 kW | Planetary |
| Heavy-Duty Trucks | 24V | 1.5–2.0 kW | Planetary with reinforced gears |
| Commercial Diesel Equipment | 24V | 2.0–2.5 kW | Custom industrial gear sets |
| Racing/Performance Vehicles | 12V (high-capacity) | 1.5–2.0 kW | Lightweight planetary |
Price vs Value: While budget options are available, always weigh price against expected usage and quality indicators like warranty length, brand reputation, and customer reviews. Some "budget" starters may end up costing more due to early failure or repeated replacements.
How to DIY and Replace Starter Motor Parts
Replacing parts in a starter motor can be an effective way to restore functionality without having to purchase an entirely new unit. However, not all starter motors are designed with serviceable components — some models require full replacement when internal issues arise. It's crucial to determine whether your specific starter motor has replaceable parts before beginning any repair process.
Important: Attempting multiple repairs on the same starter motor can reduce its reliability over time. If several components are failing or wear is extensive, it may be more cost-effective and dependable to install a new or remanufactured unit.
Essential Tools and Materials
Before starting your repair, ensure you have the proper tools and replacement parts. Having everything ready will streamline the process and help avoid unnecessary delays or mistakes.
- Ratchet set (with appropriate sockets)
- Flathead and Phillips screwdrivers
- 8mm spanner or wrench
- Starter motor repair kit (typically includes bushings, brushes, contacts, solenoid plunger, and springs)
- Multimeter for testing electrical resistance
- Clean rag or cloth and contact cleaner for cleaning terminals and commutators
Pro Tip: Always refer to the manufacturer’s service manual or online schematics for your specific starter model. These resources provide valuable information about disassembly steps, torque specifications, and correct part orientation.
Detailed Repair Steps
- Disassemble the Starter Motor
- Begin by disconnecting the battery and removing the starter motor from the vehicle.
- Loosen all nuts and bolts that secure the housing together. Some fasteners may be hidden under rubber boots or protective covers.
- Separate the drive end (where the gear engages the flywheel) from the main body of the motor.
- Remove the armature carefully — it’s delicate and can be damaged if dropped or mishandled.
- In some cases, you may need to gently tap the end cover with a soft mallet or hammer to loosen it, depending on how it was originally installed.
- Evaluate All Components
- Inspect each part closely for signs of wear or damage. Pay special attention to:
- Brushes: Look for excessive wear or breakage. They should make good contact with the commutator.
- Contacts: Check for pitting, burning, or corrosion, especially inside the solenoid.
- Armature: Examine the windings and commutator for scorch marks or broken segments.
- Use a multimeter to test the resistance of the brushes and armature windings. Compare readings to the manufacturer’s specifications found in the service manual.
- Clean all accessible surfaces using a clean cloth and electrical contact cleaner to remove carbon dust and debris.
- Inspect each part closely for signs of wear or damage. Pay special attention to:
- Replace Damaged or Worn Parts
- Using your repair kit, replace any faulty components such as worn brushes, damaged bushings, or burnt contacts.
- Ensure all new parts are properly oriented and securely fitted into place.
- Lubricate moving parts lightly with dielectric grease or light machine oil where specified in the manual.
- Reassemble the starter motor following the reverse order of disassembly. Make sure all fasteners are tightened to the recommended torque values.
- After reassembly, bench-test the starter motor if possible to confirm it operates correctly before reinstalling it in the vehicle.
| Component | Common Issues | Recommended Replacement | Testing Method |
|---|---|---|---|
| Brushes | Wear, fraying, poor contact | New brushes from repair kit | Multimeter continuity test, visual inspection |
| Solenoid Contacts | Pitting, burn marks, arcing | New solenoid plunger or entire solenoid assembly | Visual inspection, ohm meter check |
| Armature | Shorted windings, commutator wear | Replacement armature or new starter | Growler tester or multimeter resistance test |
| Bushings/Bearings | Excessive play, seizing | New bushings from repair kit | Manual rotation and visual inspection |
DIY Insight: If the solenoid shows signs of internal failure — such as a lack of clicking sound when the key is turned — replacing just the solenoid may be sufficient. However, in many cases, especially with older units, replacing the entire starter motor might offer better long-term reliability and performance.
Final Considerations
While repairing a starter motor can save money, it's important to weigh the cost of replacement parts and your time against the price of a new or rebuilt unit. Additionally, improper installation or incorrect component selection can lead to repeated failures or even damage to other systems in your vehicle.
If you're unsure about any step of the process or if your tests indicate significant internal damage, consider consulting a professional mechanic or opting for a factory-reconditioned replacement. This ensures your vehicle starts reliably and safely every time.
Starter Motor Q&A – Understanding Symptoms, Maintenance, and Replacement
A1: A failing starter motor often presents several recognizable symptoms that drivers should not ignore. These include:
- Engine won't start or is slow to crank – One of the most common signs is when turning the key results in no response or a sluggish engine turnover.
- Unusual noises – Clicking, grinding, or whirring sounds when trying to start the vehicle usually indicate issues with the starter gear engagement or internal components.
- Vibrations or shaking during startup – If the starter motor is misaligned or damaged internally, it can cause noticeable vibrations when starting the engine.
- Overheating – A starter motor that feels excessively hot after just one start cycle may be drawing too much current or working harder than it should.
- Visible damage or corrosion – Physical inspection might reveal rust, burnt wiring connections, or broken mounting points that compromise functionality.
These symptoms could also point to other electrical or battery-related problems, so a professional diagnosis is recommended if unsure.
A2: While starter motors are generally durable and don’t require frequent maintenance, it’s advisable to have them inspected every six months or during each scheduled vehicle service. Regular checks allow technicians to identify early signs of wear, such as:
- Loose or corroded wiring connections
- Worn brushes or solenoid contacts
- Excessive play in the armature shaft
- Burn marks or heat damage around terminals
Early detection helps prevent unexpected breakdowns and costly towing services. For vehicles used in harsh environments (e.g., extreme temperatures or high humidity), more frequent inspections are beneficial.
A3: Whether a starter motor can be repaired depends on the type and severity of the damage. Minor issues like faulty solenoids, worn brushes, or damaged gears can sometimes be replaced individually, making repairs cost-effective. However, for cases involving:
- Internal short circuits or burned windings
- Severe physical damage to the housing
- Extensive overheating or melted components
...a full replacement is typically the better option. Repairs can offer temporary fixes but may not restore reliability long-term. It's best to consult a qualified mechanic who can assess the condition and recommend either repair or replacement based on cost and performance considerations.
A4: Absolutely. The quality of your starter motor plays a crucial role in the overall reliability and performance of your vehicle. A high-quality unit ensures consistent and quick engine starts, even in cold weather or under heavy electrical loads. Poor-quality starters may lead to:
- Intermittent starting issues
- Increased strain on the battery and alternator
- Premature failure due to inferior materials or manufacturing

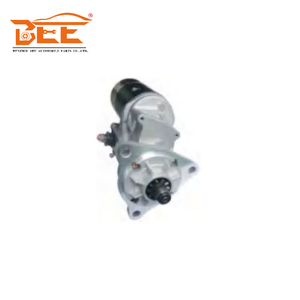

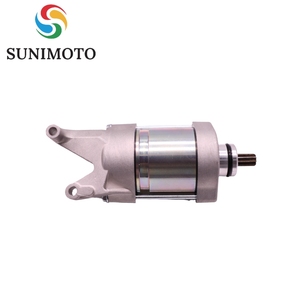

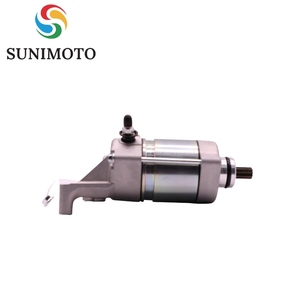

When selecting a new starter motor, consider OEM (original equipment manufacturer) or reputable aftermarket brands known for durability and compatibility. Online platforms like Alibaba.com offer a wide range of options, including budget-friendly and premium choices, allowing buyers to match their needs with product specifications.
A5: To extend the life of your starter motor, follow these practical tips:
- Maintain a healthy battery – A weak or dying battery forces the starter to draw more current, increasing wear. Test your battery regularly and replace it before it fails.
- Perform regular inspections – Check for secure mounting, clean connections, and signs of wear during oil changes or service visits.
- Practice good ignition habits – Avoid holding the key in the start position for extended periods; limit cranking attempts to 10-15 seconds at a time.
- Keep connections clean and tight – Corrosion at the battery terminals or starter wiring can restrict current flow and cause overheating.
- Drive responsibly – Sudden acceleration and frequent short trips put unnecessary stress on the entire starting system. Allow the engine to warm up properly before driving.
By combining preventive maintenance with mindful driving practices, you can significantly prolong the lifespan of your starter motor and reduce the risk of inconvenient breakdowns.
