Types of stainless steel roller conveyor
Stainless steel roller conveyor systems are vital equipment in many industries for effective handling of materials. These systems use durable stainless steel rollers to move products along a track, providing hassle-free operation in both dry and wet settings. Several variations exist to meet diverse operational needs.
Gravity roller conveyor
Simple and cost-effective, this conveyor relies on the force of gravity. Products roll from one roller to the next, making them ideal for sloping installations or as manual loading/unloading tables. They suit less weighty materials and permit a shift from one workstation to another without power use.
Powered roller conveyor
A motor power conveyors' rollers, providing a steady and regulated flow of materials. They are appropriate for heavier loads and allow for speed and direction variation. They find application in complex production lines, moving bulky items where a constant motion is necessary.
Chain-driven roller conveyor
These conveyors are extremely robust and suitable for heavy items. A chain drives the rollers, providing torque and power capacity to bear substantial weights. They are ideal in industries where high-load transport demands strength and longevity.
Accumulation roller conveyor
As the name describes, this conveyor allows products to stack up without causing pressure on those at the front. This system uses brakes on individual rollers to control the flow and is useful in warehousing where temporary holding before the next phase is required.

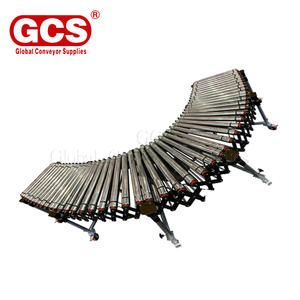

Flexible roller conveyor
Adjustable in orientation, these conveyors make loading and unloading adaptable. Hand-operated screw drives or motors power their movement. A common application is in truck loading/unloading and warehouse racking because of their simplicity and functionality in changing spaces.
Industry applications of stainless steel roller conveyor
The ability to combine reliability and usefulness makes roller conveyors worthy assets in industry. Their capability to transfer hefty loads with minimum maintenance has drawn wide use among many sectors. Below are some of the primary industries where roller conveyors find their application.
Manufacturing
Manufacturing facilities need to move raw and finished materials, hence the place for stainless steel roller conveyors. They are durable and hence ideal for dealing with heavy products such as machinery components or metallic substances. Powered roller conveyors contribute extensively to the production processes by controlling the flow of materials and improving efficiency.
Food and beverage processing
High resistance to corrosion and easy cleaning make these conveyors fit for the food and beverage industry. They move packaged or unprocessed food items in a hygienic way. Gravity-fed and powered roller conveyors are used commonly in the food industry to move such things as bottled drinks, tins, and bulk food items.
Pharmaceuticals
Similarly to food processing, roller conveyor systems are used in pharmaceuticals to transport drugs, medical items, and raw ingredients. Stainless steel's ability to withstand chemicals and easy cleaning make it functional in this environment, which mandates high sterility standards.
Logistics and warehousing
Stainless steel roller conveyors are frequently used in logistics and warehousing for transporting packages, boxes, and other goods. Accumulation and flexible roller conveyors are extensively used in these sectors to load and unload trucks and to sort. Efficiency increases as they facilitate quicker and easier movement of objects from one area to another.
Automotive
In car assembly plants, roller conveyors help to transport car parts, engines, and other large components. Chain-driven rollers are common for heavy items. Powered roller conveyors ensure the constant and orderly transport of materials during various assembly stages.
Product specifications and features of stainless steel roller conveyor
Technical specifications
- Roller diameter: The stainless steel roller can be between 20 and 60 millimeters in diameter, depending on the model and what is conveyed.
- Roller width: The width of the rollers can range from 30 to over 150 millimeters or more, depending on the type of conveyor system used.
- Load capacity: Individual roller loads may differ, ranging from 50 N to over 2000 N (Newton) for heavy-duty rollers.
- Material: Stainless steel grade: Stainless steel 304 and 316 grades are often used for resistance to rust and superior quality. 316-grade stainless steel is preferred in highly corrosive environments such as chemical processing or marine applications.
- Power supply: Electric motors are usually used for powered roller conveyors to provide motion, while gravity conveyors depend on loading and unloading height differences.
- Drive type: Direct or chain drive is used for powered roller conveyors, with chains providing power for heavy loads.
- Speed: Conveyor belt speeds can vary greatly depending on the application and specific type of conveyor. Typical speeds can range from around 5 meters per minute up to 50 meters per minute or more for heavy-duty industrial applications.
Key features
- Corrosion resistance: Stainless steel conveyors are resistant to rust and corrosion, making them ideal for companies that regularly wash their equipment or work in wet or chemical-laden settings.
- Durability: Stainless steel conveyors are more durable than conveyor belts made of other materials, such as aluminum or plastics, making them ideal for handling large loads. They also resist dents and bends.
- Smooth operation: These rollers minimize friction, supporting smooth and effective movement. They work best with dry, wet, or oily items.
- Smooth surfaces: The rollers usually have smooth surfaces to transport things that need cleanliness, such as in the foodstuff or medication industry.
- Versatility: They are used in many industries ranging from manufacture, food and drink, chemicals, and metals processing because of their unmatched properties.
How to install
- Planning: Establish the aim of the system, conduct a site survey and determine the type of roller conveyor necessary, based on the load and environment.
- Design for the layout: A channel framework should be built to determine a standard for the design, including roller tracks, slopes, and drives.
- Assemble the framework: The bases should be put together with supports, legs, or casters to form the framework with which the rollers will be secured.
- Add rollers: After assembling the framework, mount the rollers to the framework or attach them to the belt, depending on the type selected. Ensure spaced properly for load applications.
- Install drives and power: Where applicable, mount the drive systems to the set rollers as per the directions and connect to the power source.
- Connect to controls: Link this conveyor system to the control units, including switches, sensors, and speed adjusters.
- Test the system: After assembling the system, turn it to test for smoothness of motion and displacement of conveyed load and possible improper installation or defect occurrences.
Maintenance and repair
- Corrosion check: Inspect for signs of rust or corrosion; if found, clean the affected area with wire brushes or abrasives and apply rust inhibitor or replace worn parts.
- Lubrication: Regular lubrication on bearings and drives using appropriate lubricant to reduce friction and wear.
- Alignment: Check to confirm that the rollers and belt are in line to avoid wear and tear; realign those off balance components as needed.
- Debris removal: Remove all debris or goods lurking on or between the rollers that may obstruct movement. Use soft brushes or vacuum to clear off particles.
- Wear inspection: Regularly check the rollers, frame, and belt for signs of wear or damage; replace worn components.
- Power connection check: Ensure all electrical connections are clean and secure; inspect wiring for damage and replace faulty wiring as needed.
Quality and safety considerations of stainless steel roller conveyor
Of great importance are the quality and safety considerations when incorporating roller conveyors, which can lead to a loss of investment, damage to products, and injury to workers. These conveyors have to be resistant, reliable, and meet safety codes, particularly in industries where heavy loads are handled or where the environment is corrosive.
Quality considerations
- Material quality: Stainless steel grade 304 or 316 is selected for the rollers depending on resistance to rust desired. 316 is preferred when working with strong acids, saline waters, or other exceptionally corrosive environments.
- Roller construction: Smooth and durable rollers with the right diameter and width reduce frictionality to increase load-bearing capacity and rolling life. Further, the roller surface finish impacts the material to be conveyed and the friction created.
- Fine bearings are installed to ensure less rolling resistance and enable operation under extreme temperatures, either low or high.
- Load capacity: The strength of the conveyor to bear weight should be in tandem with the maximum weight of the item it conveys and the type of item. Chain-driven or powered rollers are necessary for heavy items, while light-duty rollers work well with lighter products.
Safety considerations
- Emergency stop systems: Installing emergency stops on the conveyor allows speedy shutdown during dangerous occurrences.
- Guarding: Pulling away from the conveyor hazards should be guarded through the integration of nip point guards, along with safety curtains or light screens to detect and safeguard against hazards.
- Load handling: Avoid overloading the conveyor, as this can cause it to collapse, putting people and equipment at risk. Educate operators on proper loading techniques.
- Training: Provide training for operators on roller conveyor functions to decrease accidents and boost effectiveness. Training on repairs and maintenance can help with future care.
Q&A
Q1: What are the primary benefits of Using a Stainless Steel Roller Conveyor?
A1: Roller conveyors enable rapid and simple movement from one spot to another and can be constructed using inexpensive materials. Stainless steel roller conveyors suit all conditions, particularly hazardous or variable temperatures. They combine a smooth operation with low friction and high load-bearing capacity.
Q2: Are stainless steel roller conveyors adjustable?
A2: Yes, such a conveyor can be flexible: roller conveyors can be flexible, as the rollers' angle and the system's height can also be changed. This is mainly done during the installation stage and offers a diverse way of running different types of activities and handling different types of loads.
Q3: How does one clean and maintain these conveyors?
A3: Stainless steel roller conveyors may be washed with stainless steel-safe detergents. Regular inspections for rust, lubrication, and debris elimination are also factors in maintenance. Occasional parts replacement may be necessary, depending on wear and tear.
Q4: What is the role of the diameter and thickness of rollers in a stainless steel roller conveyor?
A4: Larger diameter rollers result in a larger load capacity and reduced friction, hence the advantage of using larger size rollers. Conversely, thinner rollers enable flexibility and are easily impacted upon, hence suitable for lighter and somewhat irregular loads.
Q5: What quality and safety measures should be put in place when using stainless steel roller conveyors?
A5: Potential hazards on conveyor belts should be guarded away with nip point guards, and operational practices should be taught. To avoid electric shock, the electrical connections should be guarded, and wet floor signs should be placed in case of spillage. Emergency stops must be fitted to limit the movement of conveyor belts in dangerous scenarios.
