Smooth drum roller

Types of Smooth Drum Rollers

A smoother roller compactor has different types and models, usually falling into the categories based on the engine and drum design. The variants include the double-drum roller, versatile smooth drum roller, single-drum roller, smooth steel drum roller, double-drum hydraulic roller, and static smooth drum roller.

• Double-drum roller:

  As the name suggests, the double-drum roller features two identical drum cylinders, each measuring 1 m to 2 m in width. One roller is placed at the forefront, while the other follows behind. The large steel drums provide stability to the machine. It is able to fix road bases and bituminous mixtures. The roller is applicable for a large, open area, such as a road construction project.

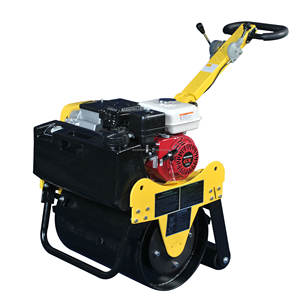

• Single-drum roller:

  While the single-drum roller also features large smooth steel drums, they generally include another vibrating axle fitted with tires or smooth pads. The combination is usually effective in enhancing the rigidity of the machine. It is applicable in projects where the ground needs to be fixed thoroughly.

• Smooth steel drum roller:

  The drum of the steel roller is smooth with a shiny polished appearance. The roller exerts a smooth and even pressure throughout the area to be compacted. It is well-suited for use in road building and embankments where soil and asphalt need to be compacted. The roller is also known to provide a high level of control over the compaction process.

• Double-drum hydraulic roller:

  When the power source of the roller machine is hydraulic, it is called a double-drum hydraulic roller compactor. Together with transmission and working mechanisms, the roller is applicable for many occasions.

• Static smooth drum roller:

  A static smooth drum roller has a run-on and roll-off feature that enables it to be driven on and off the compacted area without the need for reverse rolling. The processes can help to increase production and efficiency on the job site.

Specification and Maintenance of Smooth Drum Rollers

• Operating Weight:

  The operating weight of a smooth roller helps ascertain the compaction force and influence the level of surface integration.

• From:

  A smooth roller's drum dimension directly impacts the surface area covered per pass. Wider drums usually mean fewer passes needed to complete an undertaking, while broader dimensions offer better compaction in deep layers.

• The engine:

  An articulated smooth drum roller's engine power rating determines the machine's speed, compaction force, and ability to handle different soil types and moisture levels. Higher engine ratings allow the roller to effectively compact loose or granular soils, deep layers, and areas with high moisture content. However, selecting the appropriate power rating for the task at hand is crucial to avoid unnecessary fuel consumption and environmental impact.

• Compaction Depth:

  Compaction depth is the maximum depth. A smooth roller can effectively compact material. It is mainly determined by the roller's weight, drum design, and the soil type. Knowing the smooth drum roller's effective compaction depth ensures proper soil preparation for construction projects. This also helps to avoid potential problems like settling or instability in future structures.

• Travel Speed:

  In the case of a smooth vibrating roller, the up and down movements of the drum aid in the compaction of the material. The travel speed is the speed at which the roller moves. This affects the level of compaction achieved. Higher speeds may result in less compaction, while slower speeds allow for more thorough compaction but at the expense of production speed.

Maintenance

For ensuring the longevity, smooth operation, and safety of a smooth drum roller compactor, routine maintenance is critical. Below are some maintenance procedures discussed for a smooth roller machine:

• Operator Checklist:

  Every shift, operators should inspect the roller compactor. Look at the fluid levels, greased areas, tires, tracks, drums, and overall condition. Report any issues immediately. Daily inspections help catch minor problems before they become major repairs.

• Fluid Changes:

  Roller compactors have several fluids that require changing at specific intervals, such as engine oil, hydraulic oil, and gearbox oil. Check fluid levels regularly and perform fluid changes based on the service schedule. Keeping proper fluid levels prevents premature wear and component failure.

• Lubrication:

  Many moving parts require periodic greasing, including linkages, pivot points, tracks, and bearings. Clean the fittings before applying grease to prevent contamination. Proper lubrication minimizes wear, reduces friction, and extends equipment life.

• Drum & Tire Care:

  Erosion may occur on the roller's drum due to prolonged exposure to moisture, substandard pavements, and inconsistent compaction efforts. Also, inspect the tires for any signs of damage or unusual tread wear and replace them if necessary. A stable foundation is created when the compactor's drum and tire are in good condition.

• Hydraulic System:

  Inspect hydraulic hoses and connections for leaks or wear. Ensure cylinders operate smoothly. Proper drum roller vibrator hydraulic system care maintains lifting, steering, and articulation functions vital for safe operation.

Uses of smooth drum rollers

Smooth rollers perform essential tasks in various industries thanks to their capacity to exert great weights and uniformity.

• Compaction of Layers in Road Construction with Smooth Drum Rollers

  At the foundation of road construction, proper compaction can ensure stability, longevity, and load capacity. By compacting the earth and sub-base with smooth drum rollers, they provide a solid foundation for future layers. Lower sub-grade layers may also require compaction if soft or weak. Smooth rollers can also be used to compact gravel and crushed stone to create a solid and well-compacted base before laying a road's final surface.

• Compaction of Other Materials and Surfaces with Smooth Drum Rollers

  Smooth drum rollers excel in achieving dense and well-compacted layers of materials besides soil, such as crushed rock, asphalt, aggregate, cement, and various types of backfill. Their high ground pressure helps to remove air pockets in other materials besides soil. Increasing the density reduces the likelihood of erosion and increases a structure's load capacity and longevity. Once again, the type and configuration of roller drum smooth can significantly affect results. Once again, the type and configuration of smooth roller drum can significantly affect results. For example, while steel drums are perfect for asphalt, rubber tires that can roll over hot mix asphalt may sometimes be preferred. Said to improve resistance to cracking, floating, and pitting, rubber-tired rollers may also create better impressions in the finished product.

• Other Applications for Smooth Drum Rollers

  Offering not only compaction but also smoothness, smooth drum rollers are also used to create a smooth finish on asphalt roads. At times, the crown and cross-section of a road or parking lot is better achieved through the use of a roller than by hand. In many instances, it is more economical and quicker to use rollers to finish off areas. They can also be used to achieve a variety of densities in other materials.

How to choose a smooth drum roller

Several factors should be considered when choosing a smooth drum roller for a specific application:

• Soil Types and Compaction Requirements

  Understand the types of soil to be compacted and the targeted compaction levels. Different smooth rollers suit various soil types, such as granular or cohesive soils. Also, consider the required compaction depth and density.

• Weight and Ballast Options

  Choose a smooth roller's weight based on the soil types and compaction requirements. Heavier rollers achieve better compaction for granular soils but may not be suitable for cohesive soils. Consider the ballast options, such as adding weights or using a roller with internal ballast, to fine-tune the roller's weight for specific tasks.

• Size and Maneuverability

  Select a smooth drum roller with a suitable width and diameter to work efficiently within the project's constraints. Consider the roller's overall size, including length, height, and weight, to ensure it can navigate the job site effectively. Balance the need for compaction performance with the ability to access and maneuver in the work area.

• Vibratory vs. Static Rollers

  Decide whether to use a vibratory smooth roller or a static one based on the project requirements. Vibratory rollers provide higher productivity by achieving better compaction faster. However, static rollers may be sufficient for certain tasks or soil conditions.

• Components and Maintenance

  Choose a smooth drum roller with dependable parts and systems for easy upkeep. Think about how well maintenance can be achieved, such as how straightforward it is to access engine parts, roller drums, and hydraulic components. Opt for designs that lower maintenance expenses and boost machinery uptime.

Smooth drum roller Q&A

Q1. What are smooth rollers used for?

A1. Smooth rollers are primarily used in road construction and other civil engineering works to achieve soil compaction. They are the machines of choice for engineering of road bases, asphalt layers, backfill, and earthen dam treatment.

Q2. What is the difference between a smooth and a padded roller?

A2. A smooth roller has a single, smooth drum positioned at the front of the roller and a dual drum at the rear. On the other hand, a padded roller has large fuzzy pads covering the entire roller.

Q3. What type of roller is best for granular soils?

A3. A pneumatic roller compacts such soils well. Smooth pneumatic tires use the kneading effect to compact coarse granular soils effectively. In addition, they work well in achieving close to the theoretical maximum density.

Q4. What kind of soil requires a sheepsfoot roller?

A4. Cohesive soil, such as clay, requires a sheepsfoot roller. This roller has a series of feet that penetrate the soil during the rolling process. The unbalanced circular drum rollers, as mentioned earlier, also work well in compacting cohesive soil.

Q5. Why are heavy rollers preferred in soil compaction?

A5. Heavy rollers are ideal for soil compaction due to their high ground pressures and static loads. They play a vital fundamental role in rearranging particles, thereby enhancing the stability of the soil.
