Types of Shipping Container Corrugated Side Panels
A shipping container corrugated side panel is a fundamental structural element that provides strength, rigidity, and durability to shipping containers. These panels are crucial for ensuring the integrity of containers during transportation, storage, and even in repurposed applications such as modular buildings or portable offices. The unique design of corrugations enhances load-bearing capacity while maintaining lightweight efficiency.
The corrugated pattern increases the panel's resistance to bending forces, making it ideal for handling both dynamic loads during transit and static loads when stationary. Different types of corrugated side panels offer distinct advantages based on their geometry, material composition, and intended usage scenarios.
Regular Corrugated Panels
Featuring a classic wavy profile, regular corrugated panels are the most widely used type in standard shipping containers. Their proven design offers reliable structural performance and environmental resistance.
Advantages
- Cost-effective manufacturing process
- Excellent wind and weather resistance
- Proven reliability in global logistics
- Easy to source and replace
Limitations
- Standard appearance may lack visual appeal
- Moderate impact resistance compared to specialized panels
Best for: General freight transport, long-term storage, budget-conscious applications
Cutting Edge Corrugated Panels
Characterized by a modern, angular corrugation pattern resembling sharp edges, this panel type combines structural performance with contemporary aesthetics.
Advantages
- Stylish, modern appearance
- Maintains good structural integrity
- Popular for architectural reuse
- Enhanced surface rigidity
Limitations
- More expensive than standard panels
- Less common in mass production
Best for: Architectural projects, retail spaces, exterior cladding
Mini Wavy Panels
These panels feature a more compact wave pattern, offering a refined texture that balances aesthetics and functionality. Ideal for specialized container sizes and designs.
Advantages
- Smoother surface finish
- Better paint adhesion
- Visually appealing for close-up viewing
- Good for small-scale containers
Limitations
- Less structural rigidity than larger corrugations
- Limited availability in standard container models
Best for: Urban furniture, outdoor kiosks, decorative structures
Square Tube Panels
Incorporating square tube reinforcements into the corrugated structure, these panels provide enhanced load-bearing capabilities and structural rigidity.
Advantages
- Superior strength-to-weight ratio
- Ideal for heavy-duty applications
- Improved torsional stiffness
- Excellent for stacking configurations
Limitations
- Heavier than standard panels
- Higher cost due to complex manufacturing
Best for: Heavy machinery transport, industrial containers, offshore platforms
Full Hard Panels
Manufactured from high-tensile steel with full hardening treatment, these panels offer maximum durability and resistance to extreme conditions.
Advantages
- Exceptional strength and wear resistance
- Resistant to deformation under pressure
- Long service life in harsh environments
- Ideal for hazardous material containment
Limitations
- Brittle under extreme impact
- Difficult to modify after fabrication
Best for: Chemical transport, military use, mining industry containers
Half-Hard Panels
These panels are made from medium-strength steel that retains some malleability while still providing substantial structural support.
Advantages
- Good balance between flexibility and strength
- Easier to customize post-production
- Adaptable to various cargo types
- Cost-effective for moderate demands
Limitations
- Not suitable for extreme conditions
- May deform under excessive loading
Best for: Agricultural transport, food logistics, general-purpose storage
| Type | Strength | Weight | Cost | Best Application |
|---|---|---|---|---|
| Regular Corrugated | Good | Light | Low | General freight, standard logistics |
| Cutting Edge Corrugated | Very Good | Moderate | High | Architectural reuse, urban design |
| Mini Wavy | Fair | Light | Moderate | Urban furniture, small enclosures |
| Square Tube | Excellent | Heavy | High | Industrial transport, offshore use |
| Full Hard | Excellent | Moderate | Very High | Hazardous materials, defense applications |
| Half-Hard | Good | Moderate | Moderate | Agriculture, flexible cargo transport |
Expert Tip: When selecting corrugated side panels for container modifications (such as cutting windows or doors), consider using reinforced edge panels or adding internal bracing to maintain structural integrity while achieving your desired design goals.
Specifications and Maintenance of Shipping Container Corrugated Side Panels
Shipping container corrugated side panels are among the most critical structural components of a standard shipping container. These panels form the outer walls that provide strength, durability, and resistance to external forces during transportation and storage applications.
Key Specifications to Consider
Understanding the technical specifications of corrugated side panels is essential for ensuring you select the right product for your specific application. Here’s a detailed breakdown:
Material Composition
Corrugated side panels are typically fabricated from high-tensile steel alloys, known for their superior strength-to-weight ratio. This material choice ensures the panels can withstand heavy loads, impact, and environmental stressors without deforming or failing.
Some specialized containers may use corten steel (weathering steel), which offers natural corrosion resistance and eliminates the need for additional coatings in certain environments.
Panel Thickness
The thickness of corrugated panels directly affects their load-bearing capacity and overall durability. Standard thickness ranges from 1.0mm to 2.5mm, with thicker panels used in heavy-duty containers designed for long-term outdoor storage or industrial use.
Thicker panels also contribute to better insulation properties when combined with internal linings or insulation materials, making them suitable for temperature-sensitive cargo or modular buildings.
Dimensions and Sizing
Corrugated side panels come in standardized sizes to match ISO shipping container dimensions. Common lengths include 20ft, 30ft, and 40ft, while widths generally conform to 2.44 meters (approximately 8 feet) to align with standard container height requirements.
Custom dimensions are available for modified containers or bespoke builds, but these require careful engineering to maintain structural integrity and compliance with international transport standards.
Surface Treatment and Finish
To enhance longevity and aesthetics, corrugated panels are often coated with protective layers such as zinc galvanization, powder coating, or marine-grade paint systems. These treatments resist rust, corrosion, UV degradation, and chemical exposure.
A smooth or textured surface finish not only improves appearance but also facilitates cleaning and maintenance, especially in environments prone to saltwater, dust, or industrial pollutants.
Structural Performance
The corrugated design itself plays a vital role in enhancing structural rigidity. The wave-like pattern increases stiffness without significantly adding weight, allowing the panel to resist bending, torsion, and wind pressure effectively.
This structural feature is particularly important in stacking applications, where multiple containers must bear significant vertical loads without compromising safety or stability.
Weight Considerations
While providing necessary strength, corrugated steel panels are relatively heavy. For example, a typical 20ft side panel may weigh around 1,500 kg. This weight contributes to the overall robustness of the container but must be considered during transportation planning and site installation logistics.
Heavier panels also offer increased security and protection against forced entry, making them ideal for secure storage solutions, on-site offices, or emergency shelters.
| Specification | Importance | Selection Tips |
|---|---|---|
| Steel Grade | High | Choose S235-S355 grades for general use; higher grades like S460 for extreme conditions |
| Corrosion Protection | High | Select galvanized or corten steel for coastal/marine environments |
| Thickness (Gauge) | High | Opt for 1.6–2.5mm for most commercial applications |
| Paint Finish Type | Medium | Epoxy-based paints offer better chemical resistance than standard acrylics |
Maintenance Best Practices
Proper maintenance of corrugated side panels is crucial to extending the life of a shipping container and preserving its functionality. Here are key practices to follow:
Important: Never ignore early signs of rust or physical damage on corrugated panels. Address issues immediately through sanding, priming, and repainting, or replacement if structural integrity is compromised. Delayed maintenance can lead to costly repairs or even render the container unsuitable for further use.
How to Choose Shipping Container Corrugated Side Panels
Selecting the appropriate corrugated side panels for shipping containers is a critical decision that affects durability, functionality, and long-term value. The right choice depends on several interrelated factors that should be carefully evaluated based on your specific project requirements.
Intended Use and Functional Requirements
The primary function of the container significantly influences the type of corrugated side panels needed. Containers repurposed for different applications require varying levels of structural integrity, insulation, and customization options.
- Storage: Basic storage applications may only require standard galvanized steel panels with minimal modifications
- Living spaces: Residential or commercial conversions often need insulated panels with provisions for windows, doors, and utility access points
- Industrial use: Heavy-duty applications demand reinforced panels capable of withstanding frequent loading/unloading cycles
- Specialized cargo: Containers used for hazardous materials or temperature-sensitive goods require specialized coatings and panel thicknesses
Planning tip: Consider both current and potential future uses during selection
Size and Dimensional Considerations
Container dimensions directly impact the available options for corrugated side panels. Standard sizes dominate the market, but custom solutions may be necessary for specialized applications.
- Common lengths include 10ft, 20ft, and 40ft containers
- Standard widths are typically 8ft, with high cube variants at 9ft 6in
- Larger containers may require additional bracing and thicker panels
- Project site constraints should dictate maximum allowable dimensions
Important note: Verify local zoning regulations and transportation limitations before finalizing size selection
Condition and Durability Factors
New and used containers offer distinct advantages depending on budget and required lifespan. Understanding these differences helps in making cost-effective decisions that align with project timelines.
- New (One-Trip): Factory-fresh containers with minimal wear, ideal for projects requiring maximum longevity
- Cargo-Worthy: Certified for continued shipping use, suitable for temporary structures
- Wind and Water Tight: Economical option for non-transport applications where appearance isn't critical
- As-Is: Most affordable but requires thorough inspection for structural integrity
Cost-benefit insight: Used containers can save 30-50% over new while maintaining structural reliability
Corrosion Resistance and Surface Protection
The environmental conditions where the container will be deployed determine the necessary level of corrosion protection. Selecting appropriate surface treatments ensures optimal performance and longevity.
- Galvanized steel: Zinc-coated panels provide basic corrosion resistance for moderate climates
- Weathering steel: Corten steel develops protective oxide layer for extended outdoor use
- Powder coating: Adds decorative finish while enhancing corrosion resistance
- Marine-grade treatment: Essential for coastal installations or saltwater exposure
Technical consideration: Salt spray testing ratings indicate actual corrosion resistance performance
Customization Planning: When considering modifications like windows, doors, or ventilation systems, factor in how they'll affect the structural integrity of the corrugated panels. Plan for any cutouts during initial selection to ensure proper reinforcement methods can be implemented. Prefabricated cutouts from the manufacturer often result in cleaner installations than field modifications.
| Application Type | Recommended Panel Thickness | Surface Treatment | Expected Lifespan |
|---|---|---|---|
| Basic dry storage | 14-16 gauge | Standard galvanization | 10-15 years |
| Residential conversion | 12-14 gauge | Marine-grade coating | 20+ years |
| Coastal environment | 12 gauge minimum | Duplex coating system | 15-20 years |
| Industrial use | 10-12 gauge | Epoxy primer + powder coat | 15-25 years |
Budgetary Considerations and Cost Optimization
While initial purchase price is an important factor, total cost of ownership provides a more accurate assessment of long-term value. Strategic choices can maximize functionality while minimizing lifetime expenses.
- Used containers offer immediate cost savings but may require maintenance investments
- Higher upfront costs for corrosion-resistant panels pay dividends in harsh environments
- Insulated panels reduce ongoing energy costs for climate-controlled applications
- Pre-modified containers minimize labor expenses during installation
Financial planning tip: Calculate lifecycle costs across 5/10/15-year horizons for comparative analysis
Mobility and Transport Requirements
Containers designed for frequent relocation have specific panel construction needs that balance strength with weight considerations. Proper selection ensures compliance with transport regulations and safety standards.
- ISO-certified panels required for international shipping
- Airport-approved containers must meet strict weight specifications
- Remote site deployments benefit from modular panel designs
- Overland transport limited by legal height/width restrictions
Critical check: Verify tare weight vs. payload capacity for mobile applications
Sustainability Perspective: Choosing recycled containers with durable corrugated panels reduces environmental impact. Opting for panels with high recycled content further enhances sustainability credentials. For permanent installations, consider panels with thermal breaks to improve energy efficiency. Many manufacturers now offer eco-friendly coating options that minimize volatile organic compound (VOC) emissions during application and throughout the panel's lifecycle.
DIY Guide to Replacing Shipping Container Corrugated Side Panels
Replacing a shipping container’s corrugated side panel can be a manageable DIY project for minor damages or experienced individuals with welding and metalworking skills. Whether you're dealing with small rust spots, localized damage, or replacing an entire panel, understanding the process, tools needed, and safety precautions is essential for a successful repair.
Safety Warning: This project involves cutting and welding metal, which poses risks of burns, eye injuries, and fire hazards. Always wear appropriate personal protective equipment (PPE), including gloves, a welding helmet, goggles, and flame-resistant clothing. Work in a well-ventilated area away from flammable materials.
When Should You Replace a Corrugated Panel?
Corrugated panels are durable but not immune to wear and tear. Consider replacement when:
- Rust has caused significant pitting or holes across the surface
- The structural integrity of the panel is compromised
- There's extensive water intrusion through damaged areas
- You're upgrading the container for a new use, such as a workshop or living space
Step-by-Step Replacement Process
- Assessment and Planning
- Inspect the extent of the damage and determine whether patching or full panel replacement is needed
- Measure the dimensions of the damaged panel to order or cut a replacement
- Check if the replacement panel matches the original thickness and corrugation pattern
- Gather necessary tools and materials before starting
- Gathering Tools and Materials
- New corrugated steel panel (or flat sheet to form into corrugation)
- Metal cutting tools (angle grinder, plasma cutter, or oxy-acetylene torch)
- Welding machine (MIG or stick welder recommended)
- Grinder for smoothing edges and welds
- Measuring tape, level, and chalk line
- Safety gear (helmet, gloves, goggles, apron)
- Clamps and supports for holding the panel during installation
- Preparation of the Container
- Clear the area around the panel to allow safe access
- Remove any accessories attached to the panel, such as door frames or hinges
- Clean the surrounding area to remove dirt, paint, and loose rust using a wire brush or sandblaster
- Cutting Out the Damaged Panel
- Mark the cut lines carefully along the seams where the panel connects to the container frame
- Use a grinder or cutting torch to remove the old panel, ensuring clean and straight cuts
- Be cautious not to damage adjacent panels or the container’s structural frame
- Once removed, inspect the frame for rust or damage and repair as needed
- Fitting the New Panel
- Position the new panel against the frame and check for alignment and fit
- Make adjustments by trimming or reshaping the edges as necessary
- Use clamps to hold the panel securely in place before welding
- Ensure the corrugations align properly with adjacent panels for aesthetic and functional consistency
- Welding the New Panel in Place
- Begin welding at one corner and work your way around the perimeter
- Use short, even weld beads to avoid warping the thin steel
- Pay extra attention to corners and seams to ensure a watertight seal
- After welding, grind down any rough edges or excess weld material
- Final Inspection and Finishing Touches
- Inspect all welds for strength and continuity
- Apply a rust-inhibiting primer followed by a weather-resistant topcoat
- Reinstall any components like door frames or hardware that were removed earlier
- Test the container for leaks by spraying water on the repaired area
| Repair Stage | Key Actions | Potential Issues | Essential Tools |
|---|---|---|---|
| Planning | Damage assessment, measuring, sourcing materials | Inaccurate measurements, incorrect panel selection | Tape measure, service manual (if available), notebook |
| Removal | Cutting out the old panel, cleaning up the frame | Accidental damage to adjacent structure, uneven cuts | Angle grinder, cutting torch, wire brush |
| Installation | Panel fitting, clamping, alignment | Poor fit, misaligned corrugation patterns | Clamps, level, chalk line |
| Welding | Securing the panel, grinding welds | Weak welds, burn-through on thin metal | Welding machine, grinding disc |
| Finishing | Painting, reassembly, leak testing | Missed touch-ups, inadequate sealing | Paint sprayer, primer, pressure washer |
Pro Tip: If you're replacing multiple panels or unsure about welding techniques, consider practicing on scrap metal first. Also, using a backer plate behind the weld seam can help prevent burn-through and create stronger joints.
When to Call a Professional
While many repairs can be handled DIY, some situations warrant professional assistance:
- If the container is part of a certified storage or transport system requiring structural compliance
- When dealing with extensive corrosion or weakened frames
- If you lack experience with metal cutting and welding
- For complex modifications involving doors, windows, or insulation
A qualified welder or container specialist can ensure the job meets safety standards and maintains the container’s durability over time.
DIY Tip: Before starting, photograph the existing setup and label parts as you remove them. This will make reassembly much easier and reduce the chance of missing connections or hardware.
Frequently Asked Questions About Shipping Container Corrugated Side Panels

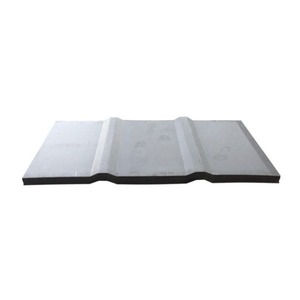

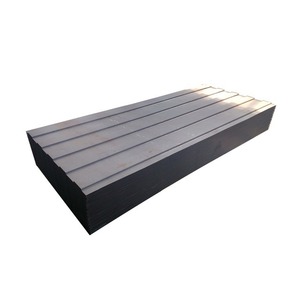

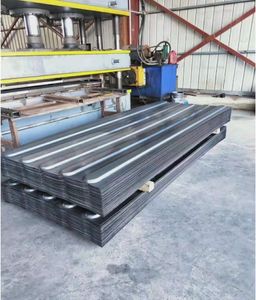

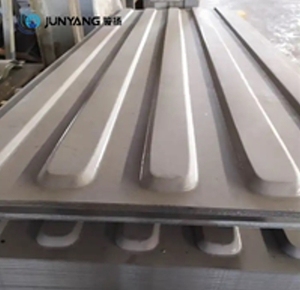

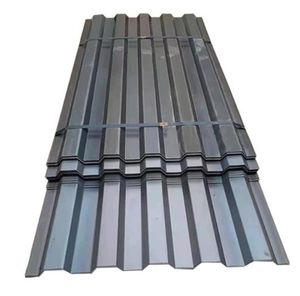

A shipping container corrugated side panel refers to the wavy or ribbed steel sheets that form the exterior walls of a standard ISO shipping container. These panels are manufactured with alternating ridges and grooves (the "corrugations") which significantly increase their structural strength and rigidity without adding excessive weight.
The corrugated design plays a critical role in the container’s ability to:
- Resist bending and deformation under heavy loads
- Withstand extreme weather conditions like high winds, rain, and snow
- Maintain integrity during stacking and transportation
Each side panel is welded or bolted into the container's frame, contributing to its overall durability and security for storing or transporting goods globally.
"One trip" and "new" are classifications used to describe the condition of shipping containers, particularly when they're being repurposed for storage, construction, or other secondary uses.
One Trip Containers:
These containers have completed only one transoceanic voyage from the manufacturing location (often Asia) to the destination country (e.g., the United States or Europe). They are considered nearly new because they've experienced minimal wear and tear and have not been exposed to repeated cargo loading/unloading cycles or prolonged maritime use.
New Containers:
Manufactured recently and not yet put into service, these containers are in pristine condition. They are ideal for applications where appearance and structural integrity are crucial, such as in modular buildings or premium storage solutions.
Both types offer excellent value and longevity compared to older, used containers, making them popular choices for both commercial and residential users.
Proper maintenance of corrugated side panels is essential to extend the life of a shipping container and protect its contents. Here’s a comprehensive guide to effective maintenance:
- Regular Inspection: Check for signs of rust, dents, cracks, or paint degradation at least twice a year or after severe weather events.
- Rust Prevention: Treat any surface rust immediately by sanding, priming, and repainting. For more serious corrosion, replacement of affected panels may be necessary.
- Cleaning: Wash the exterior regularly using mild detergent and water to remove salt, dirt, and debris that can accelerate corrosion, especially in coastal areas.
- Painting: Apply a marine-grade protective coating every few years to maintain resistance against moisture and UV exposure.
- Drainage & Ventilation: Ensure the container sits on a level, well-drained surface. Consider installing vents or dehumidifiers to reduce condensation inside the container.
- Damaged Panel Repair: Replace severely damaged or deeply corroded panels promptly to prevent structural compromise.
By following these practices, you can significantly enhance the longevity and performance of your shipping container.
The corrugated design serves multiple engineering purposes that make shipping containers highly efficient and durable for global transport:
- Enhanced Structural Strength: The wave-like pattern increases the panel’s stiffness and load-bearing capacity without requiring thicker or heavier steel.
- Weight Efficiency: Compared to flat panels of similar strength, corrugation allows for lighter materials while maintaining rigidity—crucial for fuel-efficient shipping operations.
- Improved Load Distribution: The design helps distribute external forces evenly across the panel, reducing stress concentrations and preventing localized failure.
- Weather Resistance: The ridges channel water away more effectively, reducing pooling and minimizing corrosion risk.
- Stacking Stability: Corrugated sides provide better interlocking and support when containers are stacked several layers high on ships or storage yards.
This thoughtful engineering has made corrugated containers the industry standard for safe, reliable, and cost-effective freight transport worldwide.
While the vast majority of standard ISO shipping containers feature corrugated side panels due to their proven strength-to-weight ratio, there are specialized variations designed for specific applications:
| Type | Design | Purpose |
|---|---|---|
| Standard Dry Van | Corrugated steel | General-purpose shipping and storage |
| Insulated Containers | Smooth inner lining with insulation between two skins | Temperature-sensitive cargo protection |
| Refrigerated Containers | Double-walled with insulation, often smooth interior | Perishable goods transport |
| Architectural Containers | May have smooth or custom exteriors | Building modules for homes, offices, etc. |
In summary, while corrugation remains the norm for structural reasons, certain niche applications may use alternative designs tailored to specific functional or aesthetic requirements.
