Complete Guide to Ship Steering Wheels

Types, Specifications, Selection Criteria, Maintenance, and DIY Installation

Types of Ship Steering Wheels

A ship steering wheel, also known as a helm, is a critical navigational device used to control a vessel's direction. As one of the most essential components of any ship, the steering wheel comes in various designs to meet specific operational requirements.

Console Steering

Found primarily on smaller vessels, console steering systems feature a wheel connected to the rudder or outboard motor through mechanical linkages. This simple, compact design may be located on an open deck or in a dedicated wheelhouse.

Best for: Small to medium boats, direct tactile feedback, mechanical simplicity

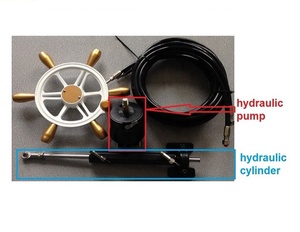

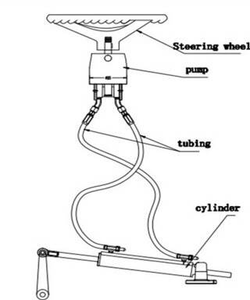

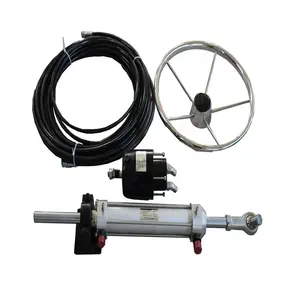

Power Steering

Similar to automotive power steering, this system utilizes hydraulic or electric assistance to reduce the effort required to turn large vessels. Power steering is essential for larger ships where manual control would be impractical due to the vessel's size and weight.

Best for: Large vessels, reduced operator fatigue, precision control

Joystick Control

An advanced system typically found on vessels with variable speed propulsion systems like azimuth thrusters or water jets. Joystick controls offer intuitive operation for precise lateral and longitudinal movements, making docking and maneuvering in tight spaces significantly easier.

Best for: Luxury yachts, research vessels, enhanced maneuverability

Expert Tip: When selecting a steering system, consider not only your vessel's current needs but also any potential future modifications. A slightly more advanced system might save costly upgrades later.

Integrated Bridge Systems

Modern vessels often feature centralized systems that combine navigation functions including radar, chart plotters, autopilot, and steering controls. This integration enhances situational awareness and operational efficiency, especially for large ships in open waters.

Best for: Commercial vessels, enhanced safety, operational efficiency

Electronic Steering Control

This cutting-edge technology uses electronic signals to control the steering system with exceptional precision. Electronic controls can integrate with autopilot and dynamic positioning systems, allowing for automated and remote vessel control.

Best for: High-performance vessels, precision navigation, advanced automation

Steering Type Best Application Key Advantages Complexity Level
Console Steering Small to medium vessels Direct feel, mechanical simplicity Low
Power Steering Large commercial ships Reduced effort, precision control Medium
Joystick Control Luxury yachts, research vessels Intuitive operation, precise maneuvering High
Integrated Bridge Systems Commercial vessels, cruise ships Comprehensive control, enhanced awareness Very High
Electronic Steering High-performance vessels Exceptional precision, automation capability High

Specifications and Maintenance

Understanding the key specifications of ship steering wheels is essential when evaluating options for purchase or replacement. The right steering wheel can significantly impact vessel handling, operator comfort, and overall safety.

Material Considerations

Ship steering wheels are constructed from various materials, each offering distinct benefits:

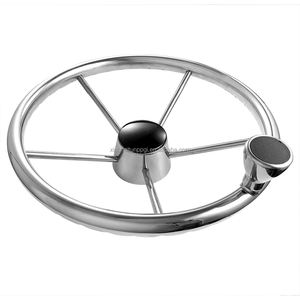

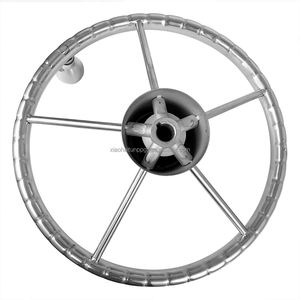

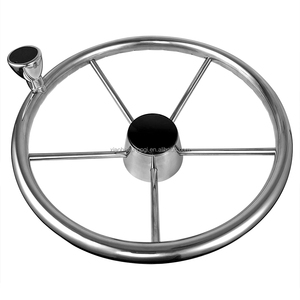

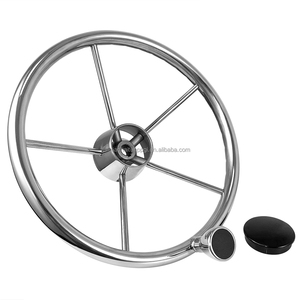

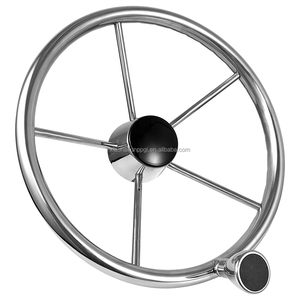

  • Stainless Steel: Superior corrosion resistance, ideal for marine environments
  • Aluminum: Lightweight construction reduces operator fatigue
  • Wood: Traditional aesthetic appeal with natural grip properties
  • Composite: Modern materials offering durability and weather resistance

Size and Ergonomics

The steering wheel's dimensions directly impact handling characteristics:

  • Larger Wheels (18"+): Provide mechanical advantage for heavy vessels
  • Medium Wheels (14-18"): Balance between leverage and maneuverability
  • Smaller Wheels (≤14"): Appropriate for compact helms and limited spaces

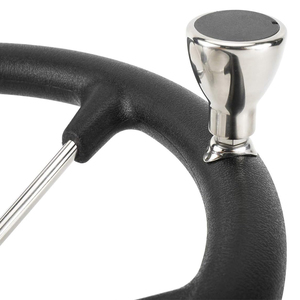

  • Grip Design: Contoured grips reduce fatigue during extended operation

Material Performance Comparison

8/10
9/10
6/10
8.5/10
Stainless Steel
Durability
Aluminum
Weight-to-Strength
Wood
Weather Resistance
Composite
Overall Performance

Maintenance Tip: Salt water exposure can rapidly accelerate corrosion in metal components. After each voyage in saltwater, thoroughly rinse your steering wheel with fresh water and dry it completely to prevent salt crystal formation and extend component life.

Critical Technical Specifications

Specification Importance Considerations
Load Capacity Critical Must exceed vessel weight and operational forces by safety margin
Steering Ratio High Higher ratios require more turns but provide greater precision
Bearing Quality High Sealed bearings offer reduced maintenance and smoother operation
Corrosion Resistance Critical Marine-grade materials essential for saltwater environments
Design Features Medium Spoke pattern affects grip comfort and functional aesthetics

Maintenance Protocol

  1. Perform regular visual inspections for damage, wear, or corrosion
  2. Clean with mild detergent and soft cloth to remove salt deposits and grime
  3. Apply marine-grade varnish to wooden wheels quarterly or as needed
  4. Lubricate moving components according to manufacturer specifications
  5. Replace worn bearings promptly to prevent steering system damage
  6. Conduct full operational checks after maintenance procedures
  7. Document all maintenance activities in the vessel's logbook

How to Choose a Ship Steering Wheel

Selecting the optimal steering wheel for your vessel involves balancing numerous factors including technical requirements, ergonomics, and long-term reliability. This comprehensive selection guide will help you identify the ideal steering solution.

Performance Factors

  • Brand Reputation: Established manufacturers with proven marine experience offer greater reliability
  • Quality & Durability: Marine-grade construction ensures longevity in harsh environments
  • Design Features: Ergonomic grip design reduces fatigue during extended operation

Technical Considerations

  • Installation Compatibility: Ensure proper fit with your vessel's steering system
  • Material Selection: Choose appropriate materials for your operating environment
  • Size & Leverage: Match wheel diameter to vessel size and steering requirements

Important Safety Note: Never compromise on quality when selecting steering components. The steering system is a critical safety element, and failure during navigation could lead to dangerous situations, especially in adverse weather conditions or congested waterways.

Decision Matrix Factors

Selection Factor Priority Level Evaluation Criteria
Brand Reputation High Industry longevity, customer reviews, professional endorsements
Price-to-Value Ratio Medium Feature set relative to cost, long-term value consideration
Quality & Durability Critical Material grade, manufacturing precision, weatherproofing
Design & Ergonomics High Comfort during extended use, grip effectiveness in wet conditions
Installation Ease Medium DIY feasibility, specialized tools required, compatibility
Warranty Coverage Medium Duration, comprehensiveness, manufacturer responsiveness
User Feedback High Verified purchase reviews, industry forums, professional assessments

Professional Insight: When evaluating steering wheels for larger vessels, prioritize models with a higher number of spokes (typically 6-10). This design feature provides improved grip options and better force distribution when navigating in challenging conditions.

DIY Steering Wheel Replacement Guide

Replacing a ship's steering wheel can be accomplished with basic mechanical knowledge and the right tools. This step-by-step guide will walk you through the process safely and effectively.

Step 1: Preparation

  • Ensure the vessel is securely docked and the engine is off
  • Disconnect the battery for electronic steering systems
  • Gather necessary tools: wheel puller, screwdrivers, wrenches, marine-grade anti-seize compound
  • Cover surrounding areas to prevent damage to the console or dash

Step 2: Remove the Old Steering Wheel

  • Remove the center cap or cover to access the mounting hardware
  • Use the appropriate wrench to loosen and remove the central retaining nut
  • Mark the wheel and shaft positions to ensure proper alignment during installation
  • Attach the steering wheel puller according to manufacturer instructions
  • Gradually tighten the puller to separate the wheel from the shaft without damaging components

Safety Warning: Never use excessive force or impact tools when removing a steering wheel. This can damage the steering shaft, bearings, or internal components, potentially creating dangerous steering issues. If the wheel doesn't release with moderate pressure from a puller, consult a professional.

Step 3: Install the New Steering Wheel

  • Inspect the steering shaft for damage or corrosion and clean thoroughly
  • Apply a thin layer of marine-grade anti-seize compound to the shaft
  • Align the new wheel according to your earlier markings
  • Slide the wheel onto the shaft, ensuring it seats properly
  • Install and tighten the retaining nut to manufacturer specifications
  • Replace the center cap or decorative cover

Step 4: Final Testing

  • Reconnect the battery if previously disconnected
  • Turn the wheel through its full range of motion to ensure smooth operation
  • Check for adequate clearance around the wheel when rotated
  • Verify all connections are secure before initial sea trial
  • Test steering response at low speed in open water
  • Document the installation date and procedure in your maintenance log

DIY Tip: Take detailed photos throughout the removal process to serve as reference during installation. Pay special attention to any unique orientation of the wheel, keyways, or alignment marks that will need to be matched during reassembly.

Frequently Asked Questions

Q1: What is a ship steering wheel made of?

Modern ship steering wheels are constructed from various materials, each offering distinct advantages:

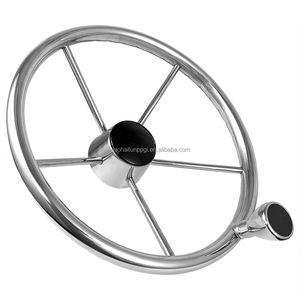

  • Stainless Steel: Offers exceptional corrosion resistance and durability in marine environments. These wheels maintain their appearance and structural integrity even after prolonged exposure to saltwater.
  • Aluminum: Provides significant weight reduction compared to other metals while maintaining good strength. The lightweight nature reduces operator fatigue during extended navigation.

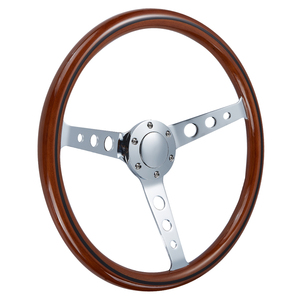

  • Wood: Traditionally crafted from teak, mahogany, or other hardwoods. Wooden wheels offer classic aesthetics and provide natural grip properties that improve with age. They require regular maintenance with marine varnish.
  • Composite Materials: Modern polymer and fiberglass composites offer excellent durability and weather resistance without the maintenance requirements of traditional materials.

The selection depends on the vessel type, operating environment, and balance between aesthetics and functionality.

Q2: How do people maintain ship steering wheels?

Proper maintenance ensures longevity and reliable operation of ship steering wheels:

Maintenance Activity Frequency Process Details
Visual Inspection Before each voyage Check for cracks, loose components, or signs of corrosion
Cleaning After each use/weekly Use mild soap, fresh water, and soft cloth; avoid abrasives
Wood Treatment Quarterly Apply marine-grade varnish or teak oil to wooden wheels
Corrosion Protection Monthly Apply appropriate marine-grade protectants to metal components
Mechanical Inspection Annually Check bearings, hub connections, and structural integrity

For electronic steering systems, additional maintenance includes checking electrical connections, ensuring watertight seals remain intact, and testing backup systems regularly.

Q3: What is the difference between a ship steering wheel and a vessel control wheel?

While these terms are often used interchangeably, there are subtle distinctions:

  • Ship Steering Wheel: Traditionally refers to the mechanical wheel directly connected to the rudder system, typically found on conventional vessels. The term carries historical connotations from sailing vessels and early powered ships.
  • Vessel Control Wheel: A more modern, encompassing term that includes both traditional steering wheels and advanced control systems that may integrate multiple vessel functions. Modern vessel control wheels might incorporate electronic controls, multi-function capabilities, and integration with navigation systems.

In practical terms, all ship steering wheels are vessel control wheels, but not all vessel control wheels are traditional ship steering wheels. The evolution of marine technology has expanded the functionality of helm controls beyond simple directional steering.

Q4: Can small boats use ship steering wheels?

Yes, small boats commonly use steering wheels, though with important design considerations:

  • Size Adaptation: Small boats typically use wheels ranging from 12-15 inches in diameter, compared to larger vessels that might use wheels up to 36 inches or more.
  • System Integration: Many small boat steering wheels connect to outboard motors or stern drives rather than traditional rudder systems.
  • Installation Options: Small boats often feature console-mounted wheels, sometimes with adjustable tilt capabilities for ergonomic operation.
  • Material Selection: Lightweight materials like aluminum or composite are preferred to reduce weight and improve handling characteristics.

Many boaters prefer steering wheels over alternative control methods like tillers because wheels provide more precise control, especially at higher speeds, and allow for more comfortable operation over extended periods.
