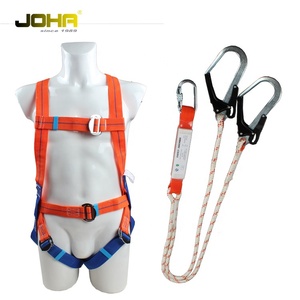

Types of Safety Harness Parts and Their Functions
A safety harness is an essential component of personal protective equipment (PPE), designed to protect workers from falls in elevated or hazardous work environments. Each part of the safety harness plays a specific role in ensuring the wearer's safety, comfort, and mobility. Understanding each component helps users select, fit, and maintain their harnesses properly.

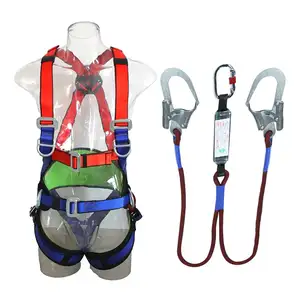

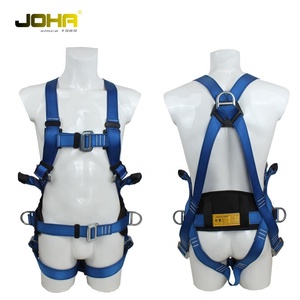

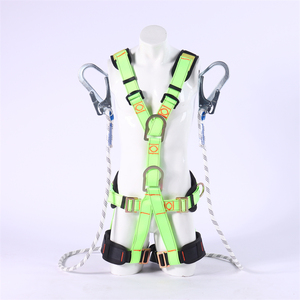

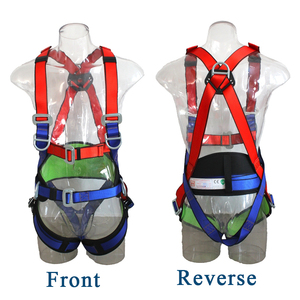

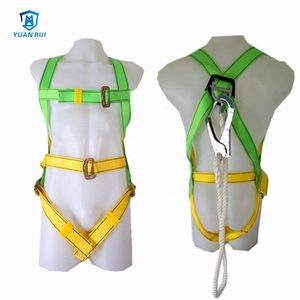

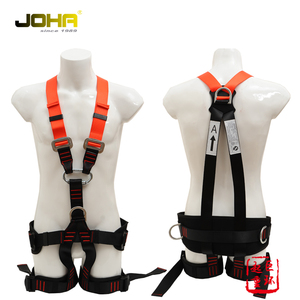

1. Harness Body
The main structure of the safety harness, the harness body, is typically made from high-strength nylon or polyester webbing. It wraps around the shoulders, chest, and legs to securely hold the user in case of a fall. The body distributes the force of a fall across multiple areas of the body to reduce injury risk and improve suspension positioning during rescue operations.

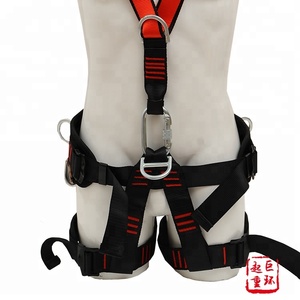

2. Leg Straps
Leg straps secure the harness around the thighs and are usually adjustable to accommodate different body sizes. Properly tightened leg straps prevent the harness from slipping off during a fall and help maintain the correct posture when suspended. They often feature quick-connect buckles for ease of use and include padding for added comfort during prolonged wear.
3. Shoulder Straps
The shoulder straps run over the wearer’s shoulders and connect to the front and back of the harness body. These straps help stabilize the harness and can be adjusted to ensure a snug yet comfortable fit. Well-adjusted shoulder straps are crucial for keeping the harness in place and preventing excessive movement that could lead to discomfort or improper load distribution during a fall.
4. Chest Strap
The chest strap connects the two shoulder straps across the upper chest area. It ensures the shoulder straps remain in position and prevents them from sliding off. In the event of a fall, the chest strap helps distribute impact forces more evenly across the torso, reducing strain on any single point of the body. Some models allow for micro-adjustments to optimize positioning.

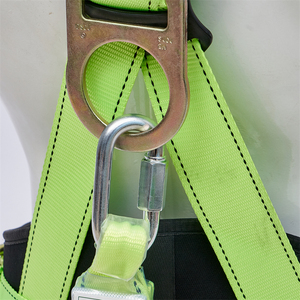

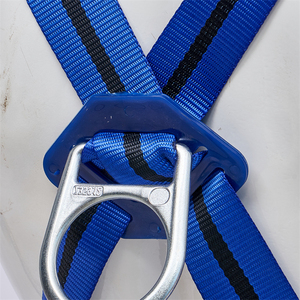

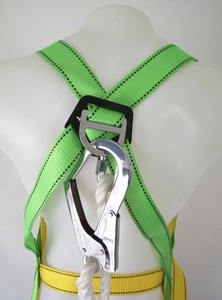

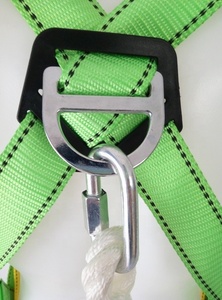

5. Back D-Ring
Attached at the center of the back near the shoulder blades, the back D-ring serves as the primary attachment point for lanyards or vertical lifelines used in fall arrest systems. This metal ring must be durable and reinforced to withstand high loads during a fall. It is strategically placed to keep the user upright and stable while suspended, aiding in rescue efforts.
6. Front D-Ring
Some harnesses feature a front D-ring, typically located on the sternum or waist level. This is commonly used for work positioning tasks, such as climbing or working on fixed structures, where maintaining balance is critical. It may also serve as an alternative attachment point in certain fall protection systems, especially in confined spaces or ladder climbing applications.
7. Padding
Padding is incorporated into key areas like the shoulder straps, leg loops, and harness body to enhance comfort. Padded harnesses are particularly beneficial for workers who wear them for extended periods. The padding reduces pressure points and chafing while maintaining breathability and flexibility without compromising structural integrity.

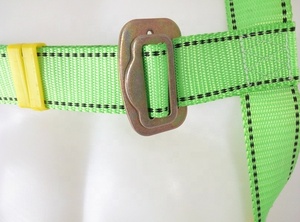

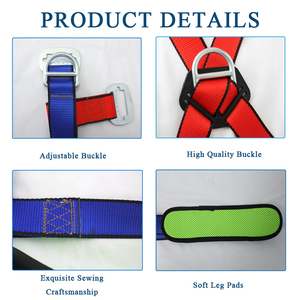

8. Adjusters
Adjusters are buckles or sliders found along the straps that allow users to customize the fit of the harness. A well-fitted harness should be snug but not restrictive, ensuring optimal performance and comfort. Regular adjustment is necessary to maintain proper positioning and function, especially after repeated use or changes in clothing layers.

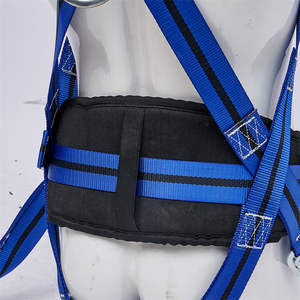

9. Hip Belt
An optional but valuable addition, the hip belt provides additional support and functionality. It allows users to carry tools or equipment within easy reach, improving efficiency on the job. During a fall, the hip belt helps spread the load across a larger portion of the body, reducing localized stress and increasing overall stability.
| Part Name | Primary Function | Safety Benefit | Comfort/Convenience Feature |
|---|---|---|---|
| Harness Body | Distributes fall forces across the body | Reduces injury risk | Main structural support |
| Leg Straps | Secures lower body and prevents slippage | Maintains upright position during fall | Adjustable and padded for comfort |
| Shoulder Straps | Stabilizes upper body and maintains fit | Ensures even load distribution | Adjustable with soft webbing |
| Chest Strap | Keeps shoulder straps in place | Improves posture and fall protection | Micro-adjustment capability |
| Back D-Ring | Primary fall arrest connection point | Designed to handle high impact forces | Reinforced mounting location |
| Front D-Ring | Work positioning or alternative fall arrest | Enhances mobility and control | Versatile usage options |
| Padding | Reduces pressure and chafing | Prevents skin irritation | Breathable and flexible materials |
| Adjusters | Customizes fit for individual users | Ensures consistent performance | Easy-to-use buckle or slider system |
| Hip Belt | Supports tools and spreads load | Reduces fatigue and improves safety | Detachable and multi-functional |
Expert Tip: Always perform a pre-use inspection of your safety harness before each use. Check for signs of wear, frayed webbing, damaged buckles, or weakened stitching to ensure all parts are functioning correctly and providing maximum protection.
Specifications and Maintenance of Safety Harness Components
Understanding the specifications and maintenance requirements of safety harnesses is crucial for workers in industries where fall protection is essential. A properly maintained harness can mean the difference between life and serious injury during an accidental fall. Below, we explore the key components that make up a safety harness, their functional significance, and best practices for maintaining them to ensure long-term reliability.
Safety Harness Component Breakdown
A standard safety harness consists of several critical parts, each playing a specific role in ensuring user safety. The main components include:
Strap Material (Webbing)
The body of the harness is constructed from high-strength webbing, typically made from either nylon or polyester. These materials are chosen for their durability, resistance to abrasion, and ability to withstand environmental stressors such as UV exposure and moisture.
Nylon offers superior elongation under load, which helps absorb energy during a fall, but it also absorbs water and may degrade faster in humid environments. Polyester, on the other hand, is more resistant to moisture and UV degradation but has less stretch, potentially transmitting more force to the body during a fall.

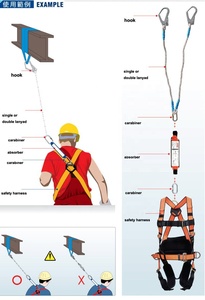

Lanyard
The lanyard connects the harness to the anchorage point and plays a pivotal role in fall arrest systems. It can be a shock-absorbing lanyard, self-retracting lifeline, or a basic static lanyard depending on the application.
Shock-absorbing lanyards contain a tearing mechanism that dissipates energy during a fall, reducing impact forces on the body. Self-retracting lanyards allow for greater mobility while maintaining constant tension and quick locking response in case of a fall.
Anchorage Connector
This component secures the lanyard to a fixed structure capable of supporting fall arrest loads. Anchorage connectors come in various forms, including D-rings, beam anchors, horizontal lifelines, and roof anchors.
It’s essential that the anchorage connector meets OSHA and ANSI standards and is rated for the intended load capacity. Improper anchoring can render even the strongest harness ineffective.
Fastening Hardware
Harnesses use buckles, tongue buckles, and pass-through connectors to secure the straps around the body. These fasteners must be easy to adjust yet robust enough to maintain integrity during a fall.
Durable hardware made from aluminum or steel ensures reliable connection points and contributes to the overall strength of the system. Proper fitting is also essential to prevent slippage or discomfort during prolonged wear.
| Component | Material Options | Key Features |
|---|---|---|
| Straps | Nylon, Polyester | High tensile strength, UV resistance (polyester), energy absorption (nylon) |
| Lanyard | Webbing, Cable | Energy absorbing, retractable, static types; ANSI/OSHA compliant |
| Anchorage | Steel, Aluminum | Load-rated connectors, compatibility with structure type |
| Hardware | Metal buckles, plastic clips | Secure fastening, corrosion-resistant, ergonomic design |
Essential Maintenance Practices
To ensure that a safety harness remains effective throughout its service life, regular inspection and proper storage are vital. Here are some recommended maintenance procedures:
Important: Never modify a safety harness or attempt repairs unless authorized by the manufacturer. Always follow the instructions provided by the manufacturer regarding usage limits, care, and retirement criteria.
How to Choose Safety Harness Parts Name and Components
Selecting the appropriate safety harness parts name and components is crucial for ensuring both compliance with safety regulations and maximum protection during high-risk work activities. Understanding the different types of harnesses, their construction materials, and essential components will help you make an informed decision that suits your specific job requirements.
Type of Safety Harnesses
Safety harnesses are designed for various applications, each offering unique features tailored to specific working environments and fall protection needs. Choosing the correct type ensures optimal performance and user comfort.

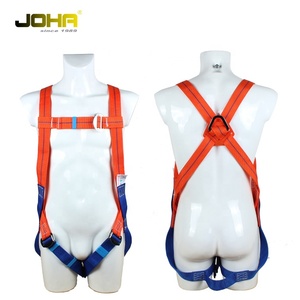

- Cross-back harness: Features a back D-ring positioned between the shoulder blades, ideal for general fall arrest where mobility is needed across multiple positions.
- Vest-style harness: Combines fall protection with a vest design, often used in industrial settings where integration with other PPE (Personal Protective Equipment) is important.

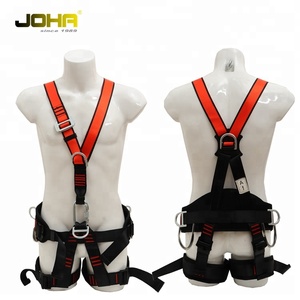

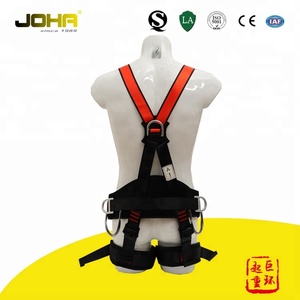

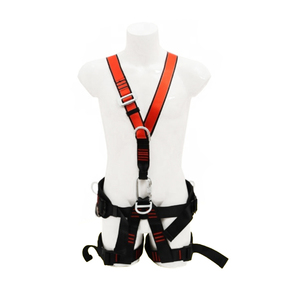

- Y-back harness: Designed with a Y-shaped strap configuration that connects at the waist, making it suitable for low overhead clearance areas such as confined spaces or ship compartments.
Key consideration: Match the harness type with the specific hazards and movement requirements of the job site.
Essential Safety Harness Parts Name and Inspection Criteria
A safety harness consists of multiple critical components, all of which must be regularly inspected to ensure integrity and functionality. Familiarity with these parts names helps in identifying wear and damage accurately.
- Lanyard: Connects the harness to the anchorage point; check for fraying, kinks, or broken stitching.
- Carabiner: Must lock securely and show no signs of deformation or corrosion.
- D-Rings: Metal attachment points used for connecting lanyards; inspect for bends, cracks, or excessive wear.
- Pad Eyes: Reinforced webbing loops that secure padding elements; ensure they are intact and not torn from the harness body.
Inspection tip: Conduct daily visual checks and follow manufacturer guidelines for scheduled maintenance and replacement intervals.
Material Considerations for Harness Components
The durability and strength of a safety harness largely depend on the quality and type of material used in its construction. Understanding the properties of different materials can guide you toward a harness that balances longevity with comfort.
- Polyester: The most commonly used material due to its resistance to UV degradation, abrasion, and chemical exposure. Offers excellent strength-to-weight ratio.
- Nylon: Known for high tensile strength but may degrade faster under UV exposure compared to polyester.
- Hybrid blends: Combine the benefits of multiple fibers for enhanced performance in extreme conditions.
Durability factor: Polyester webbing retains up to 90% of its original strength after prolonged outdoor use.
Compliance with Industry Safety Standards
All safety harnesses must meet established regulatory standards to ensure reliability and performance in real-world scenarios. Choosing a compliant harness guarantees it has been tested to withstand the forces associated with falls.
- ANSI Z359 Series: Governs fall protection systems in the United States, including harness design and testing protocols.
- OSHA Requirements: Mandates that harnesses have a minimum breaking strength of 5,000 pounds when used in fall arrest systems.
- EN 361: European standard for full-body harnesses used in fall protection.
Certification check: Look for labels indicating compliance with ANSI, OSHA, or ISO standards before purchase.
Comfort and Adjustability Factors
A well-fitting harness enhances user comfort, reduces fatigue, and encourages proper usage. Pay attention to adjustable components and ergonomic design features that improve wearability over long periods.
- Padded straps: Shoulder and leg straps with added padding reduce pressure points and increase wearing comfort.
- Adjustable buckles: Allow customization for different body sizes and shapes without compromising security.
- Weight distribution: A properly adjusted harness should evenly distribute weight across the body to prevent localized stress.
Fit tip: Ensure the harness can be worn comfortably for extended durations without restricting movement or circulation.
Choosing the Right Harness by Application
Different jobs demand specific harness designs and component configurations. Selecting the right combination ensures both safety and efficiency on the job site.
| Job Type | Recommended Harness Type | Key Component Focus | Special Features |
|---|---|---|---|
| General Construction | Cross-back | Durable webbing, reinforced D-rings | Multiple tool loops, breathable padding |
| Confined Space Entry | Y-back | Low-profile design, front chest D-ring | Quick-release buckles, rescue compatibility |
| Industrial Maintenance | Vest-style | Integrated tool pouch, dual D-rings | Reflective strips, electrical hazard protection |
| Rescue Operations | Full-body with dorsal support | High-strength carabiners, rear D-ring | Multi-point suspension, rapid deployment |
Selection Advice: Always prioritize fit and function over price when choosing safety harness parts. A slightly more expensive harness with superior adjustability and comfort can significantly enhance worker productivity and safety compliance over time. Additionally, consider purchasing from reputable manufacturers who provide detailed product specifications and training resources.
DIY Guide to Replacing Safety Harness Parts
Replacing a safety harness is an essential maintenance task that can often be completed as a DIY project. However, it's crucial to approach this process with care and precision, as the integrity of your safety harness directly impacts personal protection in potentially hazardous environments. Whether you're maintaining equipment for construction, climbing, or industrial work, understanding how to properly replace safety harness components ensures ongoing reliability and compliance with safety standards.
Safety Warning: A safety harness is a critical piece of personal protective equipment (PPE). Any replacement or repair should strictly follow manufacturer guidelines and industry safety protocols. If unsure about any step, consult a certified safety professional.
Step-by-Step Replacement Instructions
- Initial Inspection and Preparation
Before starting the replacement process, thoroughly inspect both the new harness and any tools you'll use. Check for signs of wear, fraying, discoloration, or damage on the new harness. Ensure all D-rings, buckles, and attachment points are intact and functioning correctly. It’s also important to verify that the replacement harness meets relevant safety standards such as ANSI, OSHA, or EN specifications.
- Inspect the new harness for manufacturing defects or damage
- Verify compatibility with existing systems or fall protection equipment
- Gather necessary tools (e.g., screwdrivers, wrenches, torque tools if required)
- Safety Precautions
Always prioritize safety when working with PPE. Read the manufacturer's instructions carefully before beginning the replacement. These documents often contain model-specific details that could impact proper installation. Additionally, ensure you're wearing appropriate PPE during the replacement process, including gloves and eye protection.
- Review the user manual and installation guide provided by the manufacturer
- Ensure no one will be using the old harness during replacement
- Work in a well-lit, hazard-free area
- Removing the Old Harness
Begin by safely removing the old harness from service. Take note of how each component is connected, especially D-rings, straps, and buckles. Consider taking photos or making diagrams to reference later during the installation of the new harness. This helps maintain consistency and prevents misconfigurations.
- Disconnect all attachment points systematically
- Label each strap and connector for easier reassembly
- Document the setup visually or through written notes
- Installing the New Harness
Once the old harness has been removed, lay out the new harness on a clean, flat surface. Adjust the straps according to the user's body dimensions to ensure a proper fit. Begin connecting the various parts starting with the leg straps, then move to the chest and shoulder straps. Pay special attention to ensuring all buckles and connectors are securely fastened without over-tightening, which can cause undue stress on components.
- Lay out the harness and identify all components
- Adjust leg, chest, and shoulder straps for optimal fit
- Connect all D-rings, buckles, and webbing securely
- Final Adjustments and Inspection
After assembly, conduct a thorough inspection of the newly installed harness. Look for twisted straps, loose connections, or any visible damage. Make sure all adjustment points are secure and that the harness fits snugly but comfortably on the intended user. This step is vital to prevent malfunctions during actual use.
- Check for frayed or damaged webbing
- Ensure all hardware is free of cracks or corrosion
- Verify that all buckles click securely into place
- Testing the Harness
Before returning the harness to active use, perform a test in a controlled environment. Wear the harness while being supported by a secondary system (like a ground-based anchor point), and simulate typical movement patterns to ensure comfort and functionality. Test all attachment points and make final adjustments if needed.
- Test the harness in a safe environment under supervision
- Simulate movements to check for restriction or discomfort
- Reconfirm all connection points after testing
| Replacement Stage | Critical Actions | Potential Risks | Recommended Tools |
|---|---|---|---|
| Preparation | Reviewing instructions, gathering tools, inspecting harness | Mismatched components, missing documentation | User manual, flashlight, camera |
| Removal | Labeling parts, documenting setup | Misidentification of components, lost parts | Markers, zip ties, notebook |
| Installation | Proper alignment, secure connections | Loose fittings, incorrect assembly | Flat surface, measuring tape |
| Inspection | Checking for damage, tightness, and fit | Overlooking subtle defects | Light source, magnifying glass |
| Testing | Controlled use verification | Using unverified harness in unsafe conditions | Secondary support system |
Pro Tip: Keep a log of all harness replacements and inspections. Record dates, part numbers, and any observations. This helps track maintenance history and ensures timely replacements according to safety regulations.
Post-Replacement Best Practices
After successfully replacing the safety harness, store the old harness separately and clearly label it as "Retired." Retain it temporarily for reference purposes, especially if similar models will be maintained in the future. Always store the new harness in a dry, shaded location away from direct sunlight and chemicals to prolong its lifespan.
- Keep a maintenance log for each harness
- Store harnesses properly when not in use
- Train users on proper donning and doffing procedures
- Conduct regular inspections even after successful replacement
Frequently Asked Questions about Safety Harnesses
Safety harnesses come in various types, each designed for specific applications and working conditions. The four main categories include:
- Fall-Arrest Harnesses: Designed to safely stop a fall from height by distributing impact forces across the body’s strongest areas (torso, thighs, and pelvis). These are commonly used in construction, telecommunications, and industrial work.
- Positioning Harnesses: Used to support workers while allowing them to maintain their position on structures like poles, towers, or scaffolding. They often feature adjustable straps and belt systems that help keep the worker stable and free to use both hands.
- Retrieval Harnesses: Typically used in confined space operations where rescue might be necessary. These harnesses often have front-mounted attachment points for lifting or pulling during emergency evacuations.
- Travel-Restraint Harnesses: Prevent falls by restricting movement near edges or hazardous areas. Unlike fall-arrest systems, these are designed to ensure the worker cannot reach a fall hazard in the first place.
Each type is regulated by standards such as OSHA (Occupational Safety and Health Administration) and ANSI (American National Standards Institute), ensuring they meet specific performance and durability requirements.
A safety harness is a critical component of personal protective equipment (PPE) in environments where there is a risk of falling from heights. Its primary purpose is to prevent serious injury or death by:
- Securing the worker to an anchorage point
- Distributing fall forces across the body to reduce trauma
- Providing a reliable connection point for lanyards or lifelines
- Allowing safe positioning and mobility while maintaining protection
In industries such as construction, roofing, window cleaning, and utility maintenance, using a properly fitted and maintained safety harness can mean the difference between life and death. Additionally, wearing a harness helps employers comply with workplace safety regulations and promotes a culture of safety awareness among employees.
A standard safety harness consists of several key components that work together to provide secure and comfortable protection. The major parts include:
| Part Name | Description | Function |
|---|---|---|
| Body Support | The main structure that wraps around the torso and hips | Provides overall support and distributes fall forces |
| Connection Point | A D-ring located on the back or chest | Attachment point for lanyard or self-retracting lifeline |
| Shoulder Straps | Straps that go over the shoulders | Helps stabilize the harness and supports upper body weight |
| Leg Straps | Adjustable straps around the thighs | Secure the lower part of the harness and prevent slippage |
| Lanyard | Flexible line connecting the harness to the anchorage | Acts as a shock absorber during a fall |
| Anchorage | The secure point where the lanyard is attached | Must be capable of supporting at least 5,000 pounds per person |
| Buckle | Mechanical fasteners used to secure the harness | Ensures proper fit and prevents accidental release |
Understanding these parts and how they function together is essential for proper donning, inspection, and maintenance of the harness to ensure optimal safety and compliance.
