Retractable awning components

Types of retractable awning components

A retractable awning is a shading system that can be extended or retracted as needed. It provides shade, protects against light rain, and can be rolled up when not in use. The following are some of the major parts of a retractable awning.

• Fabric

  The fabric of an awning is its most important part since it provides shade and protection. It is usually made of synthetic acrylic or polyester material. These fabrics are great at blocking out UV rays and keeping awnings cool and dry. They are also water-resistant and durable. The fabrics can be easily cleaned and maintained, so they last a long time. They come in a wide range of colors and patterns, allowing for customization to match the style of any patio, deck, or garden.

• Tubular roller

  The retractable awning roller is a key component responsible for the smooth operation of the awning. It consists of a durable metal tube around which the awning fabric is wrapped when retracted. The roller has a spring mechanism inside it that makes it easy to roll out or roll up the awning. The roller can be either manual or motorized. The motorized ones are paired with remote controls or automatic sensors for extension and retraction.

• Arms and support frame

  The arms and supports make up the framework of the awning. They enable it to stand up and provide shade. The arms are usually made from strong and light materials like aluminum or steel. They can be folded or extended, just like the awning itself. The support frame can be brackets, beams, or poles attached to the awning. They stabilize the awning when it is extended and help it withstand wind and other weather conditions.

• Hardware and brackets

  The hardware consists of nuts, bolts, and screws used to put together the awning. The brackets are the parts that attach the awning to the wall or ceiling of the house. They support the entire weight of the awning and allow it to be installed properly. The hardware and brackets ensure that the awning is installed and secured correctly.

• Pull/roll mechanism

  The pull or roll mechanism is responsible for the extension and retraction of the awning. In manual awnings, it usually consists of a simple rope or strap that rolls the awning in or out. In motorized versions, it has a motorized roller and a remote control or sensor system that rolls the awning in or out with the press of a button or automatically.

• End caps and covers

  End caps are placed at both ends of the roller to protect it and the awning from damage. They are usually made from durable metal or plastic. They prevent dust, debris, and moisture from getting into the roller and awning fabric, which could damage them. The end caps also help keep the awning fabric taut and aligned.

Design of retractable awning components

The design of retractable awnings is a combination of aesthetics and functionality. It aims to provide a product that can be used in many different settings but also looks good and shows high quality.

• Fabric Options:

  Retractable awnings come in various fabric options, each with unique features. Acrylic fabric is popular for its color retention and water resistance. Polyvinyl chloride (PVC) coated polyester is another option due to its durability and easy-to-clean properties. Cotton fabric offers a wide range of colors and patterns but may require more maintenance. Canvas fabric is traditional, providing breathability and a classic look. Polyester fabric is lightweight and affordable, making it accessible. Shade cloth fabric is used for sun shading, allowing airflow. Custom prints and patterns enable personalization. Fire-retardant fabric ensures safety. Waterproof fabric provides total protection against water.

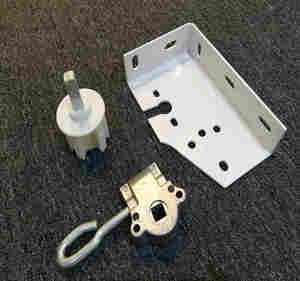

• Roller Mechanism:

  The roller mechanism is crucial for the awning's operation. It consists of a sturdy roller bar around which the awning fabric rolls. This bar is usually made of durable materials like aluminum or steel to withstand the weight of the fabric and the stress of daily use. The roller mechanism is equipped with either manual or motorized systems for ease of use. Manual mechanisms have a crank handle that one can turn to roll or unroll the awning. The motorized mechanism has a powerful motor that rolls out the awning at the push of a button.

• Support Arms:

  Support arms are critical for the stability and strength of retractable awnings. These are arms or brackets that extend to support the awning when it is in use. They are usually made of tough materials like stainless steel or heavy-duty aluminum so they can support large weights without bending or breaking. Support arms come in different designs, such as folding, telescopic, and rigid. Folding support arms compactly fold the awning when retracted, while telescopic arms can be adjusted to fit different sizes of awning deployments. Rigid supports do not bend and are best for large or permanent awnings.

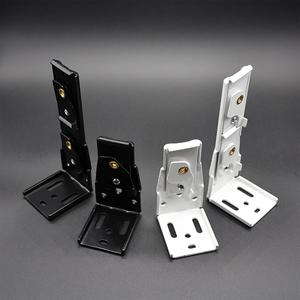

• Mounting Bracket:

  Mounting brackets secure the awning to the desired surface. These brackets are designed to withstand the weight of the awning and the forces exerted on it during use. The brackets are usually made of robust materials like galvanized steel or aluminum. They come in different types, such as wall-mounted, roof-mounted, and window-mounted brackets, to suit various installation requirements. Wall-mounted brackets are attached directly to the wall, while roof-mounted ones are secured to the roof. Window-mounted brackets are designed to be attached above windows.

• Side Rails:

  Side rails are additional components that enhance the awning's stability and security. They are installed on either side of the awning and help keep the fabric taut and prevent it from flapping in the wind. Side rails also protect the awning mechanism from dirt and debris. These rails are usually made of durable materials like aluminum or steel, just like the other components of the awning. They come in different designs, such as snap-on, slide-on, and clamp-on, to suit various installation requirements. Snap-on side rails are easily attached and detached, while slide-on rails are simply slid into place. Clamp-on side rails are fastened tightly using clamps.

Scenarios of retractable awning components

Retractable awnings are very important. They are used in many industries and places. They show how flexible and useful awning parts are. They fit well in each setting. They meet the specific needs. They provide shade and style to outdoor spaces. They are used in commercial spaces like restaurants. They are also used in residential settings. Retractable awning components are used in many scenarios. Each scenario shows how awnings improve outdoor spaces. They make them more comfortable. They make them look better.

• Commercial Spaces

  Restaurants use awnings to make outdoor dining areas look nice. They give shade to the customers. They keep the furniture and customers safe from the sun and light rain. Retail stores display products under the awning. The shade keeps the items from direct sunlight. It keeps them cool. Office buildings have awnings over entrances. They block the sun. They reduce the heat in the building.

• Residential Homes

  Patios and decks have awnings that give shade. They allow homeowners to relax in a cool area. They protect the furniture. They keep them out of the rain. They also increase the life of the furniture. Some homes have window awnings. They shade the interior. They reduce cooling costs. It can also be used to cover external windows and doors.

• Hospitality Industry

  Hotels use awnings over poolside lounges. They give guests a shaded area to relax. They also keep them out of the sun. Event venues use them. They provide shade for guests. They also protect them from light rain. They are also used in the shade fishing boats. They are used in shaded boats. They are used in yacht charters and private boats.

• Public Spaces

  Parks use awnings over picnic tables. They provide shade for people eating. They also protect them from the sun. Bus stations use them. They provide shelter for waiting passengers. They block the sun. They also block rain and snow.

• Educational Institutions

  Schools use retractable awnings in outdoor classrooms. They provide shade. They also allow lessons to happen without sun glare. They also used in shaded areas in playgrounds. They are used by kids to have fun in the shade.

• Healthcare Facilities

  Nursing homes use awnings over outdoor patios. They allow residents to sit outside in the shade. They also relax. Hospitals can use them. They can create temporary outdoor waiting areas. They can also be used during busy times. They provide shade and comfort to patients and visitors.

How to choose a retractable awning component

• Material Quality:

  Considering the components' materials is important. Long-lasting awning parts are often made of tough materials like aluminum or galvanized steel. These materials resist rusting and wearing out, ensuring the awning lasts a long time. If the fabric used in awnings is of good quality, it can resist sunlight, rain, and snow without damage. Good fabrics also resist getting mold and musty odors.

• Fabric Selection:

  Retractable awnings work well with fabrics that are light and strong. Acrylic or polyester fabrics with special coatings that protect against UV rays, water, and dirt work well. These coatings help the fabric last longer and stay clean.

• Wind Resistance:

  Retractable awnings are rated by how much wind they can handle. This rating should be checked to ensure the awning is suitable for the weather where it will be used. Awning parts like frames, brackets, and rollers are made stronger to resist wind better. If the awning will be used in a windy area, choosing one rated for higher wind speeds is good.

• Ease of Installation:

  It's important to consider how easy it is to put together the retractable awning parts. Clear instructions and diagrams make it easier to install the awning correctly and safely. Parts that fit together easily and work smoothly save time and reduce the chance of mistakes during installation. Ensuring the awning parts match the measurements of the space where it will be installed is also important.

• Operational Smoothness:

  The awning's rollers and cranks are checked to ensure they work well. Smooth rollers and strong cranks make it easy to put the awning in and pull it out without problems. If the motorized, battery-powered version has a good motor and charged batteries, it will work better. Properly working motors and batteries keep the awning running smoothly.

Q&A

Q1: What are the benefits of retractable awning parts made from aluminum?

A1: Aluminum parts are lightweight yet sturdy, ensuring easy operation and long-lasting performance. They are also resistant to rust, which is particularly beneficial for awnings installed in coastal areas.

Q2: How do the sizes of retractable awning components vary?

A2: Components come in different sizes to fit various awning widths. The size is determined by the intended installation site and the amount of shade or shelter required.

Q3: What is the role of the fabric in a retractable awning?

A3: The fabric forms the actual shade of the awning. It is usually made from specialized, highly durable polyester or acrylic material that can withstand exposure to the elements.

Q4: Why is the quality of the fabric important?

A4: A superior-quality fabric will be more resistant to UV rays, water, and mold, thereby offering better protection and lasting longer.

Q5: What is the significance of roller tubes in retractable awnings?

A5: Roller tubes are critical in the awning's mechanism, as they are the parts around which the fabric rolls fold up when the awning is retracted.
