Types of Car Radiators and Their Price Considerations
A radiator is a critical component of a vehicle’s cooling system, responsible for dissipating the heat generated by the engine during operation. Without an efficient radiator, an engine can quickly overheat, leading to severe mechanical damage. The radiator works by circulating coolant through the engine block, absorbing excess heat, and releasing it into the atmosphere via its core and fins.
Modern vehicles utilize various types of radiators, each with distinct advantages and disadvantages in terms of performance, durability, cost, and suitability for different driving conditions. Understanding these differences can help you make an informed decision when selecting or replacing a radiator for your car.
Aluminum Radiators
Known for their lightweight design and excellent thermal conductivity, aluminum radiators are the most commonly used in modern vehicles. They resist corrosion better than older materials like brass and copper, making them more durable in the long run.
Advantages
- Lightweight and durable
- Excellent heat dissipation
- Corrosion-resistant
- Cost-effective for mass production
Limitations
- Less robust under high pressure
- May warp if overheated repeatedly
- Not ideal for vintage or classic cars
Best for: Modern passenger vehicles, compact cars, fuel-efficient models
Brass & Copper Radiators
Once the industry standard, brass and copper radiators offer superior thermal efficiency but are heavier and more prone to corrosion compared to modern alternatives.
Advantages
- Superior heat transfer properties
- Durable under high temperatures
- Easily repairable (solder-friendly)
- Classic car compatibility
Limitations
- Heavier than aluminum
- Prone to corrosion over time
- Higher material costs
Best for: Classic cars, vintage restorations, heavy-duty applications

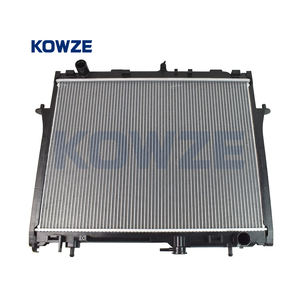

Plastic-Composite Radiators
These radiators feature aluminum cores with plastic end tanks, offering a balance between weight reduction and affordability while maintaining decent thermal performance.
Advantages
- Lightweight and economical
- Resistant to rust and corrosion
- Easy to replace and maintain
- Commonly found in budget-friendly cars
Limitations
- Plastic tanks may crack under stress
- Limited lifespan compared to metal units
- Not suitable for high-performance engines
Best for: Economy cars, entry-level sedans, replacement parts
Crossflow Radiators
In crossflow radiators, the coolant flows horizontally across the core from one side to the other. This design is particularly effective in high-performance vehicles where space and airflow optimization are crucial.
Advantages
- Optimized for high-speed airflow
- Better cooling efficiency at higher RPMs
- Compact design for tight engine bays
- Popular in racing and sports cars
Limitations
- More complex plumbing requirements
- Higher cost due to specialized design
- Less common in regular passenger vehicles
Best for: Sports cars, race cars, modified vehicles
Downflow Radiators
Traditional vertical-flow radiators where coolant moves from top to bottom. These were widely used in older American cars and trucks due to their simple yet effective design.
Advantages
- Simple and reliable design
- Effective for low-speed and city driving
- Easy to service and repair
- Compatible with older vehicle models
Limitations
- Less efficient at high speeds
- Requires more vertical space
- Outdated for modern aerodynamic designs
Best for: Vintage American cars, trucks, classic restorations
Double Decker Radiators
Designed for high-capacity cooling, double-decker radiators have two rows of tubes stacked vertically, significantly increasing their heat dissipation capability. These are typically found in commercial and industrial vehicles.
Advantages
- Exceptional cooling capacity
- Ideal for heavy-duty use
- Can handle prolonged high-load operations
- Used in large transport and construction vehicles
Limitations
- Large and heavy
- Expensive compared to standard units
- Overkill for regular passenger cars
Best for: Semi-trucks, buses, construction equipment, off-road vehicles
| Type | Weight | Heat Efficiency | Cost Range | Recommended Use |
|---|---|---|---|---|
| Aluminum | Light | High | $150 - $400 | Modern cars, daily drivers |
| Brass & Copper | Heavy | Very High | $200 - $500 | Vintage cars, classic restorations |
| Plastic-Composite | Light | Moderate | $100 - $300 | Budget cars, replacements |
| Crossflow | Medium | High | $300 - $700 | Sports/racing vehicles |
| Downflow | Medium-Heavy | Moderate | $150 - $400 | Vintage/retro vehicles |
| Double Decker | Very Heavy | Extremely High | $500 - $1,500+ | Trucks, industrial vehicles |
Expert Tip: When choosing a radiator, always consider the intended use of your vehicle. For everyday driving, an aluminum or plastic-composite radiator offers the best balance of cost and performance. However, for high-performance or vintage vehicles, investing in a brass-copper or crossflow radiator can significantly enhance cooling efficiency and longevity.
Specifications and Maintenance of Car Radiators
Radiators play a critical role in maintaining engine temperature, preventing overheating, and ensuring long-term vehicle reliability. Understanding the key specifications when selecting a radiator is essential for optimal performance and compatibility with your vehicle. Equally important is proper maintenance to avoid costly repairs and ensure longevity.
Key Specifications to Consider
Choosing the right radiator involves evaluating several technical factors that directly impact cooling efficiency, durability, and fitment. Here are the most important specifications to look for:
Vehicle Compatibility
Radiators are specifically engineered for particular makes, models, and production years. For example, a Honda Civic radiator may not be compatible with a Toyota Corolla due to differences in mounting points, hose locations, and coolant flow requirements.
Always verify compatibility by checking OEM part numbers or using manufacturer-specific cross-reference tools to ensure a seamless fit and function.
Cooling Capacity
The cooling capacity determines how effectively the radiator can dissipate heat from the engine. This is typically measured in British Thermal Units (BTUs) or Watts.
Vehicles used for towing, off-roading, or high-performance driving require radiators with higher cooling capacities to handle increased thermal loads under extreme conditions.
Material Composition
Radiators are commonly made from aluminum, copper, or brass. Each material offers unique benefits:
- Aluminum: Lightweight, corrosion-resistant, and highly conductive—ideal for modern vehicles.
- Copper/Brass: Offers superior heat transfer but heavier and more prone to corrosion over time.
Size and Dimensions
Physical dimensions such as length, width, height, and thickness must align with the available space in the engine bay.
A larger radiator generally provides better cooling performance, but it must fit without interfering with other components like fans, shrouds, or air intakes.
Core Design
The internal structure significantly affects cooling efficiency. Common core designs include:
- Flat Tubes: Provide consistent cooling with minimal resistance.
- Louvered Fins: Increase surface area for improved heat dissipation.
- Cross-Flow Cores: Allow coolant to travel horizontally, enhancing flow dynamics and cooling uniformity.
Hose Connection Configuration
Proper alignment of inlet and outlet hose connections is crucial. Mismatched configurations can cause installation issues and improper coolant circulation.
Verify the location, size, and orientation of hose fittings before purchasing a replacement radiator.
| Specification | Importance | Selection Tips |
|---|---|---|
| Radiator Cap Pressure (PSI) | High | Ensure cap pressure matches engine specs; typical values range from 13–18 PSI. |
| Built-in Transmission Cooler | Medium-High | Recommended for automatic transmission vehicles to maintain fluid temperature stability. |
| Corrosion Resistance | Medium | Look for epoxy-coated or aluminum radiators in humid or coastal environments. |
| Mounting Type | High | Confirm whether your vehicle requires side-mount, top-mount, or bracket-mounted radiator styles. |
Essential Maintenance Practices
Regular radiator maintenance helps prevent engine overheating, extends component lifespan, and reduces repair costs. Here's a comprehensive guide to keeping your radiator in peak condition:
Important: If you're replacing one radiator component (e.g., thermostat or hoses), consider inspecting and potentially replacing related parts simultaneously. Inconsistent wear or performance across components can lead to imbalances and premature failure of new parts.
How to Choose the Right Car Radiator
Selecting the correct car radiator is essential for maintaining optimal engine temperature and preventing overheating. Whether you're replacing a damaged radiator or upgrading your cooling system, several key factors should be considered to ensure proper performance, durability, and compatibility with your vehicle.
Vehicle Make and Model Compatibility
Every vehicle has unique specifications when it comes to its cooling system. Choosing a radiator that matches your specific make and model ensures proper fitment and functionality within the engine bay.
- Use your vehicle's VIN number or consult repair manuals for exact radiator dimensions
- Aftermarket radiators must meet OEM (Original Equipment Manufacturer) standards
- Some high-performance vehicles may require specialized cooling solutions
Pro tip: Double-check mounting points, hose connections, and fan placement before purchasing
Budget vs. Quality Considerations
While price is often a primary factor in purchase decisions, balancing cost with quality is crucial when selecting a radiator to avoid frequent replacements and potential engine damage.
- Entry-level options can be sufficient for short-term use or older vehicles
- Mid-range radiators often provide the best value for daily drivers
- High-end units offer superior heat dissipation and longevity for performance vehicles
Cost range: $100–$500+ depending on material, size, and brand
Vehicle Type and Cooling Requirements
The type of vehicle significantly influences the radiator requirements. Larger engines and high-performance applications demand more robust cooling solutions to handle increased thermal loads.
- Compact cars typically use aluminum radiators with dual-pass design
- Trucks and SUVs benefit from triple-row cores and larger tanks
- Racing vehicles may require custom radiators with additional cooling channels
Cooling capacity: Measured in BTUs per hour – higher values mean better heat dissipation
Material Selection and Performance
Radiators are manufactured using various materials, each offering distinct advantages in terms of weight, thermal conductivity, corrosion resistance, and cost.
- Aluminum: Lightweight, excellent heat transfer, but more expensive
- Copper/Brass: Superior thermal conductivity, heavier, traditional choice
- Plastic-Tank Aluminum: Modern OE standard, lightweight but less durable
- Steel: Rarely used today due to weight and corrosion issues
Durability note: Plastic tanks prone to cracking from vibration and extreme temperatures
Additional Features and Technology
Modern radiators often include integrated features that enhance cooling efficiency and simplify installation, providing better overall system performance.
- Built-in electric fans for improved low-speed cooling
- Thermostat housing integration for simplified plumbing
- Transmission cooler lines for automatic vehicles
- Overflow tank connection ports for complete system integration
Smart feature: Some premium units include coolant temperature sensors
Warranty and Manufacturer Support
A comprehensive warranty provides peace of mind and indicates manufacturer confidence in product quality. Always consider warranty terms when comparing similar-priced options.
- Basic warranties: 1–2 years limited coverage
- Premium warranties: 3–5 years full replacement coverage
- Extended warranties available from select manufacturers
- Look for free return policies and technical support availability
Warranty red flag: Avoid products with unclear or no warranty information
Expert Advice: When choosing between similarly priced options, prioritize construction quality over brand recognition. Look for features like reinforced tank seams, consistent fin spacing, and corrosion-resistant coatings. A well-constructed radiator from an unfamiliar brand can outperform a poorly made unit from a major name.
| Material Type | Weight Comparison | Heat Transfer Efficiency | Durability Rating | Average Cost |
|---|---|---|---|---|
| Aluminum Core + Plastic Tanks | Very light | Moderate | Moderate | $150–$300 |
| All-Aluminum | Light | Excellent | High | $250–$500+ |
| Copper/Brass | Heavy | Superior | Very High | $200–$400 |
| Steel | Very heavy | Poor | Low | $100–$200 |
DIY Guide to Replacing a Car Radiator
Replacing a car radiator is a crucial maintenance task that every vehicle owner should be familiar with. A properly functioning radiator ensures your engine stays cool and performs efficiently, preventing overheating and potential long-term damage. This comprehensive guide will walk you through the step-by-step process of replacing a radiator safely and effectively, even if you're doing it yourself for the first time.
Safety Warning: Working on your vehicle's cooling system involves handling hot fluids, sharp tools, and heavy components. Always wear protective gloves, eye protection, and work in a well-ventilated area. Ensure the engine is completely cooled before beginning any work.
Step-by-Step Radiator Replacement Process
- Safety Measures
- Park the vehicle on a level surface and engage the parking brake to prevent accidental movement.
- Allow the engine and radiator to cool down completely before starting the replacement to avoid burns from hot coolant or steam.
- Put on safety gloves and goggles to protect against chemical exposure and debris.
- Gather the Required Tools and Materials
- Radiator-compatible replacement unit (verify fitment with your vehicle make/model)
- New coolant (check owner’s manual for type and mixing ratio)
- Socket set and wrenches
- Flathead screwdriver
- Pliers
- Coolant drain pan or container
- Funnel for refilling
- Zip ties or labels for hose identification
- Rags or paper towels for cleanup
- Disconnect the Battery
- Use a wrench to remove the negative battery terminal first to eliminate any risk of electrical short circuits during the process.
- This also prevents accidental activation of the cooling fan while working.
- Drain the Coolant
- Locate the radiator drain valve, typically found at the bottom of the radiator or on the side near the base.
- Place a drain pan underneath to collect the coolant.
- Open the valve and allow all fluid to drain completely before proceeding.
- Dispose of the old coolant responsibly according to local environmental regulations—never pour it down the drain or into storm sewers.
- Remove the Fan Shroud
- Unplug any electrical connections to the cooling fan assembly if present.
- Unscrew or unclip the fan shroud from the radiator using a screwdriver or pliers as needed.
- Set aside carefully to avoid damaging wiring or plastic clips.
- Disconnect the Hoses
- Identify the upper and lower radiator hoses connected to the engine and radiator.
- Loosen clamps securing the hoses using pliers or a screwdriver, then slide them back along the hose before removing it.
- Gently twist and pull the hoses off the radiator necks. If they’re stuck, use a gentle rocking motion or a flathead tool to loosen them.
- Label each hose connection point to ensure correct reinstallation later.
- Disconnect Transmission Lines (if applicable)
- Some vehicles have automatic transmission lines running through the radiator for cooling purposes.
- Use a wrench to disconnect these lines carefully, noting their orientation for reassembly.
- Cap or plug the open ends temporarily to prevent fluid loss and contamination.
- Remove the Old Radiator
- Locate and remove all mounting bolts securing the radiator to the vehicle’s frame or support brackets.
- Support the radiator with both hands and lift it straight up and out of the engine bay.
- Inspect the surrounding area for corrosion, rust, or debris buildup that might affect the new radiator’s performance.
- Install the New Radiator
- Ensure the new radiator is an exact match for your vehicle model and year to guarantee proper fit and function.
- Position the new radiator into place and align it with the mounting holes.
- Secure it with the original bolts, torquing them to the manufacturer's specifications if available.
- Reconnect the Transmission Lines
- If your vehicle has transmission lines, reconnect them to the new radiator using the appropriate fittings.
- Tighten securely but avoid over-torquing which can cause leaks or damage to the radiator tank.
- Reconnect the Hoses
- Slide the labeled hoses back onto the radiator necks, ensuring a snug fit.
- Move the clamps back into position and tighten them securely without crushing the hose material.
- Reinstall the Fan Shroud
- Align the fan shroud with the radiator and secure it using the original screws or clips.
- Reconnect any electrical connectors to the cooling fan motor if applicable.
- Refill the Cooling System
- Using a funnel, pour the recommended coolant mixture (typically a 50/50 mix of antifreeze and distilled water) into the radiator until full.
- Replace the radiator cap securely.
- Fill the overflow reservoir to the "Full Cold" line indicated on the tank.
- Bleed the Cooling System
- Start the engine and let it idle while monitoring the temperature gauge.
- As the engine warms up, air bubbles may escape from the system. Check the radiator and reservoir levels periodically and top off as needed.
- Turn off the engine once it reaches normal operating temperature and allow it to cool slightly before checking again.
- Reconnect the Battery
- Reattach the negative battery cable first, followed by the positive one if disconnected.
- Ensure both connections are tight and free of corrosion for optimal electrical flow.
- Start the Engine and Check for Leaks
- Start the engine and let it run for several minutes while observing the radiator, hoses, and connections for any signs of leakage.
- Wipe away any visible wetness and monitor closely—if dripping continues, shut off the engine and inspect the source of the leak.
- Double-check all connections and clamps if any issues arise before driving the vehicle.
| Replacement Phase | Critical Tasks | Common Mistakes | Tools Required |
|---|---|---|---|
| Preparation | Verify radiator compatibility, gather tools, and review vehicle manual | Mismatched radiator, missing essential tools | Radiator, socket set, screwdrivers, coolant, drain pan |
| Disconnection | Proper labeling of hoses and lines, coolant drainage | Forgetting to label connections, coolant spillage | Markers, zip ties, wrenches, pliers |
| Radiator Removal | Safe lifting technique, bolt removal | Dropping the radiator, damaged mounting points | Socket set, gloves, support stand |
| Installation | Accurate alignment, proper torque application | Cross-threaded bolts, improper sealing | Torque wrench, alignment tools |
| System Testing | Leak inspection, coolant refill, bleed procedure | Driving with low coolant or air pockets | Funnel, rag, pressure tester |
DIY Tip: Consider replacing the thermostat while you're replacing the radiator, especially if your vehicle was experiencing overheating issues. This small component plays a big role in regulating engine temperature and often wears out alongside the radiator.
Post-Replacement Best Practices
After completing the radiator replacement, it's important to follow some best practices to ensure longevity and reliability:
- Monitor the temperature gauge regularly during the first few drives to ensure the cooling system is functioning correctly.
- Check for coolant leaks daily for the first week after installation.
- Top off the coolant if necessary after the initial warm-up cycles.
- Follow the manufacturer’s recommendations for coolant flush intervals moving forward.
- Keep a spare bottle of coolant and basic tools in your vehicle for emergency situations.
By following this detailed guide, you can confidently replace your car’s radiator at home, saving money on labor costs while gaining valuable mechanical knowledge. Remember, patience and attention to detail are key to a successful DIY radiator replacement!
Frequently Asked Questions About Radiators
A faulty radiator can lead to serious engine problems if not addressed promptly. Common symptoms include:
- Leaks: Puddles under your car or coolant stains beneath the radiator often indicate cracks or loose connections.
- Rust and Corrosion: Over time, exposure to moisture and heat causes metal components to degrade, especially in older vehicles.
- Engine Overheating: If the radiator fails to regulate temperature effectively, the engine may overheat during normal operation.
- Strange Noises: Gurgling or rattling sounds from the cooling system may point to trapped air or internal damage.
- Poor Heater Performance: A malfunctioning radiator can result in weak or no heat inside the cabin when the heater is on.
Ignoring these warning signs can lead to costly repairs or even engine failure.
Yes, replacing a failing radiator is highly recommended for several reasons:
- Prevents Engine Damage: A properly functioning radiator helps maintain optimal engine temperatures, reducing wear and tear.
- Improves Vehicle Longevity: Regular maintenance and timely replacements contribute to overall vehicle reliability.
- Cost-Effective: Replacing a radiator early can prevent more expensive issues like head gasket damage or total engine overheating.
- Maintains Resale Value: Vehicles with a well-maintained cooling system tend to hold their value better.
If your radiator shows significant rust, leaks, or performance issues, replacement is usually more economical than repeated repairs.
No, a car cannot operate safely without a radiator. The radiator plays a critical role in the engine's cooling system by dissipating excess heat generated during combustion. Without it:
- Immediate Overheating: The engine will begin to overheat within minutes of running, potentially causing irreversible damage.
- Component Failure: Excessive heat can warp cylinder heads, blow gaskets, and melt hoses or plastic components.
- Loss of Power: As the engine overheats, performance degrades rapidly, and the vehicle may stall or shut down automatically.
- Safety Risk: Driving without a radiator poses risks not only to the vehicle but also to passengers due to potential fire hazards or mechanical failure.
In short, while the engine might start momentarily, prolonged operation without a radiator will almost certainly result in catastrophic failure.
