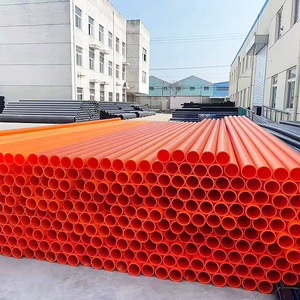

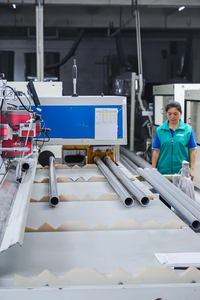

Types of PVC Pipe Underground Electrical

PVC pipe underground electrical is available in different types, depending on the pressures and types of fluid or gas that the pipe will accommodate.

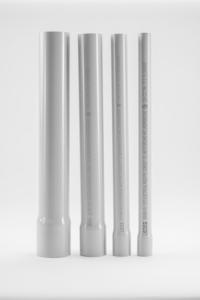

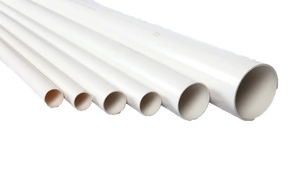

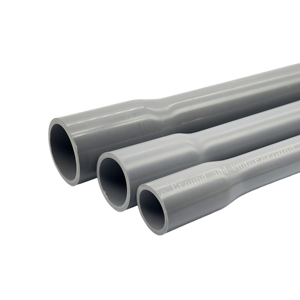

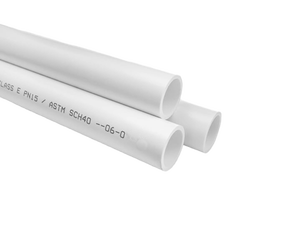

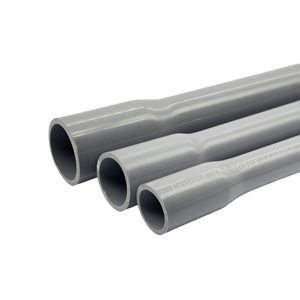

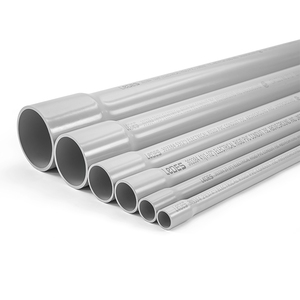

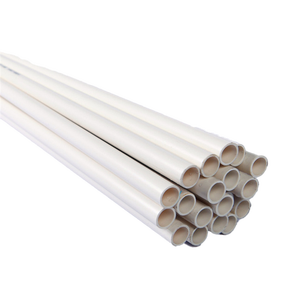

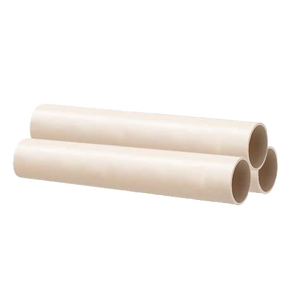

PVC Schedule 40

This is a medium-duty pipe that is used in most of the low-pressure electrical conduits. The thickness of the wall in this type of pipe is such that it makes it lightweight, easy to handle, and affordable. It is used in underground electrical conduit installations in areas that do not have heavy traffic exposure or high-impact risk. PVC Schedule 40 comes with a maximum operating temperature of about 140°F and hence is good for general applications.

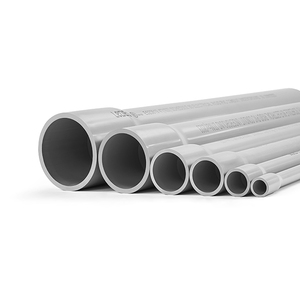

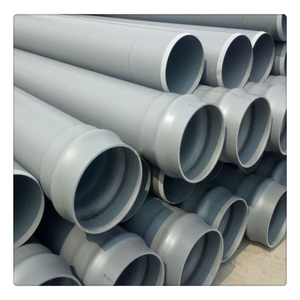

PVC Schedule 80

PVC Schedule 80 pipes have thicker walls compared to Schedule 40. This provides them with better pressure resistance and the ability to withstand other physical stresses like impacts. Thus, they are often used in situations where the electrical PVC pipe underground may need to be protected from high pressure or physical damage. It has a temperature limit similar to that of Schedule 40, that is 140°F.

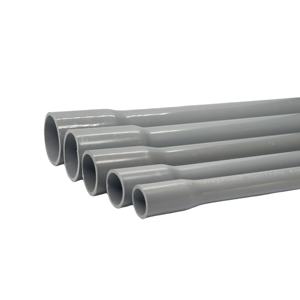

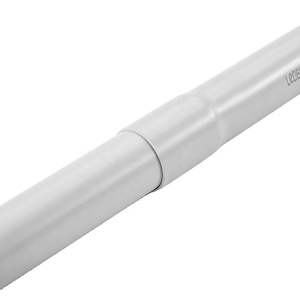

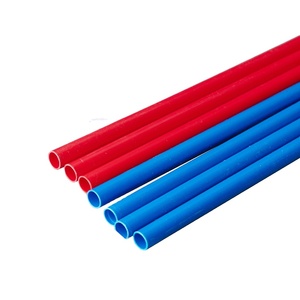

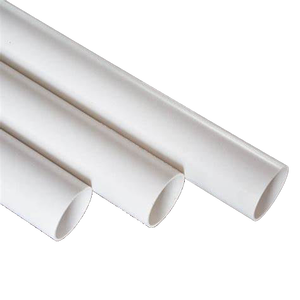

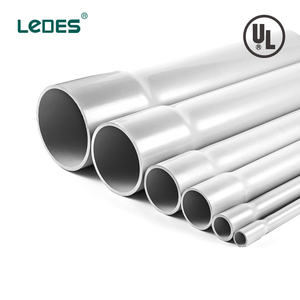

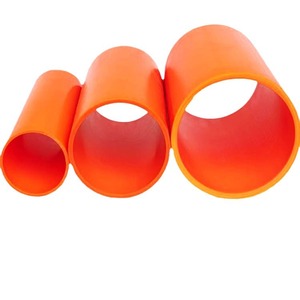

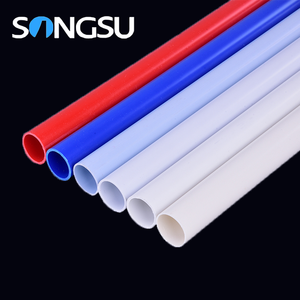

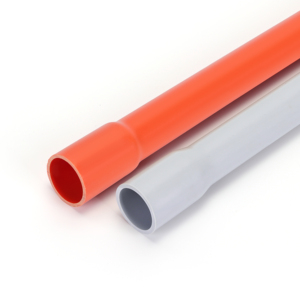

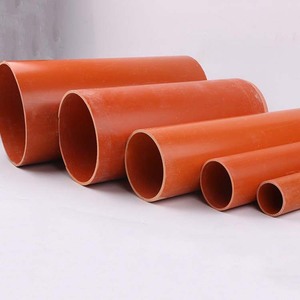

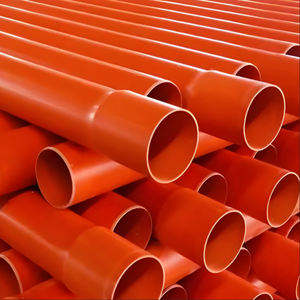

Rigid PVC Conduit

This type of conduit is specially made for underground electrical wiring. It is strong, lightweight, and corrosion-resistant. The rigid conduit is appropriate for underground electrical installation in both residential and commercial setups. An advantage of rigid PVC conduit is that it is UV resistant and hence can be used for long-term outdoor applications. It is also non-metallic and hence does not conduct electricity, making it safe for electrical installation. The conduit is designed to meet NEC standards for protecting wiring systems in wet locations, such as buried underground.

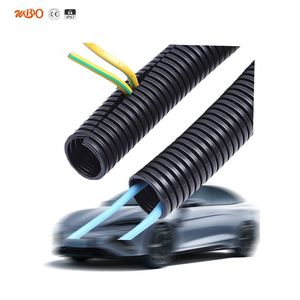

Flexible PVC Conduit

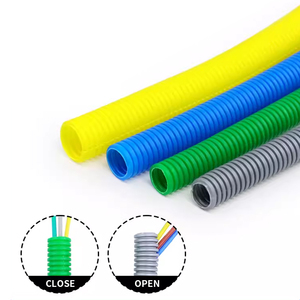

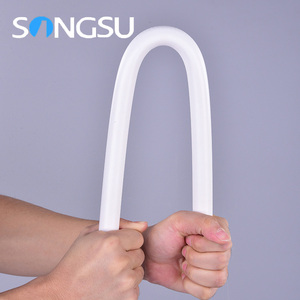

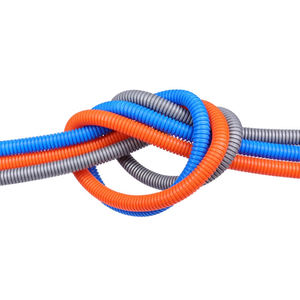

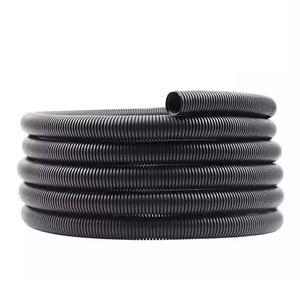

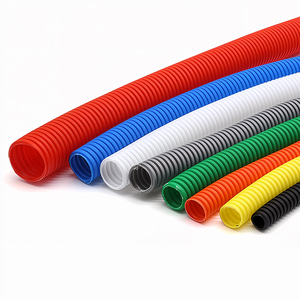

A flexible PVC conduit pipe is also made for electrical wiring protection. Unlike rigid conduit, flexible conduit is bendable and easier to install in areas that need a lot of flexibility around the wiring. Flexible PVC conduit is lightweight and gives good resistance to chemical and water corrosion. It is also a non-metallic conduit, so it does not interfere with the electrical signals in the wired system. As with rigid PVC, flexible conduit is also NEC compliant for use in underground installations.

Some of the other commonly used conduits made of PVC include high-density polyethylene (HDPE) conduit which is extremely durable, low-weight and easy to handle PVC extruded or molded conduits, and nochmals PVC conduits which are made of recycled PVC materials.

Features of PVC Pipe Underground Electrical

PVC pipes for underground electrical wiring come with a host of features that assist in their function and durability as they protect the wiring system.

Lightweight

PVC pipes are much lighter than metal pipes, and this makes them easy to handle and install. This is especially when digging trenches and laying the pipe underground. They can easily be cut to length on the site using standard tools. These properties enable quick fitting and reduce overall installation time and labor costs.

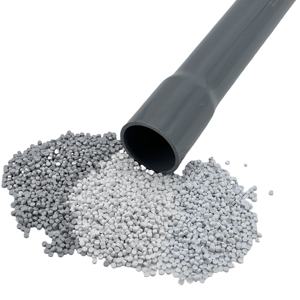

Corrosion Resistance

As a non-metallic material, PVC does not rust or corrode when exposed to moisture, chemicals, or other corrosive elements in the soil. This property ensures that the pipe is long-lasting, making it very appropriate for wet or chemically active soil conditions.

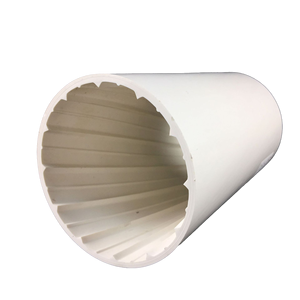

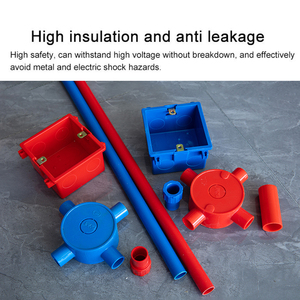

Electrical Insulation

PVC is an excellent electrical insulator, and this property helps ensure that there will not be any electrical current conduction through the conduit. It prevents short circuits, system downtime, and even safety hazards like electric shocks. PVC pipes for underground electrical work including high-density polyethylene pipe, come with a smooth inner surface that reduces friction and makes it easy to pull wires through.

Strength and Flexibility

PVC pipes are strong enough to withstand the mechanical stresses of burial, such as soil weight, rocks, and temperature changes. While being rigid enough to withstand these stresses, they also manage to retain some flexibility. This makes them able to withstand some bending or movement without cracking. This gives them a good impact resistance and protection against sudden shocks. PVC pipes may also be treated to make them temperature-resistant, allowing them to be used in varying temperatures.

Cost-Effective

PVC is relatively cheaper than other materials, like metal or concrete, used for electrical conduits. The low material and installation costs make PVC pipes a budget-friendly option for both residential and commercial electrical installations.

Compliance with NEC

The Polyvinyl Chloride pipes are compliant with NEC (National Electrical Code) standards for underground installations, meaning they meet safety and performance requirements.

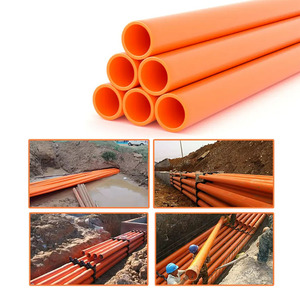

Commercial use cases of PVC Pipe Underground Electrical

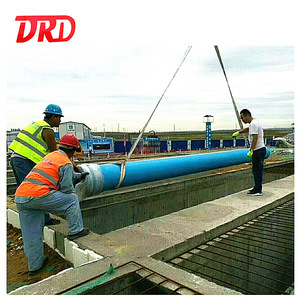

PVC pipes are used in a variety of commercial and industrial applications where electrical wiring has to be protected during underground installation.

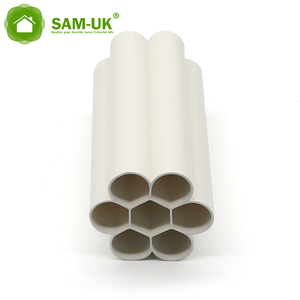

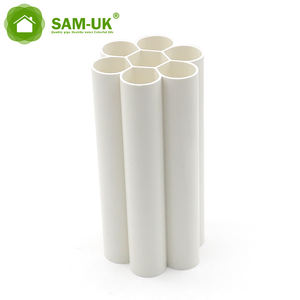

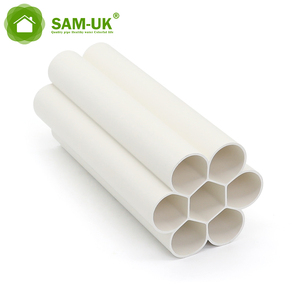

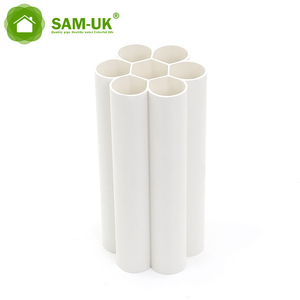

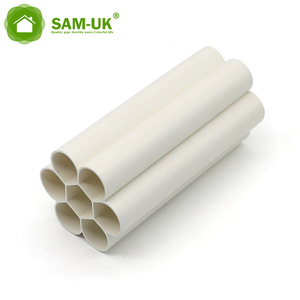

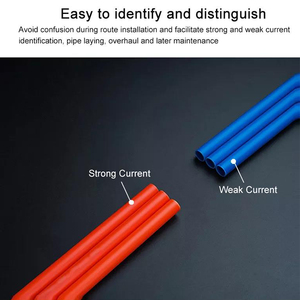

Telecommunications

PVC pipe electrically underground protects telecommunications wiring, including fiber optic cables and telephone lines. These cables need PVC protection to prevent damage from soil, water, or chemical substances. The conduit provides a safe medium that will not interfere with the electrical signals. PVC also has the advantage of being resistant to corrosion, light-weight, and easy to install.

Signage and Lighting Systems

Signage and exterior lighting systems commonly use PVC pipes for underground electrical work. In such areas, electrical wires need protection from moisture, ground minerals, and physical impact. PVC's strength, flexibility, and resistance to corrosion make it very appropriate for this application.

Agricultural Applications

In agriculture, PVC conduits are used to protect electrical wiring for irrigation systems and other agricultural equipment. Underground electrical systems help ensure a long life span of the electrical systems, especially in wet or variable soil conditions, due to PVC's resistance to corrosion and moisture. Its flexibility also allows PVC pipe to easily accommodate any changes in the soil or ground surface, which helps maintain ongoing protection for the wiring even as the ground changes.

Industrial Automation

PVC pipes protect wiring for electrical and automation systems in industries and manufacturing plants. Since industrial environments can expose wiring to moisture, heavy soil, and chemical substances, the robust and chemical-resistant properties of PVC are ideal to ensure long-term protection of vital electrical systems. PVC's smooth interior also helps reduce friction and makes it easy to pull wires through the conduit, which is beneficial with the complex wiring systems used in such applications.

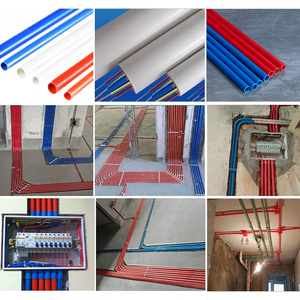

Residential and Commercial Buildings

For residential and commercial buildings, PVC pipes are used to protect the electrical wiring that runs underground from the electric panel up to the porch, patio, or floor. PVC's economical price, corrosion resistance, and ability to protect the wiring from moisture make it an ideal choice not only for electrical safety but also for budget considerations.

How to Choose PVC Pipe Underground Electrical

The types of PVC pipes and their application in choosing the suitable PVC pipe underground electrical involve several key factors.

Soil Type

The soil type at the piping installation site can affect the choice of PVC pipe. If the soil is rocky or has a high density, a rigid, thicker-walled pipe such as Schedule 80 may be more appropriate. This will help prevent physical damage to the pipe.

Water Table Level

Water table level affects the pressure and hydrostatic stress that the PVC pipe will be exposed to. If the water table is high, a type of pipe such as a high-density polyethylene conduit which is specially designed for high-pressure water environments.

Pipe Bends and Turns

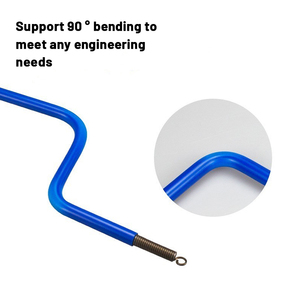

The need for bends and turns is primarily determined by the structure of the area and trenching layout. A flexible conduit or a conduit with a relatively lower radius of bend will be more appropriate if there is a need to make several turns. This will help avoid kinks and maintain the continuous flow of electrical wiring through the conduit.

Mechanical Protection

If the area has heavy vehicular traffic or is prone to wet conditions, a rigid PVC pipe such as Schedule 80 will be better. It will provide extra protection against mechanical impacts and other environmental factors. Rigid pipes can also be reinforced or embedded in a layer of concrete for additional mechanical protection in situations where they are exposed to heavy loads.

Regulatory Compliance

It is necessary to ensure that the chosen electrical PVC piping complies with Canadian and local electrical codes. The NEC standards state that Schedule 40 PVC is acceptable for underground electrical wiring in residential areas. It also states that Schedule 80 is the minimum standard for commercial and industrial applications. Other forms of NEC compliance are the types of conduit that can be used for different applications.

Cost vs. Durability

Here, the pressure the pipe has to sustain will determine whether the cost will be worth the durability of the pipe. While flexible conduits are easy to install and are very inexpensive, they are not as strong or as durable as rigid pipes. Rigid pipes are very strong and durable; however, they are also relatively expensive and harder to install, and do not bend easily. If the wiring will only be exposed to low pressures, a flexible conduit will be more appropriate because it is cost-effective. For high pressure or arduous conditions, a rigid conduit is more appropriate despite the cost and difficulty in installation.

Q and A

Q1: What is the NEC's requirement for the PVC electrical pipe buried in the ground in residential areas?

A1: The National Electric Code (NEC) standards state that the PVC electrical pipe buried in the ground in residential areas should be Schedule 40. Schedule 40 is appropriate for low-pressure electrical wiring environments. The NEC guidelines also allow the use of Schedule 80 in commercial and industrial applications where the wiring may be exposed to high pressure or other mechanical risks.

Q2: What is the purpose of Schedule 80 PVC pipe?

A2: This type of pipe has thicker walls than Schedule 40 PVC, which offers it better pressure and impact resistance. This makes it suitable for areas exposed to physical forces, such as rocks, heavy soil, or mechanical pressure. Other than electrical conduit applications, Schedule 80 pipes can also be used in industrial fluid transport systems where durability is key.

Q3: Do PVC pipes have a hydrostatic pressure rating?

A3: Yes, PVC pipes have a hydrostatic pressure rating, which is one of the key factors in their usability. Hydrostatic pressure refers to the pressure exerted by a column of water, such as when the pipe is buried underground or in a highly saturated environment. Both Schedule 40 and Schedule 80 PVC pipes have hydrostatic pressure ratings that make them useful for different underground electrical wiring conditions.

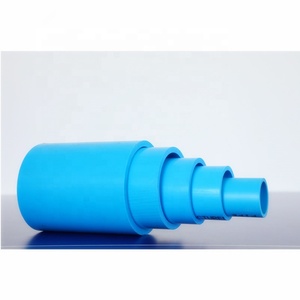

Q4: Can a PVC pipe be used for both electrical conduit applications and fluid transportation?

A4: PVC pipes can be used for electrical conduit applications and the transportation of chemicals and waters that are not in high pressure. For electrically grounded wiring protection, Schedule 40 and Schedule 80 are ideal for low- and high-pressure work. However, other applications such as transporting fluids that have a high pressure require special PVC pipe materials such as CPVC or high-density polyethylene.

Q5: How long can PVC pipe be buried in the ground?

A5: A PVC pipe can last for more than 30 years if it is properly buried and the surrounding conditions are not overly adverse. They are resistant to corrosion, chemical substances, and electrical insulation. Hence, they have a long life when buried underground.
