PT100 RTD (Resistance Temperature Detector) sensors use different wiring configurations to measure temperature accurately. These configurations offer various levels of accuracy, compensation for wire resistance, and measuring depth.

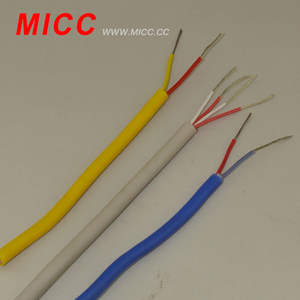

This is the simplest RTD wiring method where two wires connect the sensor to the measuring device. In this setup, one wire connects each end of the RTD element. Although it is the simplest wiring, the two-wire system is less accurate. This is because it doesn't compensate for the resistance of the connecting wires. The resistance of the wires adds to that of the RTD element, affecting the readings. This configuration works in applications where the temperature fluctuations are substantial. There are further compensating factors, such as using a meter with a high test current. PT100 thermal paste sensor with a two-wire configuration is used in situations where measurement precision isn't the main concern. For example, in non-industrial applications or short-distance setups where the distance between the sensor and the measurement unit is minimal.
This setup uses three wires—two connected to one end of the RTD and the third to the other. The two connected wires send the current through the RTD, while the third wire goes to measure the voltage across the RTD. By utilizing the voltage measurement wire, this configuration can help adjust for wire resistance. The extra wire allows for better precision than the two-wire system. It corrects any resistance in the lead wire. The three-wire configuration is commonly used in settings where high accuracy and compensation for lead resistance are a must. Examples include industrial environments and long-distance PT100 RTD wiring setups. In these setups, the sensor is far from the measuring instrument.
This configuration uses four wires: two to supply current through the RTD and two to measure the voltage. The previous three-wire setup only used one wire per function for each end of the RTD. But this one has two wires for voltage measurement. This method fully eliminates the effect of lead resistance. It does so by measuring the voltage with wires that are separate from the current-sending wires. The four-wire system is the most accurate configuration. It works best in settings where maximum precision is non-negotiable. These conditions may involve using RTD temperature sensors in research laboratories or high-precision manufacturing processes.
RTD sensors are widely used in temperature monitoring of drilling fluids, reservoir rocks, and production equipment in the oil and gas industry. PT100 RTD wiring systems help ensure RTDs in hazardous environments maintain accurate readings. For example, in explosion-proof designs to increase their safety grade.
In industries such as food and beverage, chemicals, and manufacturing, RTDs are commonly used. PT100 RTDs help monitor temperature in the degree of automation or environmental conditions. Three- and four-wire configurations are preferred in these industries. It prevents errors in temperature readings caused by wire resistance, especially when sensors and meter units are far apart.
PT100 RTD wiring in HVAC systems monitors temperature in air, water, and coil. It helps maintain the system's balance and operation. Moreover, RTDs detect underfloor heating temperatures to increase floor safety levels.
PT100 RTDs monitor engine and tire temperatures in the aerospace and automotive industries. They help ensure optimal performance and prevent overheating. RTD wiring configurations in these industries enable the sensors to function accurately under extreme temp fluctuations and high-speed environments.
RTDs are used to monitor temperature in power generation equipment like turbines, generators, and transformers in the energy sector. The readings help ensure the temperature stays within a safe operating range. PT100 RTD wiring helps maintain accuracy in the harsh electrical environments found in power plants. The three- and four-wire configurations help reduce the effect of wire resistance as the sensors can be placed far from the meters.
The pharmaceutical and biotechnology industries RTDs to monitor temperatures in critical processes like drug formulation, fermentation, and storage. Temperature control is vital for maintaining product quality and safety. That is why PT100 RTD wiring is used in these spaces. The configurations ensure accurate readings and keep the sensors and their environment safe. PT100 RTD wiring is also commonly used in laboratory settings. There, precision is critical for experimental results.
The electrical requirements of PT100 RTD configurations vary based on the wiring type. For example, three- and four-wire configurations have larger wire resistances than two-wire configurations. The three- and four-wire configurations can compensate for lead wire resistance and maintain accuracy. The standard RTD in PT100 has a resistance of 100Ω at 0°C. Its typical coefficient of temperature is 0.00385 per °C. The effective range for RTDs in extended applications is -200 to 850°C. However, operating ranges may differ based on industry and application.
PT100 RTD sensors are built to withstand a variety of conditions. For example, high vibration and pressure, humidity, and harsh chemical exposure. The sensors contain protective sheaths made from stainless steel, Inconel, or other durable alloys. These materials increase the sensor's lifespan by making it more rigid and protecting it from the environment. PT100 RTD sensors come in different sizes depending on the application. Some may be several meters long to reach deep inside machinery while others a few millimeters for small, tight spaces.
PT100 RTD sensors can be mounted in process jackets, drilled holes, or welded onto surfaces. These methods ensure good thermal contact with the object being measured. The three-and-four-wire configurations ensure accurate temperature compensation readings. They also provide easy installation and maintenance in industrial settings. In those setups, the distance between the sensor and measurement unit is significant.
PT100 RTD sensors can also be installed in connection heads or transmitters. These devices convert the sensor's resistance into a readable signal for monitoring displays. In head-mounted configurations, users can replace or maintain the RTD element without disturbing the connected wiring or transmitters.
When selecting PT100 RTD wiring, people need to consider several factors to ensure they meet their clients' requirements.
The working environment is the first thing industries will consider. It will determine the ideal materials and configurations for their setup. For example, software industries with harsh chemicals, high temperatures, or extreme pressures require durable materials like Inconel or reinforced sheaths.
PT100 provides high precision in temperature readings compared to other RTD configurations. It does so with the help of three- and four-wire configurations. These multi-wire configurations eliminate the effect of wire resistance on the sensor. Manufacturing and industrial spaces require this accuracy since highly compensating for small variations is vital. A four-wire configuration offers the best accuracy in this scenario. But if the setup is short distance-wise, a two-wire configuration does just as well. Automobile and aerospace sectors work with high-speed environments. In these spaces, three-wire configurations are ideal because they balance precision and quick installation.
People also need to consider which type of sensor will work best with their wiring. Thin film sensors provide a quick response and are more accurate at a lower cost. They are ideal for applications with less extreme conditions. Meanwhile, wire-wound sensors are more robust and handle high temperatures better. Although they require a bigger budget, these sensors are preferred in industries like oil and gas and power generation.
This factor is vital as it influences the wiring configuration to use. If the distance is significant, go for a three- or four-wire configuration. The multiwire setups will ensure the measurements are accurate regardless of the distance. On the other hand, if the distance is short, a two-wire configuration is sufficient. It is also more cost-effective than the other two.
The industry the customers are in will also influence the choice of wiring. Pharmaceutical and biotechnology industries require precise measurements for their vital processes. So, they use four-wire configurations since they provide the highest accuracy. Meanwhile, oil and gas industries need the RTDs to function in extreme conditions. So they use three-wire or four-wire configurations that ensure absolute safeguard against harsh environment.
A. The PT100 RTD accurately and reliably measures temperature in harsh industrial conditions. It has a wide temperature range, from -200 to 800°C, and provides consistent readings. Its durable materials allow it to withstand high pressure and chemical exposure. Meanwhile, its linear resistance variation gives precise measurements over long distances. All these features combined make the PT100 RTD configuration a reliable option for industries.
A. The main difference is that three-wire RTDs compensate for the wire resistance using an additional wire. It helps maintain accuracy even if the sensor and measurement unit are far apart. On the other hand, two-wire RTD wiring is more straightforward but less accurate. It doesn't compensate for lead wire resistance.
A. PT100 RTD sensors typically consist of stainless steel, copper, or aluminum protective sheaths. These materials reinforce the RTD elements and protect them from extreme temperatures, chemical exposure, and high humidity.
A. The calibration frequency depends on the particular application and industry standards. But generally, calibrating them every one to two years is ideal. More frequent calibration is necessary for highly regulated environments like pharmaceuticals or aerospace.
A. Yes, they are suitable for outdoor use as long as their protective sheath materials are durable enough to withstand outdoor elements like moisture and extreme temperatures. Outdoor conditions can also make chemicals more accessible, leading to chemical exposure. Make sure the materials used for the outer sheath are also chemical-resistant.
