Pneumatic stripping wire machine

Types of pneumatic stripping wire machines

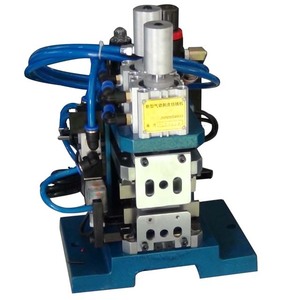

The pneumatic stripping wire machine is a wire stripping machine that uses compressed air to strip the wires. It is mostly used in high-volume production environments. Here are some common types of pneumatic wire strippers:

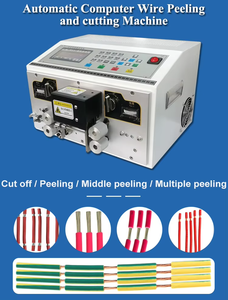

• Pneumatic automatic wire stripper

  This machine is designed to strip insulation off wires of different lengths. It has an automatic feeding mechanism and is ideal for high-volume production.

• Pneumatic semi-automatic wire stripper

  It is similar to the automatic stripper. However, it has a manual feeding mechanism. Operators can control it with the push button or foot pedal.

• Pneumatic bench top wire stripper

  This wire stripper is mounted on the bench or used standalone. It is suitable for low to medium volume production. The bench top stripper provides operators with better control and precision.

• Pneumatic portable wire stripper

  The portable stripper is smaller and lighter. It is suitable for on-the-go applications. This wire stripper works well in tight spaces where other tools may not access.

• Universal pneumatic wire stripper

  This machine is adaptable to strip different wire gauges. It features interchangeable blades and adjustment settings.

• Multi-process pneumatic wire stripper

  This machine combines wire stripping with other processes, such as cutting and crimping. It allows for higher levels of automation and efficiency.

• Customized pneumatic wire stripper

  Some strippers are made based on specific requirements. These machines come with unique features or modifications to suit certain industrial applications.

Specifications & maintenance of pneumatic stripping wire machines

• Cutting Diameter

  The cutting diameter indicates the scope of wires that the stripping machine can operate. For example, a wire stripper with a cutting diameter of up to 30 mm (1.2in) can handle large-volume wires, like 10-3.

• Air Pressure

  This refers to the air pressure needed for the stripper to operate effectively. It is usually measured in pounds per square inch (psi). Many machines require an air pressure of between 60 psi to 120 psi to work properly.

• Cutting Speed

  Cutting speed determines how quickly the wire is stripped. This speed is usually determined in meters per minute or feet per minute. With the development of technology, pneumatic wire stripping machines can reach a stripping speed of 2,000 to 4,000 feet per minute.

• Weight and Size

  Pneumatic stripping machines come in different sizes and weights to suit different work needs. For example, a benchtop machine may weigh 40 lbs and measure 72X49X45 cm, while a large pneumatic stripper intended for use with a cable cyclone may weigh 130 lbs with dimensions of 127X66X63 cm.

• Input and Output

  The input indicates the type and gauge of wires the pneumatic stripper is designed to handle. Conversely, the output shows the end processed wires are ready for further use or assembly.

Maintenance of wire stripping machine:

To ensure the longevity, efficient performance, and consistent stripping accuracy of the pneumatic stripping machine for wires, it is essential to maintain it. Regular maintenance can prevent untimely breakdowns caused by wear, reduce the threat of operational hazards, and ensure the machine delivers consistently high performance. Below is the maintenance schedule for the pneumatic wire stripper:

• Lubricate Regularly

  It is essential to keep the machine well-lubricated because the moving parts are numerous. Lubrication reduces friction and helps the moving parts slide together smoothly, reducing wear and stripping delays. Before lubricating, it is essential to clean the stripper to remove dust and debris. Stripper lubricant is either oil or grease, depending on the manufacturer's manual. Use the lubricant sparingly and apply it in the specified places. Ensure to wipe out any excess to prevent the attraction of dust and debris. After lubricating, run the machine to allow the lubricant to spread evenly throughout the moving parts.

• Inspect regularly

  It is crucial to inspect the stripping machine on a regular basis to spot any likely issues early. Check for damaged parts, such as the blades, which may develop dull spots or nicks, making stripping inaccurate. Also, check whether the moving parts are loose after repeated use. During the inspection, also check the air hoses for collapses, kinks, or leakage issues, and ensure the electrical connections are secured tightly. When using the wire stripper to cut other materials, debris and dust tend to accumulate on the machine. Therefore, inspect it regularly to ensure it is free of debris.

Usage scenarios wire stripping machines

Wire stripping machines have a wide range of applications across different industries and for various purposes. Below are some usage scenarios for wire stripping machines.

• Electrical and Electronics Manufacturing: Wire stripping machines are extensively used in the electrical and electronics industry for manufacturing circuit boards, connectors, and other components that require precise wire preparation. Such companies use the machine to remove insulation from wire ends to ensure reliable solder joints and electrical connections.
• Automotive Industry: In the automotive sector, wire stripping machines are employed by manufacturers and repair centers. Automotive wiring harnesses often feature wires with varying insulation that need to be stripped accurately. Wire stripping machines enable efficient stripping of wires for custom repairs, upgrades, or the assembly of wiring harnesses.
• Telecommunications and Networking: Telecommunication and networking companies use wire stripping machines to prepare cables and connectors for communication systems. Stripping machines handle cables with multiple conductors and insulation layers, ensuring precise wire termination for routers, switches, and data transmission devices.
• Renewable Energy Sector: Wire stripping machines are essential in the renewable energy sector for solar panel and wind turbine manufacturing. Solar panels have to undergo customization for different configurations, while wind turbines have to be wired to ensure proper connectivity and functionality.
• Aerospace and Aviation: Aerospace and aviation companies can strip wires of varying insulation with high accuracy by using wire stripping machines to ensure reliability for critical aircraft systems and spacecraft. The machines also handle high-performance wires used in lightweight and high-altitude vehicles.
• Construction and Electrical Contracting: Electrical contractors and construction companies need to strip wires when installing electrical systems and wiring in commercial and residential buildings. Wire stripping machines allow for preparing wire ends for connectors, switches, and outlets in a more efficient manner.
• R&D and Prototyping: Research and development laboratories and prototyping facilities benefit from having compact or bench-top wire stripping machines. These machines enable them to carry out small-scale wire stripping and customization for experiments, prototypes, and innovative product development.

How to Choose a Pneumatic Stripping Wire Machine

When choosing a pneumatic wire stripping machine, consider the following factors to help ensure that the final decision aligns with specific needs and requirements:

• Wire Range Capability

  Investigate the diameter specification of wires the machine can handle. It is important to remember that different jobs require different types of wires. Choosing a stripping machine that works with the exact kind of wire saves time and effort later on.

• Cutting Mechanism

  Choose between blade-based or laser stripping options based on precision and level of durability needed. Laser options might provide better accuracy but could cost more.

• Production Volume

  Consider whether the machine will be used for high amounts of work or just small, regular amounts. For larger projects, investing in a faster automatic model may be worthwhile, while a simple manual one could suffice for occasional use.

• Safety Features

  Look at what safety elements are included, like shields or emergency stops, and think about how safe the machine is to use. Since stripping wires can be dangerous, choosing a safe and user-friendly machine is essential.

• Size and Portability

  Depending on workspace constraints, think about whether the machine's weight and size can be moved or stored easily when not in use. If space is tight but portably, it is important to choose something that can be moved out of the way when finished.

• Customer Reviews

  Before deciding, research product ratings and feedback from those who have already purchased the model being considered to learn about any problems or advantages discovered through actual use. Reviews provide insight into what to expect from different options.

• Cost Effectiveness

  Compare costs among various models while taking into account features, performance, and necessary of what it will be used for. Choose something that balances price with capability rather than simply picking the cheapest option.

Pneumatic stripping wire machine FAQ

Q1: What is the difference between a pneumatic and electric wire stripping machine?

A1: The wire stripping machine's power source is the main distinction between a pneumatic and electric machine. While an electric machine uses electricity, a pneumatic machine uses compressed air. Because of its consistent power output, less upkeep, and greater simplicity of use, the electric stripping machine is often preferred. In contrast, the pneumatic stripping machine works faster and more efficiently. It is preferable in situations where high-volume production requires it.

Q2: What safety features are on a pneumatic wire stripper?

A2: Stripping wire machines have several safety characteristics to avoid mishaps and injuries. The safety guard is a typical feature; it protects moving components and ensures the operator does not contact the blades. Another feature is a thermal overload shutoff. It prevents overheating and immediately strips stopped wires. Many machines have emergency stop buttons. The buttons allow the operators to stop the machine immediately in an emergency. Lastly, the operators must wear goggles and gloves, which many manufacturers recommend.

Q3: Can a pneumatic wire stripper handle different types of wire insulation?

A3: Yes, a pneumatic wire stripping machine is designed to strip a wide range of wire insulation materials, including plastic, rubber, and TEFLON. However, the performance will vary depending on the machine model, so it's essential to check the manufacturer's specifications.

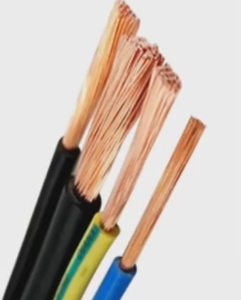

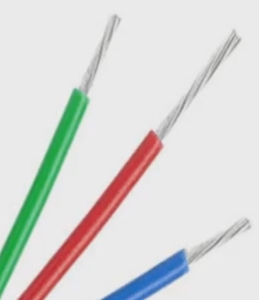

Q4: Can a Pneumatic wire stripper be used for stranded wire?

A4: Yes, many pneumatic wire stripping machines can handle stranded wire. Stranded wires consist multiple smaller wires twisted together. They are commonly used in electrical applications where flexibility is needed. Buyers should look for a machine with adjustable feeding mechanisms and blades to accommodate different wire types and sizes.
