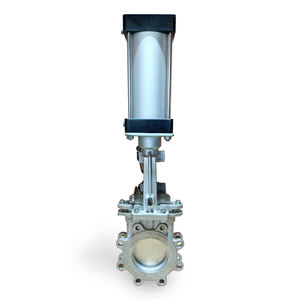

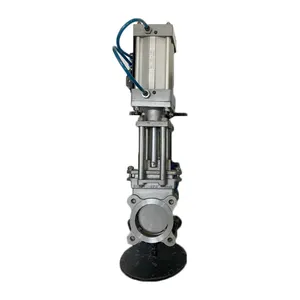

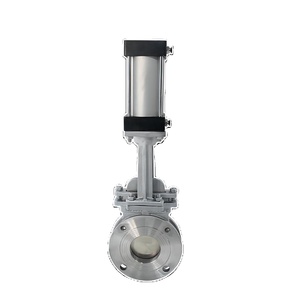

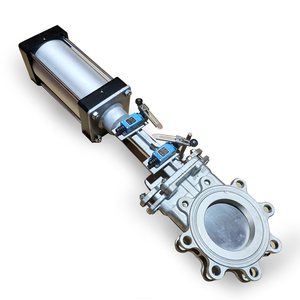

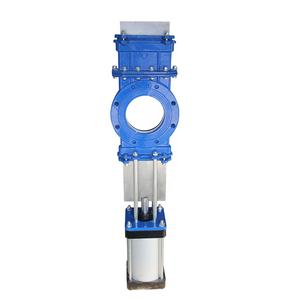

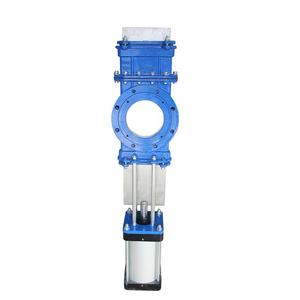

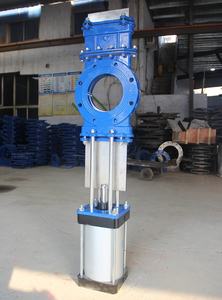

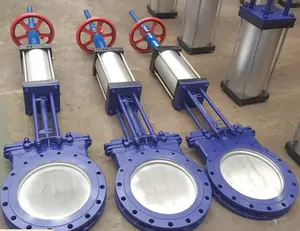

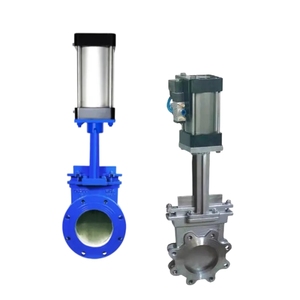

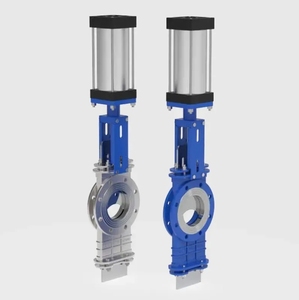

Pneumatic knife gate valve

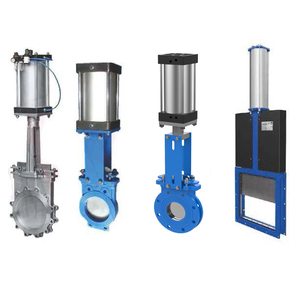

Types of pneumatic knife gate valves

Knife gate valves are mostly installed in conveyance systems internally, where they regulate medium flow. Pneumatic knife gate valves use compressed air to control the internal gate element, hence the name 'pneumatic.' These gate valves are recommended where flow isolation and throttling require mismatched hardness and fluid pressure.

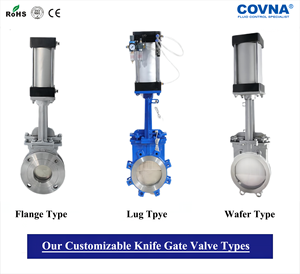

The pneumatic knife gate valves differ from each other based on the working medium, seat type, pressure, and connection type, among other factors. These differences are crucial for operating the valves in the right conditions to warrant efficiency, durability, and safety.

Here are some types of pneumatic knife gate valves based on the highlighted features:

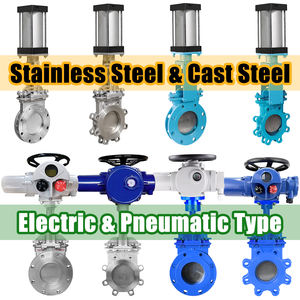

Material

Material plays a crucial role in pneumatic knife gate valves. It directly affects the valve's compatibility with the medium, operating environment, and pressure. As such, manufacturers should consider various aspects when producing these valves. Here are their material-based pneumatic knife gate valves:

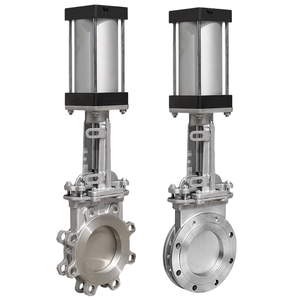

• Stainless steel

  Stainless steel pneumatic knife gate valves have high corrosion resistance and are extremely durable. This is why they are mostly recommended for chemical, petrochemical, and food processing industries, where the conveyed media is corrosive. Besides, the self-cleaning properties of stainless steel make these valves ideal for slurries and viscous fluids. Moreover, stainless steel is compatible with high-pressure and temperature systems.

• Cast iron

  Cast iron gate valves are economical and popular due to their high durability. They are installed in the mining industry, wastewater treatment plants, and other industrial applications. However, while cast iron is strong, it is not as corrosion-resistant as stainless steel. Therefore, it is ideal to apply protective coatings on cast iron valves where the conveyed media or environment poses a risk of corrosion.

• Brass

  Brass pneumatic knife gate valves are popular in plumbing and HVAC systems. This is due to their good balance between corrosion resistance and strength. They are, therefore, compatible with water, steam, and certain gases. However, brass is less suitable for extremely high-pressure and -temperature applications.

• High-strength alloys

  High-strength alloys are mainly used in aerospace, automotive, and high-tech manufacturing industries. These industries require valves that can withstand extreme operational conditions.

Pressure Rating

The pressure rating determines the pneumatic knife gate valve's maximum working pressure. Beyond this pressure, the valve risks failure and doesn't operate as effectively as at lower pressures. Therefore, pneumatic knife gate valves are meant to be installed in high-pressure systems yet demand flow control and valve closure. For example, valves with high-pressure ratings are commonly installed in oil and gas and power generation industries.

Conversely, low-pressure rating valves are ideal for non-industrial applications or systems that don't experience much pressure. These include pulp and paper, mining, and wastewater treatment industries. It is, therefore, important to identify what kind of industry the client will install the valves in. Knowing this information will help select the proper range of gate valve  pneumatic to ensure longevity and reliable operation.

Seat Type

A seat in a pneumatic knife gate valve provides a sealing mechanism that prevents leakage when the gate is in a closed position. It also ensures minimal friction during gate operation. As such, manufacturers produce these gate valves with various seat types to help meet diverse clients' needs and operating conditions.

• Metal seats

  Metal-seated pneumatic knife gate valves are manufactured with durable materials such as steel and carbide alloys. They are, therefore, ideal for high-pressure and -temperature applications. Such conditions are common in the mining, oil, and gas industries. Also, these seats are recommended for users who operate abrasive or solid-laden slurries.

• Soft seats

  Soft seats are commonly produced with elastomeric materials such as PTFE, NBR, and PVC. These materials provide excellent sealing and, thus, are ideal for low-to-medium-pressure applications. These valve types are commonly used in the chemical, pulp, and paper, and wastewater treatment industries. They often work with corrosive chemicals. Remember, soft seats offer better resistance to leakage in such conditions.

How to choose pneumatic knife gate valve

Although buyers make the final choice of the pneumatic knife gate valves, their decision is based on the information the manufacturers provide. Manufacturers should consider many things to produce these valves. These factors often relate to the operating conditions and the clients' requirements. The more precise and tailored valve a manufacturer produces, the more satisfying the client experience will be.

Conversely, when manufacturers make generic pneumatic knife gate valves, they are likely to have dissatisfied clients since these valves may not perform well in their operating conditions. Below are the critical aspects manufacturers should consider when making these valves:

• Working Pressure and Temperature

  Various industries operate different pressure ranges. For example, oil and gas and power generation industries work with extremely high-pressure and -temperature conditions. On the other hand, the pulp and paper industries have lower pressure. That's why it is crucial for clients to install the right pleated filters for pneumatic systems to ensure effective operation. Therefore, variety in the valve's pressure and temperature ratings ensures clients can find the most suitable one.

• Material Composition

  Pneumatic knife gate valves are produced using various materials, each ideal for a particular application. Stainless steel valves are recommended for the chemical, petrochemical, and food processing industries. They are suitable for corrosive environments. Conversely, brass valves are common in plumbing and HVAC systems. Cast iron is used to make valves that must operate in the mining industry, while high-strength alloys are ideal for aerospace and auto.

• Sealing Mechanism

  The sealing mechanism of pneumatic knife gate valves significantly impacts their performance in various applications. That's why valves with metal seats are better for oil and gas and mining industries. These high-pressure industries mostly work with high-pressure media. PTFE and NBR soft seats are preferable in the chemical, pulp, and paper, and wastewater treatment industries. These industries demand excellent sealing, describing the soft seats' smooth, leak-proof sealing.

• Abrasion and Corrosion Resistance

  Manufacturers add additional features like protective coatings, specialized seat materials, and surface treatments to improve pneumatic knife gate valves' abrasion and corrosion resistance. These features help the pneumatic knife gate valves endure the harsh conditions of the chemical, mining, and wastewater treatment industries.

• Maintenance and Longevity

  Buyers often consider maintenance requirements and the valve's expected lifespan. Selecting a valve with low-maintenance components that can withstand prolonged exposure to harsh conditions not only improves operational efficiency but also reduces long-term costs for the customer.

Commercial use cases of pneumatic knife gate valves

Pneumatic knife gate valves provide excellent slurry isolation and cutting capability in many industries. Here are the most common industrial applications of these valves:

• Mining industry

  The pneumatic knife gate valves in this industry are primarily associated with solid-laden slurries. Due to their unique cutting edge, these valves efficiently slice through thick, abrasive materials, ensuring smooth flow termination in the most challenging conditions. Their robustness and precise control, meanwhile, allow for reliable operation, even in the fluctuating pressures and temperatures typical of mining processes.

• Wastewater treatment

  These pneumatic valves play a crucial role in this filtration process by isolating and managing the flow of wastewater through treatment systems. They ensure reliable, leak-proof seals that prevent backflow and cross-contamination. Their ability to handle solid content and chemical-laden water further makes them ideal for effectively and safely managing the filtered water system.

• Pulp and paper

  These valves manage and isolate pulps, which are thick slurries suspended in water and other mixtures. They maintain the required flow control, ensuring smooth operations in various processes like pulping, bleaching, and chemical recovery. Their precise control and reliable sealing, meanwhile, enhance the valve's efficiency and durability in the high-pressure and -temperature environments synonymous with this industry.

• Power generation

  Many industries, including coal-fired power plants, use pneumatic knife gate valves to control fuel and water flow in boilers and turbines. They handle high-pressure slurries and help maintain efficient operation in these energy-producing facilities. Besides, their robust design and reliable performance under extreme conditions make them crucial in power generation.

• Oil and gas

  These pneumatic knife gate valves control and isolate pipeline slurries, including heavy oil and water mixtures. They provide necessary flow regulation while resisting high pressure and extreme temperature. Their robust design ensures reliable sealing. This property prevents leakage, ensuring safe and efficient operations in this industry.

Q&A

Q1. What are pneumatic knife gate valves?

A1. Pneumatic knife gate valves are specialized industrial valves controlled by pneumatic actuators. These valves penetrate slurries more efficiently than traditional gate valves, providing reliable flow isolation. This unique design makes them ideal for managing and controlling thick, abrasive materials in various industries like mining, oil and gas, and power generation.

Q2. What are the primary advantages of soft-seated pneumatic knife gate valves over metal-seated ones?

A2. Soft-seated pneumatic knife gate valves provide a tighter seal than metal-seated ones. Thus, they efficiently prevent backflow and leakage. They are also less abrasive, offering smoother operation that reduces wear on the valve components. For this reason, these valves are ideal in the chemical, pulp and paper, and wastewater treatment industries, where they control and isolate corrosive fluids.

Q3. Which factors are more important than others in selecting the right pneumatic knife gate valve?

A3. Several factors affect the clients' choice of pneumatics of these knives gate valves. These factors include operating pressure and temperature, medium characteristics, and valve materials. However, clients usually prioritize the valve's ability to withstand their specific operating conditions. Therefore, it is crucial to collect this information to ensure the selected valve effectively and reliably functions.

Q4. How do manufacturers ensure that pneumatic knife gate valves are durable in harsh environments?

A4. Manufacturers use highly durable materials like corrosion-resistant stainless steel and brass to improve the durability of pneumatic knife gate valves in hostile conditions. They also employ advanced protective coatings on the valve's internal and external surfaces. In addition, regularly maintenance of the valves and monitoring system parameters enhance the longevity and reliability of these valves.
