Piston ring expanders

Types of piston ring expanders

Piston ring expanders are tools used to install or remove piston rings from an engine's pistons. The tool consists of a handle and a blade that expands or contracts to fit different ring sizes. Piston ring expanders come in different types;

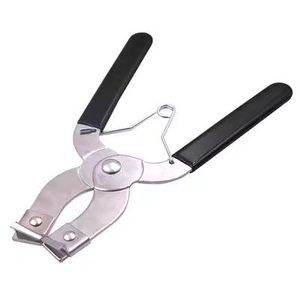

• Manual Piston Ring Expander:

  Manual piston ring expanders are simple tools used to install or remove piston rings from the engine's pistons. The tool consists of a handle and a blade that expands or contracts to fit different ring sizes. This makes it easy to work on various engines with different piston ring specifications. Manual piston ring expanders are portable and easy to use but require more effort and care to avoid damaging piston rings.

• Electric Piston Ring Expander:

  Electric piston ring expanders are specialized tools used to install and remove piston rings in internal combustion engines. They use electric power to operate, which provides more precision and control when working with piston rings. Electric piston ring expanders are highly efficient and suitable for tasks requiring high accuracy and minimal damage to piston rings. They are especially useful in professional and industrial settings where piston ring maintenance is critical to engine performance.

• Universal Piston Ring Expander:

  Universal piston ring expanders are designed to work with various sizes and types of piston rings. They often have adjustable features that allow them to fit different ring dimensions, making them versatile for various engines. This is especially useful when working with older or less common engine models that may have specific piston ring requirements. Universal piston ring expanders save time and money by eliminating the need for multiple specialized tools.

• Small Engine Piston Ring Expander:

  Small engine piston ring expanders are specifically designed for use with small displacement engines. These include motorcycle engines, lawnmower engines, and chainsaw engines. Small engine piston ring expanders are usually compact and lightweight, which is suitable for the small and intricate components of small engines. They ensure proper care and handling of piston rings, which is essential for maintaining fuel efficiency and low emissions in small engines.

Specifications and maintenance of piston ring expanders

• Basic specifications of piston ring expanders

  Piston ring expanders have various specifications depending on their make and model. However, some general specifications include:

  1. Size: The size of a piston ring expander is an important consideration when choosing the right one for an engine. Generally, the expanders have different sizes ranging from 3/8 inches to 8 inches in diameter. A larger size implies that the tool can accommodate larger piston rings.

  2. Material: The material used to make the piston ring expander is also an important specification. Different manufacturers use different materials, such as steel and aluminum. Steel is a more durable material than aluminum. Therefore, a piston ring expander made of steel is more durable than one made of aluminum.

  3. Design: The design of the piston ring expander tool is also an important specification to consider. Generally, these tools have different designs depending on the manufacturer. Some may have a tapered or split design. A tapered design is more effective in expanding piston rings without causing damage.

• Maintenance of piston ring expanders

  It is important to maintain the piston ring expander tool so it can last longer and work efficiently. Below are some maintenance tips:

  1. Cleaning: The first step of maintenance is cleaning. The tool should be cleaned after every use. This helps to remove any dirt or debris from its surface. Generally, cleaning helps to prevent the build-up of dirt, which can affect the performance of the tool. A simple cloth is enough to clean the expander. In addition, users can use warm, soapy water to clean stubborn dirt.

  2. Inspection: The piston ring expander should be inspected regularly to check for any signs of wear or damage. In case of any damage, it should be repaired immediately to prevent the damage from getting worse. Regular inspection helps the tool to work efficiently.

  3. Lubrication: Lubrication is an important maintenance requirement for the piston ring expander. It should be lubricated regularly to ensure its moving parts operate smoothly. Users should use the manufacturer’s recommended lubricants when lubricating the tool.

  4. Proper storage: The piston ring expander should be stored in a dry and clean place away from direct sunlight when not in use. This prevents damage due to exposure to harsh conditions.

How to Choose Piston Ring Expanders

Considering the following factors when selecting a suitable piston ring expander for retail or business purchase is important.

• Quality and Durability

  Choosing a high-quality and durable piston ring expander is necessary because it reduces frequent maintenance and replacement costs. This tool has a longer lifespan and offers reliable service. Quality and durable piston ring expanders are constructed from quality materials.

• Size and Specification

  piston rings have different sizes and specifications. Therefore, it is important to choose an expander that matches the size and specification of the piston rings. This ensures that the tool works efficiently and also reduces the risk of damage when installing or removing piston rings.

• Ease of Use

  When choosing a piston ring expander, it is important to select an easy-to-use tool. This tool should be easy to handle and operate. Additionally, it should have a mechanism that smoothly expands the ring without requiring excessive force.

• Versatility

  Considering flexibility is also important when choosing a piston ring expander. A flexible tool can be used for different types of engines and various sizes of piston rings. Additionally, it can be used as a ring compressors tool.

• Price

  When choosing a piston ring expander, it is important to consider the price. However, it is important not to choose a tool because it is cheap. Instead, choose a tool that offers value for money. This can be done by comparing the features and quality of different tools and selecting the one that meets the set standards at an affordable price.

• Brand Reputation

  Considering the reputation of the brand when choosing a piston ring expander is also important. Well-known brands in the market offer quality tools. Additionally, they offer after-sale services such as warranty and customer support.

• Portability and Storage

  Choosing a portable and easy-to-store piston ring expander is important. This is because the tool will be convenient for on-site use and will not take up much space in the workshop or toolbox.

How to DIY and Replace of Piston Ring Expanders

Piston ring expander replacement is a simple process that can be done with basic mechanical knowledge. Here is a step-by-step guide on how to replace a piston ring expander:

• 1. Prepare the necessary tools and materials

  Before starting the replacement, ensure that the engine has cooled down. Gather the following: new piston rings, a ring expander, a ring compressor, torque wrench, socket set, and ratchet.

• 2. Remove the old piston rings

  Once the engine's cylinder head is removed, locate and carefully use the piston ring expander or a flat-bladed tool to remove the old piston rings from the piston. Be careful not to damage the piston or cylinder wall while removing the rings.

• 3. Clean the piston and cylinder

  Before installing a new piston ring expander, clean the piston and the ring grooves to remove any carbon deposits or debris. Also, wipe the cylinder wall with a clean rag.

• 4. Install the new piston rings

  Carefully open the new piston rings and slide them into the ring grooves. Ensure the ring gaps are properly aligned according to the manufacturer's specifications. Use the ring expander tool if necessary to avoid damaging the new rings.

• 5. Reassemble

  After installing the new piston ring expander, reinsert the piston into the cylinder. Use a ring compressor to ensure the piston can slide into the cylinder easily. Then, reattach the connecting rod to the piston and reassemble the engine components in the reverse order of disassembly.

Q and A

Q1. How often should piston rings be replaced?

A1. There is no specific timeline for replacing piston rings. They should be checked regularly during maintenance services and replaced when worn out.

Q2. How can someone know that their piston rings are worn out?

A2. Piston rings are normally checked during inspection services. However, they can also be worn out and go unnoticed until they cause major engine performance issues. Worn out piston rings cause the engine to lose power, which is a clear sign that something is wrong. Other signs include excessive exhaust smoke, oil burning, and engine knocking.

Q3. Can users drive with damaged piston rings?

A3. Yes, they can drive with damaged piston rings for a short period of time. However, the damage will continue to worsen, and the engine will eventually fail. This will cost more because the repair costs will be high. Therefore, it is advisable to check and repair piston rings as soon as they are damaged.
