Types of Peugeot 206 Manifolds
The Peugeot 206 manifold system consists of two essential components: the intake manifold and the exhaust manifold. These parts play crucial roles in the engine's operation by managing airflow into the combustion chambers and safely directing exhaust gases out of the vehicle. Understanding the design, function, and variations of these manifolds is key to maintaining optimal performance and efficiency in your Peugeot 206.

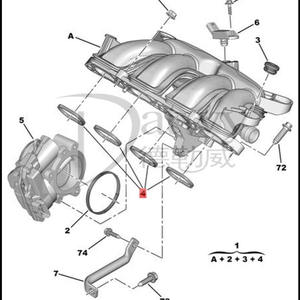

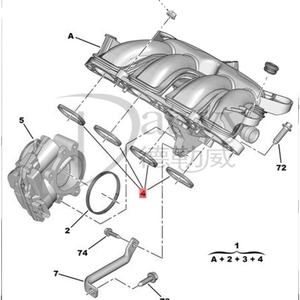

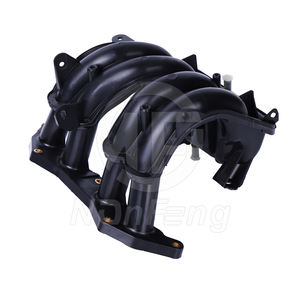

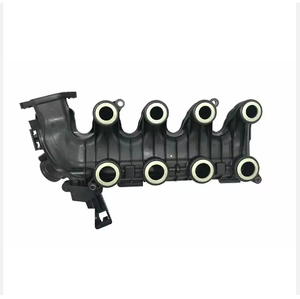

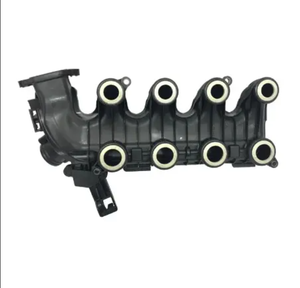

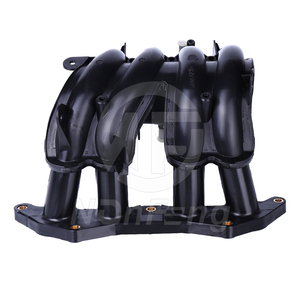

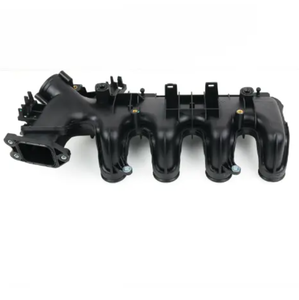

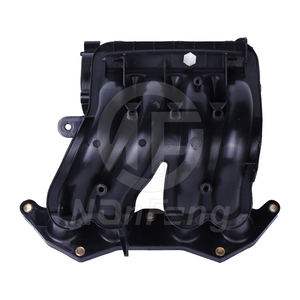

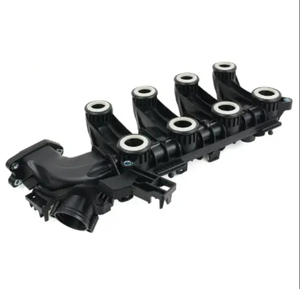

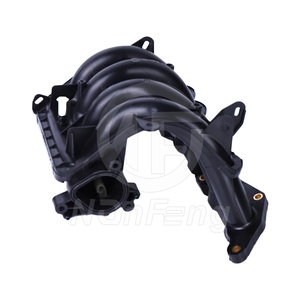

Peugeot 206 Intake Manifold
The intake manifold on the Peugeot 206 ensures that the correct air-fuel mixture reaches each cylinder efficiently. It distributes incoming air (or air-fuel mixture in older models) from the throttle body or mass airflow sensor to the individual intake ports on the cylinder head. This component also provides mounting points for critical engine components such as the throttle body, fuel injectors, and various sensors that help regulate engine performance.
Design Features
- Material Composition: Typically made from lightweight aluminum, plastic composites, or cast iron depending on the engine variant.
- Airflow Optimization: Internal runners are designed with specific lengths and diameters to enhance volumetric efficiency at different RPM ranges.
- Fuel Injection Integration: In multi-point fuel injection systems, fuel injectors are mounted directly onto the manifold for precise fuel delivery.
- Variable Intake Systems: Some models feature variable-length intake manifolds that adjust airflow characteristics based on engine load and speed, improving both low-end torque and high-RPM power output.
Key Functions
- Distributes air or air-fuel mixture evenly across all cylinders
- Regulates airflow via throttle body integration
- Provides structural support for sensors like the MAP sensor and IAC valve
- Contributes to emissions control by ensuring proper combustion ratios

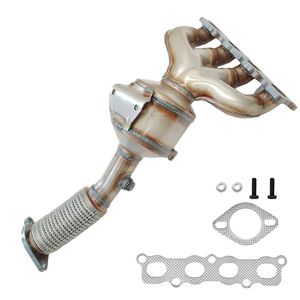

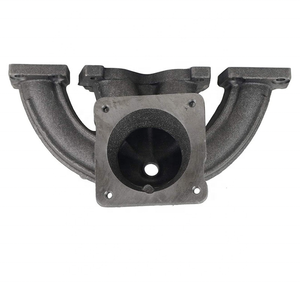

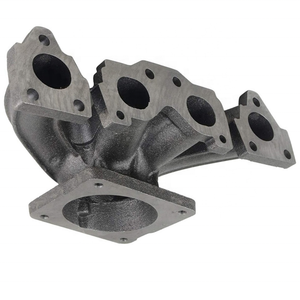

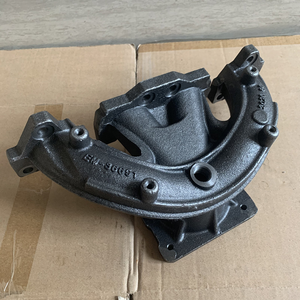

Peugeot 206 Exhaust Manifold
The exhaust manifold collects exhaust gases from each cylinder and channels them into a single pipe leading to the catalytic converter and muffler assembly. This part must endure extreme heat and corrosive gases, so it’s typically constructed from durable materials like cast iron or stainless steel. The design of the exhaust manifold significantly affects engine breathing, backpressure, and overall performance.
Construction Details
- Material Options: Cast iron for durability and heat retention; stainless steel for improved corrosion resistance and lighter weight.
- Mounting Flanges: Precision-machined surfaces ensure a secure connection to the cylinder head and exhaust downpipe.
- Catalytic Converter Integration: Designed with provisions for mounting the catalytic converter to reduce harmful emissions.
- Heat Shield Protection: Many variants include protective shields to prevent damage to nearby components from excessive heat exposure.
Performance Considerations
- Optimized runner geometry minimizes flow restriction and improves scavenging effects
- Turbocharged models have specialized manifolds designed to efficiently direct exhaust energy toward the turbocharger turbine
- High-performance upgrades may include tubular headers for enhanced exhaust velocity and reduced backpressure
- Proper sealing and gasket integrity are essential to prevent exhaust leaks and maintain emissions compliance
| Manifold Type | Primary Function | Common Materials | Key Components Supported | Performance Impact |
|---|---|---|---|---|
| Intake Manifold | Distributes air/fuel mixture to cylinders | Aluminum, Plastic, Cast Iron | Throttle Body, Fuel Injectors, Sensors | Directly influences engine responsiveness and fuel efficiency |
| Exhaust Manifold | Channels exhaust gases to catalytic converter | Cast Iron, Stainless Steel | Catalytic Converter, Turbocharger (on turbo models) | Impacts engine power output, emissions, and backpressure levels |
Expert Tip: When replacing either manifold on your Peugeot 206, always inspect and replace the associated gaskets to prevent vacuum leaks or exhaust leaks, which can lead to poor engine performance and increased emissions.
Specification and Maintenance of Peugeot 206 Manifold Components
The manifold system in the Peugeot 206 plays a crucial role in engine performance by managing airflow and pressure dynamics. Proper understanding of its components and regular maintenance are essential for optimal operation and longevity. Below is an in-depth look at each key component of the intake manifold system and recommended maintenance practices.

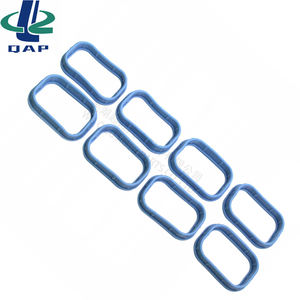

1. Manifold Gasket
The manifold gasket forms a critical seal between the intake manifold and the cylinder head, preventing leaks of air, fuel mixture, or coolant. It must withstand high temperatures and fluctuating pressures while maintaining a perfect seal.
Material Types
- Metal Multi-Layer Steel (MLS): Offers excellent durability and heat resistance. Layers compress under bolt torque to create a tight seal.
- Composite Materials: Made from rubber or graphite-infused compounds that conform better to surface irregularities but may wear faster over time.
Installation Tips
- Always use new bolts when replacing gaskets to prevent uneven torque.
- Clean both mating surfaces thoroughly before installation.
- Tighten bolts gradually in a crisscross pattern to avoid warping.
2. Intake Air Control Valve
This valve regulates the amount of air entering the engine based on real-time signals from the Engine Control Unit (ECU). It helps maintain the ideal air-fuel ratio for combustion across varying driving conditions.
3. Throttle Body
Positioned between the air filter and the intake manifold, the throttle body controls how much air enters the engine based on driver input via the accelerator pedal.
Types of Throttle Bodies
- Cable-Driven: Mechanically linked to the accelerator pedal via a cable.
- Electronic Throttle Control (ETC): Uses sensors and actuators for precise control, part of drive-by-wire systems.
Maintenance Recommendations
- Inspect and clean throttle plate regularly to remove carbon buildup.
- Check sensor calibration if idle speed becomes erratic or throttle response feels delayed.
- Lubricate mechanical linkages (if applicable) every 20,000 km.
4. Manifold Pressure Sensor (MAP)
The MAP sensor measures the absolute pressure inside the intake manifold and sends this data to the ECU. This information is used to adjust fuel injection timing and quantity for optimal combustion efficiency.
5. Manifold Vacuum Sensor
This sensor monitors negative pressure (vacuum) levels within the intake manifold and provides feedback to various vehicle systems including cruise control and brake assist functions.
6. Variable Intake Manifold
Found in select Peugeot 206 models, the variable intake manifold optimizes engine torque and efficiency by dynamically altering the length of the intake runners.
How It Works
- At low RPMs: Longer runners increase low-end torque.
- At high RPMs: Shorter runners enhance top-end horsepower.
Maintenance Considerations
- Inspect actuator and linkage for proper movement and lubrication.
- Ensure ECU connections are secure to allow accurate runner adjustments.
- Replace worn or stuck flaps to maintain smooth transitions between runner lengths.
| Component | Primary Role | Recommended Maintenance Interval |
|---|---|---|
| Manifold Gasket | Seal integrity between manifold and engine | Inspect every 30,000 km; replace if leaking or damaged |
| Intake Air Control Valve | Regulates airflow for optimal engine performance | Check function and clean every 20,000 km |
| Throttle Body | Controls air entry based on driver input | Carbon cleaning every 15,000–20,000 km |
| Manifold Pressure Sensor (MAP) | Monitors manifold pressure for fuel adjustment | Test signal voltage annually or if symptoms arise |
| Manifold Vacuum Sensor | Measures vacuum for system coordination | Inspect vacuum lines and test annually |
| Variable Intake Manifold | Optimizes torque through runner length changes | Actuator inspection and lubrication every 40,000 km |
Important: When performing any maintenance on the intake manifold system, ensure all vacuum hoses are reconnected properly and no debris enters the manifold. Even small leaks or blockages can significantly impact engine performance and fuel economy. Always refer to the official Peugeot service manual for exact torque specifications and diagnostic procedures.
How to Choose Peugeot 206 Manifolds
Selecting the right manifold for your Peugeot 206 is crucial for maintaining or enhancing engine performance, fuel efficiency, and overall driving experience. The manifold plays a key role in airflow management (intake) and exhaust gas evacuation (exhaust), directly influencing how the engine breathes and performs.
Compatibility with Your Vehicle
Ensuring that the manifold fits your specific Peugeot 206 model is the first and most critical step. Variations exist across production years, engine types (such as TU3JP or EW10J4), and trim levels.
- Check the engine code under the hood or in your service manual
- Verify the model year and trim level of your vehicle
- Confirm bolt pattern and port dimensions match original equipment
Pro Tip: Cross-reference part numbers from manufacturers to ensure proper fitment before purchasing.
Material Selection and Benefits
The material of the manifold significantly affects weight, thermal properties, durability, and cost. Each type serves different needs and budgets.
- Aluminum: Lightweight, excellent heat dissipation, ideal for modified engines seeking performance gains
- Cast Iron: Durable, retains heat well, commonly used in OEM exhaust manifolds
- Composite Plastic: Often found on modern intake manifolds, offering weight savings and corrosion resistance
Key Insight: Aluminum intake manifolds can reduce engine weight and improve throttle response compared to heavier cast iron units.
Design and Functional Configuration
Understanding whether you need an intake or exhaust manifold—and its design characteristics—is essential. Performance-oriented drivers may benefit from specialized designs.
- Intake Manifolds: Distribute air/fuel mixture to cylinders; look for smooth runners and plenum volume matching engine requirements
- Exhaust Manifolds: Collect exhaust gases; equal-length runners help scavenging and improve power output
- Performance Designs: Include tuned runner lengths, port-matched flanges, and smoother internal surfaces
Performance Note: Equal-length headers (for exhaust) can enhance torque curves and top-end power by improving exhaust scavenging.
Brand Reputation and Quality Assurance
Choosing a reliable brand ensures better fitment, longevity, and performance. Reputable brands often provide detailed compatibility information and warranties.
- OEM options like Peugeot/Citroën branded parts guarantee factory-level compatibility
- Aftermarket brands like Mahle, Febi Bilstein, or Walker offer cost-effective alternatives
- High-performance brands such as Milltek Sport or AFE are ideal for modified vehicles
Quality Check: Look for certifications like ISO 9001 or TS 16949 to ensure manufacturing standards are met.
Installation Consideration: If you're planning a DIY installation, opt for manifolds that come with gaskets, bolts, and detailed instructions. For complex installations—especially involving exhaust systems—consider professional assistance to avoid leaks or damage.
| Use Case | Recommended Material | Design Features | Lifespan Expectancy |
|---|---|---|---|
| Stock daily driver | Cast iron / composite plastic | Factory-style runners and ports | 80,000–120,000 km |
| Mildly modified engine | Aluminum alloy | Smoothed internal surfaces | 60,000–100,000 km |
| Performance build | Stainless steel header / aluminum | Equal-length runners, port matched | Varies with tuning intensity |
| Race or track use | Turbo-back stainless steel / titanium | Free-flowing design, high-temp coatings | Depends on usage frequency |
Performance Upgrade Advice: If you're aiming for increased horsepower or torque, consider upgrading both the intake and exhaust manifolds together. This allows for balanced airflow improvements and maximizes the potential of other modifications like camshafts or ECU remaps.
DIY Guide to Replacing Peugeot 206 Manifolds
Replacing the manifold on a Peugeot 206 is a moderately challenging task that can significantly improve your vehicle's performance and emissions efficiency if done correctly. Whether you're replacing the intake or exhaust manifold, following this detailed guide will help ensure a smooth process with minimal complications.
Safety Warning: Always work in a well-ventilated area and disconnect the battery before starting any engine-related work. Use protective gloves and eyewear when handling components and tools. Be cautious of sharp edges on metal parts and hot surfaces even after the engine has cooled down.
Step-by-Step Replacement Process
- Prepare the Vehicle
- Park the car on a level, stable surface and engage the parking brake for safety.
- Turn off the ignition and allow the engine to cool completely to prevent burns from hot components.
- Open the hood and secure it using the hood prop rod or a helper if necessary.
- Remove the engine cover by unclipping or unscrewing all fasteners. Keep screws and clips organized for reassembly later.
- Disconnect the Battery
- Use a wrench to loosen and remove the negative terminal first to avoid accidental short circuits.
- Secure the terminal away from the battery post to prevent accidental contact during the job.
- This step is crucial for protecting both you and the vehicle’s electronic systems during the manifold replacement.
- Remove Intake and Exhaust Components
- Begin by loosening the bolts connecting the exhaust pipes to the exhaust manifold using an appropriate socket or wrench.
- Carefully remove these pipes and set them aside, being mindful not to damage gaskets or surrounding components.
- Unbolt the exhaust manifold from the cylinder head. This may require penetrating oil if the bolts are corroded or seized due to heat cycling over time.
- Align the new manifold carefully to maintain proper sealing and avoid stress on bolt threads or adjacent components.
- Tighten the mounting bolts gradually in a crisscross pattern to ensure even pressure distribution and prevent warping.
- Disconnect Other Connected Components
- Identify and label any sensors, vacuum lines, or wiring harnesses connected to the manifold.
- Disconnect the EGR (Exhaust Gas Recirculation) valve and PCV (Positive Crankcase Ventilation) system components as needed to provide clearance for removal.
- Keep all small parts such as washers, bolts, and connectors in labeled containers for easy reinstallation.
- Remove the Old Manifold
- After disconnecting all related components, slowly lift the old manifold away from the engine block.
- Inspect the mating surface on the cylinder head for carbon buildup, corrosion, or warping before installing the new part.
- Use a plastic scraper or gasket remover to clean the surface thoroughly—avoid metal tools that could scratch the aluminum head.
- Install the New Manifold
- Apply a thin, even layer of high-temperature gasket maker to the flanges of the new manifold before installation.
- Position the manifold carefully onto the cylinder head, ensuring proper alignment with all bolt holes and ports.
- Begin threading each bolt by hand to avoid cross-threading, then tighten them gradually using a torque wrench to the manufacturer's specifications.
- Improper torque can lead to leaks or manifold warping, so always follow recommended values found in the service manual.
- Reconnect Other Components
- Reattach the EGR valve, PCV system, and any other disconnected components in the reverse order they were removed.
- Ensure all connections are tight and properly seated to avoid vacuum leaks or sensor malfunctions.
- Double-check that all sensors are plugged back in and secured to avoid check engine light triggers.
- Reassemble Other Components
- Reinstall the heat shield, intake air duct, and any other removed parts that were blocking access to the manifold area.
- Make sure all clips and fasteners are securely tightened to factory specifications.
- Check for any tools or leftover parts before proceeding to the final steps.
- Reconnect the Battery
- Reconnect the negative battery terminal using a wrench and ensure it is tight and secure.
- Once reconnected, turn the key to the "ON" position without starting the engine to allow the ECU (Engine Control Unit) to reset.
- Start the engine and listen for unusual noises or vibrations that might indicate a leak or improper installation.
| Replacement Phase | Critical Tasks | Common Mistakes | Tools Required |
|---|---|---|---|
| Preparation | Vehicle positioning, engine cooling, battery disconnection | Rushing the process, skipping safety checks | Wheel chocks, jack stands, wrench set |
| Disassembly | Labeling connections, removing obstructing parts | Mislabeling components, losing small parts | Pen and paper, zip ties, container for parts |
| Manifold Removal | Gasket cleaning, surface inspection | Scratching cylinder head, improper removal technique | Penetrating oil, plastic scraper, socket set |
| Installation | Proper alignment, correct torque specs | Cross-threaded bolts, uneven tightening | Torque wrench, thread lubricant |
| Final Assembly | Reconnecting sensors, testing for leaks | Missed connections, loose clamps | Vacuum tester, OBD-II scanner |
DIY Tip: After completing the installation, consider performing a smoke test or using a vacuum gauge to detect any hidden leaks that could affect engine performance. Also, resetting the ECU may be necessary to clear any stored fault codes after component changes.
Post-Replacement Checks and Maintenance
- Monitor the engine for unusual sounds like hissing (indicative of vacuum leaks) or rattling (signs of loose components).
- Check for fluid or exhaust leaks around the new manifold by visually inspecting under the hood while the engine is running.
- Take the vehicle for a short test drive to ensure smooth acceleration and normal engine behavior.
- If the check engine light illuminates, use an OBD-II scanner to retrieve and address any diagnostic trouble codes.
Frequently Asked Questions About Peugeot 206 Manifolds
The Peugeot 206 manifold plays a crucial role in the engine's operation by managing the flow of air and fuel into the combustion chamber and directing exhaust gases out after combustion. The manifold ensures that each cylinder receives an even distribution of the air-fuel mixture, which is vital for smooth engine performance, optimal power output, and efficient fuel consumption.
In modern vehicles like the Peugeot 206, the intake manifold also houses or connects to various sensors and actuators such as the throttle body, mass airflow sensor (MAF), and EGR valve, all of which help the engine control unit (ECU) maintain ideal engine conditions under varying loads and speeds.
There are two primary types of manifolds found on the Peugeot 206:
- Intake Manifold: Responsible for distributing the air (or air-fuel mixture in older models) to each cylinder. It plays a key role in optimizing engine breathing and can influence torque and horsepower characteristics depending on its design.
- Exhaust Manifold: Collects exhaust gases from each cylinder and directs them into the exhaust system. This component must withstand high temperatures and pressure fluctuations, often made from cast iron or stainless steel.
Some performance-oriented variants like the 206 GTi may feature tuned intake manifolds designed to enhance airflow and improve engine response at higher RPMs.
No, the Peugeot 206 manifolds are specifically engineered to fit the dimensions, engine configuration, and performance requirements of the Peugeot 206 model range. While certain components might share similarities with other small Peugeot models, direct interchangeability is rare due to differences in engine layout, mounting points, and emissions systems.
Additionally, there are variations within the 206 lineup itself, including:
- Diesel engines (like the 1.4 HDi and 1.6 HDi)
- Petrol engines (such as the TU-series 1.1L, 1.4L, and 1.6L units)
- High-performance GTi models
Each version may have uniquely designed manifolds to match their respective engine tuning and packaging constraints.
Most Peugeot 206 exhaust manifolds are constructed from either cast iron or stainless steel, depending on the model and production year. Stainless steel versions offer superior corrosion resistance and better heat management, making them more durable over time compared to traditional cast iron.
Intake manifolds, on the other hand, are typically made from lightweight materials such as aluminum or composite plastics to reduce overall weight and improve airflow efficiency. These materials also help in reducing engine bay temperatures and enhancing throttle response.
A damaged or leaking manifold—either intake or exhaust—can cause a variety of issues affecting engine performance and drivability. Common symptoms include:
- Unusual Engine Noises: A tapping, clicking, or hissing sound coming from the engine area, especially during acceleration or idle.
- Reduced Power and Performance: Loss of horsepower, sluggish acceleration, or rough idling due to improper air/fuel ratios or exhaust backpressure issues.
- Burning Smell Inside the Cabin: If the exhaust manifold develops cracks or leaks, hot fumes can enter the passenger compartment through the ventilation system.
- Illuminated Check Engine Light: Fault codes related to oxygen sensors, misfires, or vacuum leaks often point to manifold issues.
- Increased Fuel Consumption: Due to incorrect air intake readings or inefficient combustion cycles.
If any of these symptoms appear, it’s important to inspect both the intake and exhaust manifolds for signs of wear, cracking, warping, or leaking gaskets. Prompt diagnosis and replacement can prevent further engine damage.
