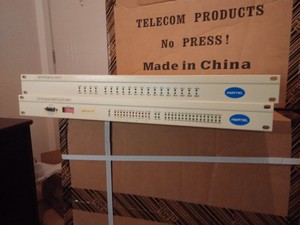

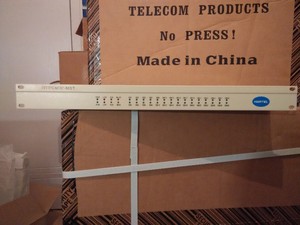

The term PCM MUX refers to Pulse Code Modulation Multiplexer which is a device that combines multiple signal channels and converts them into a digital format for efficient transmission. PCM MUXes come in various configurations depending on the number of channels they handle. The main types include:
Basic 2-Channel PCM MUX
This basic function allows the mux to handle only two signals at a time which is a low capacity by current standards. Even so, such basic devices are often useful for low-volume applications, especially in a test environment where only small number switch channels need digital encoding.
4-Channel PCM MUX
As the channel capacity increases to four, so do the application possibilities. This device is ideal where small data traffic volume is needed to be encoded for long-distance transmission. Telecommunications equipment and other small systems powered by this device do well with the 4-channel PCM MUX.
8-Channel PCM MUX
The 8-channel PCM MUX can combine up to eight analog signals into a single digital stream. This is more efficient for medium traffic data systems to deploy than individual line transmission systems which is true for telecom networks and industrial control systems.
16-Channel PCM MUX
With 16 channels, this Pcm multiplexer becomes suitable for larger systems with moderate signal volume requirements. Telecom networks and other large control systems needing more robust encoding solutions use these devices to decode.

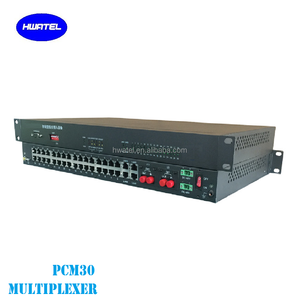

32-Channel PCM MUX
This 32-channel multiplexer can channel up to 32 signals conveniently into one efficient digital transmission line. The device is thus useful in high-volume data environments in such places as telecommunications, broadcasting, and satellite communication.
64-Channel PCM MUX
Offering maximum capacity among commercially available channels, the 64-channel PCM MUX excels in massive signal environments. Its powers are thus useful in such fields as telephone networks, military communication systems, and sophisticated remote sensing.
Telecommunication
Great Channel Density: The Core Function of PCM MUX is to integrate multiple telephone calls or data channels into a single digital signal. This basic property makes them perfect for multiplexers to encode and transmit telephone signals over long distances.
Broadcasting
Real-Time Signal Handling: Broadcasting companies make extensive use of PCM MUX for the real-time encoding and multiplexing of video and audio signals. Such is the ability to handle several channels that it will permit the efficient transmission of high-quality TV and radio signals through digital lines.
Aerospace and Defense
Signal Integrity: PCM MUX is used in military and satellite communications systems to ensure reliable long-distance transmission of critical data. Multiplexers help to encode various data feeds, such as telemetry and command signals, into digital formats that are more resistant to interference.
Industrial Automation
System Integration: In large industrial settings, multiple control signals from sensors and equipment can be multiplexed by PCM MUX and sent over a single line. This reduces wiring clutter and makes data transmission for control systems more efficient.
Medical Systems
Data Transmission: PCM MUX is employed in medical telemetry systems where patient data from several monitoring devices need to be transmitted safely and reliably. Multiplexers ensure that vital signs are, thus, efficiently encoded and sent over long distances without any loss of signal.
Rail Transportation
Signal Monitoring: The rail system monitors and maintains the operation and safety of trains and tracks. In these control systems, PCM MUX is used to simultaneously multiplex many analog signal sensors, removing the need for excessive wiring and providing reliable real-time signal transmission.
Channel Capacity
A PCM MUX can accommodate several incoming analog signal channels, commonly from 2 to 64, for multiplexing into one output. More channels increase the capacity and complexity of the system functions.
Bit Rate
This determines how fast the multiplexer can transmit the combined signal, measured in bits per second. Higher the channel count, higher the bitrate is needed for efficient signal transmission. PCM MUX devices come with standard bit rates for voice, data, and video applications.
Signal to Noise Ratio
SNR illustrates the quality of the output signal in relation to noise. Higher SNR reduces interference, thus lowering loss during transmission. This ensures that multiplexers provide much clearer, more reliable signals, especially in long-distance communication systems.
Operating Voltage
The voltage range in which the multiplexers function optimally is typically between 5 and 15 volts. This is a key consideration during installation because the PCM MUX needs to be powered reliably depending on the system's power supply configuration.
The following are the steps one should take in the wireless installation of PCM MUX:
The following are the ways of using PCM MUX:
Data Transmission: PCM MUX encodes combined analog signals into digital data for transmission. This enables faster and more reliable communication through reduced interference over long distances.
PCM MUX Maintenance
The PCM MUX is maintained by regularly backing up the configuration and updating the software. The redundant power supplies and fans are checked to ensure reliability, and the hardware is monitored to avoid overheating. Equipment helps in performing routine checks on the signal quality and error rates to identify problems early.
PCM MUX Repair
This requires identification of faulty parts first. The process of repairing hardware involves replacing damaged cards or cables. On the software side, bugs found in the OS must be updated. Errors will be fixed after using the configuration backup to restore the default functioning config.
Signal Integrity
The better the quality of the mux, the higher the signal distortion and loss reduction is. This is important in long-distance communication where the slightest degradation gets magnified. Quality devices preserve the fidelity of even weak signals, ensuring they are intelligible at the receiving end.
Channel Isolation
Good-quality multiplexers correspondingly ensure strong isolation between channels such that each incoming signal is kept distinct and unaffected by noise from others. This avoids cross-talk, a situation that can cause interference between channels during transmission.
Durability and Reliability
The cheaper build tends to break down more often than not, hence affecting system reliability in times of critical importance. Quality PCM MUX devices are manufactured to military standards with premium electronics that operate even under extreme conditions of temperature, humidity, and shock.
Latency and Throughput
Multiplexers encode and transmit several signals at once, with top-quality units doing this faster and more efficiently with minimal delays. High-performance processing is maintained by quality devices with robust hardware capable of high bit rates with maximum throughput.
Electrical Safety
Caution should thus be exercised when working with PCM MUX devices connected to the main power supply since there is a risk of electric shock on the exposed components. Always follow proper lockout/tagout procedures before touching wired equipment to avoid injury from electrical currents.
Heat Dissipation
PCM MUX safety considerations include overheating, which is common with high-performance devices that generate significant heat. These devices must be given proper ventilation so that users are protected from burns and equipment failure due to overheating is avoided.
Secure Mounting
Poorly mounted PCM MUX devices pose safety threats because their random movement may cause injury. The risk of electric shock or damage to the equipment is real when one or two devices vibrate or shift when under heavy machinery or vehicles.
Data Security
PCM MUX is used in sensitive communications systems that transmit confidential information. It is therefore important to consider safety regarding data security transmission encryption. Unencrypted signals can be intercepted by unauthorized personnel and constitute a breach of safety protocols.
A1. Unlike traditional analog multiplexers, which simply switch signals, PCM MUX encodes signals into a digital form. This enables longer transmissions that are more efficient with, hence, higher signal integrity.
A2. Yes, cascading PCM MUX units assist in handling larger systems that need more channels by combining their outputs into a singular signal for transmission.
A3. No, PCM MUXs have uses beyond telecommunications such as video broadcasting, aerospace telemetry, industrial automation, and other control system signal transmissions.
A4. The main advantage of this signal digitization is the interference reduction over long distances, making communication much more robust and reliable.
A5. PCM MUX uses buffering error correction techniques and efficient encoding algorithms to ensure that transmitted data is protected from interference and mishaps in real-time applications.
