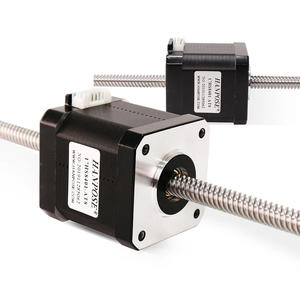

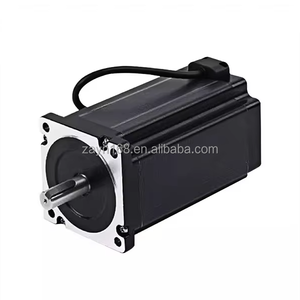

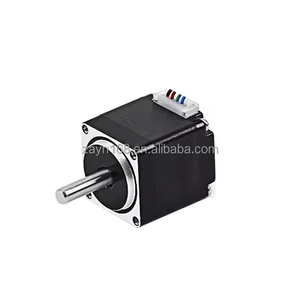

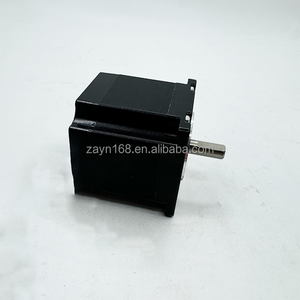

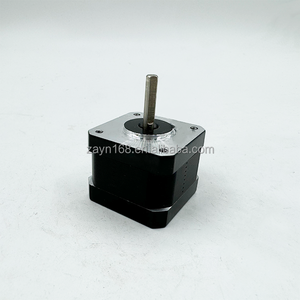

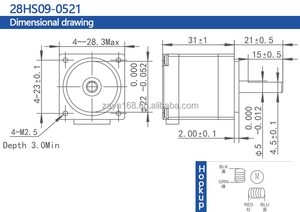

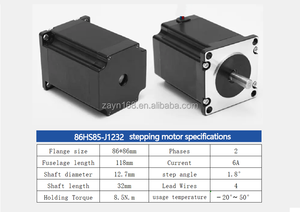

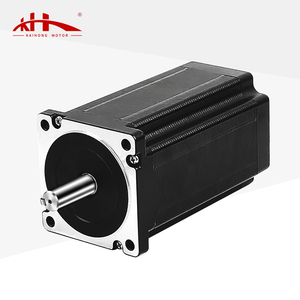

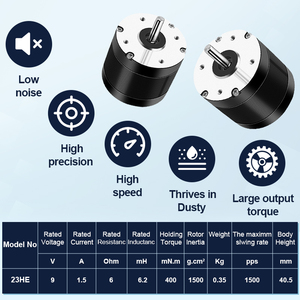

Types of Parts Stepper

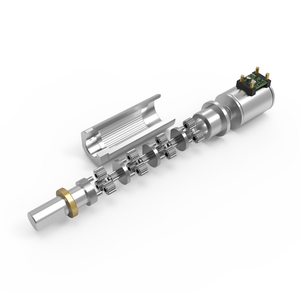

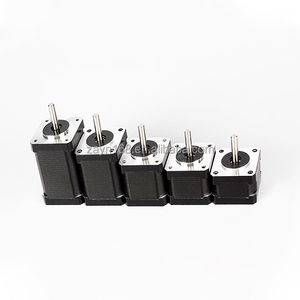

Parts stepper motors are precision instruments that convert electrical pulses into mechanical movement. These motors are widely used in various applications requiring accurate positioning and control.

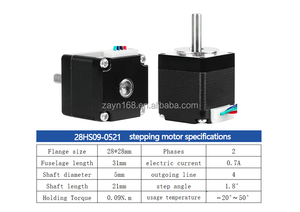

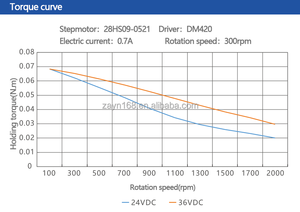

The motor moves in fixed steps, usually 200 steps per revolution, making it ideal for applications requiring precise control. Here are some common types of parts stepper motors:

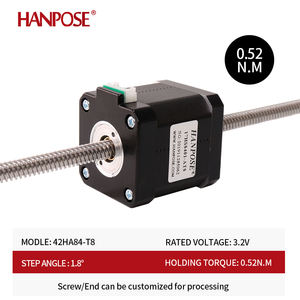

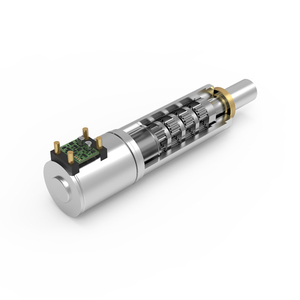

• Permanent Magnet Stepper Motors

  This motor uses permanent magnets in its rotor. The magnets align with the stator's magnetic field, providing precise positioning. The rotor moves in discrete steps of 1.8 degrees, making it highly accurate. These motors are commonly used in printers and CNC machines.

• Variable Reluctance Stepper Motors

  The rotor of this motor lacks permanent magnets. Instead, it consists of soft iron teeth that align with the magnetic field of the stator. This creates a tendency for the rotor to move towards the stator, resulting in rotation. The motors offer higher step rates and are more efficient at high speeds than permanent magnet motors. They find applications in robotics and automation systems.

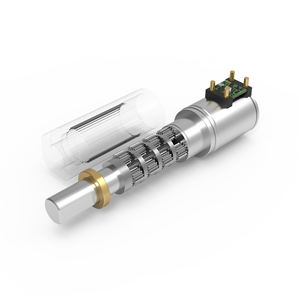

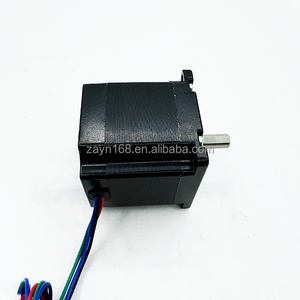

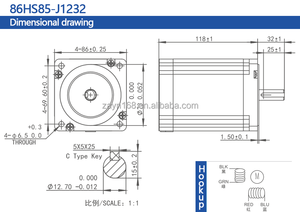

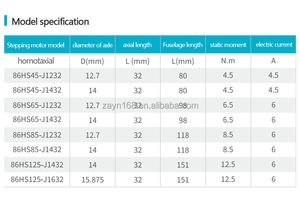

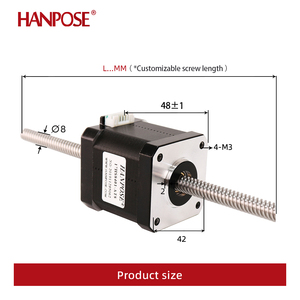

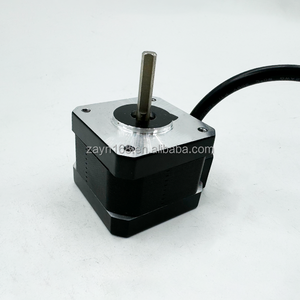

• Hybrid Stepper Motors

  These motors combine the features of permanent magnet and variable reluctance stepper motors. Hybrid stepper motor parts have a more complex rotor design, which includes both permanent magnets and soft iron teeth. It offers improved performance, higher torque, and better precision than the other two types. It is widely used in industrial automation and aerospace applications.

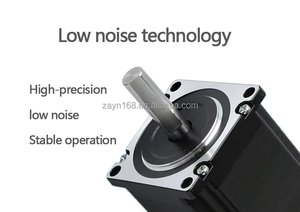

• Bipolar Stepper Motors

  These motors have two bipolar coils that produce magnetic fields. The magnetic fields alternate, causing the rotor to move in steps. They are more efficient and can operate at higher speeds than unipolar stepper motors. They are used in 3D printers and milling machines.

• Unipolar Stepper Motors

  This motor has two sets of windings with a common center tap. Each set of windings is activated alternately, generating magnetic fields that move the rotor in steps. They have a simpler driver circuit and are easier to control. They find applications in scanners and camera autofocus systems.

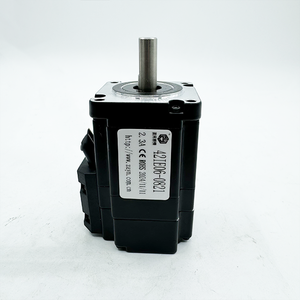

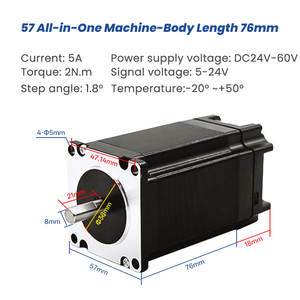

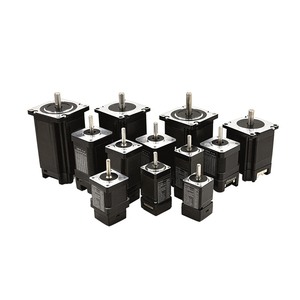

• Smart Stepper Motors

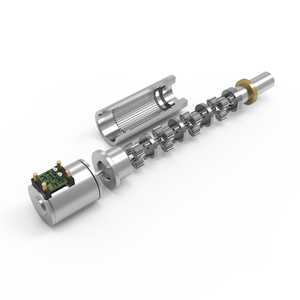

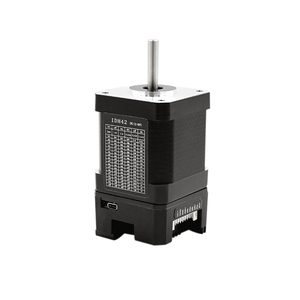

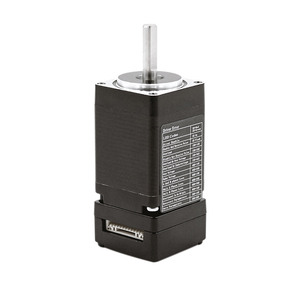

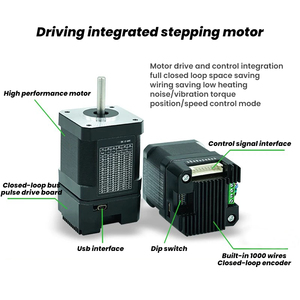

  These are also known as intelligent stepper motors. They come with integrated drivers and control systems. The systems allow for smoother operation and better torque control. They are used in applications requiring compact and efficient motors.

Scenarios of Parts Stepper

Parts that make up a stepper motor are used in numerous ways because they can be relied upon to provide precise and accurate movement. Here are some application areas where parts of steppers are useful:

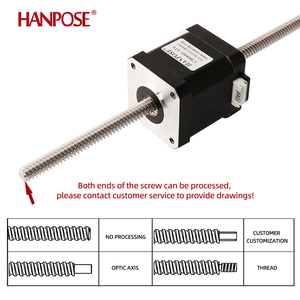

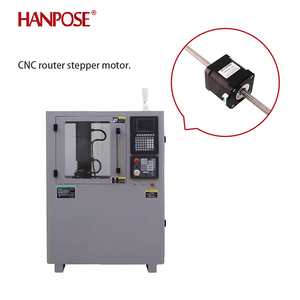

• CNC machinery: In the CNC (Computer Numerical Control) machines, parts of steppers are very useful because they help to move the cutting tools and workpieces with high precision, which results in very accurate cuts and shapes. These parts are also used in 3D printers to move the print head and the print bed, which helps to create layers with high accuracy and efficiency.
• Robotics: Parts steppers are important in robotics because they help to carry out movements that are controlled with accuracy. This is seen in joint and limb movements of robotic arms and legs and in the movement of wheels and tracks of mobile robots.
• Automation equipment: Parts stepper is useful in conveyor belts, sliding tables, and other automated equipment that require precise movement to improve productivity and efficiency in factories and assembly lines.
• Textile machinery: Steppers' parts are used to control the movement of fabric, spools, and weaving and sewing machines, which helps to improve the accuracy of patterns and stitches.
• Packaging machinery: Parts of steppers are used to move products, labels, and packaging materials, which ensures accurate placement, sealing, and labeling of packages.
• Medical equipment: Parts of steppers are used in medical equipment and machines that require precise movements, such as MRI and CT scanners, and in surgical machines and robots that need accurate and controlled movements.
• Aerospace and aviation: Stepper motors are used in aircraft control surfaces, landing gear, and other systems that demand precision and reliability.
• Consumer electronics: Parts of steppers are used in cameras to focus and zoom lenses, in CD and DVD players to move the reading head, and in other electronic devices that require accurate and smooth movement.

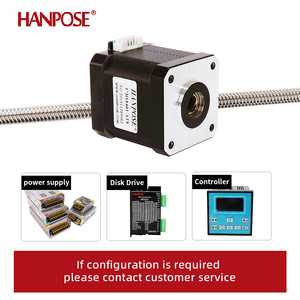

How to Choose Parts of a Stepper

Choosing the right parts for a stepper motor involves several factors to ensure optimal performance for the specific application. Here are the key elements and their considerations:

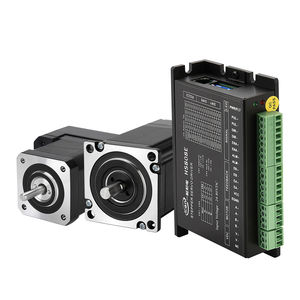

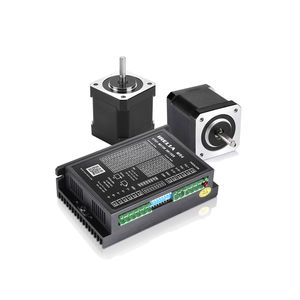

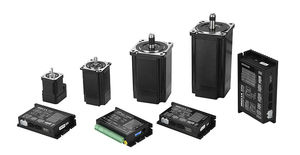

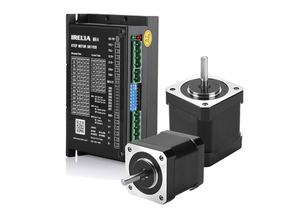

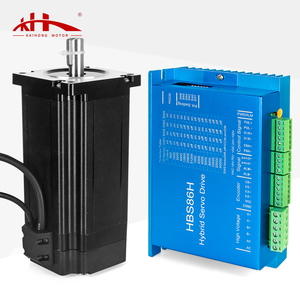

• Driver

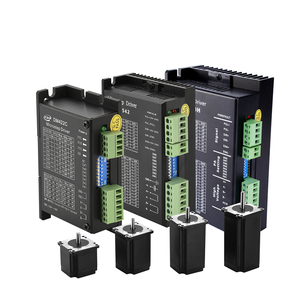

  Stepper motor drivers are crucial components that control the motors. The driver regulates the power supply and translates control signals into motor movement. It's essential to pair the motor with an appropriate driver that can handle its voltage and current specifications. Advanced drivers offer features like micro-stepping, which enhances the motor's precision and reduces vibrations. For high-performance applications, consider drivers with adjustable current settings and advanced control algorithms.

• Controller

  The controller is the brain of the operation, sending commands to the driver. It can be as simple as an Arduino board or a more complex system like a Raspberry Pi or a dedicated motion control board. The choice of controller depends on the complexity of the tasks, the need for real-time processing, and the interface requirements. For applications requiring extensive programming and flexibility, a programmable controller is ideal.

• Power Supply

  A compatible power supply is vital for the stepper motor's operation. The voltage needs to match the requirements of the motor and driver, while the current must be sufficient to power the motor under full load. It's recommended to use a power supply with a slight voltage and current rating above the minimum requirements to ensure reliability and accommodate potential future upgrades. Consider power supplies with built-in protection features, such as over-voltage and short-circuit protection, for added security.

• Cooling and Protection

  Stepper motors can generate significant heat during operation, especially under heavy loads. Implementing adequate cooling solutions, like heat sinks and cooling fans, is necessary to prevent overheating and ensure longevity. In environments with dust or moisture, protective enclosures can shield the motor and components from damage. For high-precision tasks, consider motors with integrated feedback systems to monitor performance and adjust parameters in real time.

Functions, Features and Design of Parts of a Stepper(Combined)

Functions

• Driver

  Drivers control the current flowing to the motor for the better performance of the motor.

• Controller

  Controllers are used to send commands to the driver to control the motion of the motor.

• Power Supply

  Power supplies give the required voltage and current to the stepper motor and its components.

• Couplings

  Couplings connect the stepper motor to the load while compensating for misalignment.

• Cooling System

  Cooling systems prevent overheating, thereby increasing the motor's life.

Features

• Driver

  They can be micro-stepping or full-stepping.

• Controller

  They can be open-loop or closed-loop systems.

• Power Supply

  They provide constant voltage or current.

• Couplings

  They can be rigid or flexible couplings.

• Cooling System

  They can be active or passive cooling systems.

Design

• Driver

  Drivers are designed using integrated circuits with heat sinks for cooling.

• Controller

  Controllers are designed using microcontrollers or DSPs with appropriate input and output interfaces.

• Power Supply

  They are designed with voltage regulators, capacitors, and heat sinks.

• Couplings

  They are designed to be torsionally stiff and elastically compliant.

• Cooling System

  They are designed using fins, heat sinks, and fans.

Q & A

Q1: What is a parts stepper?

A1: A parts stepper is a type of motor that moves in discrete steps or increments. It is used in various applications, including 3D printers, CNC machines, and robotics, to provide precise control over movement. It moves a small, fixed distance (step) whenever it receives a pulse signal from a controller. This allows for accurate positioning and repeatability. The stepper motor is commonly used in industries and businesses that require precision movement at an affordable cost.

Q2: What is the difference between a stepper motor and a servo motor?

A2: The difference between a stepper motor and a servo motor is that a stepper motor is an open-loop control system with no feedback mechanism, while a servo motor is a closed-loop control system with a feedback mechanism. A stepper motor moves in discrete steps, while a servo motor moves smoothly and can cover a wide range of speeds. A stepper motor is less complex and cost-effective than a servo motor, which is more complex and expensive but offers better performance in applications requiring high speed, torque, and precision.

Q3: What are the applications of parts steppers?

A3: Parts steppers are widely used in industries with automation and control systems, such as packaging, electronics, food and beverage, pharmaceuticals, and textiles. Some specific applications include conveyor systems, sorting and handling systems, assembly lines, printing and labeling machines, and CNC machining and milling.

Q4: How do I maintain my parts stepper?

A4: Stepper motors require minimal maintenance. Keep the motor clean and free from dust and debris. Inspect the wiring and connectors for any signs of damage or wear. Periodically lubricate the motor's bearings and mechanical components using appropriate lubricant. Avoid overloading the motor beyond its rated torque capacity to prevent damage.
