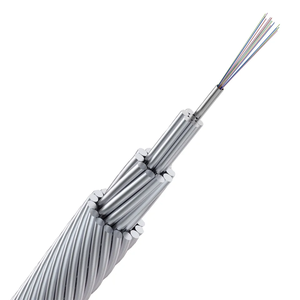

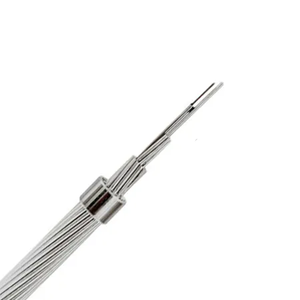

Oppc fiber optic cable

Types of OPPF Fiber Optic Cable

Fiber optic cables come in various designs distinguished by core diameter, mode of operation, material composition, and intended use. For this reason, great care must be practiced when choosing an appropriate type since performance, installation, and application may all be affected.

• Single-mode fiber optic cables

  The core of single mode fiber cable is around 9-10 microns in diameter. The wire is appropriate for systems spread over a great distance since it channels one light ray at a time. Due to the minimized dispersion afforded by this mode, single-mode cables have optimum performance for telephone calls and video transmissions. They are regularly installed in networks to afford long-distance communication.

• Multi-mode fiber optic cables

  Unlike single-mode fibers, the cores of multi-mode fibers have larger diameters, normally between 50 and 62.5 microns. These fibers permit several light rays to travel simultaneously. Even though they have been superseded by advanced technologies for longer distances, newer multi-mode fibers still bear practical usage in large building infrastructures and campus networks. With a lower cost and easier installation, they provide sufficient bandwidth for regional communications.

• Plenum-rated fiber optic cables

  Plenum-rated fiber optic cables are adequately shielded with a specific thermoplastic, such as low-smoke polyvinyl chloride (PVC). Installation in plenum areas, which constitute airflow zones for heating and cooling systems, is proper. Their distinctive fire-retardant qualities ensure a higher degree of safety in case of any fire breakout. Due to safety issues, they are preferred in office buildings, schools, and hospitals.

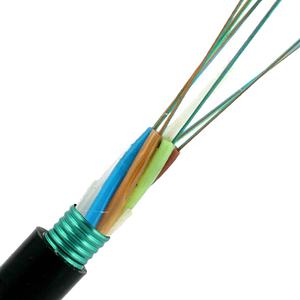

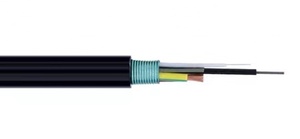

• Armored fiber optic cables

  Due to the additional protective layer surrounding metal wire, armored fiber optic cables have heightened resistance to external forces such as rodents, extreme weather conditions, and direct impacts. They are purposefully designed for harsh environments where >standard fiber optics may be easily damaged. Examples of such harsh environments are underground installations or those in industrial facilities and areas with high fauna density.

• High-density polyethylene (HDPE) duct fiber optic cables

  HDPE duct fiber optic cables are specifically designed for long-term outdoor installation in conduits or underground duct systems. Due to their ultra-durable polyethylene construction, they are resistant to extreme weather and ultraviolet rays. Furthermore, their robustness allows easy pulling through ducts without the fear of excessive bending or breaking. For telecommunications networks or fiber optic internet cable installations over large areas, these cables are predominantly used.

Specifications and Maintenance of OPPF Fiber Optic Cable

Key features of OPPF fiber optic cable

• Core design: Mode of operation pertains to the structure of the fiber core. Unlike multi-mode fibers, which have larger core diameters and channel many light waves, single-mode fibers feature a core that is about the size of a human hair. Multi-mode fibers have core diameters that are larger than single-mode fibers, ranging from 50 to 62.5 microns in diameter.
• Cladding and coating: All fiber optic wires are mounted on cladding of different refractive indices and coated for protection. A ring of glass surrounds the core, reflecting light so it can be transmitted with minimal loss. Depending on their mode, single-mode and multi-mode fibers have different thicknesses of cladding. Typically, the diameter of the cladding for most multi-mode fibers falls within the range of 125 to 130 microns. However, the diameter of the cladding for single-mode fibers is slightly smaller than that of multi-mode fibers. This is because single-mode fibers require greater precision in light transmission. The cladding is lined with protective layers of different materials that vary in flexibility and durability depending on the fiber's intended use.
• Index of refraction: Every fiber optic cable is designed to transmit maximum light. The refractive index of the core glass and cladding significantly impacts light loss during transmission. Generally, lower refractive indexes mean reduced energy loss.
• Length: Greater lengths usually increase attenuation and reduce system bandwidth. Factors affecting length include installation environment and type of jointing technique employed in its construction.
• Bend radius: The minimum bend radius indicates the sensitivity of a fiber optic cable to sharp bends or twists. Sharp bends can lead to nominal light loss and, in extreme cases, permanent damage. Generally, multi-mode fibers are more flexible than multi-mode fibers.

Maintenance tips for OPPF fiber optic cable

• Regularly inspect: Always, check for any physical damages, bends, or moisture infiltrations into the fiber casing. Use a professional fiber optic cable tester to measure the light loss.
• Ensure clean connectors: Wipe any dirt, dust, or fingerprints off fiber connectors before usage. Dirty connectors can increase signal loss, affecting the quality of the communication.
• Avoid sharp bends: Installation or usage excessive sharp bends or tight knots on an optical fiber cable. These generally lead to high disturbances, damage optical fibers, and reduce signal strength drastically.
• Monitor performance: Track any parameters such as signal strength and attenuation to spot issues early. Performance drop alerts are telltale signs indicating the onset of maintenance requirements.
• Limit exposure to elements: If one works outdoors, minimize fiber exposure to wide temperature fluctuations and moisture. One can also use ducts and protective casings to boost long-term durability.
• Professional testing: Once in a while, arrange for professional testing services using an OTDR (Optical Time Domain Reflectometer) equipment. This is because specialists might spot hidden problems that routine inspections miss.

What Should One Consider When Choosing OPPF Fiber Optic Cable

• Transmission distances

  Single-mode fiber is the ideal fiber optic cable for long-distance transmission due to very low attenuation and no signal distortion for several kilometers. In contrast, multi-mode fibers are commonly used for intra-building communications in construction sites or telecommunications networks in general, where distances are relatively shorter. Choosing the type depending on the transmission length will ensure signal integrity and optimal performance.

• Environmental conditions

  Environmental conditions are a very important consideration for selecting fiber optic cables. In areas that are likely to have extreme weather, temperatures, or physical threats, opt for outdoor-rated cables equipped with protective casings, for example, a polyethylene jacket or an armored layer. They are specifically designed to resist water, UV rays, and environmental damage. For installations in conduits or underground ducts, HDPE duct fiber optic cables are suitable for outdoor use. Indoor installations will require a plenum or non-plenum-rated optical cable that meets fire safety standards.

• Bandwidth requirements

  The choice of fiber type mainly depends on current and future bandwidth requirements. For high capacity and data rate, such as in video conferencing or large data transfers, a wide-band multi-mode fiber or single-mode fiber optic cable will be appropriate. Multi-mode fibers have larger core diameters, thus providing greater light pathways and bandwidth. Campus networks or data centers where high-speed transmission over relatively short distances is required will benefit from using a wide-band multi-mode fiber. In contrast, long-distance communication requiring lower bandwidth will do just fine with single-mode fiber. Multi-mode fibers are also suitable for short-distance high-bandwidth needs, such as within a building. Installation costs and network architecture are some essential factors to note here.

• Installation costs and network architecture

  Single-mode fibers are costlier and thus more expensive to install than their multi-mode counterparts. The core of single-mode fibers is narrower, so it requires more precise alignment of optical components for signal transmission. This makes their installation more complicated and, hence, the added expense. Conversely, multi-mode fibers, with broader cores, are less complex to install and, hence, less costly. In essence, one should weigh the total costs of installation against the network design and configuration requirements.

Q&A

Q1: Can OPPC be used for fiber optic cabling?

A1: There are optical fiber cables that have been designed specifically for aerial installation that is under challenging environmental conditions. Such cables include those constructed with an aluminum inner sheath overlaid by a polyethylene outer sheath. This lends them strength, durability, and resistance to environmental conditions, such as water, UV light, and extreme weather.

Q2: What is the maximum distance for >fiber optic cable in a residential setting?

A2: A fiber optic cable can cover a range of 3 to 6 kilometers (1.9 to 3.7 miles) in a residential setting if equipped with multi-mode fiber. If single-mode fiber is used, it can cover up to 40 kilometers (24 miles) or even more, depending on the type of fiber used and the specific tensile strength of the fiber optic cable endpoints used.

Q3: Are fiber optic cables worth the investment?

A3: Fiber optic cables are very much worth the investment. They provide lightning-speed internet access, unparalleled reliability, and minimal signal loss over long distances. When compared to copper wires, their durability, bandwidth capacity, and performance in areas impervious to electromagnetic interference make them a very valuable investment for both residential and commercial applications.

Q4: What is the longest a fiber optic cable can run without a signal loss?

A4: A fiber optic cable can run without signal loss up to 1,000 feet (304.8 meters) when using a multi-mode fiber. It can reach up to 24,000 feet (about 7,300 meters) when using single-mode fiber.
