Metallurgical mounting press

Types of metallurgical mounting press

Metallurgical mounting presses are available in various configurations and types. Each mounting press type is designed to meet several operational, functional, and applications of metallurgical specimens. Below are the main types:

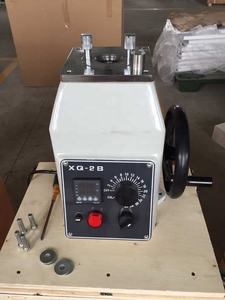

Manual Mounting Press

As the name suggests, manual mounting presses are operated by hand. They apply pressure and work at shifting the materials' temperature to merit the needed mounting. These presses are normally less expensive and, therefore, easier on the hands because of their simple operation. It allows for the real-time adjustment of the pressure applied during the mounting process. Manual presses are excellent for smaller labs or workshops involving occasional sample mounting.

Automatic Mounting Press

Automatic mounting presses are designed to carry out the mounting process automatically. This automation significantly increases productivity, especially when large numbers of samples are processed. Automatic presses provide consistency in pressure application and temperature control, reducing human errors. These presses are indispensable in high-throughput laboratories where efficiency is paramount.

Thermal Mounting Press

This mounting press incorporates heat and pressure to mount samples effectively. As the name suggests, it applies heat to the mounting material (like thermosetting resins) which then flows and is followed by application of pressure to give a solid compacted mass. It is mainly used in scenarios where the mounting material must be made to flow and tightly bond; for instance, with brittle or soft samples that have to undergo metallographic study. The press provides very compact and uniform sections.

Cold Mounting Press

Cold mounting machines use room temperatures or low-heat curing adhesive to do the mounting. They are normally less complex thermally compared to hot mounting presses and thus, suited for heat-sensitive samples which might be damaged through excessive heat. Low-temperature resin hardens into a rigid mount without warping or cracking the sample. Cold mounting is widely used in diverse industries including aerospace or electronics where sensitive metals have to be encapsulated.

High-Pressure Mounting Press

The high-pressure mounting press utilizes very high pressures when compared to the conventional models of mounting presses. Such types of mounting presses are well suited for sample preparation of valuable materials that require premium quality of section or hardened materials that can bear high pressures. High-pressure mounting presses are mostly used in research and development laboratories and in industries dealing with high-performance alloys.

Industrial Applications of metallurgical mounting press

Metallurgical mounting presses play a vital role in various industries, ensuring the accurate preparation of samples for analysis. The below industries and applications involve extensive use of these mounting presses due to their important feature preparations for sample analysis:

Aerospace Industry

Aerospace materials are required to be mounted and tested for strength as well as resistance to extreme environmental conditions. Metallurgical mounting machines are useful to mount these materials to make specimen samples for microscopic examination. In aerospace industry, any errors in the sample preparation may lead to catastrophic failures. Thus, such industry relies on accurate and consistent mounting of specimens which is provided by these machines.

Automotive Industry

The automotive industry uses a diverse range of materials, such as steel, alloys, and non-ferrous metals, which need to be analyzed for wear resistance, corrosion, and structural integrity. Cold mounting machines are mainly used here because of their ability to handle heat-sensitive components like electrical wiring and automotive sensors. There are also large-scale productions in the automotive industry so there is need for efficient sample preparation which is why automatic presses are widely used.

Electronics Industry

There is demand for high-precision sample preparations in the electronics industry due to the use of thin and small materials. Example of pressing machine in electronics industry is cold mounting press which mounts sensitive metals like gold or copper without exposing them to large amounts of heat. This is because excessive heat can damage electronic components. Accurate analysis of materials in this industry is necessary to ensure product reliability and performance.

Metal Fabrication and Manufacturing

The metal fabrication and manufacturing industry have to deal with multiple materials that need to be tested for quality control and research development. There are commonly used in this field, high-pressure and hot mounting presses which prepare metal samples for metallurgical analysis to check structure, grain size, and potential defects. Structural integrity examinations lead to improved processes and products and that is why such presses ensure consistent sample preparation in high demands environments.

Oil and Gas Industry

In the oil and gas industry, there are pipes and other components that are made of different alloys that are exposed to corrosive elements. The mounting presses in this industry prepare samples to be analyzed for corrosion resistance, fatigue strength, and other critical factors that affect the lifespan and safety of materials used in pipeline construction and drilling equipment. High-performance metallography mounting presses are necessary to ensure accurate and reliable sample preparation under harsh operating conditions.

Product Features and Technical Specifications of metallurgical mounting press

Key Features

• Precision and Accuracy

  Precise control of pressure and temperature are very important features of a metallography press machine. This is because it affects the quality of the mounted samples. The mounting presses are designed for the exactitude of samples prepared for analysis and specimen examination in metallurgy. This reduces human error and ensures that specimens always have quality and uniform characteristics required for accurate analysis.

• Versatility

  Metallurgical presses are meant to be used for both hot and cold mounting. This allows them to accommodate a wide range of mounting resins, including thermosetting and thermoplastic. That makes the presses adaptable to many industries and applications where they are used with diverse types of samples. Autogenous high-pressure and cold-pressure mounting machines are widely used for preparing samples in metallography for examination under the microscope.

• Durability and Construction

  Mounting presses are normally very robust and constructed to deal with the high demands of industrial mounting operations. Heavy-duty frames and high-quality components ensure that the presses withstand prolonged use without effecting on performance. The durability of the mounting press is critical as inconsistent picks can lead to inaccurate results. These machines are designed with durability in mind.

• Ease of Use and Maintenance

  Mounting presses have user-friendly controls and are simple to operate. Automation of that presses considerably reduces the effort and time given to sample preparation. The maintenance aspect is also easy, which ensures frequent production pressures for installed industries. Easy maintenance procedures help users to quickly service the machine and limit potential downtimes.

How To Install

The installations done to the metallurgical mounting presses comprise both physical and electrical steps for the press to function properly. Mounting presses have to be adequately installed to press and contain the resin during the mounting process. Here is a general procedure for installing a typical metallurgical mounting press:

1. Location Selection: The first step is to find a level and stable surface to install the mounting press. It should also have enough room for operation and storage of materials and be close to electrical outlets and ventilation if required.
2. Assembly: A number of the mounting presses would require some assembly to be fully operational. This could include the parts pertaining to the frame, pressure plates, heating elements, or controls. The manufacturer's manual should provide detailed information about the assembly instructions.
3. Electrical Connections: Most of the mounting presses have to be connected electrically to pressure apply heat or other functions. This involves plugging the press into an electrical outlet or wiring it per instruction guidelines of the manufacturer.
4. Safety Checks: Before using the press, have all the safety checks done. This would include checking whether there are any loose wires, if there is any block pressure creating element, and making sure that the emergency stop buttons are functional. The protective covers must also be in place if required.
5. Testing: To confirm that the mounting press works properly, run a test press. Check whether all the applied pressure, heat, and statistical control functions work as needed. Make small adjustments as needed according to the manufacturer's recommendations.

How to Use

Mounting presses use methods that depend on the type of mounting press being employed and the materials that are being prepared. Below are general steps for using a metallurgical mounting press:

1. Preparation: Prior to mounting, the sample needs to be cut down to size to fit in the press. This is usually done in the specimen preparation process. After this, the mounting material, which could be resin or alloy metal, is also prepared. Normally, the resin should be mixed according to the manufacturer's instructions, particularly for hot mounting where the resin mixture has to be degassed to remove air at the time of heating.
2. Sample Placement: After the press is readied, the prepared sample is placed within the mold of the press. The resin is then poured over the sample in case the press is for hot mounting or the sample in cold mounting to fill the voids and create a also a specimen mount.
3. Mounting Process: Set the required parameters such as temperature and pressure. For hot mounting, heat the resin to degass it and allow it to cure. For cold mounting, pressure is applied to the resin to ensure a tight bond around the sample. The machine should be allowed to complete its cycle as per the manufacturer's instructions.
4. Cooling and Removal: After the mounting process is complete, allow the press to cool if doing hot mounting. This solidifies the resin and then releases the mounted sample from the press. The sample mount is then prepared further by grinding and polishing to analyze it.

Maintenance

Maintenance is crucial in the heavily utilized industries because it limits disturbances and assures machines function properly at all times. Below are the maintenance procedures for a mounting machine for sale:

• Regular Cleaning: After every press, there should be a cleaning of the mounting machine done to prevent any residual of mounting material from becoming a part of the next sample preparation. This includes vacuuming of the area around and in the press and also removing any debris or cured resin from the mold.
• Lubrication: There is need for lubrication of moving parts in order to reduce friction and wear. This may involve application of lubricating oil or grease to specific areas as advised by the manufacturer.
• Inspection: Frequently check the part of the mounting machine for any damage or signs of wear. Check the electric components for loose wires, the pressure plates for cracks or deformity, and the heating element for residue.
• Calibration: Periodically calibrate the pressure and temperature controls to ensure accuracy. This is very important since inaccurate readings can lead to improper mounting and sample preparation.
• Service: Follow the manufacturer's directions on when to service the mounting press. It may include replacing worn out components or adjusting mechanisms. Servicing should occur between high-use periods or after long-term usage to prevent wear and tear from affecting performance.

Quality and Safety Considerations of metallurgical mounting press

Safety Considerations

• Emergency Stops and Cutoffs:

  Safety experts highly recommend using machines with out emergency stopping features like cutoffs. These features allow for immediate cessation of all operations in case of any dangerous incidents. Where potential hazards exist, users should always ensure that these emergency stops are functioning properly.

• Proper Coaching and Education:

  This means that one has to be properly trained on how to use the press. People who are not familiar with the specific mounting press should not be allowed to use it since they don't understand its potential hazards. All users should be instructed on operating rules, safety measures, and precautions of the specific press they are using.

• Handling of Mounting Press Resins:

  Bundling and handling of mounting press resins can cause a lot of dangerous situations if care is not taken. Most of these resins give off toxic fumes and may also be flammable, thus working with good ventilation and wearing personal safety equipment in form of masks is advisable to limit inhalation. Always keep flammable materials away from the press to reduce the chances of fire.

Qulaity Considerations

Sample preparation is very important and is key in determining the analysis quality and outcome in the field of metallography. Below are some quality consideration of mounting press machines:

• Consistent Pressure Application:

  Montaged samples need even and consistent pressure to prevent flaws within the mounted sample. Varying pressure application can lead to sample distortion, affect the mounting material bond and cause inaccurate results in the analysis. For this reason, manual presses have variable pressure controls which allow for consistent application of pressure and high presses that are automatic do consistent pressure application.

• Sample Integrity:

  There should not be any damage done to the sample during the mounting process as this would affect the quality of the analysis. If the sample is burned, deformed, or vacuumed, it will lead to poor-quality mounted samples. Most mounting machines come with features that control excess pressure and temperature so as protect the sample, for instance using low-temperature resins for cold mounting samples that are heat-sensitive.

• Uniform Mounting Material Distribution:

  The mounting material should surround the sample uniformly to give quality results in the analysis. Non-uniform distribution materials may result in voids and air pockets, which can negatively affect the quality of the section during polishing and analysis. Hot and cold mounting presses allow the resin material to distribute uniformly throughout the sample to eliminate non-uniformity.

• Durability of Mounted Samples:

  In order for the mounted samples to undergo grinding and polishing without breaking or cracking, the mounting material has to be strong. It has to be tough enough to hold the sample firmly during preparation. Poor quality mounting materials can lead to sample deterioration during analysis. Quality of the mounting material will directly affect sample integrity.

Metallurgical Mounting Press Frequently Asked Questions (FAQs)

Q1: Which are the commonly used types of mounted samples in the metallurgy?

The samples that are commonly used in the metallurgy are such as steel, aluminum, alloys, titanium, copper, and nickel.

Q2: What is the function of applying pressure when mounting the metallurgical samples?

When doing the metallographic mount, pressure applies heat and causes the mounting material to flow and bond to the samples securely. The pressure also eliminates air gaps and voids.

Q3: Is it necessary to use heat when mounting metallurgical samples?

Cold mounting requires ordinary temperatures of less than 100°C. This is very ideal for heat-sensitive materials like electronics and copper. Hot mounting has its own advantages, which include resin being fully compacted around the sample and enhanced detail and structural features being highlighted.

Q4: Which are the factors to consider when choosing a type of metallurgical mounting press?

Some of the factors that can help make this decision include sample material, volume, technical requirements, budget, and pressure levels required.

Q5: What is the difference between cold mounts and hot mounts?

In custom cold mounts, the mounting material is used at ordinary room temperatures which are lower than 100°C. These are ideal for heat-sensitive samples such as electronic components that can be damaged by excessive heat. Hot mounts do the mounting at very high temperatures and are suitable for durable and hard materials that can endure high temperatures without being affected. It also highlights finer details.

Q6: Are there any industrial applications of the metallurgical mounting press?

Yes, an industrial mounting press can be used in the aerospace, automotive, and electronics industries, as well as in metal fabrication and the oil and gas industry.

Q7: What is a diamenter of a typically metallography press machine?

The typical mounting press has a diameter of approximately 29.92 inches, but there are various other models with different diameters.

Q8: So, are there lots of mounted sample materials?

Yes, to mention a few, the commonly used mounted sample materials include phenolic coupler, acrylic, aluminum, and epoxy.
