About metal deck size

Types of Metal Deck Size

A metal deck size is a thin gauge steel sheet that acts as a permanent formwork for concrete slabs. Metal decking is used in composite slabs and non-composite floor systems. It is important to note that composite slabs are concrete and steel decks bonded together, while non-composite floors rely on their own weight for structural integrity.

Metal decking provides shear strength and acts as a diaphragm to transfer lateral loads to the beams. It is also used to create floor systems in commercial buildings and residential homes. Metal decking comes in different sizes and types, as discussed below:

  • Types Based on Composite and Non-Composite Metal Decking:

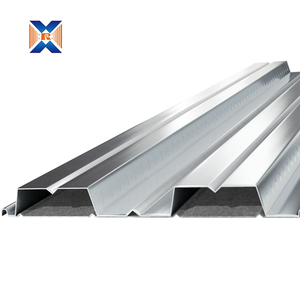

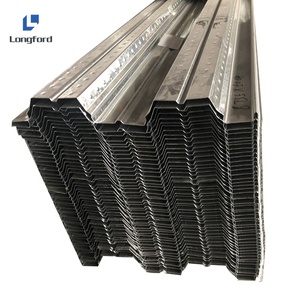

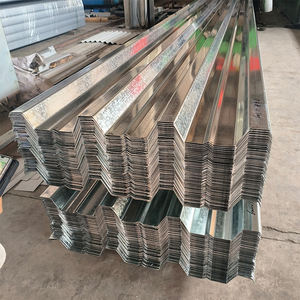

    Composite Metal Decking: Composite metal decking is a thin gauge steel sheet with concrete poured onto it. The steel and concrete bond together to form a strong composite slab. This decking has longitudinal ribs that connect to the concrete. The shear connectors are used to transfer loads between the steel and concrete. The composite decking can carry more loads with thinner slabs. Non-Composite Metal Decking: Non-composite metal decking is a thicker steel deck. It is used when the metal deck can support its weight without relying on concrete. This type of decking is used for roofs and mezzanine floors. It is quick to install and creates open spaces without support beams.

  • Types Based on Applications:

    Accessible Metal Decking: Accessible metal decking has removable panels and a strong frame. This allows easy access to electrical and mechanical systems above the ceiling. Serviceable and flexible: These ceilings are serviceable and flexible. They can be changed when buildings are changed. Architects and builders like them because they make buildings look good. Structural Metal Decking: Structural metal decking is used for the roofs and floors of buildings. It is a thick steel deck that supports its weight without relying on other materials.

  • Types Based on the Metal Decking Profile:

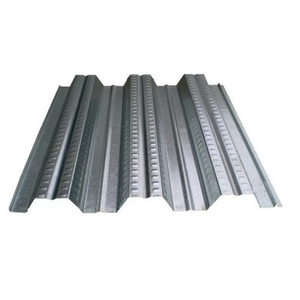

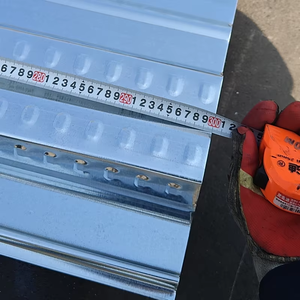

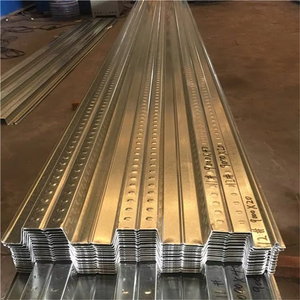

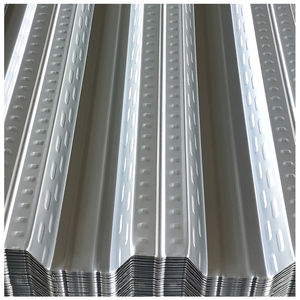

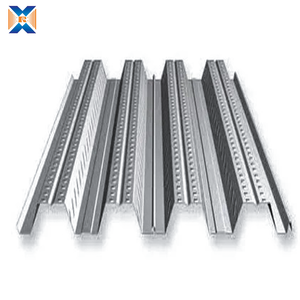

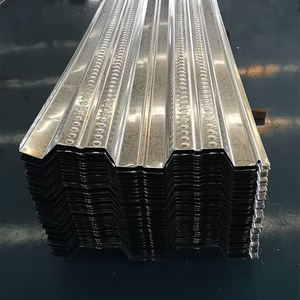

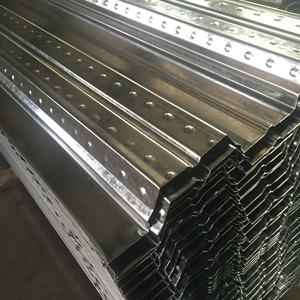

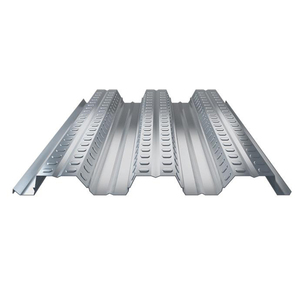

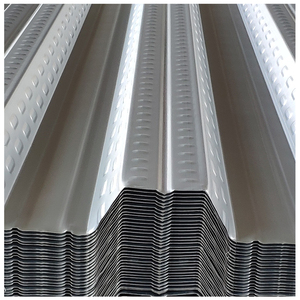

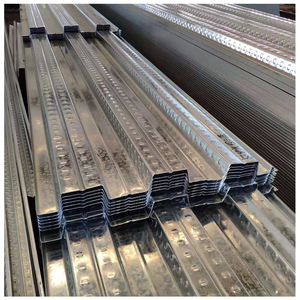

    Embossed Metal Decking: Embossed metal decking has patterns pressed onto it. This adds strength by increasing the surface area where the concrete and steel bond. The patterns also make the underside of the concrete slab look better. Unembossed Metal Decking: Unembossed metal decking is smooth. It is used when the design does not need patterned concrete slabs or extra bonding strength.

  • Types Based on the Metal Decking Material:

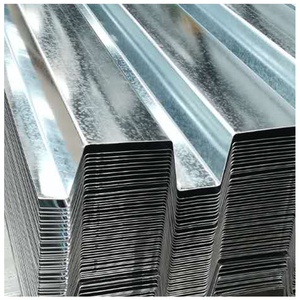

    Galvanized Steel Decking: Galvanized steel decking is coated with zinc. This helps prevent rust when it is exposed to water and air. Aluminum Metal Decking: Aluminum metal decking is lighter than steel. It is used in places where weight savings are important, like airplane floors. Aluminum does not rust, making it good for coastal buildings near saltwater.

  • Types Based on the Metal Decking Thickness:

    Thick Metal Decking: Thick metal decking is used when more strength is needed. It can support heavier concrete slabs or more significant building loads. Thin Metal Decking: Thin metal decking is used when lightweight and cost are more important. It is often used in upper floors or roofs that do not need much strength.

Function and Features of Metal deck size

When it comes to functions, metal decking is used to form the floor decks in concrete. The size of the deck helps determine the span, load-carrying capacity, and structural support. Features such as profile shape, thickness, and material influence these functions. Here is a breakdown of metal decking functions and features:

  • Size

    Sizes differ, but common types are 3.5 inches, 4 inches, 5 inches, and 6 inches. The size affects the span and load capacity, with larger sizes allowing for longer spans and reduced support beams.

  • Gauge

    The gauge refers to the thickness of the steel used in the metal deck. It usually ranges from 18 to 22 gauges. The gauge affects the strength and load-carrying capacity, with lower numbers indicating thicker steel and higher strength.

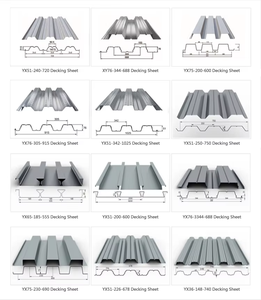

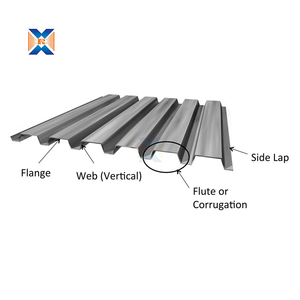

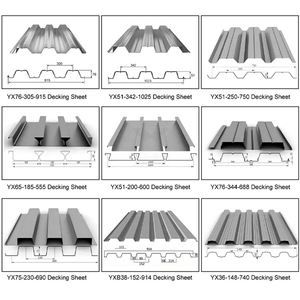

  • Profiles

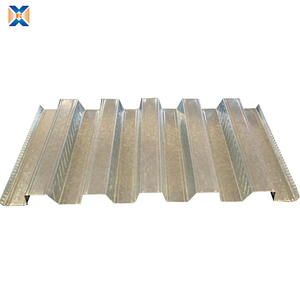

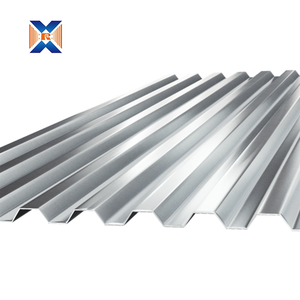

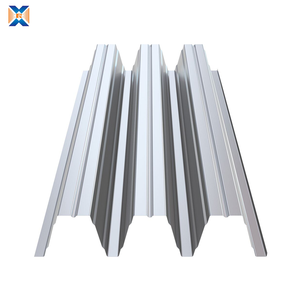

    Metal floor decking profiles include dovetail, V-shaped, and trapezoidal. The profile affects the structural support and load distribution, with each profile providing different concrete bonding and load-carrying capacity.

  • Material

    Metal floor decking is usually made of galvanized steel, aluminum, and stainless steel. The material affects longevity, load capacity, and corrosion resistance, with galvanized steel being the most common due to its cost-effectiveness and strength.

  • Coating

    Coatings such as galvanized, painted, and polymer coating affect the durability and corrosion resistance of the metal decking. Galvanized coatings are popular because they provide adequate corrosion resistance at a lower cost.

  • Span

    The span refers to the distance between the support beams. Metal decking sizes and gauges influence spans, with higher-strength decking allowing longer spans. For instance, a 3-inch-deep deck may span 10 feet, while a 6-inch-deep deck could span 12-14 feet.

  • Load capacity

    The load capacity is the amount of weight the metal decking can support. Load capacity is affected by the size, gauge, profile, and material, with thicker gauges and deeper profiles providing higher load capacity. For example, an 18-gauge galvanized steel deck may have a load capacity of 1,500 psf, while a 22-gauge deck could support 1,000 psf.

Scenarios of metal deck size

There are various applications and scenarios for metal decking, including:

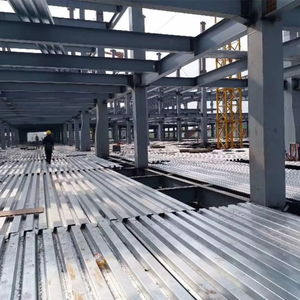

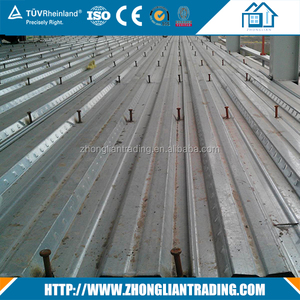

  • Composite metal decking: Composite metal decking is used in the construction of residential, commercial, and industrial projects. It is ideal for projects with large and heavy concrete slabs. The 3-inch metal deck profile is suitable for parking garages and storage facilities. It is also used in the construction of schools, hospitals, office buildings, and residential apartment complexes. This type of metal decking can be used for multiple floors, creating a strong and stable floor system. It is also easy and quick to install, reducing overall construction time.
  • Non-composite metal decking: Non-composite metal decking is used for roof decks and can be installed without concrete. It can be installed as a roof deck or floor deck in a shell condition without concrete. This metal deck is ideal for projects where time is of the essence, as it can be installed quickly without the need for concrete. It is also popular in construction projects where concrete curing time needs to be avoided.
  • Long-span metal decking: Long-span metal decking is used for applications that require long spans and high load-bearing capacity. This includes shopping malls, stadiums, warehouses, and industrial facilities. It is also used in the construction of schools, hospitals, and office buildings where large open spaces are required. Long-span metal decking reduces the need for intermediate support columns or beams, creating an open and flexible space.

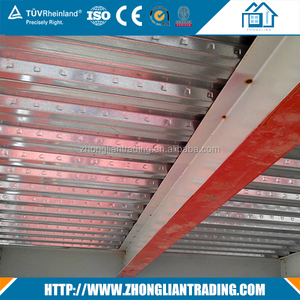

  • Interior applications: Metal decking can also be used in interior applications. This includes exposed metal decking ceilings, interior metal wall panels, and metal decking feature walls. Exposed metal decking ceilings add an industrial and modern look to a space while providing structural support. Interior metal wall panels and feature walls create a unique and stylish interior design while offering durability and low maintenance.
  • Architectural metal decking: Architectural metal decking is used for both functional and aesthetic purposes. It can be used as a ceiling feature, wall cladding, and decorative metal panels. This metal decking comes in different finishes, colors, and textures to match the overall design of a building. It not only provides structural support but also enhances the visual appeal of a space or building.

How to choose metal deck size

Choosing the right size of a metal deck for a construction project requires careful consideration of several factors. Here are some key points to consider:

  • Load Requirements

    Determine the anticipated loads that the metal deck will support. This includes live loads, such as foot traffic and movable equipment, and dead loads, such as the weight of the deck itself and any permanent fixtures. Structural engineers can recommend deck sizes based on load capacity calculations.

  • Span Lengths

    Consider the span lengths between support beams. Metal decks with longer spans may require increased thickness or rib depth to prevent bending or deflection. Shorter spans may allow for thinner gauges or shallower profiles. Understanding the span requirements will help determine the appropriate deck size.

  • Building Codes

    Check local building codes and regulations. These guidelines often specify minimum requirements for deck sizes based on building types, occupancy, and safety considerations. Ensure compliance with these codes when selecting a metal deck size to avoid issues during construction or inspection.

  • Material Strength

    Evaluate the material strength of different options. Common materials include galvanized steel, aluminum, or coated galvanized steel. Each material has unique load-bearing capacities influenced by factors like thickness, coating, and manufacturing processes. Choose a material with strength characteristics suited to the project's needs.

  • Aesthetic Considerations

    While functionality is paramount, aesthetics may also influence the choice of metal deck size. Some profiles, such as shallow rib decks, are more suitable for exposed ceilings or roofs, while deeper rib decks are more discreet and structural when used as a roof deck. Consider the visual impact of the deck in the overall building design.

  • Installation Factors

    The installation process may affect the choice of metal deck size. Larger or thicker decks may require more specialized equipment and skilled labor to install, affecting project timelines and costs. Conversely, smaller gauges or profiles are easier to install and may be more cost-effective. Consider the installation capabilities and costs when selecting the deck size.

metal deck size Q & A

Q1: What are the most common sizes of metal decks?

A1: The most common sizes of metal decks are 3 feet and 5 feet wide. 3-foot-wide panels can reduce waste and save costs, while 5-foot-wide panels can speed up installation and improve structural integrity.

Q2: What is the maximum span for a metal deck?

A2: The maximum span for a metal deck depends on the thickness and type of concrete used. Generally, a metal deck can span up to 30 feet without internal support beams.

Q3: What is a composite metal deck?

A3: A composite metal deck is a floor deck system made of galvanized steel with concrete slabs poured on top. It forms a strong composite bond between the steel and concrete, providing excellent load-bearing capacity.

Q4: What is the gauge of the metal deck?

A4: The gauge of the metal deck refers to the thickness of the steel used, with common gauges ranging from 18 to 22. An 18-gauge steel deck is approximately 0.0750 inches thick, while a 22-gauge steel deck is about 0.0320 inches thick.

Q5: What are the types of metal decking?

A5: There are three main types of metal decking: roof decking, floor decking, and composite decking. Roof decking supports roof loads, while floor decking supports building floors. Composite decking combines steel and concrete for strong floor support.
