Types of Mercedes-Benz Engine Camshafts
The camshaft is a vital component in the internal combustion engine that controls the opening and closing of the intake and exhaust valves in precise synchronization with the movement of the pistons. In Mercedes-Benz engines, camshafts are engineered to deliver performance, efficiency, and reliability across a wide range of driving conditions.
A camshaft's design significantly impacts an engine’s power output, fuel economy, emissions, and overall responsiveness. Depending on the model year, engine variant, and vehicle segment, Mercedes-Benz has employed various types of camshaft systems throughout its history. Below is a detailed breakdown of the different camshaft configurations found in Mercedes-Benz engines:
Single Overhead Camshaft (SOHC)
This system features one camshaft located in the cylinder head, responsible for operating both the intake and exhaust valves. It was commonly used in earlier Mercedes-Benz models and offers a relatively simple mechanical layout.
Advantages
- Simpler construction with fewer moving parts
- Lower production and maintenance costs
- Reliable under normal driving conditions
Limitations
- Limited valve control precision at high RPMs
- Less flexibility in optimizing airflow
- Not ideal for high-performance applications
Best for: Older models, base trim vehicles, and budget-oriented ownership
Dual Overhead Camshaft (DOHC)
In modern Mercedes-Benz engines, the DOHC configuration is widely adopted. Each cylinder head contains two camshafts — one for the intake valves and one for the exhaust valves. This allows for more complex valvetrain designs, including multiple valves per cylinder.
Advantages
- Superior valve timing control
- Improved air intake and exhaust flow
- Better performance across a wider RPM range
- Supports advanced valvetrain setups like multi-valve heads
Limitations
- More complex and costly to manufacture
- Increased number of components requiring maintenance
- Heavier than SOHC setups
Best for: High-performance engines, luxury sedans, and modern Mercedes-Benz models
Variable Valve Timing (VVT)
VVT-equipped camshafts allow dynamic adjustment of valve timing based on real-time driving conditions such as engine speed, load, temperature, and throttle position. Mercedes-Benz integrates VVT technology into many of its current engines under proprietary names like CAMTRONIC.
Advantages
- Optimized torque delivery across RPM ranges
- Enhanced fuel efficiency and reduced emissions
- Improved low-end response and high-end power
- Adaptable to driving style and environmental conditions
Limitations
- More complex oil control systems required
- Potential for higher repair costs if malfunctions occur
- Requires regular maintenance to ensure optimal function
Best for: Fuel-efficient luxury cars, hybrid-compatible engines, and eco-performance models
Camless Engine Technology
While still in development or limited application, camless engine technology replaces traditional camshafts with electromechanical or electrohydraulic actuators that directly control each valve. Mercedes-Benz has shown interest in this innovation as part of its future electrified and performance-focused engine strategies.
Advantages
- Fully variable valve timing and lift
- Reduced mechanical complexity over time
- Improved fuel efficiency and emissions control
- Allows for cylinder deactivation and other advanced functions
Limitations
- High cost and technical complexity
- Still in early adoption phase
- May require specialized diagnostics and service tools
Best for: Future electric-hybrid integration, ultra-efficient performance engines, and cutting-edge automotive engineering
| Type | Valve Control | Efficiency | Performance | Common Applications |
|---|---|---|---|---|
| SOHC | Mechanical, fixed timing | Moderate | Good for daily use | Older models, entry-level variants |
| DOHC | Precise dual-shaft control | High | Excellent | Modern luxury and sports models |
| VVT | Dynamic, adaptive timing | Very High | Outstanding | Hybrid-ready and high-tech engines |
| Camless | Electronically controlled | Top-tier | Next-generation potential | Future EV/hybrid tech, prototypes |
Expert Tip: For optimal engine performance and longevity, always follow the manufacturer-recommended maintenance schedule. If your Mercedes-Benz is equipped with VVT or CAMTRONIC systems, regular oil changes using OEM-approved lubricants help maintain smooth operation and prevent premature wear.
It’s important to note that the specific type of camshaft used can vary by model year, engine code, and regional specifications. For accurate identification or replacement information, it's best to consult official documentation such as the owner’s manual or contact a certified Mercedes-Benz technician for guidance tailored to your vehicle.
Specifications and Maintenance of Mercedes-Benz Engine Camshaft
The camshaft is a critical component in any Mercedes-Benz engine, responsible for precisely operating the intake and exhaust valves to ensure optimal performance, fuel efficiency, and emissions control. Understanding its specifications and proper maintenance helps preserve the longevity and functionality of this high-performance part.
Key Specifications of Mercedes-Benz Camshafts
Mercedes-Benz engines are engineered with precision, and their camshaft designs reflect this attention to detail. The following specifications are essential to understanding how these components contribute to overall engine performance:
Material Composition
Camshafts in Mercedes-Benz engines are typically constructed from forged steel or cast iron for superior strength and wear resistance. High-performance models may use advanced alloys or aluminum for weight reduction while maintaining structural integrity.
Forged steel camshafts offer exceptional tensile strength, making them ideal for high-stress applications such as turbocharged or AMG-tuned engines. Cast iron provides good wear characteristics and noise dampening, while aluminum reduces rotational mass for improved responsiveness.
Valve Lift
Valve lift refers to how far the valves open when actuated by the camshaft lobes. In most Mercedes-Benz engines, valve lift ranges between 1.0 and 1.5 millimeters, depending on the model and application.
A higher lift allows greater airflow into the combustion chamber, enhancing power output but requiring precise timing and valve train balance. Lower lift profiles prioritize smooth operation and fuel economy, particularly in luxury sedans and touring vehicles.
Duration
Duration measures how long the valves remain open during the engine cycle, expressed in degrees of crankshaft rotation. For Mercedes-Benz engines, this typically ranges from 240 to 300 degrees.
Longer durations improve engine breathing at higher RPMs, which benefits performance-oriented models like the C63 or S65 AMG. Shorter durations optimize low-end torque and idle stability, commonly found in E-Class or S-Class models designed for comfort and cruising.
Timing Specifications
Camshaft timing determines the exact moment the intake and exhaust valves open and close relative to piston position. Mercedes-Benz sets precise timing parameters to maximize efficiency and reduce emissions.
For example, an intake valve might open 10 degrees before Bottom Dead Center (BDC) and close 5 degrees after Top Dead Center (TDC). These settings are fine-tuned based on engine displacement, compression ratio, and variable valve timing systems like CAMTRONIC or VarioCam.
| Specification | Description | Performance Impact |
|---|---|---|
| Material Type | Steel, Cast Iron, or Aluminum Alloys | Durability, Weight, and Noise Reduction |
| Valve Lift | 1.0–1.5 mm | Airflow, Power Output, and Fuel Efficiency |
| Duration | 240–300° Crankshaft Rotation | Engine Response, Torque Curve, and High-RPM Performance |
| Timing Profile | Customized per Model and Engine Design | Emissions Control, Idle Stability, and Throttle Responsiveness |
Essential Maintenance Practices for Mercedes-Benz Camshafts
Proper care and maintenance of your Mercedes-Benz camshaft ensures long-term reliability and peak engine performance. Here are key practices to follow:
Important: Ignoring camshaft maintenance can result in severe engine damage, including bent valves, broken timing chains, and costly internal repairs. Always consult a certified technician or refer to official service documentation when performing complex engine work on Mercedes-Benz vehicles.
How to Choose a Mercedes-Benz Engine Camshaft
Selecting the right camshaft for Mercedes-Benz engines involves more than just finding compatible parts. Whether you're sourcing for resale or personal use, it's essential to understand market demands, product quality standards, and long-term business considerations. This guide explores key factors in choosing Mercedes-Benz engine camshafts, focusing on OEM expectations, aftermarket options, supplier evaluation, and value-added services.
Understanding Market Demands
Reselling Mercedes-Benz camshafts requires aligning your inventory with what buyers are actively seeking. Conduct market research to identify popular models and part numbers within your target region.
- Analyze local Mercedes-Benz vehicle registrations to determine common model years and engine types
- Review online marketplace trends for high-demand camshaft models
- Engage with repair shops and garages to understand their replacement frequency
Smart strategy: Focus on high-volume models like W211 (E-Class), W221 (S-Class), and W164 (M-Class)
OEM vs Aftermarket Considerations
The majority of Mercedes-Benz owners prefer OEM-quality components for reliability and compatibility. However, some budget-conscious buyers may accept reputable aftermarket brands when properly informed about trade-offs.
- OEM parts guarantee factory specifications and fitment
- Aftermarket options offer cost savings but vary in quality
- Some aftermarket brands meet or exceed OEM performance standards
Customer insight: Offer both options with clear quality differentiation
Supplier Evaluation and Product Quality
Before committing to bulk purchases, thoroughly vet suppliers to ensure they provide reliable products that match advertised specifications. This is crucial for maintaining customer trust and minimizing returns.
- Request material certifications and manufacturing details
- Check third-party reviews on platforms like Trustpilot and Google Reviews
- Order sample units before placing large orders
- Verify warranty terms and return policies
Quality assurance: Prioritize suppliers with ISO 9001 certification
Pricing Strategy and Profit Margins
Balancing purchase costs with market affordability is critical in building a sustainable camshaft resale business. Analyze competitors while ensuring your pricing reflects the value provided.
- Compare prices across multiple suppliers to find best deals
- Calculate total cost including shipping, duties, and storage
- Research competitor pricing for similar products
- Factor in potential value-add services (e.g., testing, rebuilds)
Profit tip: Maintain at least 30-50% gross margin on core products
Business Insight: When starting out, consider offering a limited selection of top-selling camshafts with fast turnaround times rather than trying to cover every possible model. As your reputation builds, expand into specialty parts and premium offerings.
| Mercedes Model | Common Camshaft Part Numbers | Estimated Resale Value | Demand Level |
|---|---|---|---|
| E-Class (W211) M112 Engine | A211 050 02 35 | $150 - $220 | High |
| S-Class (W221) M272 Engine | A221 050 03 35 | $180 - $250 | Medium-High |
| C-Class (W203) M111 Engine | A203 050 02 35 | $120 - $180 | Medium |
| ML-Class (W164) M272 Engine | A164 050 02 35 | $170 - $240 | Medium |
Value-Added Services Potential
Offering additional services beyond basic resale can significantly increase profitability while differentiating your business from commodity sellers.
- Camshaft testing and diagnostics
- Professional rebuilding and refurbishment
- Performance upgrades for modified vehicles
- Installation guidance packages
Pro tip: Rebuilt camshafts can command 40-70% higher margins than new ones
Warranty and Customer Assurance
Choosing parts with solid warranty protection reduces risk for both you and your customers. A good warranty policy enhances trust and encourages repeat business.
- Look for warranties covering at least 12 months or 12,000 miles
- Understand the claims process and required documentation
- Clarify whether defective parts must be returned
- Negotiate favorable terms for volume buyers
Critical factor: Avoid "lifetime warranty" offers with unclear conditions
Quality Control Tip: Implement a simple inspection checklist for incoming camshafts including visual damage check, bearing surface smoothness verification, lobe wear assessment, and part number authenticity confirmation.
DIY Guide for Replacing a Mercedes-Benz Engine Camshaft
Replacing the camshaft in a Mercedes-Benz engine is a technically demanding task that requires precision, patience, and mechanical expertise. The camshaft plays a critical role in the engine's operation by precisely controlling the opening and closing of the intake and exhaust valves. Due to its location within the engine and the complexity of timing systems used in modern Benz engines, this job should not be taken lightly.
Important Note: This guide assumes you have intermediate to advanced mechanical skills and access to proper tools. If you're unsure about any step or lack experience with timing components, it’s strongly recommended to consult a certified technician. Improper installation can lead to severe engine damage.
Understanding the Camshaft's Role
The camshaft operates via a timing chain or belt connected to the crankshaft. As it rotates, lobes (cams) on the shaft push against valve lifters or followers, opening the valves at precisely timed intervals. A faulty camshaft can cause misfires, rough idling, poor acceleration, and even complete engine failure if the timing is compromised.
Essential Tools and Materials
- Socket set with extensions
- Ratchet and torque wrench
- Timing alignment tools (specific to your model)
- Engine support bar
- Oil catch pan
- New camshaft and gaskets
- Fresh engine oil and coolant
- Gloves and eye protection
Step-by-Step Replacement Procedure
- Engine Diagnosis
Before proceeding, confirm the camshaft is indeed the issue. Use an OBD-II scanner to check for error codes such as P0340-P0344 (Camshaft Position Sensor faults). Perform a compression test and inspect timing components for wear or damage.
If confirmed, gather all necessary tools and parts, and ensure you have the vehicle-specific service manual handy for reference.
- Battery Disconnection
Safety first – disconnect the negative battery terminal to eliminate the risk of electrical shorts while working on sensitive engine components.
- Drain Engine Fluids
Place an oil catch pan beneath the engine and drain both the engine oil and coolant. Properly store these fluids for later disposal or reuse after replacement.
- Remove Accessory Components
To access the camshaft, remove the following as needed depending on your specific Mercedes model:
- Air intake system
- Exhaust manifold
- Valve cover(s)
- Timing cover
- Alternator, power steering pump, or other accessories blocking access
Label and organize all removed parts for easy reassembly.
- Timing System Removal
Remove the timing chain or belt tensioner and align the engine to Top Dead Center (TDC). Use factory timing marks or specialized alignment tools to lock the crankshaft and camshaft in place before removing the timing components.
- Old Camshaft Removal
Loosen and remove the camshaft bearing caps in the sequence specified by the manufacturer. Carefully lift the old camshaft from the cylinder head. Inspect the cam journals and bearings for wear or scoring before installing the new part.
- New Camshaft Installation
Apply a thin coat of clean engine oil to the camshaft journals and lobes before inserting it into the cylinder head. Reinstall the bearing caps in the correct order and torque them to specifications using a torque wrench.
Ensure the timing marks are aligned properly and reinstall the timing chain or belt according to factory guidelines.
- Reassembly and Testing
Reinstall all previously removed components in reverse order. Replace any worn gaskets, especially the valve cover gasket. Refill the engine with fresh oil and coolant, reconnect the battery, and start the engine.
Monitor for unusual noises, leaks, or warning lights. Run the engine through a short break-in cycle as recommended by the manufacturer or camshaft supplier.
| Phase | Key Actions | Common Pitfalls | Recommended Tools |
|---|---|---|---|
| Diagnosis | Confirm camshaft issues with diagnostics | Misdiagnosis due to similar symptoms with timing chain or VVT problems | OBD-II scanner, compression tester |
| Disassembly | Proper labeling and organization of parts | Mixing up bolt locations or missing small components | Label maker, magnetic tray |
| Installation | Correct torque specs and alignment checks | Over-tightening bolts or incorrect timing alignment | Torque wrench, alignment pins |
| Testing | Leak checks and idle monitoring | Ignoring initial startup noises or skipping break-in process | Stethoscope, pressure tester |
Expert Tip: Always replace the timing chain or belt when replacing the camshaft unless you're certain they were recently serviced. It's cost-effective to do both at once and prevents future breakdowns.
Post-Replacement Best Practices
- Perform an oil change after the first 500 miles to flush out any metal particles
- Monitor engine performance closely for the first few days
- Clear any fault codes using an OBD-II scanner after completion
- Take the vehicle for a test drive to ensure smooth acceleration and no abnormal vibrations
Mercedes-Benz Camshaft FAQ: Function, Maintenance & Performance
The camshaft in a Mercedes-Benz engine plays a critical role in regulating the operation of the intake and exhaust valves. These valves control the flow of air and fuel into the combustion chamber and the expulsion of exhaust gases after combustion. The camshaft ensures precise timing of these valve operations, synchronized with the movement of the pistons.
This synchronization is essential for:
- Optimizing engine performance across all RPM ranges
- Improving fuel efficiency through proper air-fuel mixture management
- Reducing emissions by ensuring complete combustion and efficient gas exchange
In modern Mercedes-Benz engines equipped with variable valve timing (VVT), the camshaft works in conjunction with electronic systems to dynamically adjust valve timing based on driving conditions, further enhancing efficiency and responsiveness.
The camshaft(s) are typically located within the cylinder head assembly in most modern Mercedes-Benz engines, particularly those using an overhead cam (OHC) or dual overhead cam (DOHC) configuration. In older pushrod-style engines, the camshaft may be located lower in the engine block.
The positioning allows direct interaction with the valves via:
- Cam lobes that open the valves as they rotate
- Lifters or followers that transfer the motion from the cam lobes to the valves
- Rocker arms in some configurations that amplify the motion and change direction
In DOHC setups, there are two camshafts per cylinder head—one for intake valves and one for exhaust—allowing more precise control over airflow dynamics, especially at high speeds.
The camshaft itself is a durable component and generally doesn't require scheduled replacement under normal operating conditions. However, regular inspections during major services are recommended, especially when:
- Performing timing chain or belt replacements
- Addressing oil leaks or sludge buildup near the cylinder head
- Noticing symptoms like ticking noises or reduced engine performance
Maintenance tips to prolong camshaft life include:
| Maintenance Task | Recommended Interval | Purpose |
|---|---|---|
| Engine Oil Change | Every 10,000 - 20,000 km (varies by model) | Ensures continuous lubrication of camshaft lobes and followers |
| Timing Chain Inspection | Every 80,000 - 120,000 km | Prevents excessive wear or misalignment affecting camshaft timing |
| Valve Clearance Check | Every 40,000 - 60,000 km (on applicable models) | Maintains optimal valve operation and prevents premature cam lobe wear |
A failing camshaft can significantly impact engine performance and reliability. Common symptoms include:
- Rough Idling: Uneven idle due to improper valve timing or failure to close fully.
- Decreased Power: Loss of acceleration and overall power output due to restricted airflow or poor combustion timing.
- Increased Emissions: Higher hydrocarbon levels from incomplete combustion caused by faulty valve operation.
- Fuel Efficiency Drop: Poor fuel economy due to inefficient combustion cycles.
- Engine Misfires: Detected through onboard diagnostics (OBD) codes related to specific cylinders not firing correctly.
- Noises: Ticking, tapping, or clicking sounds from the top of the engine, indicating lobe wear or insufficient lubrication.
If any of these symptoms occur, it's important to have the vehicle diagnosed by a certified technician. Ignoring camshaft issues can lead to more extensive engine damage, including piston or valve interference in interference engines.

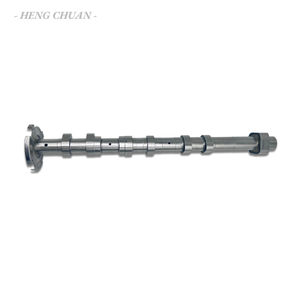

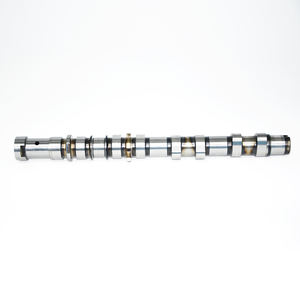

Yes, performance camshaft upgrades are available for certain Mercedes-Benz engines, particularly among enthusiasts looking to extract more horsepower and torque. These modifications are more common in AMG models and classic V8-powered vehicles but also apply to select inline-4 and inline-6 engines.
Performance benefits of upgrading the camshaft include:
- Increased Valve Lift: Allows more air and fuel into the combustion chamber for greater power output.
- Extended Duration: Keeps valves open longer to optimize high-RPM performance.
- Improved Overlap: Enhances scavenging effect by allowing both intake and exhaust valves to be open simultaneously for brief periods.
Important considerations before upgrading:
- Compatibility: Ensure the camshaft profile matches the engine’s other components (intake/exhaust system, ECU tuning, etc.).
- Warranty: Modifications may void factory warranties unless performed under manufacturer-approved programs.
- Emissions Compliance: Upgrades must adhere to local emission standards, especially in regulated regions like California or EU countries.
- Professional Installation: Requires precision setup and calibration to avoid engine damage or drivability issues.
For best results, pairing a performance camshaft with supporting modifications such as an ECU tune, cold air intake, and exhaust system upgrades will maximize gains while maintaining reliability.
