Mechanical measuring instruments come in various forms. Each of these types supports different measuring functions in multiple industrial production fields.
Vernier Caliper
A Vernier caliper is a precision tool used to measure with accuracy the external and internal dimensions as well as depths. Its characteristic feature is the Vernier scale, which permits one to read a measurement between the smallest marked readings on the main scale. Vernier calipers find wide utilization in machine shops, laboratories, and engineering enterprises. They are used alongside other mechanical measuring instruments. They are notable for their accuracy and versatility in distinguishing linear measurements and, as such, remain an important tool in many precision-oriented businesses.
Micrometer Screw gauge
Micrometer screw gauge is an instrument used to measure that which is small but cannot be adequately measured with the naked eye. It works on the principle of a screw and offers very high precision measurement of around 0.01 mm. This instrument is commonly used in metalworks, engineering, and other works that involve intense measurements of components. Micrometers like outside, inside, and depth offer versatility while maintaining accuracy for fine measurement needs in industries.
Slip Gauge
Slip gauges, also known as gage blocks, are a set of precision-ground rectangular blocks made of steel, titanium, or carbide, used to produce a mechanical reference of length. They are stacked together to achieve desired thickness, thus establishing accurate measurements. These tools are extensively used in calibrating measuring instruments, ensuring precision in machining operations. Note that in industries where dimensional accuracy is key, such as aerospace and manufacturing, even small deviations have significant effects. Thus, these tools are vital in maintaining dimension consistency.

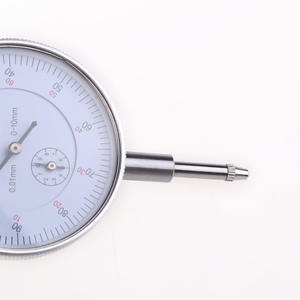

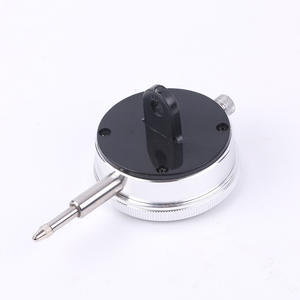

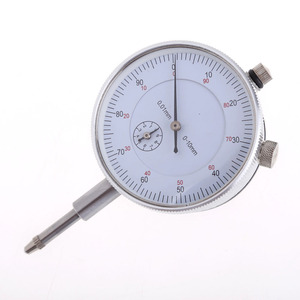

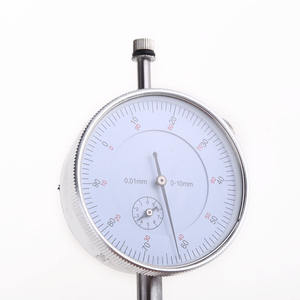

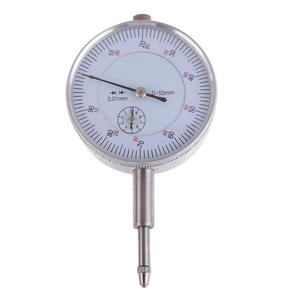

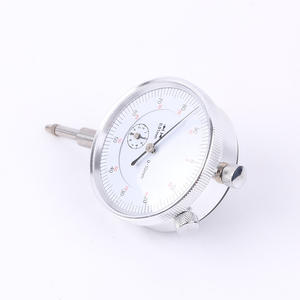

Dial Indicator
A dial indicator, or dial gauge, reads displacement as a floating needle on a dial calibrated in thousandths of an inch. This instrument checks run-out, bend, or surface variations, while parts are measured in machines. In production and quality inspection, it offers a simple and fast method for detecting dimensional deviations from desired specifications. Its quick measurement feedback makes it an indispensable tool on shop floors where accuracy in mechanical systems is fundamental.
Dial Vernier Caliper
A dial vernier caliper measures length, width, and thickness according to its name since it has a dial readout on the Vernier bridge. This instrument combines features of the Vernier with a sliding dial, thus permitting easier measurement readings. The dials can give readings directly, which minimizes reading errors compared to ordinary Vernier calipers. In heavy industry, it serves to measure mechanical details accurately and quickly while improving productivity over conventional measuring methods.
Manufacturing
In the manufacturing business, mechanical measuring instruments are used in the measurement of physical parameters. These include size, weight, and volume, therefore ensuring consistency of the product in the course of production. Such instruments are implemented in machining processes where tolerances play an important role in determining the productivity of an industry. There is also application in quality control departments in such industries to make sure that the product specifications are met and that there are minimal variations.
Aerospace
The aerospace sector demands highly accurate measurements because of the nature of this sector. Mechanical measuring instruments are used to measure complex engine parts, wings, and avionics systems. Small deviations can result in performance issues or in the creation of safety hazards, so this industry relies heavily on slip gauges, calipers, micrometers, and gauges to ensure strict compliance with the design specifications to avoid such scenarios. In addition, these tools are instrumental in dimensional control, which helps maintain a high level of precision.
Automotive
Mechanical measuring instruments have a widespread application in the automobile business concerning quality control, product testing, and measurement. Gauges and dials are utilized in this industry to check car parts like engines, brakes, and transmissions to make sure they work well and safe. Such instruments are applied to check the dimensional accuracy of critical engine components, drive shafts, differential gears, etc. Since the automobile industry is one of the most competitive, its business has to ensure that the efficiency, accuracy, and consistency of production processes and end products are maintained. This is done through the instrumental application of mechanical measuring devices.
Construction
There is great dependence on mechanical measuring instruments in the construction industry for accurate measurements. Such tools are used for such basic functions as measuring the length, width, and depth of the area to be built and all parts included in the construction. In this industry, Vernier calipers check the mechanical parts of construction machines, and micrometers measure bolts, nuts, and other fasteners. Since there are huge investments in buildings, infrastructure, and safety, the construction business has to ensure accurate and precise measurements to avoid costly reworks and, most importantly, to ensure safety on and in the structure.
Steelworks
The steelworks industry affects the way up and coming mechanical measuring instruments are put to use to control the actual measurements and specifications of parts that are machined, fabricated, and assembled. The tools are used during steel processing, such as cutting, bending, and shaping, where accuracy is everything. There is also great dependence on mechanical instruments in this industry for dimension checks of cast and forged steel parts. In this industry, mechanical measuring instruments are applied to avoid functional issues in equipment and structures for better performance and durability.
Users will want a mechanical measuring instrument that can withstand tough working conditions. Instrument durability directly influences replacement rates and, thus, operational costs.
Quality Materials
For a mechanical measuring instrument, quality materials are one of the factors that contribute to durability. Instruments made from hardened steel, carbide, or stainless steel alloys have superior wear resistance, particularly in high-friction areas. Non-corrosive material protects instruments from moisture and chemicals, adding functionality in wet and harsh environments. These materials also maintain measurement accuracy over extended periods. With enhanced durability comes minimized operational interruptions, and this is crucial for businesses undertaking intense tasks of measuring in varying environments.
Shock Resistance
This is especially true for mechanical measuring instruments that are exposed to shock, vibration, and drop: shock resistance. The majority of these instruments have been designed whereby the measuring elements, like the probe or spindle, are protected from misalignment or damage in the event of accidental dropping or sudden impacts. The durability of shock-resistant instruments results in less frequent tool changes and, hence, increased productivity. Vehicles with these kinds of tools can operate in difficult environments, and they will provide accurate measurements regardless of the conditions.
Wear Resistance
Wear resistance is very significant in mechanical measuring instruments that are used in various applications on a daily basis. These parts have been subjected to wear and tear during their service life, and this negatively affects measurement accuracy. Wear-resistant materials, such as hardened steel or carbide tips, safeguard measuring surfaces against abrasion. This maintains the original tolerances and measurement accuracy over time. Wear resistance implies that the instrument has longer operational life, which is crucial for enterprises that heavily rely on precise measurements.
Waterproof And Dustproof
Mechanical measuring instruments used in open air or industrial areas have to be waterproof and dustproof. These features protect the internal mechanisms of these instruments. Thus, they become unharmed by water, dust, and other particulate matter, which can cause corrosion or wear. Seals and gaskets are properly fitted in these instruments. They ensure that water and dustproof is incorporated into the instrument and that durability is greatly enhanced. This reduces the likelihood of failure or needs for frequent maintenance, and it, therefore, is suitable for businesses that operate in adverse environments.
Thermal Resistance
Thermal resistance is vital for mechanical measuring instruments used in extreme heat or even in cases where there is significant temperature fluctuation. The materials and components utilized to make the instruments are thermally resistant; hence, they do not lose their shape or suffer from deformation. In addition, it means that the instrument will keep on giving accurate measurements regardless of temperature extremes. This factor is essential for industries such as metalworks, which can work with molten materials or have a high operational temperature, thus preserving measurement consistency.
The right mechanical measuring instrument needs to be selected based on various factors. These considerations include precision needs, and working environment, and the type of measurement required.
Industry Application
When selecting a mechanical measuring instrument, industry application is pivotal. Every industry has its specific measurement needs, and to fulfil those needs, certain instruments are used more than others. These instruments include calipers, micrometers, and slip gauges in manufacturing and aerospace. A construction-durable and shock-resistant instrument is a must. There is a great dependence on accuracy in the measurement for all of them. Thus, one has to consider which specific instrument works well for the application at hand to ensure accuracy and efficiency in the task of measuring.
Measurement Range
The measurement range of a mechanical measuring instrument should suit the required measurement. Instruments with ranges beyond the specified needs for a given application will likely produce inaccurate measurements result and have a negative effect on performance. On the other hand, the instrument's range is too narrow, and it will not provide the required flexibility for diverse measurement needs. Selecting an instrument within the appropriate measurement range ensures accuracy and versatility in different dimensional measuring tasks, so it is applicable in various contexts.
Precision And Accuracy
Precision and accuracy are among the key factors when selecting a mechanical measuring instrument. The degree to which the instrument can reproduce measurements is called precision, while accuracy refers to how close the measured value is to the actual value. Instruments with finer scales and less tolerance are more accurate and precise. Businesses in industries such as aerospace, manufacturing, and engineering require these attributes since even the slightest deviation can lead to disastrous consequences. In these contexts, choosing an instrument with great precision and accuracy will go a long way to ensure consistency and quality in results.
Durability
By and large, the mechanical measuring instruments should be durable enough to last in tough working environments. Look out for instruments made from high-quality, wear-resistant materials such as stainless steel or carbide. Also, consider features like dust and waterproofing, as well as thermal and shock resistance. In extreme thermal conditions or in cases where the instrument is used frequently, this will prevent failure and will not affect accuracy. Choosing a durable instrument ensures that businesses can rely on consistent performance in adverse conditions with less downtime due to faulty equipment.
Ease Of Use
Ease of use is an important factor to consider when selecting a mechanical measuring instrument. In this context, Ergonomics refers to how the instrument has been designed concerning handling, readability, and operation. Simple and quick operation using easily readable scales and comfortable grips will increase productivity. Other factors like low maintenance and robustness are critical for the efficiency of businesses dealing with measurements regularly; in these cases, ease of use contributes to a reduction in measurement errors and operational time.
A1: These Measuring instruments are used to measure mechanical quantities like length, angle, and pressure. They are usually applied in industrial and engineering contexts.
A2: Some of the common types of mechanical measuring instruments are calipers, micrometers, gauges, and dial indicators. All have their unique application when measuring length, thickness, and diameter.
A3: The quality of the material, wear and tear resistance, and waterproofing factors determine the instrument's longevity. Shock and thermal resistance also add to the instrument's durability.
A4: Yes, there are many merits, as stainless steel has high strength, is resistant to corrosion and wear, and will last long in different environments. Thus, it makes an ideal material for mechanical measuring instruments.
A5: The main advantage is that mechanical measuring instruments do not need power and are often more robust in harsh environments. They also offer a classic, hands-on approach to taking measurements that many professionals prefer.
