Types of Hydraulic Jacks
Hydraulic jacks use pressurized fluid to create mechanical force, making them essential tools for lifting heavy loads in automotive, construction, and industrial applications. Understanding the different types will help you choose the right tool for your specific needs.
Bottle Jack
Shaped like a bottle, these compact jacks offer excellent portability and can fit in tight spaces. They use hydraulic power to lift heavy loads efficiently.
Key features: Compact size, high lifting capacity, vertical operation
Best for: Home garages, emergency kits, limited space applications
Limitations: Shorter lifting arm makes it unsafe for taller vehicles, height of load must be smaller than jack height

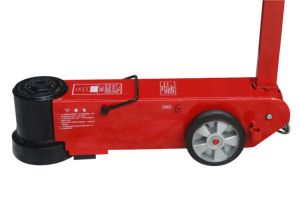

Floor Jack
A large hydraulic jack designed to rest on the floor with a long handle for pumping. Features a large adjustable lifting pad suitable for various vehicle types.
Key features: Stable platform, long handle for leverage, adjustable lifting pad
Best for: Professional workshops, garages, heavy-duty applications
Limitations: Requires significant floor space, heavier and less portable
Side Jack
Positioned on the side of a vehicle, these jacks offer exceptional stability and can lift vehicles up to six feet high. Their side positioning provides better access to the vehicle's underside.
Key features: High lift capability, exceptional stability, side access
Best for: Racing applications, professional servicing
Limitations: Specialized use, more expensive than standard options
Scissor Jack
Named for its scissor-like appearance, these compact jacks operate via a crank handle or small electric motor. Their affordability and portability make them popular for emergency use.
Key features: Compact size, lightweight, affordable
Best for: Emergency roadside use, light vehicles
Limitations: Time-consuming operation, lower weight capacity, less stable than hydraulic options
Ratchet Jack
Utilizing a ratchet mechanism for lifting, these jacks provide safety and stability even at significant heights. Their mechanical design makes them reliable for emergency situations.
Key features: High lift capability, mechanical reliability, stable operation
Best for: Emergency lifting, off-road situations
Limitations: Manual operation requires effort, fewer safety features than hydraulic options
Comparative Analysis of Hydraulic Jack Types
| Jack Type | Typical Capacity | Portability | Ease of Use | Best Application |
|---|---|---|---|---|
| Bottle Jack | 2-50 tons | High | Moderate | Tight spaces, emergency kits |
| Floor Jack | 1.5-20 tons | Low | High | Professional workshops |
| Side Jack | 1-10 tons | Moderate | Moderate | Racing, specialized applications |
| Scissor Jack | 1-2 tons | Very High | Low | Emergency roadside use |
| Ratchet Jack | 1-5 tons | Moderate | Low | Emergency lifting |
Specifications and Maintenance of Hydraulic Jacks
Understanding the key specifications and proper maintenance procedures ensures both safety and longevity of your hydraulic jack investment. Here's what businesses and professionals need to know:
Load Capacity
The maximum weight a jack can safely lift. Always choose a capacity that exceeds your expected load by at least 25% as a safety margin.
Safety Tip: Using a jack with insufficient load capacity can result in catastrophic failure, potentially causing serious injury or death.
Lift Height
The maximum height the jack can raise a load from its starting position. Consider both the minimum height (when fully lowered) and maximum height when selecting a jack.
Selection Tip: Ensure the jack can reach the lift points on your specific vehicles or equipment.
Stroke Length
The distance the lifting arm or piston travels in a single stroke. Longer stroke length means fewer pumps required to achieve desired lift height.
Efficiency Tip: For heavy-duty applications, prioritize jacks with longer stroke lengths to reduce operator fatigue.
Weight & Construction
Hydraulic jacks are typically made from steel (most durable, highest capacity), aluminum (lightweight, corrosion-resistant), or reinforced polymers (lightweight, budget-friendly).
Selection Tip: Heavier jacks offer more stability but reduced portability. Choose based on your primary use case.
Safety Features
Modern hydraulic jacks include various safety mechanisms such as overload protection systems, anti-slip bases, and safety locks to prevent accidental lowering.
Critical Feature: Never compromise on safety features, especially for professional or high-capacity applications.
Essential Maintenance Procedures
Proper maintenance extends the life of your hydraulic jack and ensures safe operation. Implement these practices into your regular maintenance schedule:
| Maintenance Task | Frequency | Procedure |
|---|---|---|
| Visual Inspection | Before each use | Check for cracks, bends, leaks, or damaged components |
| Hydraulic Fluid Check | Monthly | Verify fluid levels and top up with manufacturer-recommended fluid |
| Cleaning | After each use | Wipe down with clean, dry cloth; use soft brush for debris removal |
| Lubrication | Monthly | Apply recommended lubricant to moving parts and joints |
| Full System Inspection | Quarterly | Inspect seals, valves, and hydraulic system components |
| Hydraulic Fluid Replacement | Annually | Drain old fluid and replace with manufacturer-specified hydraulic oil |
Storage Recommendation: Store hydraulic jacks in a clean, dry place away from direct sunlight and extreme temperatures. Keep the jack in its horizontal position with the pressure valve open to prevent pressure buildup.
How to Choose the Right Hydraulic Jack
Selecting the appropriate hydraulic jack requires careful consideration of several factors. For retail businesses stocking these tools, understanding customer needs is crucial to providing the right options.
Key Selection Criteria
| Selection Factor | Importance | Considerations |
|---|---|---|
| Load Capacity | Critical | Must exceed the weight of the heaviest vehicle or load to be lifted by at least 25% |
| Lift Range | High | Consider both minimum height and maximum extension to ensure compatibility with intended vehicles |
| Size & Portability | Medium | Balance between compact design for storage and robust construction for stability |
| Safety Features | Critical | Look for overload protection, bypass valves, safety locks, and anti-slip bases |
| Durability | High | Quality materials, solid construction, and reputation of manufacturer |
| Ease of Use | Medium | Consider pump effort required, weight of the unit, and ergonomic design |
Application-Specific Recommendations
- Home Garage: 2-3 ton floor jack or bottle jack with jack stands
- Professional Workshop: 3-5 ton floor jack with long chassis
- Heavy Equipment: 10-50 ton bottle jack or specialized hydraulic system
- Emergency Vehicle Kit: Compact scissor jack or small bottle jack
- Racing/Performance: Low-profile floor jack with quick lift capabilities
Retail Stocking Strategy
For retail businesses, consider stocking a variety of hydraulic jacks to meet diverse customer needs:
- Entry-level options for occasional DIY users
- Mid-range models for serious enthusiasts and small shops
- Professional-grade equipment for commercial customers
- Specialty jacks for specific industries (agriculture, construction, etc.)
- Complementary safety equipment like jack stands and wheel chocks
DIY Hydraulic Jack Replacement Guide
SAFETY WARNING: Replacing a hydraulic jack can be dangerous if performed incorrectly. Only attempt this if you have the proper qualifications and tools. Always follow the manufacturer's specific instructions and safety guidelines.
-
Safety Preparation
Before beginning any work, ensure you have the proper safety equipment:
- Safety goggles to protect eyes from hydraulic fluid
- Heavy-duty work gloves to prevent injuries and burns
- Appropriate clothing that won't catch on equipment
- Manufacturer's service manual with specific instructions
-
Vehicle Preparation
Properly prepare the vehicle before attempting to replace the hydraulic jack:
- Position the vehicle on a flat, level surface
- Engage the parking brake and place the vehicle in "Park" (automatic) or 1st gear (manual)
- Block the wheels that will remain on the ground with wheel chocks
- Loosen (but don't remove) the lug nuts on the wheel(s) being lifted
-
Lifting the Vehicle
Follow these critical steps to safely lift the vehicle:
- Locate the manufacturer-recommended lifting points
- Position the jack correctly under the appropriate lifting point
- Raise the vehicle slowly, checking for stability throughout the process
- Once at the desired height, immediately secure the vehicle with jack stands
-
Securing the Vehicle
Never rely solely on a hydraulic jack to support a vehicle during service:
- Position jack stands under appropriate support points (refer to vehicle manual)
- Slowly lower the vehicle onto the jack stands
- Ensure the vehicle is stable and cannot shift or move
- The jack should be relieved of weight once the vehicle is on stands
-
Removing the Old Jack
Carefully remove the old hydraulic jack from service:
- Unscrew any mounting hardware securing the jack
- Properly drain hydraulic fluid according to local regulations
- Disconnect any electrical connections (for electric models)
- Remove the old jack from the working area
-
Installing the New Jack
Take care when mounting the new hydraulic jack:
- Position the new jack in the same location and orientation as the old one
- Secure all mounting hardware according to manufacturer specifications
- Connect any necessary electrical components
- Fill with the recommended hydraulic fluid to the proper level
-
Testing the New Jack
Before relying on the new jack, thoroughly test its operation:
- Perform several test cycles without load to check operation
- Verify all safety features are functioning properly
- Check for any leaks or unusual noises
- Test under light load before attempting maximum capacity
-
Lowering the Vehicle
Finally, safely return the vehicle to the ground:
- Place the jack under an appropriate lifting point
- Raise the vehicle slightly to relieve pressure on the jack stands
- Carefully remove the jack stands one at a time
- Slowly and smoothly lower the vehicle to the ground
Post-Installation Verification
After installation is complete, perform these final checks:
- Verify the new jack operates smoothly throughout its full range of motion
- Check that all safety features function as designed
- Inspect for any fluid leaks or unusual wear patterns
- Document the installation date and specifications for future reference
- Properly dispose of the old hydraulic jack and fluids according to local regulations
Frequently Asked Questions
Yes, hydraulic jacks can be used for heavy trucks, but you must select one with an appropriate capacity rating. For heavy trucks, look for these specifications:
- Minimum capacity of 20-50 tons depending on the truck weight
- Broader lift range to accommodate the higher chassis
- Larger saddle area for better weight distribution
- Professional-grade construction with reinforced components
For servicing heavy trucks, consider specialized bottle jacks or telescopic hydraulic jacks designed specifically for commercial vehicles. Always use with proper jack stands rated for the truck's weight.
No, using a hydraulic jack on an uneven surface creates significant safety hazards and should never be attempted. When a jack is placed on an uneven surface:
- The jack may tilt or slip during operation, causing the vehicle to fall
- Weight distribution becomes uneven, potentially exceeding the jack's capacity on one side
- The hydraulic system may be strained, leading to premature failure
- The vehicle may become unstable once lifted, even if the initial lift seemed successful
Always position hydraulic jacks on solid, level surfaces. If working in field conditions, use solid wood blocks or specialized jack pads to create a stable, level foundation before attempting to lift any load.
Hydraulic jacks can be either manually operated or electrically powered:
- Manual hydraulic jacks require physical pumping of a handle to build hydraulic pressure, which then lifts the load. These are more common and don't require a power source.
- Electric hydraulic jacks use an electric motor to power the hydraulic pump. They operate on the same hydraulic principles but eliminate the manual effort required for lifting.
Electric hydraulic jacks are typically used in professional settings where efficiency and reduced operator fatigue are priorities. They may run on standard AC power, battery power, or air pressure (pneumatic-hydraulic). The fundamental lifting mechanism using hydraulic fluid remains the same across all types.
Hydraulic fluid should be replaced based on usage frequency and operating conditions:
- Light use (homeowner): Every 1-2 years
- Moderate use (enthusiast): Every 6-12 months
- Heavy use (professional): Every 3-6 months
Replace fluid immediately if it appears cloudy, discolored, or contains particles, regardless of the time schedule. Always use the specific hydraulic fluid recommended by the manufacturer to ensure proper performance and seal protection.
The primary differences between hydraulic and mechanical jacks are:
- Operating principle: Hydraulic jacks use fluid pressure to multiply force, while mechanical jacks use gears, screws, or levers
- Lifting effort: Hydraulic jacks require less physical effort due to the hydraulic advantage
- Lifting speed: Mechanical jacks typically lift more slowly but with more precise control
- Maintenance: Hydraulic systems require fluid checks and seal maintenance; mechanical systems need lubrication
- Weight capacity: Hydraulic jacks typically offer higher weight capacities for similar-sized units
Both types have their place depending on the application. Mechanical jacks (like scissor jacks) are often included with vehicles for emergency use, while hydraulic jacks are preferred for regular maintenance work.
