Hydraulic sae flange

Types of hydraulic sae flange

Hydraulic SAE flanges are available in different configurations to suit an extensive range of applications. They are mainly categorized by the number of bolting positions and, in most cases, the sealing surfaces.

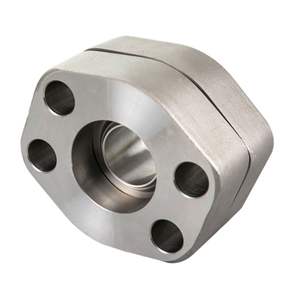

• Hydraulic SAE 4-Bolt Flanges

  These flanges are often applied in low- to medium-pressure hydraulic systems. Their design, which features four bolts, offers good torque distribution. That makes SAE 4 flange suitable for larger diameter hoses and pipes. They provide a reliable, leak-proof connection in diverse industrial applications.

• Hydraulic SAE 6-Bolt Flanges

  The SAE 6-bolt flanges are designed for medium-pressure hydraulic systems and provide superior sealing than the 4-bolt version. They are used in heavy-duty applications. The extra bolts enhance durability and are used in more demanding conditions, such as mining and oil and gas extraction.

• Hydraulic SAE 8-Bolt Flanges

  As the number of bolts increases, so does flange strength. The SAE 8-bolt flanges are designed for high-pressure hydraulic systems. They will likely provide the most secure connection in the right conditions. They are widely used in chemical processing, power generation, and high-pressure fluid transfer systems.

• Special Configurations

  Special hydraulic flange configurations, such as loose flange type hydraulic sae pipe threads or reducing flanges, are designed for specific applications. These flanges can accommodate particular system requirements, such as joining pipes of differing diameters or compensating for misalignment. These are necessary for specialized applications in aerospace or shipbuilding and common industrial usage.

Industrial Applications of hydraulic sae flange

Due to their sturdy and reliable nature, hydraulic SAE flanges have numerous industrial applications. Below are some of the commonly applied areas:

• Manufacturing

  In manufacturing, hydraulic flanges secure hydraulic hose assemblies in heavy machinery, such as excavators, bulldozers, and manufacturing robots. Efficient power transmission is necessary in this industry, as faulty connections lead to equipment breakdowns, resulting in production delays and financial losses.

• Agriculture

  Hangings are extensively used on farm machinery, including tractors, combines, and hydraulic presses. In modern farming, where machinery does most of the work, flanges become vital in ensuring that equipment operates effectively. Again, leak-proof connections help keep fluid losses low and equipment longevity high.

• Oil and Gas

  Flanges are commonly used in the oil and gas upstream, midstream, and downstream exploration, extraction, transportation, and processing industries. These are applied in high-pressure flanges sealing required for safety and environmental protection. Any leaks in this industry can pose severe safety risks and high cleanup costs.

• Mining

  The mining industry widely uses hydraulic machinery and equipment, such as diggers, dump trucks, and underground loaders. The high strength and durability of the SAE hydraulic flange connections make them ideal for use in the high-pressure and high-stress situations common in this industry. These are also used in ore transport pipelines and flocculant mixing and feeding equipment.

• Transportation

  Transportation industries such as vehicle manufacturing, railroad systems, and aircraft maintenance use hydraulic flanges. These secure hose assemblies in braking systems, steering mechanisms, lifts, and other vital operational components. Because of the role they play in protecting vehicle safety, the transportation industry has stringent standards for flange integrity and toughness.

• Construction

  In construction industries, hydraulic hose assemblies are commonly used in giant construction equipment, such as concrete pumps. Just like the preceding industries, leak-proof or secure connections are required in this industry to avoid downtime, safety issues, and corrosive fluid damage to equipment and structures.

• Chemical Processing

  In the chemical processing industry, flanges secure the hose assemblies used in transporting, mixing, and processing chemicals. They are designed to withstand the aggressive nature of many chemicals, thus preventing leaks that can cause safety hazards or damage to equipment.

Product Specifications and Features of hydraulic sae flange

The hydraulic sae flange features and specifications are discussed below:

Key Features

• Robust Design: An SAE hydraulic coupling is designed to withstand extreme pressures and temperatures. As such, they are made from premium-quality steel or stainless steel.
• Secure Connection: Multiple-bolt designs ensure that they provide a secure connection that can endure vibrations without loosening.
• Leak Prevention: They incorporate O-ring grooves or other sealing mechanisms that prevent leaks. Leak prevention is vital in hydraulic systems since low efficiency comes with leaks.
• Versatility: Since these flanges are configurable, they can be used across many industries and diverse applications.
• Ease of Installation: Many hydraulic SAEs are designed to be easy to install, thus saving labor costs and time.

How to Install

• Preparation: Before starting installation, examine all components to ensure compatibility. Look for any prior damage or wear on the flange.
• Alignment: Properly align the two flanges to ensure that the bolt holes line up. Avoid any bending or misalignment. A misaligned flange may lead to leaks or premature failure.
• Fastening: Insert the bolts and washers into the flange's bolt holes. Tighten them gradually in a crisscross pattern to ensure even distribution of pressure. Start by securing them firmly, then go for the final tightening with a torque wrench set to the manufacturer's recommended torque specifications.

Maintenance and Repair

• Regular Inspection: Conduct regular inspections to identify wear, corrosion, or damage. Besides, visually check for leaks or signs of fluid escaping.
• Tightening: Occasionally check the bolt's tightness to avoid flanges from becoming loose over time due to vibrations.
• Cleaning: Keep the flanges clean to prevent debris and contaminants from affecting the connection.
• Chemical Protection: Coat the flanges with anti-corrosion chemicals to protect them from rusting, especially in harsh chemical or environmental conditions.
• Seals Replacement: Replace all worn-out seals or O-rings immediately. This is necessary to maintain the system's integrity. Install compatible ones specifically designed for the flange type.

Quality and Safety Considerations of hydraulic sae flange

To ensure the safe and reliable performance of hydraulic sae flange products, below are some quality and safety considerations:

• Material Quality

  Since hydraulic flanges are exposed to extreme pressure, they are typically manufactured from steel alloys, such as 300M or 4340. These premium-quality materials have high tensile strength and resistance to fatigue and deformation. They are also made from premium-quality corrosion-resistant materials such as stainless steel to improve durability in corrosive environments. However, note that inferior-quality materials may undergo rapid corrosion, while weak steel undergoes deformation or breakage, which can be dangerous and disrupt operations.

• Manufacturing Standards

  Consider those hydraulic sae flanges adhering to manufacturing standards such as ISO, SAE, or ASTM. These standards ensure consistency in dimensions, tolerances, and performance characteristics. That means there is less likelihood of failure, and the operational safety of the hydraulic system is guaranteed. Avoid using non-compliant parts to reduce risks of catastrophic failure.

• Testing and Certification

  Testing and certifying products according to industry standards for pressure and temperature ratings ensure that they perform adequately under specified conditions. Only use flanges that have undergone burst testing, fatigue testing, and leak testing. This will ascertain their reliability. Ensure they are certified by reputable organizations, as uncertified products may have unpredictable performance and pose danger.

• Sealing Mechanism Integrity

  Since sealing is one of the key roles of these flanges, only those with quality seals are worth considering. Look for flanges featuring O-rings, graphite inserts, or anti-leak grooves made from durable materials such as nitrile rubber or viton. Poor-quality seals give rise to leaks, thus compromising system efficiency. In that case, there will be energy losses, and safety risks may cause damage to equipment or environment.

• Torque Specifications

  Pay particular attention to the flange's torque specifications in the maintenance manual. This is vital in the proper installation procedure because over-torquing or under-torquing leads to leaks or flange failure. Both situations are hazardous to hydraulic operations. Over-torquing causes the flange to deform or even break; under-torquing causes separation and leaks. The latter causes reduced efficiency and possible damage to surrounding parts, while the former can result unsafe operation, including flying debris and worker injuries.

• Regular Maintenance

  Just like any mechanical component, these flanges require regular maintenance and inspection. Their frequent checks also increase their longevity. Inspect for signs of corrosion, wear, or damage. Replace worn-out seals. Also, re-torque the bolts where necessary. Regular maintenance also involves cleaning the flange to get rid of debris or contaminants.

FAQs

Q1: What are hydraulic SAE flanges? Where are they used?

A1: Hydraulic SAE flanges are specialized fastening components designed to connect hydraulic hoses or pipes securely. Their applications are across various industries. These include manufacturing, agriculture, oil and gas, mining, transportation, construction, and chemical processing. In those industries, they help ensure a reliable and leak-proof connection.

Q2: Why are SAE flanges preferred in high-pressure systems?

A2: In high-pressure systems, robust design and secure bolting of SAE hydraulic flanges withstand extreme pressures and maintain connection integrity. That is why they prevent leaks, ensure safety, and promote reliable operation in demanding environments.

Q3: How do one maintain hydraulic SAE flanges?

A3: Maintenance of hydraulic SAE flanges entails regular inspections for signs of wear, corrosion, or damage. It also involves re-torquing the bolts to maintain proper tightness and replacing worn seals while keeping the flange clean.

Q4: What materials are used to make hydraulic SAE flanges?

A4: Manufacturers make hydraulic SAE flanges from high-strength steel alloys or stainless steel. These materials offer exceptional resistance to fatigue, deformation, and corrosion. That makes the flanges durable and reliable in harsh environments.

Q5: How does one ensure proper installation of these flanges?

A5: Proper installation is achieved by following manufacturer's guidelines for torque specifications, sealant application, and alignment. Maintaining uniform tightening of bolts using a torque wrench ensures even pressure distribution.
