Hard rock mining drill bits

Types of hard rock mining drill bits

The hard rock mining drill bits are produced in various types to suit different needs. Here are some of them.

• Core bits: Core bits in hard rock mining are produced to remove cylindrical samples, which are commonly called cores, from the ground. They are designed with a hollow barrel that has an arrangement of teeth or diamonds on them. The bits are often used by geologists to analyze the composition and structure of rock layers.

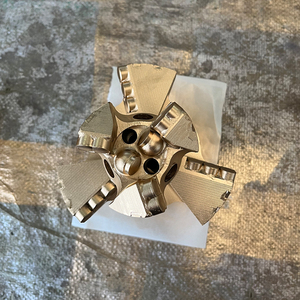

• Reaming bits: A reaming bit is a kind of hard rock mining drill bit that is produced to enlarge or modify existing holes in hard rock formations. They are designed with teeth or shaped heads and can be operated alone or with other downhole tools. Reaming bits are often used in hard rock mining to create larger openings for ore extraction, development, or ventilation.
• Drag bits: Drag bits for hard rock mining are a kind of drilling tool designed to cut through solid rock formations. Usually, they are equipped with a tough, wear-resistant material, like carbide inserts or diamond-impregnated segments, which are designed to scrape or drag across the rock surface. In general, drag bits are used in conjunction with a rotary drill rig.
• Button bits: Button bits are small, rounded steel buttons on the bit head. They are often used in rotary drilling applications, especially in hard rock formations where conventional tungsten carbide insert bits would wear out quickly.
• Cross bits: Cross bits are sometimes called cruciform bits, which are designed with four principal arms that intersect in the center to form a cross-like shape. This unique design offers some advantages over other types of drill bits when it comes to drilling through hard rock formations.

Specifications and maintenance of hard rock mining drill bits

The hard rock mining drill bit is made of high-quality alloy steel or carbon steel after high temperature, and its threaded rod shaft is made of hot casting. The diameter and shank sizes of drill bits vary according to the customers' requirements and needs. Usually, the diameter ranges from 32 to 152 mm, and the shank size can be strait or round, such as 3/4" NPT (National Pipe Thread), etc. Moreover, TCI bits come in different face configurations to meet diverse mining needs. For instance, the matrix body bits are suitable for softer formations, while tungsten carbide insert (TCI) bits are ideal for harder, more abrasive rock formations. Furthermore, they can be designed for oil drilling, water well drilling, mining, or horizontal directional drilling, among other applications. Drill bits for bore piles or water holes usually come in two types, i.e., 3-cone bits and PDC bits. 3-cone bits usually have a diameter of 77 mm to 152 mm, whereas PDC bits can be designed with different numbers of blades and diameter according to customers' needs.

It is imperative to maintain mining drill bits properly to ensure their effectiveness and lifespan. The first tip for drill bit care is cleaning up the debris collected during the drilling process. Buyers and users can utilize a soft brush or an air compressor to achieve this. Neoprene rubber gaskets are specifically designed for mining are ideal for protecting drill bits, allowing users to protect them from thread damage. If changing the drill bit, it is wise to put the gaskets on to protect the threads.

Moreover, storing the drill bits vertically can be very helpful in protecting the carbide tips. This minimizes the chances of chipping or damaging them. In case of drilling harder rock formations using water can be ideal to keep the drill bit cool. This prevents overheating and unnecessary wear. If one is faced with excessive downtime between drilling tasks, it may be best to coat the bit in a light layer of oil to offer additional rust protection. Lubrication is essential for protecting the drill bit and ensuring efficient operation. Because of this, users should apply an appropriate amount of lubricant during the drilling process. Regular inspection of the drill bit is also essential part of its maintenance. Users should look for signs of wear, damage, or clogging and promptly address any issues to maintain optimal performance. Following these tips can extend the lifespan of a drill bit and ensure it functions properly when needed most.

Scenarios of hard rock mining drill bits

Drill bits for hard rock mining have numerous usages in the mining and related industries. Their special design allows them to adapt to different situations and needs.

• Blast hole drilling for coal mining:

  In coal mining, blast hole drilling is a common method used to extract coal from the earth. Certain heavy-duty drill bits, such as roller cone bits with tungsten carbide inserts or PDC bits, are used for this type of drilling to create blast holes. The drill bits will first strike a hard rock layer before reaching the coal seam. Therefore, they have to be versatile enough to work through different types of geological formations.

• Creating access tunnels and shafts:

  When starting a mining operation, access tunnels and vertical shafts need to be created to give miners access to the area where the valuables are located. This is known as the decline or primary access. In other cases, an inverted pyramid-shaped mining operation may be carried out, known as a central access. Horizontal tunnels are referred to as drift.%20Typically, aerospace drill bits with polycrystalline diamond, or diamond bits, will be used to make access tunnels or vertical shafts. These have enhanced designs so that they can make the access points needed for the mining operation efficiently.



• Making slot and raise excavations:

  In some cases, slot and raise excavations are made to reach the valuable minerals. A raise refers to a vertical or inclined mining opening created to access ore bodies or provide ventilation in a mine. Mining operators may use core drill bits, which have a hollow design, to create the slots or raises for them to reach the desired ore bodies. Usually, these cores drill bits have a diamond or carbide coating, which gives them more durability and allows them to work through hard rock formations.

• Drill holes for blasting:

  Holes need to be drilled in the area surrounding the ore body to blast and excavate the rock. The drill bits that are commonly used to drill blast holes for blasting are tricone drill bits or DTH drill bits ( hammer bits) - drill pipes are attached to the hammer, which then strikes the rock. These two types of drill bits are ideal for penetrating hard rock formations.

• Drilling exploratory holes:

  Before the actual mining process begins, exploratory holes need to be drilled to assess the geological formations of the area where mining will occur. Core drill bits or rotary drill bits are commonly used to drill these exploratory holes. Core drill bits are used to obtain rock samples for geological analysis. The rock samples will give miners information about the different types of rock formations they will encounter, as well as the locations of valuable minerals.

How to Choose Hard Rock Mining Drill Bits

When selecting hard rock mining drill bits, multiple factors have to be considered to ensure suitability for the intended application. The following table summarizes some of these factors and explains them:

• Geological Compatibility

  Before buying hard rock drill bits, it is always important to consider the geological formation that the bit will be used to drill. Different geological formations have different properties, and only some drill bits will be effective in them. For example, formations with sandstone, limestone, or cement require drill bits with PDC cutters. On the other hand, harder formations that have granite, basalt, or sandstone need drill bits with TCI or steel gauge cups.

• Drilling Method

  The drilling method really matters when choosing hard rock mining drill bits. There are different drilling techniques, such as rotary, diamond, and percussive drilling. Each of these methods requires a specific type of bit. For instance, rotary drilling uses roller cone and diamond bits, while percussive drilling relies on button bits and cross-bit drills.

• Bit Construction and Material

  It's important to consider the bit's construction and material since they can affect its performance and durability. Hard rock drill bits are constructed using different materials, such as tungsten carbide and steel. When drilling into hard rock surfaces, choosing bits made of durable and high-quality materials is advisable to enhance their lifespan and efficiency.

• Bit Size and Configuration

  The rock formation's diameter and structure are, of course, important factors. When selecting hard rock mining drill bits, it's crucial to pick the right diameter and design for the job. The configuration of the bit can also affect its performance. For example, some bits are designed to improve stability and drilling speed.

• Load and Torque Capacity

  It's important to consider the weight and torque capacities of the hard rock mining drill bits. Different formations require different load capacities for effective drilling. Choosing the right torque will help enhance the bit's efficiency and performance during drilling operations.

Hard rock mining drill bits FAQ

Q1: What are hard rock mining drill bits made of?

A1: Hard rock mining drill bits are made of several high-performance materials like tungsten carbide, natural diamond, synthetic diamond, carbonado, polycrystalline diamond, and diamond-studded metal alloys. These materials offer different levels of durability, performance, and cost.

Q2: What are hard rock mining drill bits used for?

A2: Hard rock mining drill bits are used in various industries like construction, mining, and oil and gas extraction. They are used to create tunnels, vertical or horizontal passages, blast holes, geothermal wells, water wells, and extraction wells.

Q3: What are the advantages of hard rock mining drill bits?

A3: The advantages of hard rock mining drill bits include high penetration rates, efficient material removal, suitability for different rock formations, and cost-effectiveness.

Q4: What are the types of hard rock mining drill bits?

A4: The types of hard rock mining drill bits include PDC bits, TCI bits, roller cone bits, diamond bits, and turbo bits. Each type is designed to optimize drilling performance in specific rock conditions.
