Aluminum extrusion is the process of molding aluminum alloy into a desired shape. H-type aluminum extrusion profiles are ideal for commercial heating and cooling systems, offering the right platforms to mount and protect air ducts and piping for HVAC systems.
Some common varieties include the following:
Simple H-type profiles
Basic or simple H-type aluminum extrusion profiles are just rectangular beams. Typically, they are used as channel-like ducting systems for air currents. The open nature makes the materials easy to manipulate and mount. They are also commonly used to build framework for HVAC air ducts.
Perforated H-type profiles
HVAC ducts often need to allow some airflow through their walls. This is to reduce air stagnation or sound absorption issues. Perforated or punched H-type aluminum profiles contain a series of small holes or slits. Such features allow limited air passage through their structural form. Nonetheless, the material still maintains a high degree of rigidity for mounting or structural support tasks.
Slotted H-type profiles
Slotted or grooved H-type aluminum extrusion profiles offer particular advantages over normal solids in specific mounting conditions. The longitudinal slots or grooves running along these beams provide surfaces where different accessories such as mounting brackets, hangers, clamps, or additional profiles can be easily attached or adjusted without requiring special hardware modifications to be made.
Reinforced H-type profiles
Reinforced or strengthened H-type profiles, as their name suggests, are designed to bear larger loads than ordinary shapes. They usually have thicker walls, internal ribbing, or enlarged dimensions to achieve these properties. Reinforced helix type aluminum extrusion profiles are ideally suited for heavy duty structural applications in commercial ducting, where high strength is a primary requirement.
The H-type aluminum extrusion profile has the following unique characteristics:
Shape and design

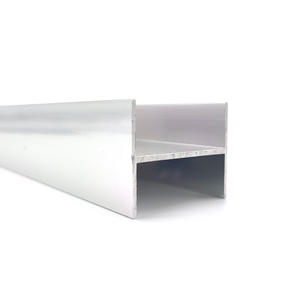

The most distinguishing characteristic of the H-type profile is its structural resemblance to the letter H. This means that both of its legs or flanges, as they are called, are parallel to each other and at a right angle to the central web or body part that connects them. This unique cross-sectional design gives it advantageous features over other profiles, such as increased bending strength in two perpendicular directions. Its wide flanges allow convenient mounting for other components. This allows it to be widely employed as a frame over which air ducts can be supported in the HVAC system.
Material properties
Aluminum alloys are the most preferred materials used to manufacture H-type extrusion profiles for their unique qualities. They possess high resistance to corrosion. This is why they are preferred to be used even in humid or highly wet environment. They are also extremely light in weight compared to other metals, including steel. One notable quality is their workability. Aluminum extrusions can be molded into complex shapes and profiles, including the H design. They have an aesthetic silver-like finish that rarely needs additional surface treatments. Another hallmark is thermal conductivity. This enables the profile to dissipate heat and, hence, makes it an ideal component in the HVAC system.
Manufacturing process
The shaping of aluminum into the H-type extrusion profile follows the same standard method used for producing most aluminum extrusions. The process involves first heating the aluminum alloy billet to a temperature of around 450 to 500 degrees Celsius. At this stage, it becomes malleable without losing its strength properties. It is then placed in a specially designed die that has the negative impression of the desired H cross-section shape. A hydraulic press exerts huge pressure on the soft aluminum so that it completely fills the die cavity. Once set, this die-formed shape is cut to length, and finishing processes such as anodizing, cutting, holes drilling, and surface treatments may be done thereafter.
Durability and strength
The H-type profile is very good at handling typical forces that may be applied to it during its functioning. Its structural shape enhances resistance to bending and twisting under dynamic loads or external influences. Aluminum alloy formulation contributes to the overall strength of the profile and enables the entire aluminum extrusion profile types to retain this rigidity even over long spans used in constructing air ducts and other frameworks in an HVAC system.
H-type aluminum extrusion profiles are suited for a variety of uses. Here are some common applications:
HVAC ducting
The primary purpose of these types of profiles in an HVAC system is to provide structural framework support for air ducts. They are typically used to construct ducts to ensure the air passes through efficiently. The H shape of these extrusions serves well to hold the walls or ceiling of the ducts, facilitating proper airflow throughout spaces.
Air distribution systems
H-type extrusions perform similarly in other air distribution applications, such as diffusers and grilles. The profiles incorporate vents, louvers, or other air delivery devices into ceilings or walls. Their strength keeps these devices securely fixed. Their open shape and adjustable mounting options allow for the precise installation of air distribution elements.
Railways and vehicles
Railway cars, subways, and buses also have HVAC systems for air conditioning and heating. That's why these H profiles can also be found in the air ducts in transportation vehicles. They provide a lightweight yet robust structure that efficiently transfers air to its intended destination, maintaining comfortable temperatures for passengers even on long journeys.
Heat exchangers
Heat exchangers are devices that transfer thermal energy between fluids for various applications, ranging from industrial processes to refrigeration systems. H-type aluminum extrusions profile is also employed to construct housings, casings, or tubes in which the heat exchange takes place. Their rigidity supports the internal components and allows the fluids to flow seamlessly through the exchanger system.
Mounting and support system
In addition to functioning as parts for devices, H profiles are also commonly used in the general mounting brackets, hangers, supports, and scaffolding for the ducts, piping, and other components of the HVAC system. The profiles provide a versatile platform for installing these elements reliably.
Here are important things buyers should think about when choosing the Helical Aluminum Extrusion profiles for pneumatic systems:
Material
Pneumatic systems profiles are primarily made of aluminum. The material is light and easy to work with. It does not rust and is therefore used for outdoor facilities. Profiles can also be made of more advanced alloys. These are titanium or magnesium composites. Such materials offer extreme strength while being very light in weight.
Compatibility with other components
Other components of pneumatic systems also influence the choice of Extrusion profiles. Buyers should ask themselves if they need to Custom aluminum profiles. They should also think about how these profiles will attach to other parts. Will they use screws or clamps? There should be a place to put the mounting hardware. Moreover, will the profiles interact with insulation or noise reduction materials? Buyers should also consider the other components of these profiles will interact with, just like Aluminum profiles for HVAC, such as insulation or sound reduction materials.
Finishes
Aluminum profiles can be finished in various ways to enhance their properties. Coatings such as anodizing add a layer of protection against corrosion. They also improve the profile's aesthetic appearance. Mineral oil or paint finishes offer other less expensive means of coating for similar purposes. Buyers should think about how the finishes will be applied and by whom. Some finishes require special tools to remove them.
Dimensions and length
Aluminum profiles come in varying lengths and sizes depending on their intended application. Long profiles are needed where structures require many stories. Thin profiles work best on tiny machines making quick work of subtasks. Buyers should consider the space where the profile will be installed and also the load-bearing it may have to do.
Quality
So as to ensure that the Extrusions profiles perform to their optimum level, buyers should focus on purchasing Extrusions made by credible manufacturers who operate within the required standards. Such sellers offer products with warpage and other defects.
A1: No. Generally, aluminum requires very little care. The H profiles can be wiped clean as dirt settles on them. They may occasionally be washed using a detergent to remove anything that may corrode the aluminum over time.
A2: Yes, these profiles are ideal for the outdoor setting. They are resistant to the heat, which makes them ideal for outdoor use.
A3: Yes. These profiles are available in various lengths and widths to meet clients' needs where they intend to use them. Buyers are advised to consider the space available and the load these profiles will carry before buying them.
A4: H type aluminum extrusion profile finishes are anodizing, powder coating, or painting applied to enhance the profile's durability and appearance.
A5: These profiles are mounted using various fasteners, including screws, bolts, or brackets, depending on the specific application and installation requirements.
