Types of Guitar Jacks
A guitar jack is a vital part of every electric guitar. It is the hardware component that allows the guitarist to plug in their guitar cable so that the guitar can be heard through an amplifier. The standard guitar plug is a quarter-inch (6.35mm) mono or stereo jack. The output jacks are threaded for mounting and typically have a diameter of 6.35 mm. There are different types of guitar jacks, and they include:

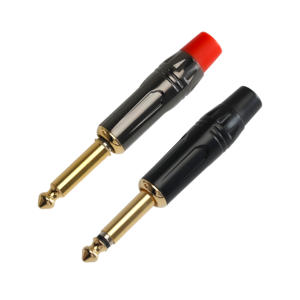

- 1/4-Inch Mono Phone Jacks: 1/4 inch mono phone jacks are the most common type of guitar jacks. They are used in electric guitars, basses, and many other string instruments. This phone plug is used in the 1/4 inch cable that connects the guitar to the amplifier or effects pedals. The jack is designed to ensure that the plugs fit perfectly into each other. This design helps the cable withstands stress and avoid accidental disconnection. It also helps to prevent signal loss and maintains the sound quality of the guitar. The size of the jack is just right; it is neither too large nor too small. It is just the perfect fit, which makes them one of the best guitar jacks.

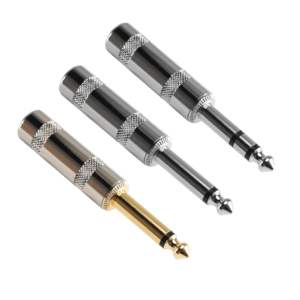

- 1/4-Inch Stereo Phone Jacks: 1/4 inch stereo phone jacks are similar to mono jacks. However, they have two signal conductors instead of one. The two signal conductors allow the use of left and right audio channels. This jack is used in guitars that produce stereo sound. For example, a guitar with two pickups (one under the fret and one at the end of the guitar) can take good advantage of the stereo jack. The stereo jack has a third conductive ring that enables the left and right audio channels.
- 1/8-Inch Mini Phone Jacks: 1/8 inch mini phone jacks are smaller than the standard 1/4 inch jacks. They are used in situations where space is limited, like in some hollow-body guitars or certain bass instruments. The mini phone plug is the small plug used in most mobile device headsets. The 1/8 inch phone jack is a popular medium-sized connector used in various devices, including portable speakers, mini amplifiers, and in-car audio systems. They are designed to carry audio signals and connect different devices to each other.
- Locking Jacks: Locking jacks have a mechanism that locks the plug into the jack once it is inserted. This prevents accidental disconnection and is especially useful in live performance situations. The locking mechanism is usually activated by twisting the plug or pressing down a tab.
Scenarios of Guitar Jacks
Guitar jacks are connectors that are used in many different applications and devices. The most common application for a guitar jack is in connecting a guitar string instrument to an amplifier. Here are some of the usage scenarios of guitar jacks:
- Guitars – The most common use of guitar jacks is connecting electric guitars to amplifiers using 1/4-inch jacks. They are also used in effect pedals and rack-mounted equipment. Jacks are also used in some bass guitars.
- Other String Instruments – Guitar jacks can also be used in other string instruments like violins, mandolins, and ukuleles. The standard size for the jack is 1/4 inch, which is the same as the viola jack.
- Audio Equipment – The 1/4-inch jacks are the same type of jacks that are used on audio equipment like mixers, speakers, and microphones. This type of jack is used to transmit high-quality audio signals.
- Headphones and Earbuds – The 1/8-inch jacks are mostly used in headphones and earbuds to connect them to audio devices like phones, laptops, and gaming consoles. The mini jacks are also used in some car audio systems to connect headphones and earbuds.
- Professional Audio Gear – The 3-pin XLR jacks are used in professional audio gear to connect microphones, mixers, and speakers. These jacks are used to transmit high-quality audio signals over long distances.
- Consumer Electronics – The 1/8-inch jacks are used in consumer electronics like portable speakers, MP3 players, and gaming devices. They are popular because they are compact and easy to use.
- Custom Applications – The mini DIN jacks are used in custom applications like retrofitting old equipment, modifying guitars, and creating custom audio cables. They provide a versatile connection option for different audio needs.
How to Choose Guitar Jacks
The following are some factors to consider when choosing a guitar jack:
- Durability: durability is important when considering a guitar jack. It is important to choose a guitar jack that is built to last and can withstand frequent use and abuse. A sturdy and well-constructed guitar jack will provide a reliable and consistent connection for years.
- Quality: the quality of the components of a guitar jack is very important. It is important to choose a guitar jack made with high-quality materials, such as gold-plated contacts, which will help to prevent corrosion and ensure a good connection. A high-quality guitar jack will provide better sound and performance than a lower-quality jack.
- Size: the size of the guitar jack is also important. It is important to choose a guitar jack that fits the instrument and the cable correctly. A loose or tight jack can cause problems with the connection and sound.
- Type: the type of guitar jack is also important. It is important to choose the right kind of guitar for the instrument, whether it is an electric, acoustic, or bass guitar. Different types of guitars require other kinds of jacks, so it is important to know which one is needed.
- Cost: the cost of the guitar jack is also something to consider. While it is important to choose a high-quality jack, it is also important to stay within a budget. Finding a balance between quality and cost is important to get a good value for the money.
Function, Feature, and Design (Combined) of Guitar Jacks
Now that we've discussed the function and the features of the guitar jacks let's look at how their design relates to their function and features.
-
Design for Functionality
All the types of guitar jacks discussed above are designed to perform their functions well. For example, the 1/4 inch mono jacks are made to ensure that musicians can plug in their equipment easily and quickly. At the same time, the 1/4 inch stereo and balanced jacks are made to guarantee that guitarists can get a stereo signal or a balanced connection, which is necessary for high-quality sound reproduction.
Furthermore, the locking jacks are designed to prevent the plug from coming loose so that the connection remains solid during performance.
-
Design for Durability
Durability is an important aspect of the design of all jacks. For instance, the nickel-plated tip on most guitar jacks helps to resist corrosion and wear, thus ensuring a long-lasting connection. Also, gold-plated jacks provide a reliable and corrosion-resistant connection, although they are more expensive.
-
Design for Versatility
Guitar jacks are also versatile, with designs allowing them to be used in various applications. For example, the right-angle jacks are designed for use in situations where space is limited, which enables a tight and secure connection in the plug of a cable that runs parallel to the body of the guitar.
Q&A
Q1: How does the locking mechanism in a guitar jack work?
A1: The locking mechanism in a guitar jack is designed to hold the plug securely in place. It can be a threaded sleeve that needs to be twisted to lock the plug or a spring-loaded tab that locks the plug in when inserted. This mechanism prevents accidental unplugging during use.
Q2: What is the difference between a mono and a stereo guitar jack?
A2: A mono guitar jack has two connections (tip and sleeve) and is used for standard audio signals. A stereo guitar jack has three connections (tip, ring, and sleeve) and is used for stereo audio signals, such as in guitars with two pickups or for instruments that require a stereo output.
Q3: How does a circuit-breaking guitar jack work?
A3: A circuit-breaking guitar jack turns off the guitar's output signal when the plug is removed. It has a small switch inside that opens the circuit when the plug is not connected, helping to prevent battery drain in active guitars.
Q4: What are the common sizes for guitar jacks?
A4: The standard sizes for guitar jacks are 1/4 inch (6.35 mm) for most electric guitars and 1/8 inch (3.5 mm) for headphone and portable audio jacks. Some specialized equipment may use different sizes, but the quarter-inch jack is the most common for musical instruments.
