Graphite spheroidization mill

Types of graphite spheroidization mill

Graphite spheroidization mill is of several types based on the milling result demanded and the operation mode. These types include:

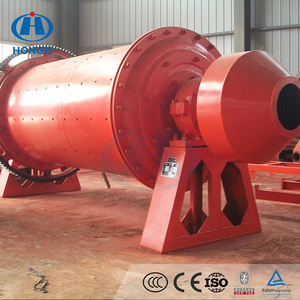

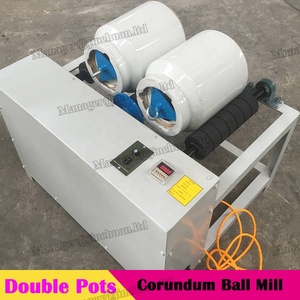

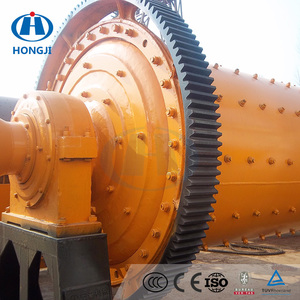

• Ball Sagittarius Mill

  This type of mill uses ball bearings as the grinding media within the vessel. As the graphite mixture is put into the mill, the ball wears down the graphite through a mix of compression and shear forces. The balls' round shape ensures that they can steadily provide even grinding, which is critical for making graphite particles the same shape as a sphere. This mill is mainly applied when a fine end product is required, grinding graphite to nanometer or micrometer sizes.

• Rod Sagittarius Mill

  Similar to the ball mill, a rod zodiac mill uses long, thin rods as grinding media. The rods give a different breaking action to the graphite, resulting in a coarser product compared to ball mills. The rod mill is ideal for the initial stage of grinding graphite, reducing the mineral to a powder before finer milling in ball mills. This two-stage milling method improves the spheroidization process by providing a good balance between particle size and shape.

• Jet Sagittarius Mill

  A jet graphite spheroidization mill uses high-speed air or steam jets to grind the graphite particles. The force of the gas jets causes the particles to hit each other, breaking them into smaller pieces. This type of mill does not have any grinding elements, so it avoids contamination of the graphite powder. It is best for achieving a very fine, highly reactive graphite powder. With no moving parts inside the mill, jet mills operate best for continuous processing of small batches.

• Hammer Sagittarius Mill

  As the name implies, this mill has hammers that are mounted on a rotor that spins very fast inside a screen-lined chamber. The hammers smash the graphite against themselves and the walls of the screen to grind it up. Hammer mills are rough grinding tools that can process large amounts of material quickly. However, they are less effective than ball or rod mills in spheroidizing the graphite because their grinding action is too rough and does not produce uniform, spherical particles.

Industrial applications of graphite spheroidization mill

Graphite spheroidization mills are vital in many industries, providing consistently shaped graphite powders to optimize processes and products. These mills give an advantage of spherical particles that flow well and pack denser, which is critical in these applications:

• Batteries

  In lithium-ion batteries, graphite serves as the anode material. Spheroidized graphite powders increase energy density, ensure the battery charged, and prolonged cycle life by providing a greater surface area that interacts well with the electrolyte. The elongated shape of the particles in battery formulations makes sure the powders flow effectively during manufacturing yet pack tightly to optimize space within battery cells. The fine particle sizes also help in the speedy transfer of lithium ions within the battery, boosting charging and discharging rates required for modern electric vehicles and consumer electronics.

• Lubricants

  Graphite's natural lubricating properties are enhanced by spheroidization to give superior performance in industrial and automotive lubricants. The spherical particles reduce friction between surfaces better than irregularly shaped particles, allowing smoother movement and reducing wear. In certain lubricants, the spheroidized graphite provides a consistent particle size that ensures even distribution within the lubricant, giving reliable and long-lasting lubrication under diverse operating conditions. This results in lower power consumption and reduced overheating in machinery.

• Thermal Management Materials

  Heat spreaders, sink materials, and thermal interface compounds use graphite powders. In these situations, spheroidized graphite improves thermal conductivity and creates materials that dissipate heat from components such as CPUs and power electronics effectively. The spherical shape maximizes contact between particles, ensuring dense packing that allows heat to spread quickly and uniformly through the material. This allows devices to remain cool, enhancing performance and reliability. Spheroidization also improves the workability and integration of the graphite powders into complex materials and device designs.

• Composites

  Lightweight, high-strength composite materials use spheroidized graphite as a filler to give improved mechanical properties. In polymer, metal, and ceramic matrix composites, the uniformly shaped graphite particles reinforce the structure, boosting electrical conductivity, thermal properties, and tensile strength. This results in stronger, more functional materials for aerospace, automotive, and electronics applications. The spherically refined particle shape increases compatibility with resins and matrices, ensuring uniform distribution throughout the composite and optimal load transfer between the filler and the surrounding material matrix.

Product specifications and features of graphite spheroidization mill

The key features and specifications of a graphite spheroidization mill include:

Technical Specifications

• Power: The mills have strong motors, generally ranging from 10 to 50 kW, giving it the required power to grind and mix the batch of materials very well.
• Capacity: Many mills can handle 5 to 20 kilograms in each session, but larger ones for industry can do more than that in each round.
• Speed: The milling pieces turn very fast, with speeds at and above 1000 RPM, to grind the graphite into the fine powder needed.
• Materials: The milling parts are made of hard steel or carbide, so they do not wear down quickly from grinding up the graphite.
• Cooling System: To prevent heat build-up from grinding, most mills have a water or air cooling system to keep the mill at a good working temperature.

How to Install

• The graphite mill must be placed on a flat, hard surface to avoid tipping over while grinding whatever needs to be ground up.
• It should be in a dry room that is not too hot or cold and does not have much dust flying around.
• The power cord must be plugged into a wall outlet that has the right amount of volts, so it does not become overloaded or underpowered.
• The graphite to be ground must be put into the mill's sealed container away from any moving parts.
• An adjustment has to be made to the settings for how fast the parts turn and how tight they are spaced.

How to Use

• The user needs to start the mill and let it spin without any material for a few minutes.
• After that, the material to be milled can be added gradually through the opening while the mill is running.
• The user can choose the right button on the mill to vary the speed and tighten or loosen the space between the grinding pieces, which can help grind the graphite down to different sizes.
• The grinding process should last several minutes until the user can tell that the graphite powder looks the way they want it to look.

Maintenance and Repair

• The grinding parts inside should be checked every few months to see if they are worn down and may need to be replaced with new ones.
• Any dust or powder build-up on the blades or burrs should be wiped off regularly to avoid them getting clogged.
• The mill needs to be wiped clean on the inside and outside with a dry cloth so that graphite does not accumulate in it.
• The moving parts should be lubricated with oil from time to time so that all the pieces spin smoothly and do not rust.
• If any larger issues come up, the manual should provide tips on fixing common problems, or the mill's manufacturer should be reached for any major repairs needed.

Results of Testing/Quality Control

• A screen is often used that has holes of the same small size to measure the grinding outcome. If too many particles go through or not enough do, the mill needs adjusting.
• A special slide called a micrometer slide takes random samples of the milled graphite powder to see how even the particle sizes are.
• A microscope looks at the powder to ensure all the particles are the right shape and the same shape as a sphere.
• A small part of the powder is tested to check its fineness by seeing how many particles are caught on a sieve screen when the powder is shaken.
• A special machine measures how much of the graphite's surface area is exposed to air to test various products, such as batteries, to ensure they contain the proper amount of surface area for optimum functioning.

How to Choose graphite spheroidization mill

• Type of Mill

  The kind of mill needed depends on the amount of work and how fine the graphite needs to be ground. Small tabletop grinders do the job for minor work, but larger industrial mills are required for extensive work.

• Grinding Media

  In this case, mills use balls, rods, or hammers to grind the material. The grinding media used in the mill must match the type of graphite material being milled. For instance, soft graphite needs harder grinding media to prevent them from wearing down too fast. Conversely, for hard materials, often, grinding media with a very tough composition is required.

• Particle Size and Distribution

  Azodiac mill should be chosen because it provides good control over the particle size and distribution. A mill that can produce evenly sized particles aids in achieving the same results in applications such as battery technology. Various industrial applications may need different particle distributions, so the mill chosen must be able to provide the necessary size ranges.

• Spheroidization Efficiency

  This efficiency should also be examined. The degree of spheroidization directly affects the morphology of the graphite particles. Industries such as lubricant manufacturing and battery production require a highly spheroidized graphite. Thus, the milling process must be able to convert the flaky or umat shaped graphite into spherical particles effectively.

• Material of Construction

  Both the interior and exterior of the mill should be made from hard, resilient materials. Because graphite is a soft mineral, it can wear down components quickly over time. Getting mills with liners and grinding media made specifically to resist wear is important for maintaining long-term performance.

• Energy Efficiency

  Milling graphite requires a large amount of energy, particularly for large quantities. The mill should have a low energy consumption rate while still grinding the material effectively. This would help a great deal in reducing operation costs if a mill that uses much less energy than ordinary mills were chosen.

• Certain Industrial Requirements

  When selecting the mill, distinct industry requirements must be taken into consideration. For example, battery-grade graphite often requires precise control over the particle size distribution and extremely fine particles. On the other hand, other industries like lubrication may not require such precision. Nonetheless, they do need a durable machine that can operate continuously for long hours without a breakdown. Thus, the type of industry and its distinct requirements should guide the choice of mill to prevent any complications and ensure a smooth operation.

Q&A

Q1:What is the purpose of a graphite spheroidization mill?

A1:Its primary purpose is to spheroidize graphite, which means turning the graphite particles from irregular shapes into round ones, like small spheres. This makes the graphite really useful for various applications such as batteries and lubricants since spherical particles flow easily and pack neatly.

Q2:How does a graphite spheroidization mill work?

A2:It grinds graphite by using balls, rods, or hammers inside a chamber to crush it. The milling tools break the graphite down while mixing and rolling it around. This grinding and milling smooth the particles and reshape them into spheres. The mill is adjustable to control how fine the graphite gets ground down.

Q3:What kind of industries use a graphite spheroidization mill?

A3:Graphite spheroidization mills are used in many industries. The battery industry often uses them to create materials for lithium-ion batteries needed in phones and electric vehicles. The lubricant industry also relies on the mill to produce graphite powders used in grease and oil desl. Electronics, aerospace and automotive, and other industries also use the mill to provide graphite for different applications requiring thermal management and conductivity.

Q4:What are the key benefits of using a graphite spheroidization mill?

A4:It ensures that the graphite is shaped and sized correctly for maximum performance. The mill provides efficient grinding, which speeds up production and saves energy costs. The final milled graphite has enhanced properties such as increased surface area, better purity, and improved reactivity. All these benefits make it ideal for battery and lubrication applications.
