Extrusion machine

Types of Extrusion Machines

An extrusion machine is a machine used in the extrusion process to shape materials by forcing them through a die. Different types of extrusion machines are available for various industrial applications.

• Single-Screw Extruder:

  A single-screw extruder consists of a screw, which is comprised of a drive shaft and flights, placed in a heated barrel. The screw of the single-screw extruder rotates, which transports and melts the material. The melting process occurs due to the friction generated by the rotating screw and heat of the barrel. Once the material is melted, it is pushed through the barrel into a die, where it is shaped into different profiles. Single-screw extruders are easy to operate and are commonly used to process thermoplastics for products like pipes, films, and sheets.

• Co-Rotating Double-Screw Extruder:

  Similar to the single-screw extruder, a double-screw extruder consists of two screws placed in a heated barrel. The two intermeshed screws rotate in the same direction. The co-rotating mechanism enhances the blending and mixing of the material. Also, the friction and shear forces are increased, which fastens the melting process. The co-rotating double-screw extruder is suitable for processing high-viscosity materials and those requiring intensive mixing and kneading.

  Contra-Rotating Double-Screw Extruder:

  The contra-rotaing double-screw extruder works similarly to the co-rotating double-screw extruder. However, in this case, the two intermeshed screws rotate in opposite directions. This provides a unique flow pattern that gives better conveying efficiency. The kneading blocks can be easily arranged, which results in a high degree of polymer degradation. Operations in the contra-rotating double-screw extruder are simple compared to other double-screw extruders models; thus, it is more applicable for large-scale productions.

• Continuous Rubber Extruder:

  A continuous rubber extruder is used to produce rubber products by directly feeding rubber compounds into the machine. In this machine, the rubber is heated in the barrel, trimmed, and shaped with the help of a die. The continuous rubber extruder can be further classified into three types: single-screw extruder, gear pump extruder, and twin-screw extruder.

• Pressurized Extruder:

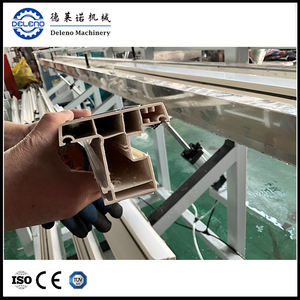

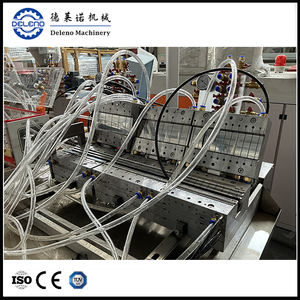

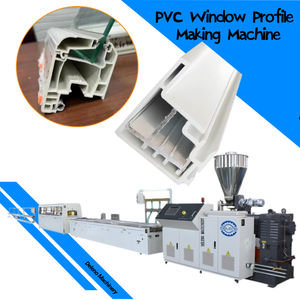

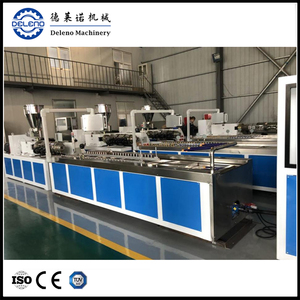

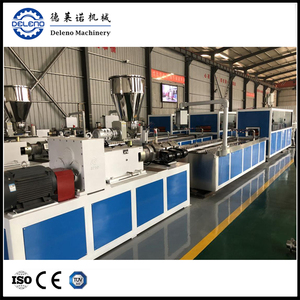

  The pressurized extruder is often used to create rigid PVC profiles with high output demands, low production costs, and simple operational systems. This type of extruder has a screw design that helps achieve a high level of melt homogeneity and temperature control. Additionally, it comes with an adjustable replacement die for various profile demands.

Extrusion machine specifications and maintenance

Specifications

• Production Rate: An extrusion machine's production rate is typically measured in pounds or kilograms per hour or as the number of units produced in a specific period (e.g., per day). It depends on the type of machine. The productivity of a dental impression extrusion gun is usually measured in seconds. For example, the time it takes to apply a specific amount of dental impression material.
• Pressure Rating: Extrusion machines operate with different pressure ratings. The machines can be designed to work at specific pressure levels, usually in psi or bar. These include the processing pressure required for material flow, the pressure rating of hydraulic systems, and compression extrusion machines. In the case of compression extrusion machines, it may relate to the pressure used to form materials (e.g., rubber or plastic) during the extrusion process.
• Temperature Control: An extrusion machine is usually equipped with temperature control systems. It can be fitted with multiple heating and cooling zones. The temperature of these zones is usually in degrees Celsius or Fahrenheit. These zones may be barrel sections, die sections, and other parts where precise temperature control is required to ensure proper material flow and forming.
• Power Requirement: This is often measured in kilowatts (kW) or horsepower (HP) and indicates the power for the extrusion process. It is enough to drive motors, heating elements, and other components. The power required by an extrusion machine depends on the machine type (e.g., single-screw, double-screw), the processing capacity, and the extruded material.
• Machine Dimensions: This includes the length, width, height, and weight of an extrusion machine of different types and models. The machine's dimensions and weight affect the space required for installation, machine handling, and transportation. For example: A small, portable dental impression cartridge can be easily held with one hand and have dimensions that fit comfortably in the palm of a person's hand. An industrial-scale plastic extrusion machine may require the use of a large forklift, as it needs to be transported by a large forklift in order to move it from one place to another.

Maintenance

Following a regular maintenance schedule, users should consult the manufacturer's manual and guidelines. Here are some general maintenance tips:

• Regular inspections: Check for wear, cracks, loose parts, leaks, and other potential issues. Check fasteners such as bolts and nuts to ensure proper operation and avoid malfunction.
• Lubrication: Apply lubricants to moving parts as specified in the manual. Lubricants reduce wear and friction and prolong the equipment's life.
• Cooling systems: Ensure the cooling system works properly and maintains an appropriate temperature. This helps prevent overheating and damage to the equipment.
• Electrical system: Regularly check electrical connections, wires, and switches to avoid issues such as electrical leakage or malfunction.
• Feed mechanism: Properly clean and maintain the feeding mechanism (e.g., hopper, feeder) to ensure the stable feeding of materials and avoid blockages.
• Repairs: If problems or wear are discovered, carry out timely repairs or replacements to avoid further damage to the extrusion machine.

Scenarios of extrusion machines

• Food processing industries

  In the food processing sector, an extrusion machine can make food like snacks, pasta, pet food, etc. The machine helps create various complex shapes and textures, such as expanded snacks and crispies, through high-temperature cooking and pressure processes. These are wheat and corn-based, legume-based, and other food products. It proves helpful when making food products for both humans and pets. The extrusion machine also helps change the nutritional structure of the food.

• Plastics and polymers manufacturing

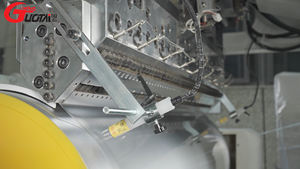

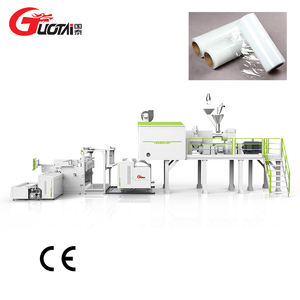

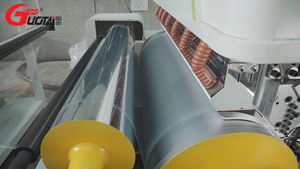

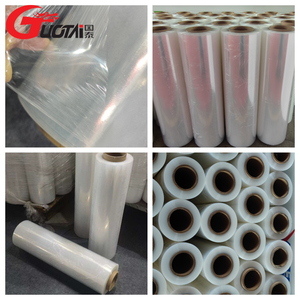

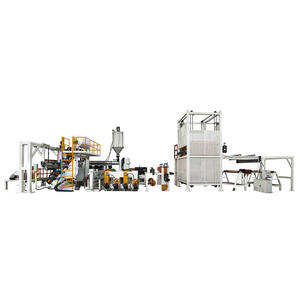

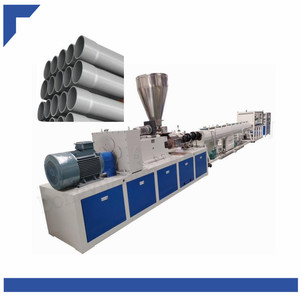

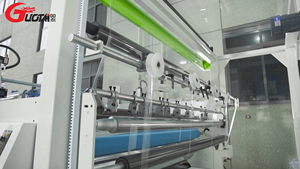

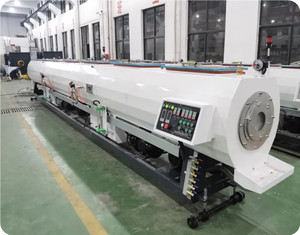

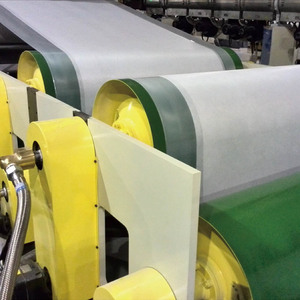

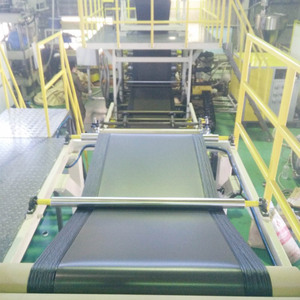

  In the field of plastics, extrusion machines create plastic products by heating and melting plastic pellets, which are then formed into sheets, films, tubes, pipes, and other items through an extrusion die.

• Rubber processing

  Extrusion machines are also used in rubber processing to create specific shapes and components, such as seals, gaskets, and flooring, using rubber compounds catered to distinct applications through high-precision rubber extruders. The rubber is then cured through heat and pressure.

• Textile production

  In textiles, extrusion machines help produce fibers and filaments for fabrics and textiles used in the making of clothing and other useful items. The machine functions to melt and spin synthetic fibers like polyester, nylon, and polypropylene.

• Metals industries

  In metalwork, extrusion machines shape metal materials through heat and pressure. These machines create high-precision components and parts of complex shapes for automotive, aerospace, construction, and other industries. They are usually made from aluminum, copper, and magnesium alloys that hold strong and prove reliable in every situation.

• Construction projects

  The construction industry uses aluminum extrusion machines to make a variety of building materials, such as doors, windows, curtain walls, architectural profiles, and more. The durable yet lightweight materials can create structures that support heavy weights and are miticulously made to be waterproof and earthquake proof. Moreover, the aluminum profiles are customizable in terms of color and style to suit any kind of architectural design, whether modern or classic.

• Automobile and transportation

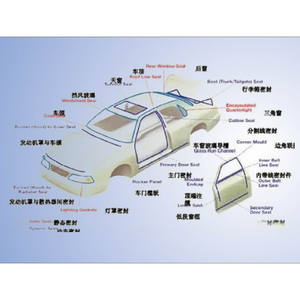

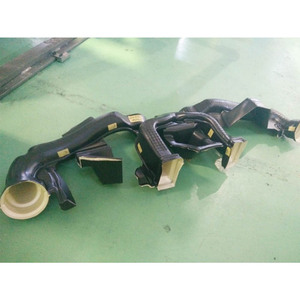

  Automobiles and transportation will include the use of extrusion machines to make lightweight yet high-precision parts, such as structural components, frames, bumpers, automotive interior and exterior trim parts, lighting fixtures, etc., using aluminum and plastic composites. Alloys of low-density aluminum are rarely used in vehicles and planes because they are so amazing at lowering the overall weight while still being able to support heavy weights. Transit will also include other means of getting about, such as trains and ships. Here, extrusion machines make the above-mentioned items and more. Aluminum is one metal that ships prefer for its strength and lightness. Again, it lightens the weight of the entire ship and lowers energy consumption costs.

• Medical equipment and implants manufacturing

  Extrusion machines also help produce medical devices, implants, and specialized components used in healthcare through high-precision medical extruders. These may include catheter tubes, stents, prosthetics, and surgical instruments, among others. Such machines have strong control systems that ensure the device is made according to standards.

How to choose extrusion machines

When selecting an extrusion machine for purchase, it is essential to choose those with the proper calibration, configuration, and settings suitable for the task. It is also important to consider the supply chain and the material's journey before it is sent for extrusion.

Pay attention to the feed mechanism. It should be appropriate for what is to be extruded. Ideally, for fragile materials like food, a star feeder or screw feeder should be used. Heavy and dense materials can easily use gravity as a feeder. A belt or drag chain can also be used to feeder heavy materials.

Know what kind of material the extrusion machine is being purchased for. Some extrusion machines have pipes made of Teflon, Titanium, or stainless steel, suitable for working with chemicals. Knowing the material will also help understand what kind of temperature settings need to be.

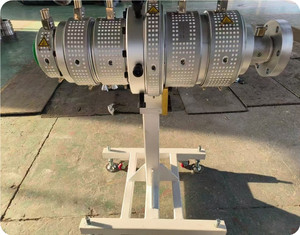

A cross-head die would be beneficial for complex, multilayered extruded products. It has a structure that allows the molten polymer to flow evenly. The die is usually cooled to solidify the material upon entering.

The screw configuration should also be studied well, as it works with many ingredients and impacts the extrudate's textural, structural, and functional properties. Solid, liquid, and gas mixing should also be considered, depending on the material being worked on.

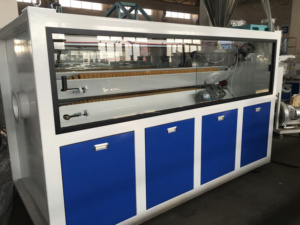

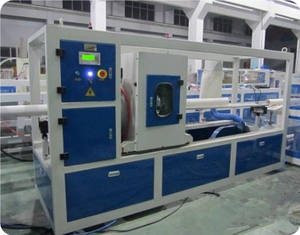

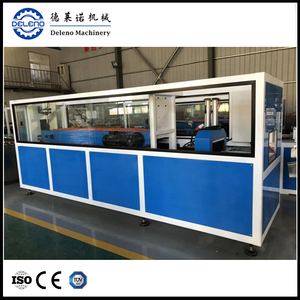

The calibration unit should be chosen based on the product being made. Calibration involves cooling and shaping. It needs to be selected according to the viscosity of the material.

Finally, the cutting tools and methods used should also be focused upon. The blades should be compatible with the material being extruded.

Extrusion machine FAQ

Q1: What factors affect the cost of an extrusion machine?

A1: Several factors impact the price of extrusion machines. The type of material being processed and the complexity of the extrusion machine required can lead to varying costs. Furthermore, the machine's size, production capacity, and specifications will also influence its price. Advanced features like automated control systems or energy-efficient components may increase the cost of an extrusion machine.

Q2: What materials can extrusion machines process?

A2: Extrusion machines can process a wide range of materials, including plastic, food, aluminum, rubber, and metal powders. Plastic extrusion machines are typically made of stainless steel or food-grade materials. Aluminum extrusion machines are specially designed to handle aluminum alloys, not other materials. Within these categories, different types of extrusion machines are suited to specific materials and applications.

Q3: What is the production capacity of an extrusion machine?

A3: The production capacity of an extrusion machine depends on several factors, including its size, design, and the material being processed. Smaller extrusion machines may produce a few kilograms of extruded material per hour. Medium-sized extrusion machines may have the capacity to process tens to hundreds of kilograms per hour. Larger industrial-scale extrusion machines can handle more than 1,000 kilograms per hour.

Q4: What are the energy requirements for an extrusion machine?

A4: The energy requirement for an extrusion machine depends on its size, power, and production capacity. A small or medium-sized plastic extrusion machine may require a motor with a power of 5-20 kW.

Q5: What are the advantages of using an extrusion machine in production?

A5: The extrusion machine process offers several benefits to manufacturers. It is a fast and efficient way to create products. The machine can produce large volumes of product with less labor than other production methods. The process is waste-reducing because scrap is recycled during production. Finally, extrusion allows for simple product shapes, which keeps production costs low.
