Types of Ford Engine Timing Kits
An engine timing kit for Ford is a critical assembly that ensures the synchronization of the crankshaft and camshaft rotations within an engine. This precise coordination is essential for maintaining proper valve timing, which directly affects combustion efficiency, power output, fuel economy, and emissions control. A standard timing kit includes the timing belt or chain, tensioners, pulleys, water pump, gasket sets, and specialized tools required for installation. Modern Ford engines are designed with specific timing systems tailored to their performance characteristics and maintenance intervals.
The importance of selecting the correct timing kit cannot be overstated – using subpar or incompatible components can lead to catastrophic engine failure, especially in interference engines where piston-to-valve contact may occur if timing is compromised. Below is a detailed breakdown of the most common types of Ford engine timing kits used across various models and engine families:

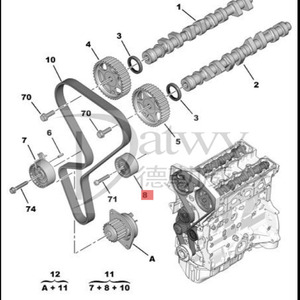

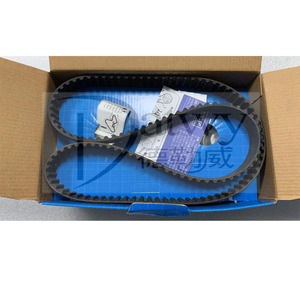

Timing Belt Kit - Ford 1.6 TDCi
This timing belt system is widely used in Ford's diesel-powered passenger vehicles and compact commercial vans. The 1.6 TDCi engine employs a rubber-based belt reinforced with high-strength materials like nylon, polyester, or even Kevlar fibers to enhance durability and resistance to wear.
Advantages
- Quieter operation compared to chains
- Lightweight construction
- Cost-effective replacement option
- Excellent flexibility for smooth operation
Limitations
- Requires scheduled replacement (typically every 100,000 km)
- Susceptible to oil contamination and cracking over time
- May need more frequent inspections
Best for: Compact Fords like Focus, C-MAX, and Transit Connect diesel variants

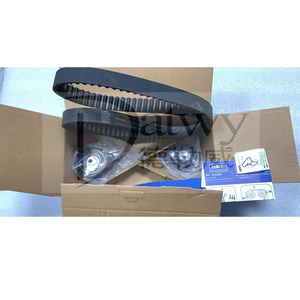

Timing Belt Kit - Ford Transit 2.2 TDCI
Designed specifically for larger commercial applications, the Transit 2.2 TDCI timing belt kit includes not only the belt itself but also a complete set of supporting components such as the water pump, tensioner, and idler pulleys. These kits are engineered for heavy-duty use and must withstand higher operating temperatures and loads.
Advantages
- All-inclusive kit for comprehensive replacements
- High-quality materials for industrial durability
- Precision-engineered for optimal timing accuracy
- Easy to source OEM-grade parts
Limitations
- Larger and heavier than smaller engine kits
- More complex installation process
- Higher cost due to additional components
Best for: Ford Transit vans and commercial vehicles with 2.2L diesel engines

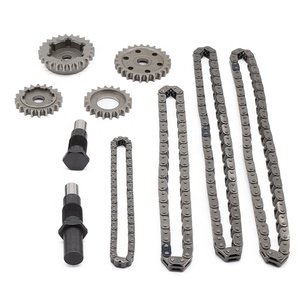

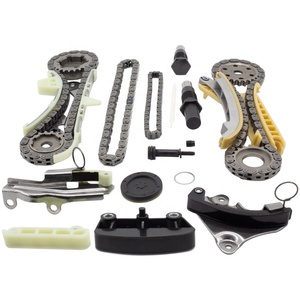

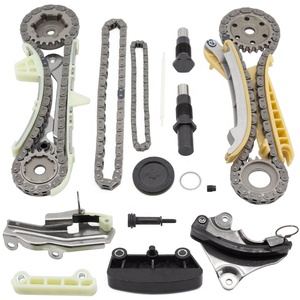

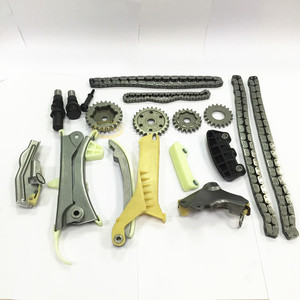

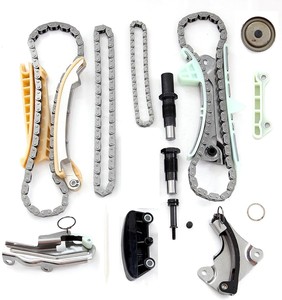

Timing Chain Kit - Ford 1.0 EcoBoost
Unlike traditional timing belts, the Ford 1.0 EcoBoost engine utilizes a robust timing chain system that offers extended service life and reduced maintenance requirements. Constructed from high-grade steel alloys, these chains are designed to operate under high stress while maintaining precise timing alignment.
Advantages
- Near-lifetime durability (typically requiring no replacement)
- Less prone to stretching or breaking
- Superior reliability under turbocharged conditions
- Better heat and corrosion resistance
Limitations
- Heavier than belt systems
- More expensive to replace if failure occurs
- Can be noisier during operation
Best for: Ford Fiesta ST, B-MAX, and other compact models equipped with the 1.0L EcoBoost engine
| Kit Type | Recommended Interval | Durability | Noise Level | Best Application |
|---|---|---|---|---|
| 1.6 TDCi Belt Kit | Every 100,000 km | Moderate | Low | Compact diesel passenger cars |
| Transit 2.2 TDCI Kit | Every 120,000 km | High | Moderate | Commercial vans and utility vehicles |
| 1.0 EcoBoost Chain Kit | Lifetime (under normal conditions) | Very High | Moderate-High | Turbocharged small-displacement engines |
Expert Tip: Always replace the entire timing kit together – including tensioners, pulleys, and water pump – even if some components appear undamaged. Reusing old parts can compromise the integrity of the new components and lead to premature failure.
Warning: Never delay replacing a worn or stretched timing component. Failure of a timing belt or chain can result in severe internal engine damage, particularly in interference engines where valves and pistons share the same space at different times.
Specification and Maintenance of Timing Kits for Ford Vehicles

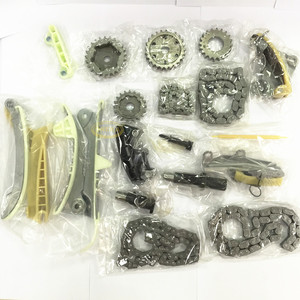

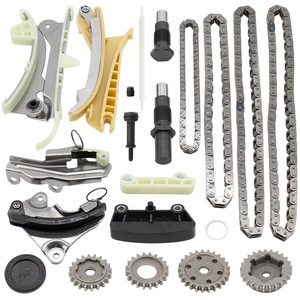

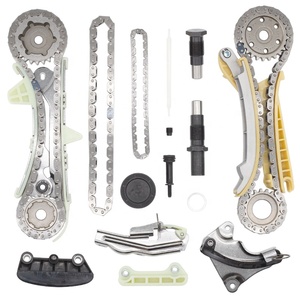

Ford timing kits are critical components in ensuring the proper synchronization of engine operations. These kits typically include timing belts or chains, tensioners, guides, sprockets, and associated seals. While manufacturers provide recommended service intervals, it's equally important to recognize early warning signs that may indicate wear or impending failure.
Key Indicators That Your Ford Timing Kit Needs Replacement
Recognizing the symptoms of a failing timing kit can prevent costly engine damage. Below is an expanded list of common issues:
Understanding Timing Kit Specifications
Selecting the correct timing kit involves understanding several key specifications to ensure compatibility and performance with your Ford model:
Belt vs. Chain Systems
Ford uses both timing belts and chains depending on the engine model. Belts are lighter and quieter but require more frequent replacement. Chains are more durable but can stretch over time and require proper tensioner function.
For example, Ford EcoBoost engines often use timing chains, while older V6 models may feature rubber timing belts. Always verify your engine type before purchasing a kit.

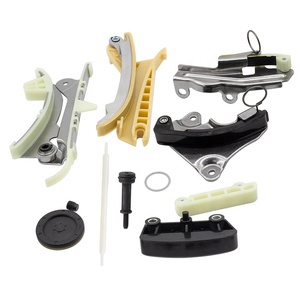

Tensioner and Guide Quality
The tensioner maintains proper belt/chain alignment and pressure. High-quality kits include updated tensioner designs that resist wear better than OE units. Guides should be made from heat-resistant materials to withstand engine temperatures over long periods.
Some aftermarket kits offer reinforced tensioner springs or dual-bearing tensioners for improved reliability, especially in high-mileage applications.
| Component | Function | Replacement Interval (Approx.) |
|---|---|---|
| Timing Belt | Synchronizes camshaft and crankshaft rotation | 60,000 - 100,000 miles |
| Timing Chain | Same function as belt, but metal construction | 100,000 - 150,000 miles or lifetime (varies by model) |
| Tensioner | Maintains proper belt/chain tension | Replace with belt/chain |
| Water Pump | Coolant circulation (often replaced with timing components) | Recommended to replace during timing job |
Best Practices for Timing Kit Maintenance
Proper maintenance ensures longevity and prevents catastrophic engine failure. Follow these recommendations:
Important: Never delay timing component replacement once symptoms appear. A broken timing belt or jumped timing chain in an interference engine can result in severe internal damage, including bent valves and piston damage.
How to Choose Engine Timing Kit for Ford Vehicles
Selecting the correct engine timing kit for a Ford vehicle is crucial for maintaining optimal engine performance and longevity. The timing system synchronizes the rotation of the crankshaft and camshaft(s), ensuring proper valve operation. A mismatched or low-quality timing kit can lead to serious engine damage, particularly in interference engines.
Vehicle Make, Model, and Year
Ford vehicles come with a wide range of engines across different models and production years. Even within the same model line like the Mustang or F-150, the timing components can vary significantly between generations due to engine updates and design changes.
- The 2017 Ford Mustang EcoBoost uses a twin-turbocharged inline-4 engine requiring specific timing chain kits
- Older V6 engines (like those found in pre-2010 models) may use different tensioners and guides
- Diesel engines (e.g., Power Stroke variants) have completely different timing requirements
Important: Always verify your exact VIN and engine code when purchasing a timing kit
Engine Type and Configuration
Ford has produced numerous engine types over the years, each requiring specialized timing components. From classic pushrod V8s to modern turbocharged EcoBoost engines, the timing system architecture varies considerably.
- Inline-4 engines often use timing chains with multiple guides
- V6 engines typically require dual overhead cam configurations
- V8 engines may use either timing chains or toothed belts depending on generation
- Some high-performance engines feature variable valve timing systems
Technical note: Check whether your engine uses a belt-driven or chain-driven system before purchase
Quality Considerations and Brand Selection
While OEM Ford timing kits provide guaranteed compatibility, several premium aftermarket brands offer quality alternatives at potentially lower costs. However, not all aftermarket products are created equal, especially for critical timing components.
- OEM kits include genuine Ford components designed for factory specifications
- Premium aftermarket brands (like Gates, INA, or Bosch) often meet or exceed OE standards
- Avoid budget no-name brands that may compromise on tensioner durability or gear material quality
- Look for kits that include updated tensioners if TSBs exist for your engine
Expert tip: For high-mileage engines, consider upgrading to reinforced tensioners where available
Engine Modifications and Performance Upgrades
If you've modified your Ford's engine beyond stock specifications, standard timing components may not be sufficient to handle increased stress and operating conditions. Forced induction, nitrous oxide systems, or aggressive cam profiles can all affect timing system requirements.
- Forced induction setups may require upgraded tensioners to handle increased RPM stability
- Racing applications benefit from lightweight timing gears made from advanced alloys
- Custom camshaft installations might necessitate adjustable timing gears
- High-RPM builds should consider double roller timing chains for reduced stretch
Warning: Never mix-and-match timing components from different manufacturers
Professional Recommendation: When replacing timing components, always replace the entire kit rather than individual parts. This includes water pumps in many Ford applications, as their service life often matches that of the timing system. Proper installation technique is just as important as component quality - consider professional assistance if unsure about timing alignment procedures.
| Engine Type | Typical Timing System | Recommended Replacement Interval | Key Components to Replace |
|---|---|---|---|
| Ford 3.0L Vulcan V6 | Timing Belt | 90,000 miles / 7 years | Belt, Water Pump, Tensioner |
| Ford 2.3L EcoBoost I4 | Timing Chain | 150,000+ miles (condition-based) | Chain, Guides, Tensioners |
| Ford 5.0L Coyote V8 | Timing Chain | 150,000+ miles (condition-based) | Chain, Phaser Lockout Kit, Tensioners |
| Ford 6.7L Power Stroke Diesel | Gear-Driven System | 200,000+ miles (with maintenance) | Tensioners, Drive Gears |
Maintenance Insight: While some timing systems are designed for extended service intervals, environmental factors and driving habits can significantly impact component lifespan. Regular oil changes using manufacturer-recommended fluids help extend timing system life by reducing wear on chain tensioners and guides.
DIY Guide to Replacing a Ford Engine Timing Kit
Replacing the timing kit in your Ford engine is a critical maintenance task that ensures the proper synchronization of internal components like the camshaft and crankshaft. While this job can be complex and requires mechanical knowledge, it's possible for experienced DIYers to complete with the right tools and patience.
Important: A timing belt or chain failure can cause severe engine damage in interference engines. Always replace timing components according to manufacturer recommendations (typically every 60,000–100,000 miles). If you're unsure about any step, consult a qualified mechanic.
Preparation and Essential Considerations
- Engine Identification: Locate your Ford engine code (usually found on a sticker under the hood or on the driver’s side dashboard) to ensure compatibility with the replacement timing kit.
- Workspace Setup: Prepare a clean, well-lit workspace with sufficient ventilation. Organize your tools and have a designated area for small parts to avoid misplacement.
- Gather Tools and Materials: Basic tools include socket sets, torque wrench, screwdrivers, pliers, timing lock tools (specific to your Ford model), and safety equipment like gloves and eye protection.
- Reference Manual: Obtain a repair manual specific to your Ford model and engine type—this will guide you through precise procedures and torque specifications.
Pro Tip: Many Ford timing kits include all necessary components (belt/chain, tensioners, pulleys, water pump). Check if your kit includes alignment pins or locking tools, which are essential for accurate timing setup.
Detailed Step-by-Step Replacement Process
- Battery Disconnection and Cooling System Drainage
- Turn off the ignition and remove the key.
- Disconnect the negative battery terminal to prevent electrical shorts.
- Drain the engine coolant into an appropriate container to avoid contamination and spills during disassembly.
- Accessing the Timing Components
- Remove the air intake ducting and mass airflow sensor as needed to gain access to the front of the engine.
- Take off the accessory drive belt using a belt tensioner tool. This allows removal of the front timing cover.
- Carefully remove the timing cover(s) while noting any seals or gaskets for replacement.
- Removing the Old Timing Kit
- Rotate the engine to top dead center (TDC) using a socket on the crankshaft bolt.

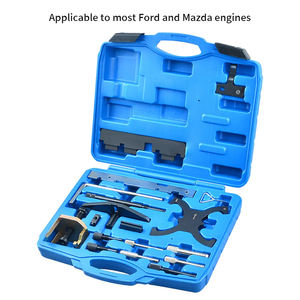

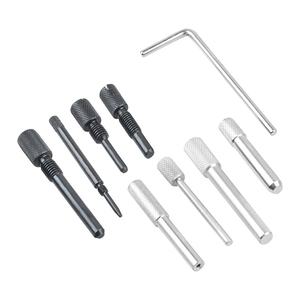

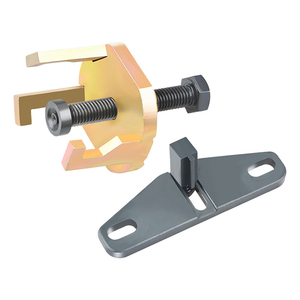

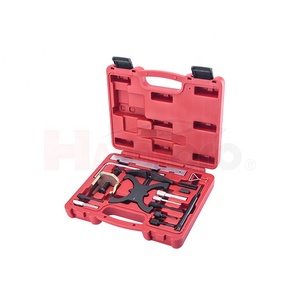

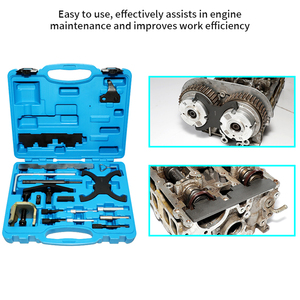

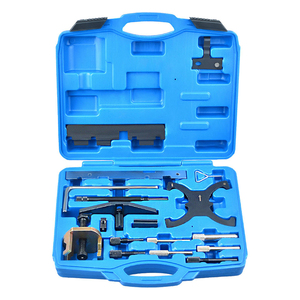

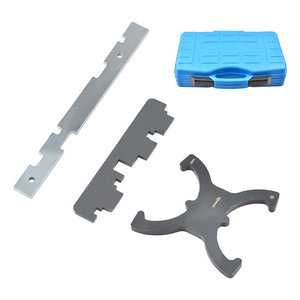

- Use timing lock tools to secure the camshaft and crankshaft in position to prevent movement during disassembly.
- Loosen and remove the tensioner, then carefully take off the old timing belt or chain along with associated pulleys and guides.
- Inspect related components such as the water pump, idler pulleys, and tensioner for wear or damage before proceeding.
- Installing the New Timing Kit
- Install new timing components following the manufacturer's instructions precisely.

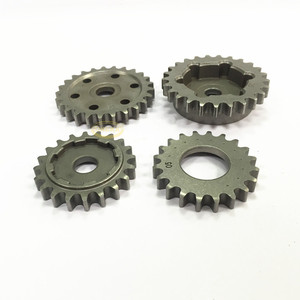

- Ensure proper alignment of the camshaft and crankshaft sprockets before installing the new belt or chain.
- Set the tensioner to the correct specification using a torque wrench to avoid over-tightening or under-tensioning.
- Reassembly and Final Checks
- Reinstall the timing covers with new gaskets or seals to prevent oil leaks.
- Replace the accessory drive belt and reconnect all previously disconnected engine components.
- Torque all bolts to the specifications provided in your repair manual, especially those securing the timing cover and tensioner.
- Refill the cooling system with the recommended antifreeze mixture and reconnect the battery.
- Start the engine and listen carefully for unusual noises. Monitor for leaks and verify that all systems are functioning properly.
| Stage | Key Actions | Potential Risks | Recommended Tools |
|---|---|---|---|
| Preparation | Identify engine code, gather tools, disconnect battery | Mismatched parts, missing tools, improper disconnection | Repair manual, multimeter, marking tape |
| Disassembly | Remove belts, covers, and old components | Damage to surrounding parts, incorrect TDC positioning | Socket set, timing lock tools, pry bar |
| Installation | Align components, install new belt/chain | Timing misalignment, incorrect tension | Torque wrench, dial gauge, alignment pins |
| Reassembly | Secure covers, refill fluids, reconnect systems | Leaks, loose connections, missed steps | Funnel, sealant, pressure tester |
Final Tip: After installation, start the engine and let it idle for several minutes. Check for leaks, unusual vibrations, or error codes. Take a short test drive to monitor performance and confirm everything is working as expected.
Timing Kit Maintenance and Replacement FAQ
The recommended replacement interval for a timing kit typically falls between 60,000 to 100,000 miles, although this can vary significantly depending on the vehicle make and model. It's crucial to consult your owner's manual for the manufacturer's specific guidelines.
Factors that can influence the lifespan of a timing kit include:
- Driving habits: Frequent stop-and-go driving or aggressive acceleration may shorten its life.
- Environmental conditions: Exposure to extreme temperatures, dust, or moisture can accelerate wear.
- Maintenance history: Regular oil changes and proper engine maintenance help prolong the timing kit’s longevity.
In some cases, signs of wear may appear earlier than expected, so regular inspection by a qualified mechanic is advised, especially as the vehicle approaches the recommended service interval.
A failing timing kit can lead to serious engine issues if not addressed promptly. Common symptoms include:
- Difficulty starting the engine: Misalignment due to a stretched belt or chain can cause irregular ignition timing.
- Rough idling: The engine may vibrate more than usual or stall intermittently when idle.
- Poor acceleration: A misaligned timing system disrupts the combustion process, reducing power output.
- Engine misfires: Incorrect valve timing leads to incomplete combustion cycles.
- Unusual noises: A ticking sound from the engine bay may indicate a loose or damaged timing belt or chain.
- Engine knocking: This occurs when the fuel-air mixture ignites prematurely or incorrectly due to improper timing.
- Visible wear: Cracks, fraying, or glazing on the timing belt are clear indicators that it needs replacement.
If any of these symptoms occur, it’s essential to have the vehicle inspected immediately to avoid potential engine damage.
Repairing a worn timing kit is generally not advisable. While individual components like tensioners or pulleys might be replaced separately in some cases, doing so without replacing the entire kit can lead to:
- Reduced reliability: Remaining worn parts will continue to degrade performance and could fail soon after.
- Increased risk of engine damage: In interference engines, even minor timing inconsistencies can result in catastrophic failure.
- Voided warranties: Replacing only part of the timing kit may invalidate warranties on new parts, especially if the original issue stemmed from neglected maintenance.
To ensure long-term reliability and prevent costly repairs down the road, mechanics and manufacturers strongly recommend replacing the complete timing kit whenever signs of wear appear or when reaching the recommended service interval.
While it is not mandatory to replace the water pump when replacing a timing kit, it is often highly recommended—especially when the two components share access points or are located in close proximity.
Here’s why experts suggest replacing them together:
- Shared labor costs: Both components often require removal of similar panels or engine covers, making simultaneous replacement more cost-effective.
- Preventative maintenance: Water pumps tend to wear out over time and may fail shortly after a timing job, necessitating another expensive repair.
- Extended protection: Installing a new water pump during timing kit replacement ensures both systems function optimally and avoids future breakdown risks.
However, if the water pump shows no signs of leakage, corrosion, or bearing wear, and has been recently replaced, it may not need immediate attention. Always follow the advice of a certified technician based on your vehicle’s condition.
Yes, replacing a worn timing kit can have a noticeable positive impact on engine performance. Here’s how:
- Restored precision: A new timing kit ensures the camshaft and crankshaft remain perfectly synchronized, which is critical for optimal valve timing and combustion efficiency.
- Improved fuel economy: Properly timed combustion cycles burn fuel more efficiently, leading to better mileage and lower emissions.
- Enhanced responsiveness: With accurate timing, the engine accelerates more smoothly and delivers consistent power output.
- Reduced noise and vibration: A fresh timing belt or chain eliminates the ticking and rattling sounds caused by wear and slack.
- Lower risk of breakdown: Maintaining a healthy timing system prevents sudden failures that could damage internal engine components, particularly in interference engines.
Overall, timely replacement of the timing kit not only restores performance but also extends the life of your engine, making it a vital aspect of routine maintenance.
