Jewelers, watchmakers, and other precision instrument manufacturers favor Elinvar alloy because of its remarkable dimensional stability over a range of temperatures. However, since the composition may differ from one producer to another, several varieties are accessible.
Conventionally, the typical Elinvar includes nickel, iron, chromium, and carbon. This foundation provides the alloy with elasticity. The addition of these elements makes it immune to thermal deformation, which means its spring action does not vary with heat or cold. Nonetheless, the original analogue, which is often employed in fine timepieces and measuring tools, still needs to be improved in terms strength and elasticity.
Bi Elinvar is a bimetal alloy with cobalt, iron, and nickel as the principal components. Due to the development of the second phase, which contains brittle cobalt-rich intermetallic compounds, the previous brittle structure is reinforced. The produced ribbons are usually homogeneous without severely introducing undesirable structural characteristics, such as discontinuous grain boundaries. The expansion-coefficient ratio between Bi-Elinvar and its complements is equivalent, enabling the elimination of parasitic heat exchanges, heat distortions, and optical fiber interferences in precision measurement equipment. Such performance is rarely attainable with conventional Elinvar.
The version of Elinvar with increased carbon content is known as Elinvar C. Although it Demands a Non-Negotiable Source of the phase composition, the increment enhances mechanical properties. Elinvar C is useful where high static elastic modulus and low thermal sensitivity are paramount, such as in delicate aerospace and optical systems.
Nivaflex is a variation of Elinvar in which other elastic elements such as beryllium copper are incorporated. The move aims to attain more elasticity without compromising stability. Tools and instruments that require flexibility and also must preserve shape extremely well over a broad spectrum of temperatures might employ Nivaflex. Examples are compensation balances in aviation instruments.
In addition to the abovementioned general characteristics, some key features are worth noting regarding the differences between the Elinvar and Bi-Elinvar vs Nivaflex and Elinvar C alloys. Firstly, Elinvar is primarily nickel and iron based, with a crumbling trace amount of other elements. For instance, comes with around 35% Ni, 60% Fe, and 0.25% C. This quantitative composition gives the alloy elasticity but only very low strength. On the other hand, Bi-Elinvar employs Co, Fe, and Ni. Although the percentages may differ based on the specific alloying requirements, Bi-Elinvar typically has 25% to 35% cobalt. This variation also eliminates the earlier discontinuous grain boundaries, making the ribbon structure homogeneous, improving strength and elasticity. This form of the alloy often comprises 30% to 35% nickel, 60% iron, and 0.2% to 0.5% carbon like the original.
Nivaflex
includes 17% to 25% nickel, nearly 60% iron, and trace elements of copper, beryllium, and tungsten. While still being elastic, these additions enhance strength with no form of the elastic modulus.Secondly, regarding mechanical and physical properties, note that Nivaflex possess not only these high elasticity and strength reminiscences but also merit thermal expansion coefficients. They, however, come at the expense of dimensional stability. Thus, while Nivaflex might excel in performance in some uses, Elinvar and Bi-Elinvar are favorable for high-precision applications. Further, this cost may also differ, with Nivaflex being more expensive due to additional components.
Since its traits change minimally with temperature, jewelers and watchmakers employ it in balance springs to retain accurate time. For example, Rolex and other high-end companies use Elinvar in their movements to assure time precision regardless of environmental modification.
Instrument manufacturers also employ Elinvar in precision measuring devices, including micrometers, calipers, and feeler gauges where thermal expansion or contraction might skew results. The alloy's predictable behavior under varying temperature allows engineers and machinists to make more exact measurements when using measuring tools made from elinvar.
The automotive industry employs Elinvar alloy in various high-precision applications, such as regulating valves and springs in the engine management system. In these circumstances, the alloy's stability is utilized for accurate control of movement and mechanical components.
Further, Elinvar is critical in aerospace technologies, such as sensors, gyroscopes, and other navigation devices. Here, weight and space are of utmost importance, just as precision. The low density and high strength of elinvar make it ideal for these highly sensitive instruments.
High-precision optical instruments like telescopes and microscopes also utilize Elinvar to mount lenses and mirrors. The alloy's stability helps preserve the precise alignment of optical components, critical for exceptional imaging capability.
In engineering and scientific research sectors, Elinvar is typically used for laboratory apparatus and tools that demand utmost precision. Commonly used Elinvar is wire, rods, and springs in experimental setups, such as in particle accelerators or controlled environmental chambers.
In these circumstances, even minute variations in thermal expansion can significantly impact findings. Thus employing Elinvar in such materials and processes is intended for use in controlled scientific researches where precision and dependability are assured through utilizing high-quality components made from this unique alloy.
When selecting an Elinvar metal whether for use, resale, or manufacture items from, it is paramount to consider the applicability and purpose. Just as one would consider the grade and brand of other business investments, it's paramount to choose a reputable supplier who can provide the alloy in the form one needs, whether wire, rods, or plates. For prospective manufacturers, only the best quality Elinvar should be sourced so that the end product will be of notable importance to its users. Another parameter that should be factored in when buying this alloy is inventory; noteworthy, different forms of Elinvar have distinct constitutive elements. Thus they can have different degrees of elasticity and dimensional stability. For users requiring the highest precision, such as the watchmaking or aerospace industries, the original Elinvar may be more suitable. However, for enterprises that need an elastically stable material, such as Nivaflex, then consider purchasing this form.

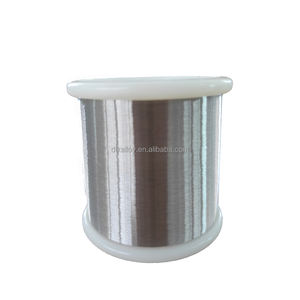

Moreover, it is imperative to be alert to the alloy's mechanical properties and thermoselasticity, which may significantly vary depending on the supplier, material form, and use temperature. Since Elinvar is frequently utilized in a wide range of industrial applications where precision is vital, Elinvar wire is often supplied and bought by manufacturers of precision tools. Since manufacturers often redefine the resource's properties by thermally processing it, it is crucial to trace such information to the wire form. The diameter of this wire also impacts its mechanical properties, with thinner wires recommended for applications where high elasticity is needed and thicker wires for major structural roles. Comprehending the thermal expansion coefficient is equally critical. The typical value of this coefficient for Elinvar is about 10.6 x 10-6/K. Although this value may not appear to be high, even the slightest thermal variations can drastically impact high-precision mechanisms. Therefore, only stock and select wire from cores with low thermal expansion coefficients to achieve accurate and dependable outcomes.
A1: Elinvar is called so because of its unique elasticity. Just like its name, its basic mechanical properties remain unchanged, regardless of thermal influences. This behavior is often unachievable with other alloys.
A2: Elinvar incorporates nickel and iron as its principal components. It also has a trace of carbon, which helps in consolidation.
A3: Jewelery, automotive, aerospace, and optical instrument sectors benefit the most through employing this alloy in precision tools and components.
A4: This alloy is primarily available in wire form for balance springs in watches to maintain precision.
A5: Although typically used in moderate temperature ranges, Elinvar's stability makes it suitable for a wide variety of temperature-sensitive applications.
