Electrical conduit fittings are necessary parts of electrical conduit systems. Such fittings help in connecting different sections of the conduit, providing support, and allowing passage through bends and changes in direction, which means making a complete circuit about protection and safety for electrical wiring. They come in different types based on the necessity and application, which are as follows:
Elbow Fittings
These fittings are applied when there is a need to change the direction in which the conduit is run. Half bend electrical conduit fittings are usually available in 45-degree and 90-degree angles, which can be used according to the turn required in the setup. 90-degree elbows are primarily applied in the areas where the conduit needs to change direction sharply, and 45-degree elbows are needed to make gentler turns. The usage of these fittings over turning the conduit directly reduces the amount of stress placed on the wire insulation, which results in greater safety.
Tee Fittings
Tee fittings allow the wiring to branch out in another direction. Such conduit fittings are shaped like the letter "T." They are used in electrical systems where a conduit has to be split to cover more areas or run parallel to another conduit. There are also outlet tees with attaching features for electrical boxes or other equipment.
Couplings
These are used to connect two straight sections of conduit to make it longer. Couplings ensure that the two pieces of conduit are aligned properly and securely connected. This fitting can help in minimizing the amount of space that might have been filled with excessive bends by allowing the conduit runs to be extended instead.
Connector
These are specific fittings that are used to attach the conduit to an electrical box, fixture, or any other piece of equipment. Such fittings are sometimes referred to as conduit adapters. They usually feature threads for a screw-on style connection or a design for direct snap-in fitting. This gives an interface between the conduit system and other components to maintain continuity in electrical pathways.
Straight Connector
Straight connectors are used for joining conduit sections that run in the same direction. They ensure that two pieces of conduit are aligned directly with each other, which provides a smooth and continuous path for the electrical wiring. The wiring insulation may become damaged if the conduit is misaligned, but using straight connectors eliminates this problem. It is also known as a coupling.
Compression Connector
A compression connector has a threaded design that screws onto the conduit. The threads are then secured with a compression nut to establish a solid and reliable electrical connection. Such a connector is primarily applied in EMT (Electrical Metallic Tubing) installations. Its thread-based connection allows for flexibility and compensates for expansion and contraction due to temperature fluctuations.
Box Connector
Box connectors are specifically designed to connect conduit directly to an electrical box or another piece of electrical equipment. It includes an integrated threaded section that attaches to the box with a locking nut and a coupling portion to the conduit. Box connectors create a seamless transition between the conduit system and electrical devices to ensure that an effective grounding path is established.
Fittings like a metal electrical conduit fitting are impacted majorly by the following factors:
Material
One of the main factors that impact the cost of electrical conduit fittings is the material used in manufacturing them. They can be made of stainless steel, galvanized steel, aluminum, brass, and plastic of polyvinyl chloride (PVC). PVC fittings are less expensive compared to others since they are made of plastic conduits. Metal fittings like those made in aluminum or brass are more expensive because of the cost of the raw material for manufacture. Moreover, each material possesses qualities of its own that are related to durability, corrosion resistance, and conductivity, which strongly influence the performance beyond just the cost of acquisition.
Type
There are various fittings, such as electrical metallic tubing (EMT), rigid metal conduit (RMC), intermediate metal conduit (IMC), PVC conduit, and liquid-tight flexible conduit (LFMC), known for different applications. The price structure varies for different fittings depending on the type of conduit. Metal conduits are fixed at higher prices than PVC due to the labor that goes into making them. Flexible and liquid-tight fittings are also more expensive due to their versatility and specialty for protection against external elements.
Brand
Brand identity plays a significant role in the pricing of electrical conduit fittings as well as their quality perception. Well-established brands have associated costs with quality, dependability, and customer service, so buyers must pay this brand-related price to get assurance. Conversely, lesser-known brands are priced comparatively low due to their lack of market presence even though the products manufactured by them might meet the regulatory requirements and perform well. All in all, brand value is a factor that influences the decision of the buyer and the price so that the buyer can choose the product accordingly.
Application
The purpose of electrical conduit fittings will affect their cost. Specialty fittings made for unique electrical systems or environments where high protection levels are needed will be more costly than standard fittings. For instance, fittings where they need to be explosion-proof or fitting spaces that are hard saying can be expensive due to their craftsmanship and their ability to withstand hazardous conditions. General-purpose fittings have comparatively low prices since they are used for more common applications.
Market Conditions And Supply Chain
The prices of electrical conduit fittings are affected directly by market conditions and logistic chain issues, including the cost of fuel and transportation, inflation, and demand for labor. Seasonal fluctuations and economic factors are capable of causing increases or decreases in the price of material, which in return affects the pricing of the fittings. Directly linked to the efficiency of the supply chain, sourcing fittings on time and at a reasonable price requires an effective supply chain process devoid of disruptions to meet the needs of the market.
Electrical conduit fitting applications delineate where such fittings are applied in an electrical conduit system. Out of the following places:

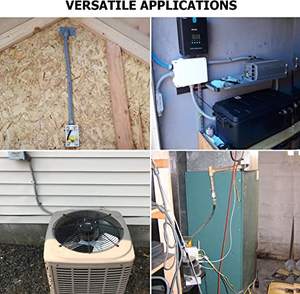

Residential and Commercial Building Wiring
Electrical conduit fittings are extensively used in the residential and commercial electrical systems in both construction and remodeling. They make sure the protection and conduct the safe passage of electric wires within the walls, ceilings, and underground areas. For instance, EMT, PVC, and RMC are used in residential and commercial buildings for their cost efficiency, protection against moisture, and strength, respectively.
Industrial Facilities
Industrial facilities normally use electrical conduit fittings in their wiring systems because of the more complex and hazardous environment. Conduits such as IMC and RMC are used to provide additional protection to procedures in these facilities to withstand chemicals, moisture, and physical damage. Moreover, flexible conduits and associated fittings are used in machinery areas where there is constant movement, vibration, or changing in position to give the wiring the needed flexibility and protection from outer elements.
Outdoor and Underground Installations
Conduit fittings and conduits are applied in outdoor and underground installations, as the environment and outdoor elements assure protection to the wiring. PVC conduits and liquid-tight fittings are used in the wiring system of the exteriors, underground, or in areas exposed to water and chemical moisture since PVC is corrosion-resistant and moisture-proof. These are also ideal for installing electrical systems in outdoor lighting, sign, and other equipment, especially with a threat of water or moisture.
Automotive and Aerospace Industry
Electrical conduit fittings are widely used in the automotive and aerospace industries due to their lightweight and versatile nature. For instance, PTFE and other similar materials are used to make conduits and fittings that insulate and simultaneously protect the electrical wiring from extremes of heat, bending, and outdoor elements. These are critical in applications with space limitations, moving parts, or exposure to harsh environments.
Renewable Energy Systems
With the increase in demand for electrical conduit fittings in renewable energy systems, the demand for such fittings is increasing. Wind energy turbines, solar panels, and other renewable systems are exposing the wiring to most outdoor elements. PVC and aluminum conduits are used in these systems because they are lightweight, easy to install, and resistant to corrosion and environmental factors.
Material
Material is one of the factors to consider when choosing electrical conduit fittings since the material directly affects the durability, flexibility, and resistance of the fitting to environmental factors. While metal conduit fittings are better for durability and grounding in an electrical system, PVC fittings are ideal for the conditions when moisture and corrosive elements will be encountered. Liquid-tight conduit and flex fittings are suitable for applications where there is movement or water exposure.
Safety And Protection
Two major functions of electrical conduit fittings, which provisions safety and determine the protection they provide, are to ensure that the electrical wiring system is protected from external elements and in itself to ensure that no electrical hazards are created. Thus, select fittings like metal conduit pipe connection that are corrosion-resistant, water-resistant, or has a potential impact on depending on the environment to be used. In addition, products that have certain degrees of protection (IP ratings) protect against dust and water penetration.
Flexibility
Assess the level of flexibility that is required in the conduit system during the selection process of the electrical conduit fittings. Rigid metal conduit (RMC) and IMC offer a hard and rigid framework for protection, while PTFE and flexible conduit fittings are suitable for applications requiring some degree of movement or bending. Flexible fittings are ideally applied in situations where there is vibration, movement, or in spaces that are difficult to reach.
Cost and Budget
The cost of the conduit fittings should be weighed with their performance and how suitable they are for the intended application. PVC fittings are budget-friendly, but generally, they are used when protection from moisture is the only requirement. Although metal fittings are expensive, their durability and grounding capability can be useful in the long run. Value for money can be achieved by considering the quality, functionality, and suitability for the environment.
Installation and Compatibility
While making a choice, the ease of installation should be considered. Some fittings are designed to ease the installation process, while others need more complex installation processes. In addition, ensure that the fittings are compatible with the type of conduit that is used and with other components in the electrical system. For instance, a compression connector will be used with EMT to provide a smooth installation interface.
Electrical conduit fittings are used to connect, bend, or terminate conduit pipes, allowing for a secure and organized pathway for electrical wiring. They ensure the protection of wires, maintain system integrity, and facilitate proper electrical installation by keeping wires safely enclosed within conduits while offering flexibility and accessibility.
Here are the types of fittings:
Electrical conduit fittings are made from materials such as stainless steel, galvanized steel, aluminum, brass, and PVC (polyvinyl chloride).
Advantage of PVC fittings: they are corrosion-resistant, moisture-resistant, lightweight, cost-effective, and easy to install.
Common applications include wiring in residential and commercial buildings, industrial facilities, outdoor and underground installations, automotive and aerospace wiring, and renewable energy systems.
Conduit fittings help prevent wire insulation damage, minimize the risk of electrical shorts, and reduce exposure to hazardous elements, thereby enhancing the overall safety of electrical systems.
It is very important to consider the fitting’s resistance to moisture, UV rays, and temperature fluctuations. PVC and metal fittings are excellent choices due to their durability in outdoor environments.
