Electric fan mounting brackets

Types of Electric Fan Mounting Brackets

Electric fan mounting brackets are used to install or hold an electric fan in a particular position and place. Normally, the brackets are bolted to the rear housing of the fan. They are available in different styles to suit particular needs and requirements.

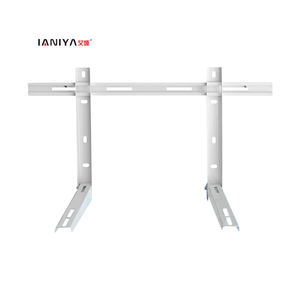

• U Shaped Electric Fan Mounting Brackets: U-shaped mounting brackets are designed to provide stable support for electric fans. They are often fastened horizontally or vertically to walls or other flat surfaces, providing a stable mounting platform for the fan. This type of bracket allows the fan to be fixed at a certain angle and position, ensuring that the airflow is distributed in the desired direction.
• Universal Electric Fan Mounting Brackets: Universal electric fan mounting brackets are designed to fit multiple types and models of electric fans. They usually come with adjustable holes and a flexible mounting structure, which makes them well-matched with fans of different sizes and shapes.
• Z Shaped Electric Fan Mounting Brackets: The Z-shaped mounting bracket is often used in the suspension application of the electric fan. It provides a stable support point for the fan by fixed one end to a flat surface, a wall, or another mount, while the other end is fastened to the rear housing of the fan. This allows the fan to be mounted vertically or horizontally, providing a certain degree and range of motion.
• Drop Center Fan Mounting Bracket: Drop center brackets are commonly used for fans that need to be mounted to the side or need to have a raised center. They provide support and fixation for the fan by dropping down or offsetting from the mounting surface. This type of bracket is usually used for specific applications or needs to provide a unique mounting solution.

Specification & Maintenance

Electric fan mounting brackets have different specifications based on factors such as model and application. Common specifications are as follows:

• Materials and Coating: The materials and surface coating of the brackets are intended to withstand the test of time. Stainless steel, zinc-coated metallic substances, and reinforced polymers are among the varieties utilized for vehicle or industrial equipment fan brackets.
• Size and Weight Limits: The dimensions (length, width, height) of the fan mounting brackets to guarantee proper fitting with the fan and support its weight are specified. Different electric fans' weights and space constraints necessitate the use of brackets with varying sizes and weight restrictions.
• Adjustability: The adjustability of the bracket mounting position and angle is included in the specs. It allows users to align the fan hole with other components' holes. Depending on the needs, some brackets can change the position from a central location to the left or right. The tilting angle adjustment can affect airflow direction.

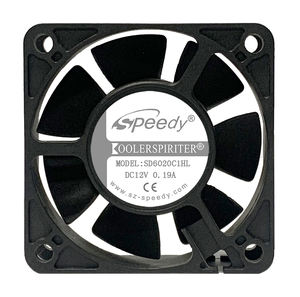

• Compatibility: The specification involves stating compatible fan models, such as standard size fans (e.g., 120mm/140mm square fans) and specific industrial fans. Ensure easy coupling with the electric fan.
• Installation Method: A detailed specification of the installation method is given, including a diagram and text description. The method is shown, and the installation order is presented to assist users in comprehending the installation better.

The electric fan bracket needs regular upkeep and care while working to keep the electric fan supporting bracket itself and the electric fan it is to support in excellent shape. Maintenance instructions are as follows:

• Check-Up: Examine the fan brackets periodically for signs of aging, breakage, rust, etc. Make sure the brackets can still support the weight firmly and stably without any looseness or wobbling.
• Fasteners: Check the screws and nuts periodically to ensure that they are tightly fastened and not loose. If any parts are found to be loose, they must be refastened.
• Anti-Rust Treatment: For steel brackets, anti-rust treatment should be done periodically to ensure that the coating remains effective and prevents rust from occurring. If rust is already present, remove it promptly and repaint it.
• Environmental Control: Environmental control requires keeping the surroundings where the fan is located under proper conditions. Avoid high humidity and corrosive gas exposure.
• Lubrication: Lubrication maintenance should apply lubricant to the adjustable parts of the brackets periodically. It should ensure that adjustments remain smooth and easy to operate.
• Clean-Up: Clean up the surface of the mounting brackets and the surrounding area to remove dust and dirt. It helps avoid obstructing the heat dissipation of the electric fan and the brackets and affecting the cooling part.

Usage scenarios of electric fan mounting brackets

• Warehouses:

• Classroom:

• Gym:

  The mounting brackets can fix the fans at the optimal height and angle for effective ventilation and cooling. Electric fans play a key role in keeping gym spaces comfortable. Therefore, durable mounting brackets are necessary.

• Restaurants:

  Electric fans can provide a steady flow of air to keep dining areas well-ventilated and customers cool. Electric fan mounting brackets are useful for fixing and adjusting the positions of electric fans. The electric fans can be tightly fixed and steadily worked through the mounting brackets.

• Offices:

  Mounting brackets provide support for installing fans on walls or other surfaces. Offices often use wall-mounted fans or table fans. Brackets help adjust the height and angle of the fans according to individual needs.

• Outdoor sports fields:

  Athletes and viewers gather in the sports field. Mounting brackets can fix the position of the electric fans steadily. Thus, all the people in the sports field can benefit from the cooling wind.

• Supermarkets:

  Supermarket staff can use brackets to adjust the fans' height and angles. Fans can be positioned at the most effective locations for ventilation and cooling.

• workshop:

  Workshops may face high temperatures and stuffy situations. Electric fans can provide a flow of air to alleviate the stuffy situation. Electric fan mounting brackets can help fix the position of the fans. Electric fans are steadily worked at the optimal positions through the brackets.

How to choose electric fan mounting brackets

It is important to consider the following factors when choosing a big wall fan mounting bracket for the general public.

• Adjustability and flexibility

  One of the most important requirements for electric fan mounting brackets is adjustability and flexibility, allowing fans to change directions. Brackets that allow for multi-directional adjustments, such as up-and-down or side-to-side, are the most preferred options. To enable optimum positioning and comfort, individuals are more inclined to use brackets that provide a variety of angles and positions regardless of height, neck length, or the size of the fan.

• Ease of installation and stability

  Installation stability and convenience are also key considerations when selecting electric fan holders. Electric fan mounting brackets with clear directions, installation tools, and a straightforward installation procedure can help people quickly attach the fan to the wall. Additionally, after installation, a stable bracket will ensure that the fan remains in its proper position and functioning without interruption.

• Material and durability

  Material and durability are other crucial factors when choosing an electric fan mounting bracket. Mounting brackets made of sturdy materials, such as metal or engineering plastic, are more likely to have a long service life. Moreover, adjustments, installations, and detachments of the fans are very frequent, and it is essential to use brackets that can withstand prolonged use.

• Compatibility

  Compatibility is another important consideration when selecting an electric fan mounting bracket. Users frequently employ fans of numerous brands and models. Therefore, it is imperative to ensure that the chosen bracket can be successfully mounted on their fan model.

Q&A

Q1: What are the latest trends in electric fan mounting brackets design?

A1: One of the most popular trends in electric fan mounting brackets design is silent technology. Manufacturers are producing brackets that quickly secure the fan to the mount without squeaking or making noise. This bracket allows for functional and peaceful living and workplace spaces.

Q2: How do users install a ceiling fan with mounting brackets?

A2: Users can install a ceiling fan by first attaching the ceiling bracket to the mounting hole. They will then attach the fan motor to the ceiling bracket. Before climbing down, the user should check if the motor is securely fastened to the bracket. The next step will be connecting the motor to the electrical supply. After this, they can mount the fan blades to the motor. Finally, they can test the fan.

Q3: Do electric fan mounting brackets affect airflow?

A3: Yes. Brackets ensure that the fan is properly positioned to optimize airflow. Positioning the fan at the correct height and angle will allow the user to obtain the highest air circulation.

Q4: Are universal electric fan mounting brackets available?

A4: Yes. Universal brackets can fit any fan, regardless of the brand. They are commonly used in custom installations or replacements where the original bracket is unavailable.
