Types of EFI Fuel Injection Kits
As with many other engine components, EFI fuel injection kits are not a one-size-fits-all kind of product. Each type offers distinct advantages and is suited for different applications. Understanding these differences is crucial for selecting the right system for your specific needs.
Single-Port Fuel Injection Kit
The most basic and oldest type of EFI system, primarily used in motorcycles, ATVs, and other small engines. Features only one injector that sprays fuel into the engine's intake system in a single location.
Also known as: Throttle body fuel injection
Multi-Port Fuel Injection Kit
More advanced system commonly used in cars, trucks, and larger engines. Features separate injectors for each engine cylinder, ensuring even fuel distribution throughout the engine.
Benefits: Better fuel efficiency and improved engine performance
Direct Injection Fuel System
The latest and most advanced EFI technology designed for modern engines. Delivers fuel directly into the engine's combustion chamber at high pressure.
Advantages: Enhanced control of fuel mixture, improved power output and fuel economy
| EFI Kit Type | Best Application | Key Benefits | Cost Level |
|---|---|---|---|
| Single-Port/Throttle Body | Small engines, motorcycles, ATVs | Simple design, easier installation, cost-effective | Low |
| Multi-Port | Cars, trucks, larger engines | Even fuel distribution, better performance | Medium |
| Sequential Fuel Injection | Performance vehicles | Precise timing, better fuel efficiency | Medium-High |
| Direct Injection | Modern high-performance engines | Maximum power, optimal fuel economy | High |
Expert Tip: If you're upgrading from a carburetor system, a throttle body injection kit often provides the easiest transition while still delivering significant performance improvements.
Additional EFI System Types
- Sequential Fuel Injection Kit
A specialized type of multi-port fuel injection system that injects fuel into the intake manifold in a specific order, typically following the engine's firing order. This precise timing ensures that fuel enters the combustion chamber exactly when needed, resulting in better fuel efficiency and improved engine response.
- Throttle Body Injection Kit
Similar to single-port injection, these EFI fuel kits feature one or two injectors mounted directly on the throttle body in the engine's air intake system. While less expensive than multi-port or direct injection systems, they offer lower efficiency as the fuel-air mixing occurs later in the intake process.
Specifications and Maintenance of EFI Fuel Injection Kits
Understanding the key components of an EFI system is essential for proper selection, installation, and maintenance. Each component plays a vital role in the overall performance and reliability of your fuel injection system.
Pressure Regulator
Maintains consistent fuel pressure within the fuel rail under varying load and operating conditions. Proper regulation ensures the correct air-fuel mixture for optimal engine performance and emissions control.

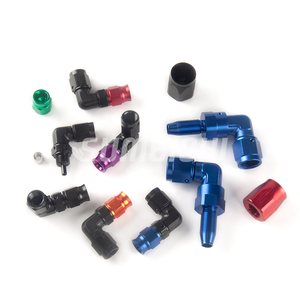

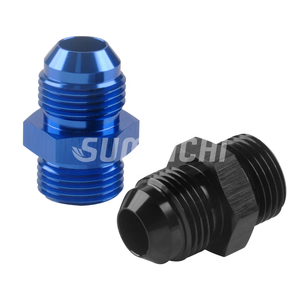

Fuel Lines
Deliver fuel from the tank to the injectors, withstanding high pressure from the electric fuel pump. Typically made of corrosion-resistant materials like stainless steel, nylon, or Teflon.
Fuel Filter
Removes impurities and contaminants before fuel reaches the injectors. Features high flow rates to meet the demands of high-pressure systems.
Maintenance Tip: Replace fuel filters according to manufacturer recommendations (typically every 30,000 miles) to prevent restricted fuel flow and potential injector damage.

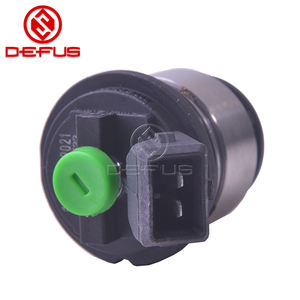

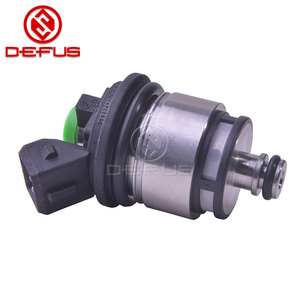

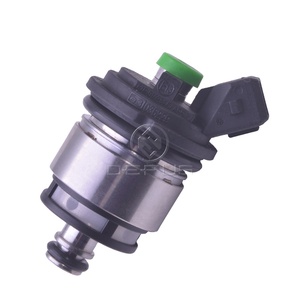

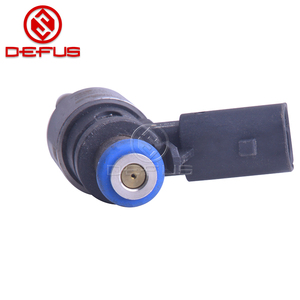

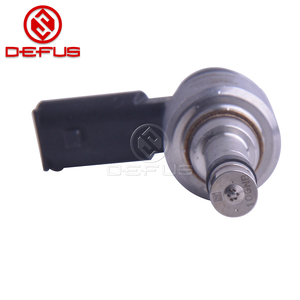

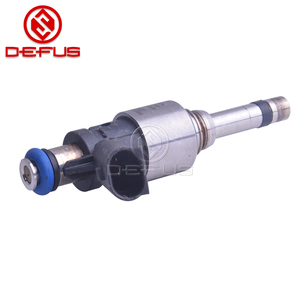

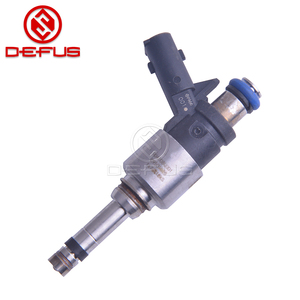

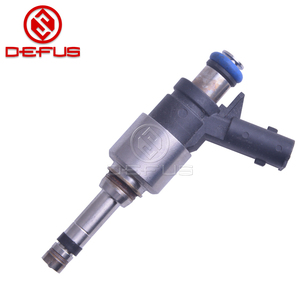

Fuel Injectors: The Heart of Your EFI System
Fuel injectors are precision-engineered components that atomize and deliver fuel to the engine's combustion chambers. Their performance directly impacts engine efficiency, power output, and emissions.
| Maintenance Task | Frequency | Purpose |
|---|---|---|
| Injector cleaning | Every 30,000 miles | Remove deposits, ensure proper atomization |
| Visual inspection | During routine service | Check for leaks, damage, or loose connections |
| Flow testing | If performance issues arise | Verify proper flow rate and spray pattern |
| Fuel additive treatment | Every 3,000-5,000 miles | Prevent deposit buildup and maintain efficiency |
Warning: Leaking fuel injectors can lead to poor performance, reduced fuel economy, and potential safety hazards. If you notice fuel smells, excessive smoke, or rough running, inspect your injectors immediately.
How to Choose EFI Fuel Injection Kits
Selecting the right EFI fuel injection kit can seem daunting, especially for beginners. This comprehensive guide breaks down the critical factors to consider when making your purchase decision.
Application & Purpose
Different vehicles and performance goals require specific EFI solutions. A racing application demands different features than a daily driver or off-road vehicle.
Key question: What is your primary use case?
Engine Compatibility
Ensure the EFI kit matches your engine's specifications, including displacement, number of cylinders, and power requirements.
Important check: Verify manufacturer's compatibility list
Budget Considerations
EFI kits range from basic systems to comprehensive performance packages. Determine your investment level before shopping.
Price range: $600-$3,000+ depending on features
Expert Advice: If you're on a tight budget but want EFI benefits, consider a throttle body injection system first. You can always upgrade to a more advanced system later as your budget allows.
Additional Selection Factors
- Future Upgrade Potential
Consider your long-term plans for the vehicle. Choose a system that can accommodate future engine modifications or power increases without requiring a complete replacement.
- Installation Complexity
Some kits are designed for DIY installation, while others may require professional expertise. Assess your mechanical skills honestly before committing to a self-installation project.
- Technical Support
Manufacturer support, documentation quality, and community forums can be invaluable resources during installation and tuning. Research the level of support available for your chosen kit.
- Tuning Requirements
Some systems offer self-learning capabilities, while others require manual tuning with specialized software. Consider your comfort level with engine tuning and calibration.
| EFI System Type | Installation Difficulty | Tuning Required | Best For |
|---|---|---|---|
| Basic Throttle Body | Easiest | Minimal (often self-learning) | Beginners, carburetor replacements |
| Multi-Port | Moderate | Base maps with fine-tuning | Performance enthusiasts |
| Sequential | Challenging | Detailed mapping required | Serious performance builds |
| Direct Injection | Most complex | Professional tuning recommended | Modern high-performance engines |
How to DIY and Replace EFI Fuel Injection Kits
Installing or replacing an EFI fuel injection kit can be accomplished with careful preparation and attention to detail. This step-by-step guide walks you through the process from safety preparations to final testing.
Safety Warning: Working with fuel systems involves flammable materials and potentially dangerous components. Always work in a well-ventilated area, avoid open flames or sparks, wear appropriate safety gear, and follow all manufacturer instructions.
Safety Preparation
Wear safety goggles and gloves, ensure your workspace is well-ventilated, and have a fire extinguisher nearby. Disconnect the negative battery terminal before beginning any work.
Relieve Fuel Pressure
Locate the Schrader valve on the fuel rail and carefully press it to release pressure from the system. Collect any fuel in an approved container and dispose of it properly.
Remove Air Intake System
Using appropriate tools, remove the air intake components to gain access to the fuel injection system. Document the position of all parts for easier reassembly.
Disconnect Electrical Connections
Carefully unplug all electrical connectors from the fuel injectors, sensors, and control modules. Label connections if necessary to ensure proper reconnection.
Remove Fuel Components
Disconnect fuel lines using appropriate fuel line disconnect tools. Remove the fuel rail retaining bolts and carefully extract the fuel rail with injectors attached.
Install New Injectors
Apply a small amount of clean engine oil to the new injector O-rings. Install injectors into the fuel rail and ensure they are properly seated.

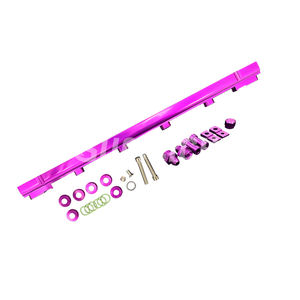

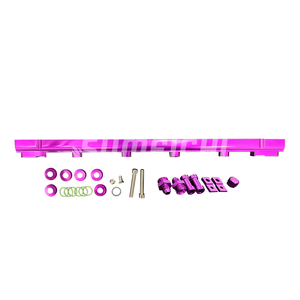

Install New Fuel Rail
Carefully position the fuel rail with attached injectors onto the intake manifold. Ensure each injector is properly aligned with its port. Secure the rail with retaining bolts to manufacturer specifications.
Reconnect Fuel and Electrical
Reconnect all fuel lines, ensuring they click securely into place. Reconnect electrical connections to all components, verifying proper seating of each connector.
Reassemble and Test
Reinstall the air intake system. Reconnect the battery, turn the key to "on" position (without starting) to pressurize the system, and check for fuel leaks. Start the engine and verify proper operation.
Installation Tip: When installing a complete Holley Sniper EFI kit or similar system, follow the manufacturer's specific installation sequence. These systems often include detailed calibration procedures that must be followed for optimal performance.
Frequently Asked Questions
An EFI (Electronic Fuel Injection) system offers numerous advantages over traditional carburetor setups. The primary benefits include:
- Improved fuel economy (typically 10-15% better than carburetors)
- Increased horsepower and torque across the RPM range
- Easier engine starting in all weather conditions, especially cold
- Reduced emissions and environmental impact
- Better throttle response and drivability
- More precise fuel delivery at various altitudes and temperatures
- Reduced maintenance compared to carbureted systems
Watch for these common indicators that your EFI system may need attention:
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Engine stalling or hesitation | Fuel pressure issues, clogged injectors | Check fuel pressure, clean/replace injectors |
| Rough idling | Air leaks, dirty injectors, sensor failures | Inspect intake, clean injectors, test sensors |
| Engine misfires | Faulty injectors, spark issues, vacuum leaks | Test injector flow, check ignition, inspect vacuum lines |
| Decreased fuel efficiency | Improper fuel mixture, leaking injectors | Check O2 sensors, inspect for fuel leaks |
| Check Engine Light activated | Various sensor or system failures | Perform diagnostic scan for error codes |
With proper maintenance, an EFI system can provide reliable service for 100,000 to 150,000 miles or more. Key components like fuel pumps and injectors typically have different service intervals:
- Fuel Injectors: 50,000-100,000 miles (can last longer with clean fuel and regular maintenance)
- Fuel Pump: 60,000-100,000 miles
- Fuel Pressure Regulator: 80,000-100,000 miles
- Fuel Filter: 30,000-50,000 miles (replacement interval)
- Oxygen Sensors: 60,000-100,000 miles
Regular maintenance practices that extend EFI system life include:
- Using quality fuel with appropriate additives
- Replacing fuel filters according to manufacturer recommendations
- Periodic injector cleaning services
- Addressing check engine lights promptly
- Maintaining proper electrical system function
Yes, most carbureted engines can be converted to EFI with appropriate conversion kits. These kits typically include all necessary components, such as the throttle body, fuel pump, sensors, and electronic control unit. Modern conversion kits like the Holley Sniper EFI are designed for simple installation, often requiring minimal modifications to the existing engine. Benefits of conversion include improved cold starting, better fuel economy, increased performance, and reduced maintenance.
A basic EFI installation typically requires:
- Standard socket set and wrenches
- Specialized fuel line disconnect tools
- Digital multimeter for electrical testing
- Wire crimping/stripping tools
- Fuel pressure gauge
- Safety equipment (gloves, eye protection)
- Shop manual or detailed installation instructions
For more complex installations or tuning, you may also need a laptop with appropriate tuning software and interface cables.
