Eddy current testing equipment is a nondestructive testing method to test the conductivity of materials. Eddy current instruments are used to detect cracks in materials, and they include eddy current probes, eddy current gauges, handheld conductivity meters, ultracompact eddy current testers, and precision eddy current testers. These tools are detailed below.
An eddy current probe detects surface and near-surface faults in conductive materials. It works by using fluctuating magnetic fields to generate circulating currents, known as eddy currents, within the test material. Any defects alter the current flow, and the probe senses changes in the current or field, indicating the presence and nature of defects. Eddy current probes excel in materials like aluminum, copper, and steel and are commonly used in aerospace and automotive NDT.

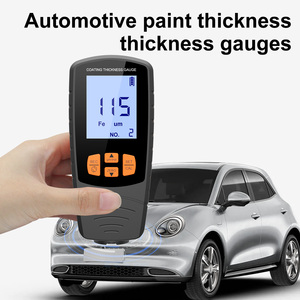

An NSC eddy current gauge is used for measuring coating thickness in nonferrous metals. When assessing coating thickness, the gauge releases eddy currents into the substrate, and the resulting field interacts with the coating. It enables precise thickness measurement by returning to the surface and calculating the distance the current traveled. Eddy current gauges work on the principle that the eddy currents within the substrate will adjust in response to defects or variations in the coating, affecting the measured distance. These gauges are useful in industrial settings where coating density affects the material's lifespan.
A handheld conductivity meter is a portable device for measuring a metal's eddy current. It works by sending an induced current through the material and measuring the resultant voltage drop. The meter is then used to calculate conductivity using Ohm's law. This tool quickly assesses metals in various settings, including quality control. It identifies materials, ensures they meet specifications, and checks for wear or damage in parts, providing instant, on-site evaluations with precision and ease.
The ultracompact eddy current tester is among the newest eddy current tester types. The tester measures conductivity, providing clear results in real time, and is extremely small compared to traditional testers. Thus, it can be easily carried around. Also, its wireless functionality gives it a more flexible design. The device allows users to quickly check metal types and grades. In addition, engineers find the tester handy for doing on-the-spot analyses while making sure the metals they use have the right properties.
A precision eddy current tester is employed to assess a metal's conductivity with exceptional accuracy. It generates eddy currents within the material, pinpointing minute variations in conductivity. Such sensitive detection caters to fields like aerospace and electronics, where even the slightest conductivity fluctuations can signify differences in material quality or composition. This equipment plays a pivotal role in ensuring that the metals used in critical applications meet stringent quality and performance standards. To stay up-to-date, visit Alibaba.com for recently added products.
Eddy current equipment is used in many industries for quality control, safety, maintenance checks, and verifying that materials meet specific standards. Here are some of the key places where eddy current testing is most useful.
Eddy current testing finds extensive applications in the aerospace industry for detecting surface cracks and flaws in critical components. These may include aircraft wings, landing gear, and engine parts. Since most of these parts are made of lightweight, conductive materials like aluminum and titanium, eddy current testing becomes the most suitable testing method due to its ability to detect both surface and subsurface defects without damaging the materials. Also, eddy current testing checks for corrosion and helps ensure all components meet the required safety and performance standards set by the aerospace industry.
Automotive industries use eddy current testing in non-destructive ways to ensure safety, efficiency, and performance. It is predominantly applied to check critical vehicle components such as brake rotors, wheels, and transmission parts. Eddy current testing picks up cracks, material defects, and even residual stresses that may occur after the components have been machined or subjected to high levels of stress. Because most of these components are made from conductive materials like copper, aluminum, and various steel alloys, eddy current testing works effectively in detecting surface and near-surface defects. In addition, it tests the quality of welded joints and checks for corroded components, thus playing a key role in maintenance and quality assurance in the auto industry.
Weak or flawed materials used in manufacturing machinery or production parts can lead to system failure, reduced efficiency, and costly downtimes or even casualties. Eddy current testing works well for all of this by detecting surface and subsurface flaws in conductive materials, enabling manufacturers to identify potential defects before they become a hazard. In addition, it tests components commonly used in the manufacturing space, such as rolls, plates, and tubes. Either way, eddy current testing helps manufacturers streamline operations, enhance safety, optimize maintenance schedules, and cut down on wastage.
The energy sector uses ehnits for inspectioningnd power generation and oil and gas extraction processes. Eddy current testing detects corrosion, cracks, and other material defects in critical components such as pipelines, heat exchangers, and turbine blades. Since these materials are often exposed to extreme conditions, including high temperatures, pressures, and corrosive environments, eddy current testing becomes the most effective way to ensure the integrity of these components. Also, in the oil and gas industry, eddy current testing is widely used on tubing, casings, and other downhole equipment to ensure they are in good shape and not exposing anyone to risks. By going for routine eddy current testing, companies in the energy sector can improve their maintenance strategies, reduce unplanned outages, and ensure their operations remain safe and efficient.
Extremely sensitive eddy current equipment and eddy current testing are commonly used in the electronics sector for quality control and assurance. It detects surface defects, cracks, and material inconsistencies in electronic components such as circuit boards, connectors, and capacitors, ensuring they meet set product standards before they get incorporated into larger systems or sold as standalone products. Additionally, eddy current testing is used for verifying the composition and purity of electrical metals to ensure maximum conductivity and performance, an important consideration in making electronic parts. Also, it helps check and manage the reliability and lifespan of electrical components to avoid product failures, which can have serious repercussions in areas like telecom or computing.
Eddy current instruments have features that support their function. They include probes, gauges, conductance meters, and testers, which come with different features and specifications.
Testing frequency
The testing frequency of eddy current testers varies but is usually adjustable between 30 Hz and 100 kHz. A high frequency penetrates thin materials and increases resolution, while a low frequency works better for deep penetration in thick materials.
Test range/depth
The test range usually spans from a few millimeters to several centimeters, mainly depending on the test material and the frequency used. The depth of penetration ranges from 1 to 3 mm for most applications, though sometimes it can go deeper into the material.
Resolution
The resolution of eddy current testers ranges from 0.1 to 10 micrometers or millimeters, depending on the model and application. Most high-end testers come with a sensitive and highly precise measurement to detect minor changes in conductivity or thickness. This is vital for applications requiring pinpoint accuracy, such as aerospace and electronics.
Operating temperature
The operating temperatures of eddy current testers normally range between -10 and 50°C. Some advanced testers can operate well even in extreme conditions of heat or cold. They maintain performance under unfavorable working environmental conditions. Such testers usually have thermal protection or sealing features.
Display type
Eddy current testers use LCD screens to display results clearly and intelligibly. Some testers have graphical displays that allow users to view waveforms and other relevant information. It helps a lot in data interpretation and analysis. Also, a few testers have touchscreen displays for easy navigation and configuration compared to older models that had backlit displays.
Battery life
These testers have batteries that last anywhere from 4 to 20 hours. The longer the battery life, the more testing clients can do without having to recharge or swap out the battery. Certain models have extended battery lives to enable longer field operations. In addition, some come with detachable batteries, allowing for quick replacements when working in continuous testing environments.
Apart from material inspection and testing equipment, there are quality and safety measures to consider when using eddy current testers.
Calibration and Maintenance
To maintain measurement accuracy, it's important to periodically calibrate eddy current testing equipment using standard references. Ensure the equipment is serviced regularly – check the probes for wear and tear and clean them to avoid interference during testing.
Environmental Influences
Temperature variations, humidity, and electromagnetic interference can affect tester performance. Store testers in controlled environments, and use shielding where necessary, to ensure stable results during testing.
Operator Training
Eddy current testing is less effective on ferromagnetic materials because the induced currents tend to dissipate quickly within the material. To get accurate and reliable results, operators had better get some proper training on how the machines work to use them properly. They should also learn how to interpret the results correctly and effectively for various applications.
Electrical Safety
Most eddy current testing equipment generates electromagnetic fields. While generally safe, it's better for users to follow some basic safety precautions, such as using equipment with proper shielding, wearing gloves, and avoiding the probe's immediate vicinity.
Personal Protective Equipment (PPE)
Users should wear PPE, such as gloves and safety glasses, while performing the tests, especially in industrial settings where there could be sharp metal edges or falling objects, as well as in areas with chemical exposure.
Equipment Handling
Ensure all tools and probes used for eddy current testing are handled with care, as breakages or chipping may cause erratic testing results or even injury to the use. After using, keep the tools safely stored away.
Workpiece Inspection
Before testing, check the workpiece for any sharp edges or potential hazards that could cause injury. If any sharp edge is noted, use a probe protector or handle the probe carefully while conducting the test to avoid injury.
A1: Eddy current testing equipment is largely used to detect conductive material defects. Some testers, like an eddy current gauge, can measure coating thickness in nonferrous metals, while handheld conductivity meters check the conductivity of metals.
A2: Small probes help contractors when doing their work. Probe holders and protectors come in handy when storing probes and protecting them from breaking or damage. Conductance standards are also useful to the contractors. It helps them calibrate the tester so that it can provide accurate and precise reading during the test. Lastly, carrying cases for protecting the eddy current testers and accessories during transport.
A3: Buyers must first consider the effectiveness of the equipment. They should also ensure the equipment has passed standard tests and works well for its intended purpose. In case of any defects, it should also be easy to troubleshoot. The test instruments should also be easy to operate. Lastly, they should consider the overall costs.
A4: To ensure quality results, users should make it a point to always calibrate the tester prior to use. Also, environmental factors that can influence the results, such as temperature, must be controlled. Operators should have a better understanding of how to read and analyze the results. Lastly, probes must be examined to ensure they are in good condition before conducting the test.
A5: Regular cleaning of the equipment after use is an effective way to maintain it. This cleans the residue left behind by the process, which can interfere with future results. Also, keep the equipment sheltered from environmental hazards such as moisture. Finally, conduct occasional checks to ensure the equipment is still functioning well.
