Types of DX7 printhead
The DX7 printhead is accessible in different configurations. Each type bears particular benefits and configurations that improve its application for multiple tasks. An understanding of the diverse types helps select the correct printhead for the fitting function.
Solenoid Printheads
These types of printheads are known to have bubbles in their nozzles. In addition, it uses air pressure, which helps push ink out of the nozzles effectively. This printhead is fit for thicker ink types, which include coatings and solvent-based inks. The adaptability of solenoid printheads makes it possible for use in different printing tasks.
Direct Printheads
Direct printheads are printheads that use pressure rather than air bubbles to push the ink out of the nozzles. This type of printhead is fit for those who do not prefer solvent inks with thicker textures. Direct printheads give high detail to images, which provides crisp graphics. This printhead is notably used when fine details are essential in the printing.
Hot-Swap Printheads
Hot-swap printheads are designed to manage solvent inks and include metallic nozzles with good thermal resistance. This feature makes them ideal for harsh working situations. They can also function without the need for printhead servicing. Printhead servicing includes cleaning or changing parts off the machine.
Commercial application of DX7 printhead
Sign and Graphics Industry
The dx7 printhead is popular in the sign and graphics industries. These printheads offer a high level of accuracy and can produce large signs and banners. In addition, the printhead is versatile in printing on several materials, for example, vinyl, which is often used in such applications. Moreover, the high speed and efficiency of the DX7 printhead mean that large orders can be completed within a short time without losing quality.
Textile Printing
Texile printing has also benefitted from the incorporation of the DX7 printhead into its operations. The printhead can deposit ink onto fabric with a high level of precision, resulting in vivid, long-lasting designs. Moreover, the printhead is capable of printing on a wide variety of fabrics, making it a flexible answer for clothing manufacturers and designers. Its efficiency facilitates the production of custom fabrics in bulk.
Industrial Printing
The solvent ink dx7 printhead is applied in the printing of non-conventional materials such as glass and metal. The use of the printhead in this field is due to its capacity to produce inks with special substances that can adhere to such materials. The resultant prints are durable and can survive harsh environmental factors.
Packaging Industry
Packaging industries also harness the capabilities of the DX7 printhead in creating colorful and functional package designs. Labels and other packaging materials printed using the DX7 printhead stand out due to the quality of their graphics. Additionally, the development of the printhead enables the printing of different inks, including those aimed at enhancing food safety.
Point of Purchase Displays
Pop displays require striking graphics that will able to attract consumers. Importantly, the DX7 printhead is capable of making such displays proficiently. Whether it is large posters or intricate display stands, this printhead brings the designs to life.

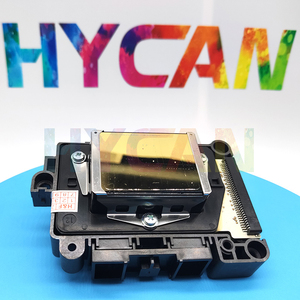

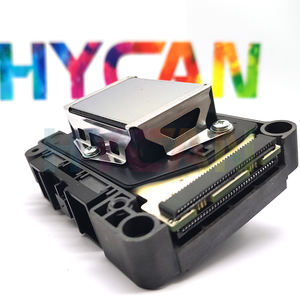

Product specification and features of DX7 printhead
Technical specifications
- Printhead Materials: The printhead is constructed from stainless steel, which enhances thermal and chemical endurance. The durable nature also guarantees extended functionality even under intense work conditions. The nozzle plate is built with an ultra-fine photoetched design that creates 1440 nozzles for precise ink deposition.
- Dimensional Specifications: The dx7 printhead is 73 mm in length and 51 mm in width. It occupies a modest area on machines. It also has a thickness of 15 mm. The inclusion of mounting holes also helps with easy installation in diverse printing machines. The holes are not only functional but also increase the overall stability of the printhead.
- Ink Compatibility: Compatible with solvent-based inks and dye-based inks, the DX7 printhead is an effective multi-purpose instrument. These inks give prints weather-resistant and durable characteristics suitable for indoor or outdoor applications.
- Print Modes: The printhead operates in varied modes, including high-quality and speed modes. Due to this flexibility, users change their printing depending on the requirements. Whether prioritizing quality or efficiency, the DX7 printhead accommodates those needs.
- Nozzle Configuration: The nozzles are allocated in a way that facilitates the printing of several colors at once. In addition, each nozzle can be set to different drop sizes. The range of drop sizes enables fine detail or bold coloration, depending on the needs of the printing task.
How to Install
- Installation Process:To begin with, the removal of the present printhead from the printing machine is necessary. This is done by loosening the screws or clamps holding it in place. Afterward, one should carefully disconnect the ink lines and electrical connectors from the old printhead. The installation of the new DX7 printhead follows. One should attach the printhead to the machine. Ensure to connect the electrical components and ink lines back.
- Alignment and Calibration: This means that after installing the new printhead, alignment and calibration are necessary for proper functioning. The printer's settings should be accessed and locate the printhead alignment option. Perform the alignment according to the printer's instructions. Calibration for ink usage and print quality settings follows.
Maintaining
- Maintenance Tips: Regular maintenance is important for the overall performance of the dx7 printhead. Cleaning the printhead should at least be done daily. This helps remove dried ink that can block the nozzles. Distilled water or a specialized cleaning solution should be used for cleaning. Weekly inspections, for instance, checking for physical damage or wear, are also recommended.
- Longevity Factors: The longevity of the DX7 printhead greatly depends on the maintenance level observed. Avoiding the use of low-quality inks that contain substances that may block the nozzles is important. Additionally, ensure that the printer operates within the recommended environmental conditions.
Printing and Operation
- Operating the Printhead: Before running the printhead, it is necessary to make sure that the correct print settings are selected. This means that the user should choose the desired resolution, ink type, and media. The printhead is then activated by sending a print command to the connected printer. This command should be for a document or an image. The printhead will then move from left to right to deposit ink onto the media in accordance with the specified settings.
- Optimizing Print Quality: For best quality, use high-quality media that is compatible with the ink being used. There should be no visible paper curling or warping. Media that is flat will provide optimum results. Another way of having good quality prints is regulating the ink levels in the cartridges. Sufficient levels of ink ensure that the printhead has all the materials needed to produce quality prints. Adjusting the printer settings like resolution and color management to correspond with the kind of printing needed is essential.
Quality and maintenance considerations of DX7 printhead
Ensuring print quality
Printhead quality is a major contributor to overall print quality. A worn or damaged printhead will cause prints to have streaks, blurry texts, or incorrect colors. Regular inspections for signs of wear or damage are critical. Inspect the printhead for ink residue, physical obstructions, or damage after long operational hours. Clean solid deposits from the printhead to avoid clogged nozzles, which adversely affect ink flow. Use official cleaning solutions or consult the manufacturer for suitable cleaning procedures.
Maintaining the printhead
- Regular Cleaning:Cleaning the printhead should be a daily, weekly, or monthly task as prescribed by the manufacturer's instructions. It should also be carried out by a professional to avoid using harmful methods that may damage the printing head. Dried or blocked ink within the printhead can significantly lower print quality. The cleaning of both the exterior and the interior of the printhead eliminates deposits that could obstruct its functions.
- Using Quality Inks: Using substandard inks leads to the formation of deposits in the printhead. In addition, low-quality inks may contain particulate matters that cause substantial wear on the printhead. Conversely, high-quality ink maintains not only the durability of the printhead but also the quality of prints. Users should ensure that they source the ink from credible suppliers to obtain the best products.
- Proper Humidity and Temperature Levels: Normal functioning of the DX7 printhead requires that the operating area has reasonable humidity and temperature levels. Excessive heat or low moisture levels cause ink to dry on the printhead. This hinders the printing process, causing blockage. On the contrary, high humidity can cause ink to flow unevenly. This creates a printed image that is not of good quality. Monitoring environmental conditions will create a conducive environment for efficient printing.
Using the printhead correctly
- Avoiding Overuse: Using the printhead for a long time without breaks reduces its durability. In addition, this prolonged usage leads to overheating or wearing of components. According to the manufacturer, the dx7 printhead should be allowed regular short breaks during extensive printing tasks. These breaks improve the quality of prints and increase their head's effective lifespan.
- Storage Conditions: Storage conditions of the printhead determine its readiness for use. If stored under extreme climatic conditions, the printing head may corrode or dry up.
Q&A
Q1: Solvent ink printhead operates positively in which printing?
The dx7 printhead is suitable for several materials. For instance, it can print on glass, plastic, metal, and even wood. Therefore, this head is widely used in the packaging industry.
Q2: What problems arise due to improper maintenance of the printhead?
Low ink levels in the prints cause the printhead to dry. This damages the printhead, as it will lack any internal protection against external elements. The use of poor quality or wrong ink causes fine particles to block nozzles. This leads to printhead failure.
Q3: What is the average lifespan of the dx7 printhead?
The average life of this printhead is 2 to 3 years. This is only possible if the users observe appropriate maintenance measures.
Q4: How does one identify when to replace their printhead?
If there are frequent nozzle clogs, color inconsistencies, or low ink flow. These are some indicators that it is time to replace the printhead. Additionally, physical damage and reduced printing quality will warrant a new printhead.
