Conveyor belts facilitate the smooth transportation of items in an industry. They have a wide application in material handling due to their efficiency, flexibility, and cost-effectiveness. These conveyor belts can be created by oneself, which makes them affordable and customizable to the needs of various industries.
The following are the commonly used conveyor belts in DIY projects:

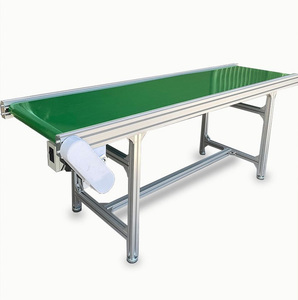

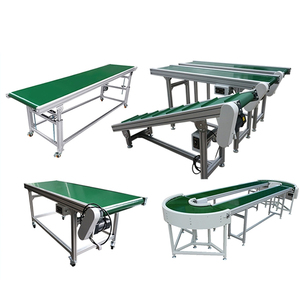

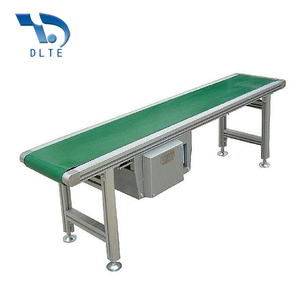

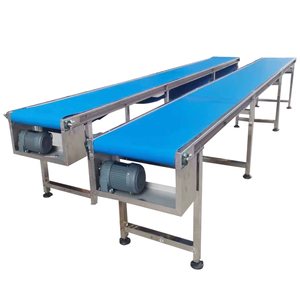

DIY Belt Conveyor System
A DIY belt conveyor system is an easy-to-assemble structure. It consists of a belt that runs over pulleys or rollers. The belt is made of fabric, rubber, or metal, depending on its application. Some such systems can be constructed using plywood, plastic rollers, and an electric motor sourced from old appliances. Materials that a DIY belt conveyor system is designed to convey include boxes, bags, and pallets.

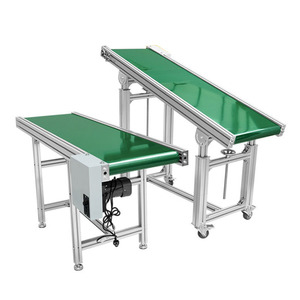

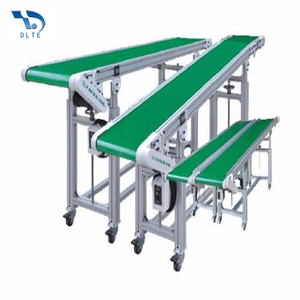

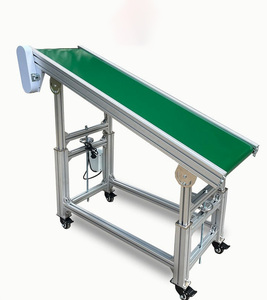

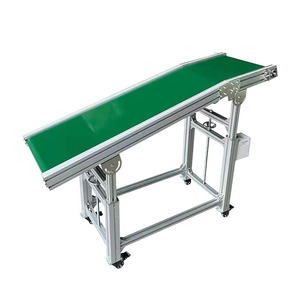

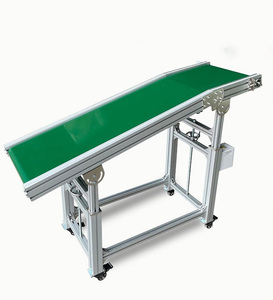

Adjustable Conveyor Belt System
This conveyor belt can be changed in length or angle depending on the material to be moved. Because of this feature, they can be applied at different loading levels, resulting in versatility. Adjustable conveyor belts are good for narrow spaces or when several loading levels need to be crossed. Usually, these systems are constructed using a basic frame, a belt, and tension pulleys to allow adjustments.
Screw Conveyor Belt System
A screw conveyor uses a rotating helical screw to move materials. Its design makes it ideal for handling bulk solids such as powders, grains, and pellets. Fabrication of a screw conveyor can involve a simple motor-driven screw blade fixed within a trough or tube. Standard practice is to use steel for the screw blade, which increases its durability in hostile environments.
Bucket Conveyor Belt System
This type of conveyor consists of a series of attached buckets that carry materials in either a horizontal or inclined belt. They are applied in transporting bulk materials such as grains, coal, and mineral ores. The DIY versions of the bucket conveyor might employ plastic buckets, a belt or chain, and a framework for the conveyor's support. They are suitable for conveying materials over short distances.
Slat Conveyor Belt System
This conveyor is distinguished by chains that run slats or plates across the belts. This allows the conveyor to handle products that are big or awkwardly shaped. It can be made using metal or wooden slats and a chain or belt drive. This conveyor has applications in assembly lines, especially where items need to be moved in a certain position or orientation.
Magnetic Conveyor Belt System
The system uses magnets to move ferrous materials and has an integrated magnet under the belt. It is commonly used in the recycling and metalworking industries to transport irregularly shaped materials; therefore, its main focus is to enhance stability. Magnetic conveyors are durably designed to withstand constant abrasiveness. The DIY systems can have refrigerator magnets fixed under an iron or steel belt.
A do-it-yourself belt conveyor system can apply to many industrial processes, which effectiveness, flexibility, and cost-saving features attribute to its large application in diverse material handling.
Assembly Line Automation
DIY conveyor belts can be used to automate product assembly processes. They move products from one assembly station to another, hence reducing time taken on manual transportation. In case of mobility to certain design features, the conveyor system can be adjusted to meet the specific needs of the assembly process.
Warehouse Operations
Warehouse operations that involve sorting and distributing products can employ DIY conveyor belts. They assist in moving packages and reducing the need for lifting, which in turn reduces physical injuries to workers. Because of their diverse applications, these belts can help fulfill certain warehouse functions, such as sorting or storage, particularly in narrow spaces.
Mining Industry
Screw conveyor belts can be applied to transport bulk solids like minerals, ores, and coal in the mining industry. Their function puts them in the best position to handle dense and abrasive materials. A further improvement in operational efficiency is possible through the construction of the conveyor systems, which can easily be modified to suit specific mining tasks.
Agriculture
In agriculture, bucket conveyors transport grains, seeds, and other agricultural products. It is suitable for conveying materials from storage to processing or vice versa. Because bucket conveyors can transport products vertically, they can easily optimize the space in storage systems in silos and towers.
Recycling and Waste Management
Magnetic conveyors separate metals from other wastes in recycling plants. They can easily dispose of ferrous materials such as steel, iron, and metallic waste in the recycling centers. The strength of the magnetic conveyor belt makes it suitable for demanding processes in the recycling industry.
Food Processing

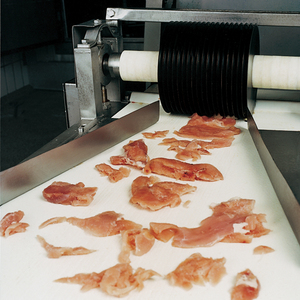

DIY conveyor belts apply in several food processing activities. They help in transporting food products for sorting, packaging, and processing. DIY conveyor belts that apply the slat conveyor have great application value in transporting products that are awkwardly shaped in the food industry, such as poultry or produce.
Textile Industry
In the textile industry, DIY conveyor belts facilitate fabric movement for cutting, sewing, or finishing. They can be designed to suit several textile operations due to their versatility and mobility in handling various materials.
Specifications of a DIY conveyor belt will depend on its application. These are some key features and specifications of the diy conveyor belt system:
Materials

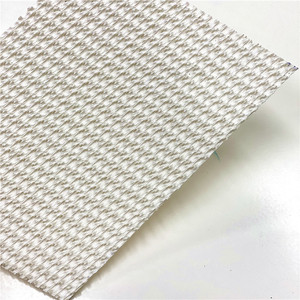

Various materials are used to make conveyor belts, depending on their application. They include rubber, fabric, metal, and plastic. The material acts differently and, therefore, will be chosen based on the weight and type of item that the belt will carry, as well as resistance factors like abrasion, temperature, and chemicals.
The frame of the conveyor is commonly made from steel, aluminum, or wood. All these materials have different strengths and durability levels. While steel frames are robustly built for heavy usage, aluminum frames are lightweight yet retain good strength. Wood frames are cheaper and easy to work with, though they may not provide the rigidity that metal does.
Motor Type
In most DIY conveyor systems, the motor plays a critical role in driving the belt. It may be sourced from an electric motor, car parts, or other appliances. Therefore, the motor's power rating will be determined by how much load the conveyor belt needs to carry. Low-powered motors work well for lighter applications, whereas more powerful ones are required for heavy-duty conveyance.
Load Capacity
In defining the conveyor, load-carrying capacity is one of the most important considerations. It refers to the maximum weight or bulk of materials the conveyor can handle without damaging itself. For example, the slat conveyor belts apply in heavy industries as they can carry large, awkwardly shaped, or dense items. Conversely, magnetic and bucket conveyors apply in light to moderate industries.
Belt Speed and Efficiency
Speed is how fast the conveyor moves, while efficiency considers the power consumed versus load carried. Usually, conveyor belt speed is adjustable in most DIY systems. This makes them applicable in different processes and optimizing energy consumption. Lower speeds convey loads more securely, while higher speeds complete the task faster, if not less securely.
Safety Features
Safety is not an exception, especially in the workplace. These can prevent overloading, slipping, and exposing workers to hazards. DIY conveyor systems can have several safety features, including emergency stop switches and cover guards over the roller systems. Some conveyor systems have modification potential that helps further enhance safety.
Application
What the conveyor belt will be used for will significantly impact types and designs greatly. Assembly applications require a wide, flat belt, while industries that deal with bulk materials can employ screw or slat conveyors. Those which have items that can slide, including magnetic conveyor belts, can be applied in recycling.
Material Compatibility
Compatible materials should be used on the conveyor belt and the system to handle them. For instance, rubber or fabric conveyor belts are used in conveying items that are packaged or in bulk. Slat conveyors convey items that are bundled or awkward in shape, while screw conveyors handle dry bulk material. Magnetic conveyor belts are ideal for objects with iron or steel.
Operational Efficiency
More efficient conveyor belts require better operational speed, load capacity, and energy consumption. Speed allows the material to be transported quicker, whereas higher load capacity handles more materials. Energy costs will be high in systems that require a high motor power. Choose systems that have efficiency increase features, such as speed modification and braking systems.
Space and Layout
Customary conveyor belts can be designed to fit into available spaces. Adjustable conveyor belts are applicable in limited space areas since their lengths and angles can be modulated. The layout of conveyor belts also impacts accessibility and maintenance.
Cost
Cost is always a crucial factor to consider. DIY conveyor belt systems are cheaper than bought ones since their parts are sourced from old appliances or cheap materials like wood and metal. With the cost of arena and therapy resource management keeping in mind, the belt conveyor should be long-lasting, and maintenance intervention should be kept at bay at a lower cost.
A1: Basic DIY conveyor belts can be easily made using low-cost materials like rubber bands, popsicle sticks, and pulleys. Advanced ones can be made using rollers and flat belts, which are sourced from old machines.
A2: A conveyor belt system consists of rollers, pulleys, and belts. The frame, motor, tensioners, and idlers combined with the mentioned parts make the system run smoothly and efficiently.
A3: A DIY conveyor belt has applications in sorting, transporting blue materials, and automating repetitive tasks. It also conveys packaged goods in warehouses and industrial spaces, including the construction and recycling spaces.
A4: While choosing a DIY conveyor system, consider ease of construction, cost, load capacity, and the materials to be moved. Other critical factors include space and the system's adaptability for future modifications.
