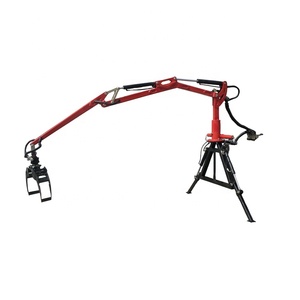

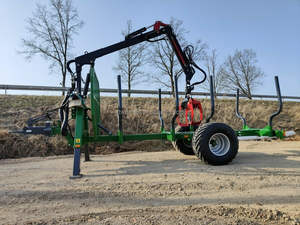

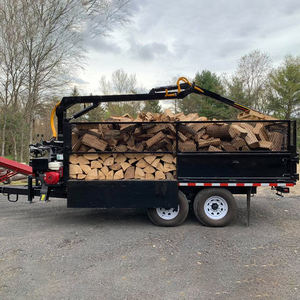

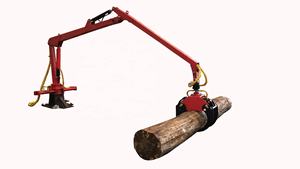

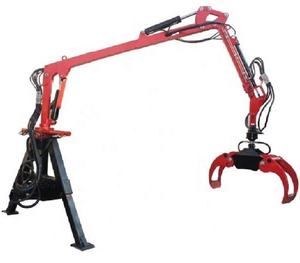

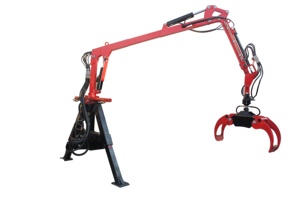

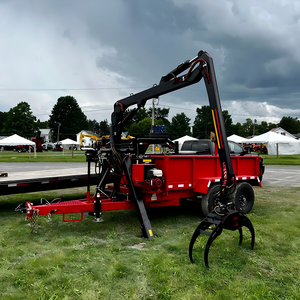

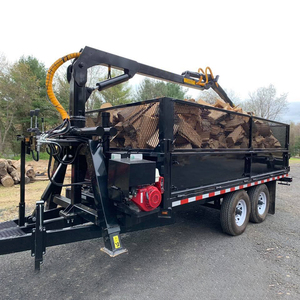

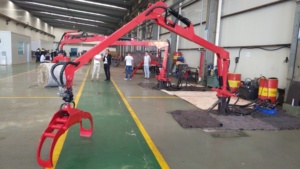

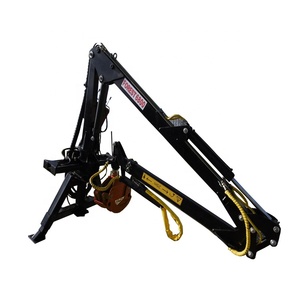

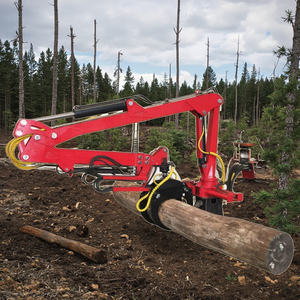

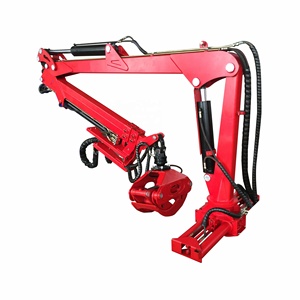

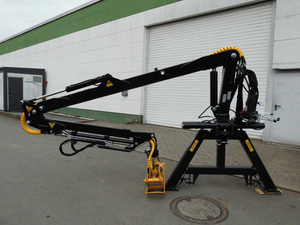

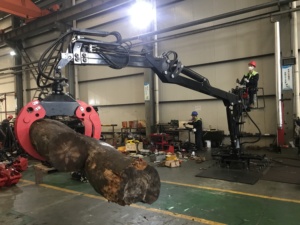

A crane with a grapple is a machine used to lift and carry materials. It usually consists of a claw-like attachment. The logs crane in the timber industry is designed to grab and lift logs. These types of grapples are used for bundling logs together or for single log handling. They can also be used for loading and unloading operations.
Vehicle-mounted cranes are equipped with a grapple are called garbage trucks. The crane is designed to collect waste materials or handle garbage (waste) operations. This includes loading waste into the truck or unloading garbage at a designated facility.
Mobile cranes are equipped with a grapple are called portainer cranes. These types of grapples are used to handle containers and goods at the port. They are used for loading and unloading container operations.
Hydraulic cranes are equipped with a grapple are called dredge cranes. These types of grapples are used for dredging operations. Hydraulic cranes are mainly used in open water bodies such as lakes, seas, or rivers. They are used for seabed excavation or for clearing underwater obstructions.
The tower crane with a grapple is an aerial device used to handle steel products in the steel industry. The steel tower cranes are used for loading and unloading steel materials or for handling steel products in warehouses or construction sites.
Below are some of the key specifications and maintenance requirements for a crane with a grapple.
Lifting capacity
This refers to the maximum weight the crane can lift. The grapples are designed for different weights, so it is important to choose a crane with a suitable lifting capacity for the intended application. To ensure safety, operators should regularly inspect the grapple of the crane and its components for signs of damage, such as cracks, deformities, or worn-out parts. Any damaged parts should be repaired or replaced immediately.
Operating radius
This refers to the maximum horizontal distance the crane can lift an object from its center, and it normally depends on the configuration of the crane. Operators should ensure the grapple is properly aligned with the load before lifting. To minimize the risk of accidents, do not exceed the crane's maximum operating radius and lift capacity.
Power source
A crane grapple is designed for electric, hydraulic, or diesel-powered cranes. The power source should be regularly inspected and maintained to ensure it is functioning properly. Do not overload the power source to avoid any kind of damage.
Grapple design

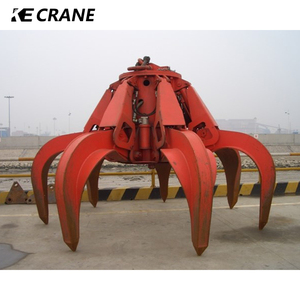

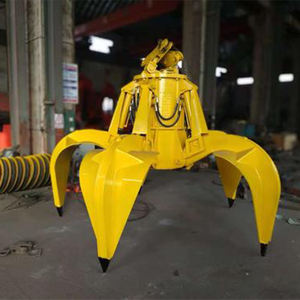

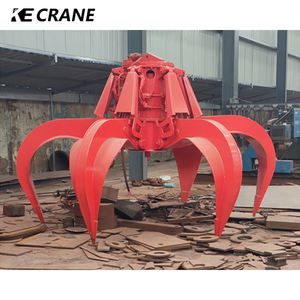

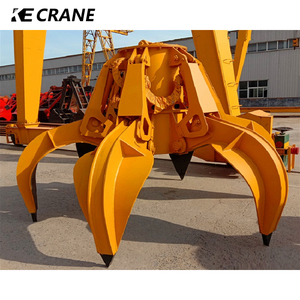

Operator should choose the appropriate grapple design (i.e., clamshell grapples or orange peel grapples) based on the shape and material of the load. Before using, the operator should ensure that the grapple is properly calibrated and assigned to the suitable lifting task to maximize efficiency and safety.
Gears and bearings
They are important moving parts, and they should be properly lubricated to ensure smooth operation. Regularly monitor the lubrication system, and if it's automatic, ensure it works properly. Apply grease to the parts as per the manufacturer’s instruction.
Cabin and controls
The cabin and controls of the crane should be regularly cleaned to remove debris, dust, and dirt. Also, the control systems like hydraulic crane controls and electromechanical ones should be inspected regularly to ensure they are functioning well and calibrated properly.
Material Handling in Ports and Docks:

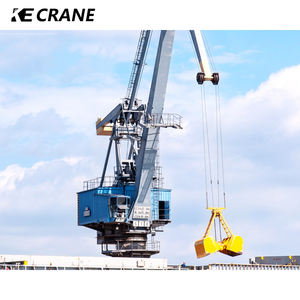

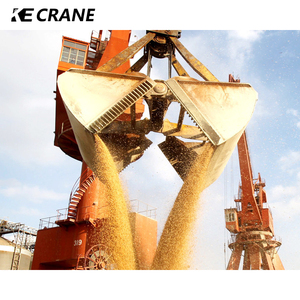

In dock and port settings, a crane with a grapple aids in moving bulky goods and containers. As an example, cargo containers arriving by sea are efficiently unloaded from vessels and stacked onto trucks or container piles by means of claw-like grapples. Furthermore, timber, coal, and other bulk material freight are handled using rotary or scrap grapples, which have different kinds of containerization and gripping mechanisms.
Construction and Demolition:
In construction or demolition settings, a crane with a material or scrap grapple serves different purposes. When gripping and lifting heavy construction materials like steel beams, logs, or pipes, a crane with a material handling grapple proves useful. Quantum Demolition grapples, which often have multiple jaw sets, are specialized for demolishing structures. They aid in dismantling buildings, towers, and bridges, and at the same time, they sort debris. In addition to this sorting task, some demolition grapples are equipped for recycling operations as well.
Mining Operations:
A crane with a heavy-duty scrap or hydraulic grapple is widely used in mining applications. It facilitates the handling of bulk materials such as coal, ore, and scrap. The operation of loading and unloading raw materials from trucks, vessels, and storage areas is also made easier by this machine. The efficient transportation of raw mineral products within the mine site is possible thanks to hydraulic grapples mounted on mobile cranes.
Agricultural Operations:

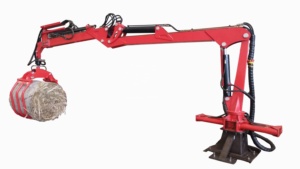

Agriculture sectors similarly benefit from cranes equipped with hydraulic or farm-specific grapples. These machines help with the easy loading and offloading of farm products such as fruits, fiber bales, and feedstuff bags, among others. Hydraulic peach and pod grapples are designed for harvesting fruit. They minimize damage to the product and boost the efficiency of the harvesting system.
Logistics and Warehousing:
In logistics and warehouse operations, a crane with a grapple separator is used for stacking, sorting, and separating products stored in pallets. It also aids in hoisting and transporting goods, especially in the foods and beverages industry.
When choosing a crane for a specific application, a few things need to be taken into account. This can include the type of grapple attachment if used, as well as the lifting capacity, the design of the machine, and other considerations like the open-air environment or the ground surface where the crane with grapple will be used.
This table sums up the factors to consider when choosing the right type of machine:
Grapple Attachment

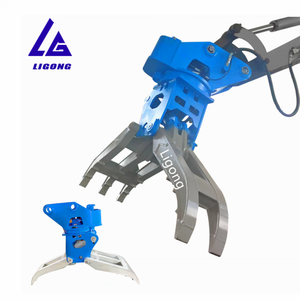

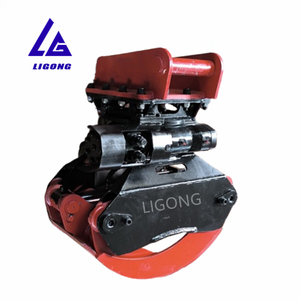

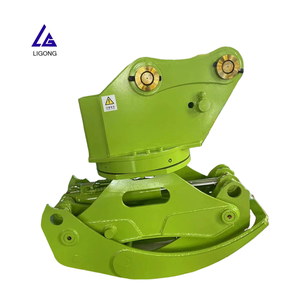

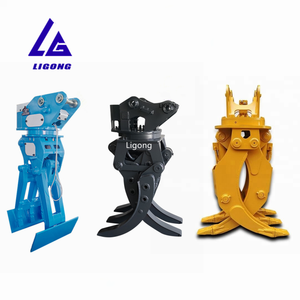

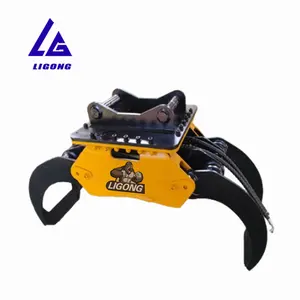

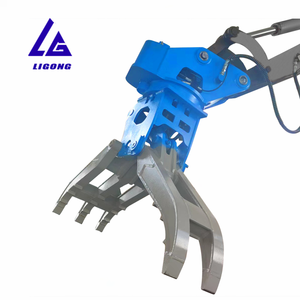

Some grapples are more suited to certain materials than others. For instance, a hydraulic log grapple is great for holding on to logs or tree branches. However, a rotating scrap grapple is best for irregular-shaped materials like metal scraps. So, choose the crane grapple that fits the specific material shape and characteristic.
Design
A tower crane with grapple is better suited for vertical lifting tasks, such as in construction. Conversely, an offshore crane with grapple works better for sea-based projects. A mobile crane is more suitable for logistics, while a fixed one is better for heavy-lifting tasks.
Also, consider whether the machine's duty cycle crane with grapple function should be like lifting heavy metal components or routine tasks. Choose a machine with crane duty classification that matches the intended use to ensure efficiency and avoid excessive wear.
Lifting Capacity
A crane machine's lifting capacity is determined by the maximum weight it can lift. This includes the loaded weight of the material or object plus the grapple attachment. When selecting a crane, make sure that its capacity is suited for the job at hand. Choose a machine that can handle the weight of the material to be lifted, along with the weight of the grappling attachment.
Ground Surface
A crawler crane with grapple is great if the job site has uneven and rough terrain, such as in mining operations. This is because it has tracks that provide stability and mobility on such uneven surfaces. A tower crane, on the other hand, is fixed and suited for lifting material to great heights, usually in construction projects.
Open Air Environment
Consider whether the crane will be used in an open-air environment exposed to harsh weather conditions or in an enclosed indoor space. An overhead crane with grapple is better for indoor use, while a mobile, tower, or luffing crane is more suited for outdoor use.
By taking these factors into account, an appropriate crane machine can be chosen that will perform efficiently and have a long operational lifespan.
Q1: What is the load capacity range of cranes with grapples?
A1: The load capacity of a crane with a grapple varies depending on the machine model. They can handle light loads (up to a few tons), medium loads (several tons to around 20 tons), and heavy loads (20 tons and above).
Q2: What are the power sources for cranes with grapples?
A2: Crane with a grapple can be powered by electricity, hydraulics, internal combustion engines, or pneumatics, depending on the design and application.
Q3: Are grapples precautions needed when using cranes with grapples?
A3: Yes, safety precautions are essential. Crane operators should be trained professionals. The load capacity should be observed, and the load should be stable when lifting. Applying grapples to avoid crushing hands and feet is better.
